We CSCPower, manufacturer and supplier specializing in diesel generator sets for more than 10 years,
are qualified and hoping to supply you with different solutions (quotations+specifications) for generators according to your specific requirements.
hope more about our generators products could be known to you, and know more about your markets.

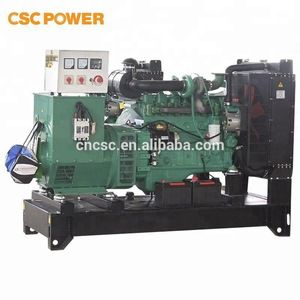

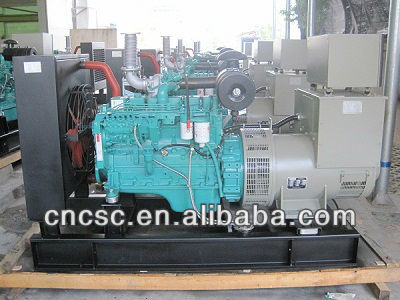

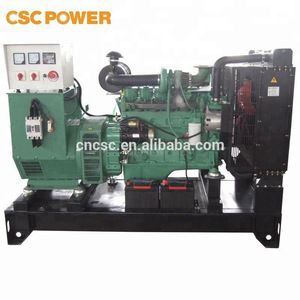

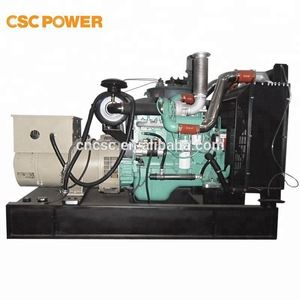

Diesel electric generator 100kva 80kw powered by with cummins engine engine
| Genset Data | ||
| Genset Model | CC110 |
 |
| Prime Power | 80KW/100KVA | |
| Standby Power | 88KW/110KVA | |
| Rated Voltage | 400/230V (Adjustble) | |
| Frequency | 50Hz | |
| Radiator | suitable for tropical weather 50°C | |
| Charge Alternator | 24V | |
| Dimension(L*W*H) (mm) | 2150*900*1300 (Open genset) | |
| Dimension(L*W*H) (mm) | 2750*1050*1450 (Silent genset) | |
| Net Weight (kg) | 1150KG/1500KG with canopy | |
| Base Feul Tank Capacity | Enough for Genset 8-10 Hours Continuous Running | |

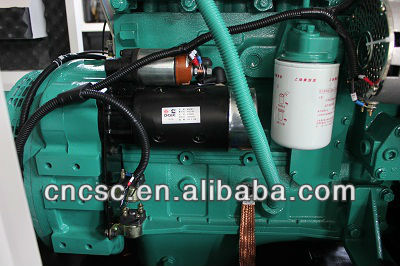

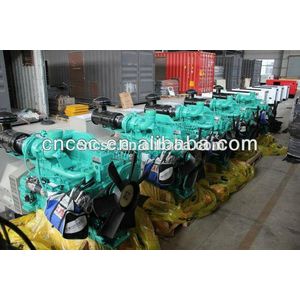

| Diesel Engine Data | ||
| Brand | with cummins engine |  |
| Model | 6BT5.9-G1 / 6BT5.9-G2 | |
| Governor Type | Mechanical / Electrical | |
| Rotating Speed | 1500 rpm | |
| Engine Cooling Method | Water-cooled | |
| Cylinder Nos. | 6 | |
| Fuel consumption | 21L/H at Cons. 75% Full Load | |
| Alternator Data | ||

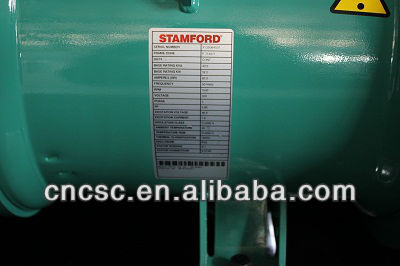

| Brand | Stamford / Leroy Somer/ China Stamford |  |
| Model | UCI274C / UCI274C / CSC-80KW | |
| Power Factor(COS Phi) | 0.8 | |
| Excite Type | Brushless SHUNT | |
| Connecting Type | 3 Phase & 4 Wires | |
| Insulation Degree | H | |
| Enclosure Degree | IP23 | |
| AVR voltage regulation rate | ≤±1% |
| Standard Supply Scope | ||||
| Exhaust silencer | Flexible pipes | Flange | Base frame | Main circuit breaker |
| Starting battery | Battery wires | Battery charger | Float battery charger | AVR |
| Cooling radiator | Wires diagram | Manual books | Auto control panel | Fuel tank |
| Optional Supply Scope | ||||
| Water preheater | PMG | ATS | External daily fuel tank | Silent canopy |
| Lub oil preheater | Anti-condensation heater | Synchronization panel | Automatic fuel pump | Weatherproof canopy |

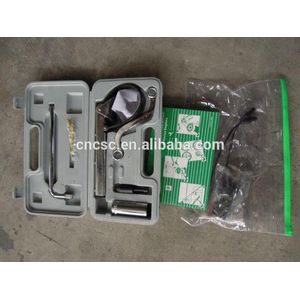

| Spare parts | Parallel droop | famous brand breaker | Oil drain pump | Mobile Trailer |
| Terms: |
| Global Warranty: 12 months after installation or 1000hrs running, depend on which come to earlier. |
| Delivery/Manufuacuring time: 15-40 days after down payment |
Control Pannel (Comap, Deepsea, Smartgen and Harsen)
Smartgen is chosen as standard supply scopy

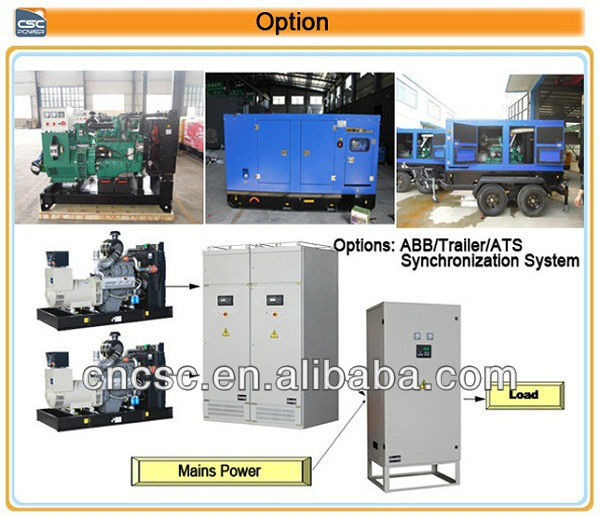

Option-famous brand breaker
Option-Trailer (2 or 4 wheels)
Option-ATS (Wall-mounted Type and Stand Type)
Option-Parelleling System

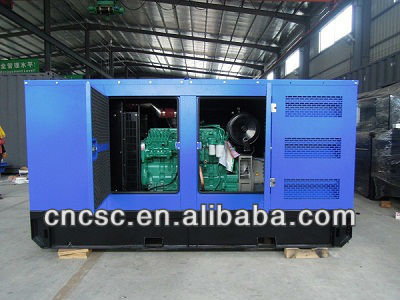

Silent Canopy Features:
1.designed by experienced acoustic engineers
2.adopts high quality cold steel soundproof materials+high quality paint
3.includes Capacity base fuel tank
4.noise reducing, weatherproof (anti-water, dust and dirt, etc.)
5.noice level: 70-73dB(A) at 7m
Advantages:
1.Neat design, easy transportation
2.outdoor type, could be applied in construction site, desert ,highland, mine etc
3.easy operation and maintenance, safety and security highlight
4.high efficient heat condition and low noise level
with cummins engine,Leroy Somer,Stamford OEM

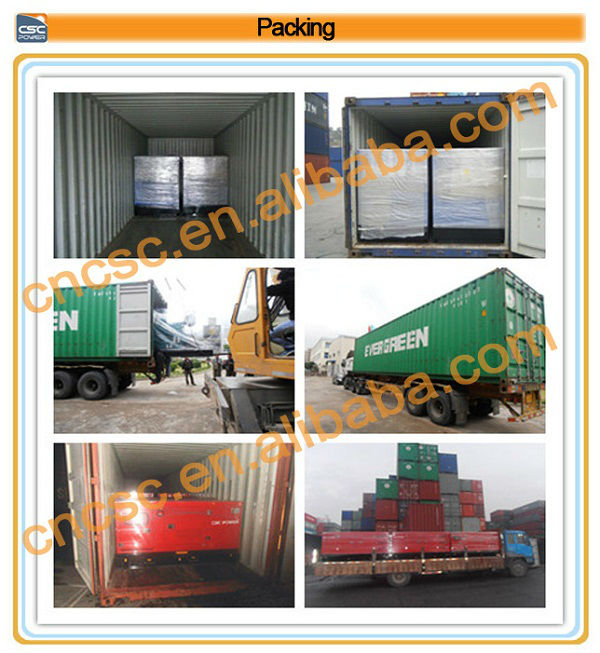

Our packings: Packed in standard seaworthy packing (wooden cases / plywood / foam / Polythene Plastic Wrapped etc.)
Global Warranty: 12 months after installation or 1000hrs running, depend on which come to earlier
Failure Remedy: Free spare parts due to failures cause by the quality
CSCPOWER supply best after-sales service.
FAQ Of DS-2F diesel generators prices
1.Which parameters you need to know? a.We design the product according to your request, such as: Power, Working Life, Water/Air-Cooler, Open Frame , Silent and Wheel |
2.How to deal with broken machine? a.We provide professional technical response to your question, we make Sure the configuration, feature, optional item can work.
Maintenance Return your parts to us (Freight by yourself) b. Enclose more parts when shipment Parts Reply to you as quickly as possible |
3. What do we warranty? One year quality warranty. Offer 24 hours service on telephone helpline. Whichever comes first. a.During guarantee period, we provide free quick-wear parts for problem caused by our quality of production or raw material. b.After expiration, we provide spare parts maintenance for half price. |
4.What about Guarantee? a.Good reputation for reliable quality and reasonable price b.Advanced production line by skilled workers c.Two hours strictly testing of the machine before shipment d.CE ISO BV |
