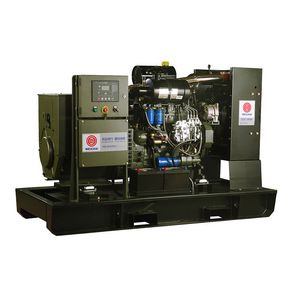

Maide 60kW/75kVA Diesel Generator Set
Product Features
| Genset | Rated power (KW) | 60kW/70kVA |
| Standby capacity (KVA) | 88kVA | |
| Rated current (A) | 115 | |
| Rated fuel consumption ratio (L/h) | 16 | |
| Overall dimensions (LxWxH) (mm) | 2120x920x1340 | |
| Weight (KG) | 1190 | |
| Cable specification(mm2) | BVR-50 | |
| Accumlator capacity (Ah) | 2x40 | |
| Engine part | Rated power (KW) | 90 |
| Standby capacity (KW) | 100 | |
| Cylinder numbers | 4 | |
| Bore xstroke (mm) | 105x130 | |
| Starting method | Electric | |
| Oil capacity (L) | 10 | |
| Coolant capacity(L) | 12 |
More models for your reference:
| Power range | Rated speed | Speed mode | Consumption ratio | Cylinder | Displacement | Cooling mehod |
| 12.5-62.5kva | 1500r/min | mechanical/electronic governor | 205g/kw.h | 4 | 2.1L-4.3L | closed cooling |
| 25-150kva | 1500r/min | mechanical/electronic governor | 198/kw.h | 4/6 | 3.12L-6.75L | closed cooling |
| 187.5-400kva | 1500r/min | mechanical/electronic governor | 197g/kw.h | 6 | 9.72L-12.54L | closed cooling |
| 450-625kva | 1500r/min | electronic governor | 195g/kw.h | 6 | 15.9L-19.6L | closed cooling |
| 750-1250kva | 1500r/min | electronic governor | 195g/kw.h | 12 | 31.8L-39.2L | closed cooling |
| Remarks: | ||||||
| 1.Gen-sets of 60Hz@1800rmp can be provided according to demand. | ||||||
| 2.This list for reference,please consult us for specific design parameters | ||||||
| 3.Above 1250kva Gen-sets,please consult us for parameters. |
