SINCE 1996
20 years, we focus on diesel generator sets of research and development and production.
Perfect test platform
High-quality test platform to ensure that every diesel generator set without fault factory.
Advanced production equipment
So that the appearance and quality of each diesel generator set is guaranteed.

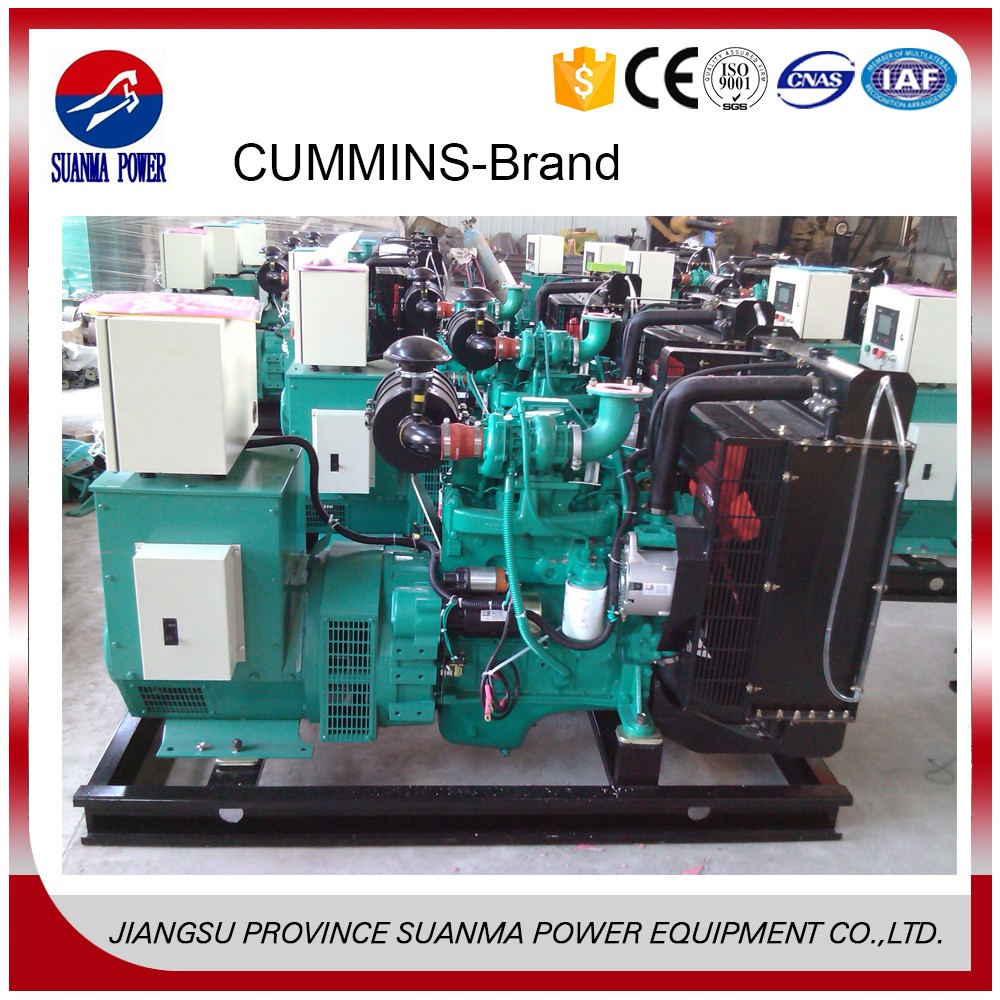

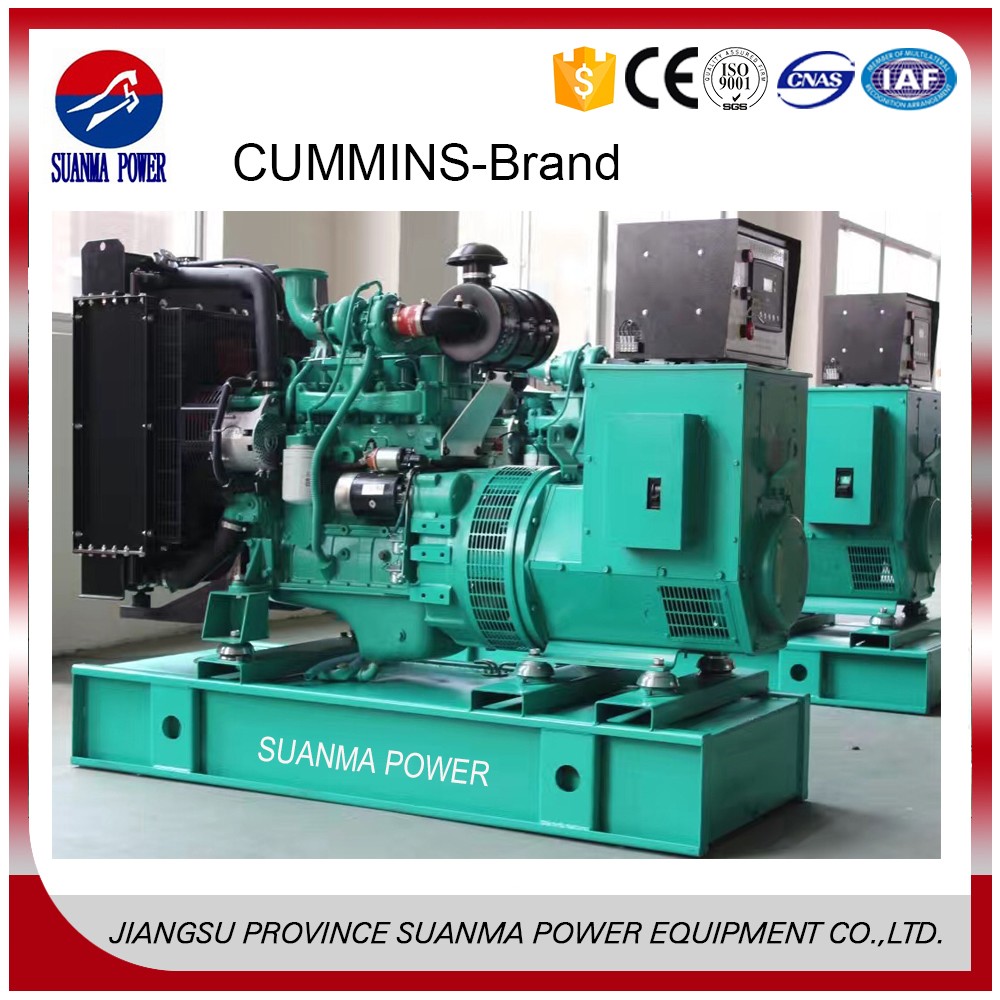

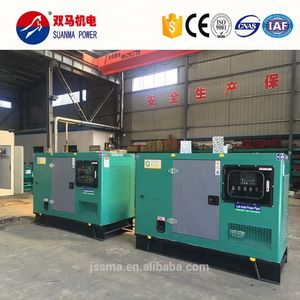

| Technical parameters of diesel generator set SMDK-48GF | |||
| Rated power | 48KW/60KVA | RPM & Frequency | 1500/50HZ |
| Standby power | 53KW/66KVA | Power factor | 0.8 |
| Rated Voltage | 400/230V | Phase | 3 |
| Fuel tank capacity | 100L | Noise value | 101db |
| Dimension | 1800*760*1300mm | Weight | 850kg |
| Diesel engine technical parameters | |||
| Engine brand | CMS-USA | Air intake mode | Turbocharged |
| Engine Model | 4BTA3.9-G2 | Cylinders | 4 |
| Configuration | 4 cycle ,4 cylinders in "L" | Bore*Stroke | 102*120mm |
| Displacement (Liter) | 5.9 | Start the system | DC 24V |
| Compression ratio | 15.5:1 | Cooling system | water-cooling |
| Maximum engine power | 55KW/1500RPM | Lubricating oil system | Pressure lubrication |
| Lubricating oil capacity | 11L | Lubricating oil brand | 15W40-CH |
| Fuel consumption | 208g/kw.h | Oil consumption | 0.06 L/h |
| Alternator Data | |||
| Brand | SUANMA POWER | Control system | AVR |
| Model | SMI-48-4 | Insulation class | H |
| Capacity | 60KVA | Protection Grade | IP23 |
| The stator winding | Single layer winding | Temperature level | H |
| Effectiveness | 96.2% | Voltage regulation rate | ±1.0% |
Standard configuration
Coupled with diesel engine (50HZ OR 60HZ):
1.24V DC start motor and storage battery
2.Brushless, Self-excited, AVR, insulation class H alternator（110V~480V OR 6300V,10500V）
3.40℃ radiator as standard, 50℃ is optional
4.Key start panel control system as standard, digital auto-start panel is optional
5.Unit of steel common base (including: unit vibration damping rubber pad)
6.All generator sets are gone through rigorous testing before being released to the market place, including 50% load, 75% load, 100% load , 110% load and all protection function (over-speed stop, high water temperature, low oil pressure, battery charging fail, emergency stop)
Optional configuration
1.ATS control cabinet
2.Water separator
3.Oil heater

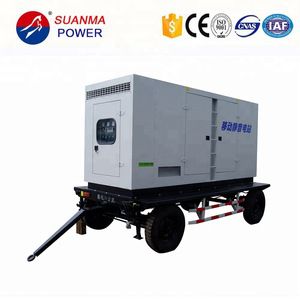

4.Move the trailer
5.Fuel tank
6.Anti - condensation heater
7.Water jacket heater

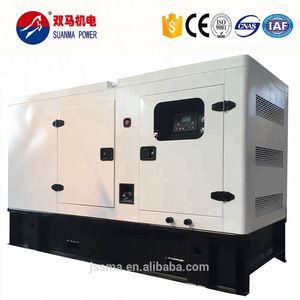

8.Low noise box
| STAMFORD | MARATHON | MECC ALTE | SIEMENS |
| LEROY-SOMER | ENGGA | SUANMA | ABB |
Service system:
First, pre-sale service
Professional engineers to provide users with pre-sale technical advice and planning supporting guidance, such as unit selection, matching, room design, to answer the user in the course of the problems encountered and provide relevant technical guidance.
Second, the sale of services
I received the user immediately after receiving the notice to send a professional technical staff to the installation site to know the installation and commissioning of the unit, and with the user to do the acceptance work.
Third, after-sales service
1, to provide free room design, power distribution design;
2, free guidance installation, commissioning;
3, free of charge for the user's operation and maintenance personnel for technical training and consulting;
4, to guide maintenance, maintenance;
5, the end user to establish customer files, tracking services, regular inspection, life-long maintenance;
6, the company perennial to provide pure spare parts, and maintenance engineers at any time to provide you with technical assistance.
Note:
A, the warranty period: one year or cumulative operation of 1000 hours (whichever comes first), as a result of factory assembly negligence, or improper selection of design and raw materials and other reasons due to damage to parts or other units of the fault, The supplier is responsible for the warranty.
B, diesel generators wearing parts, daily use of accessories, due to man-made errors, inadvertent damage caused by maintenance, are not covered in this warranty. All parts of the warranty period are provided at cost, provided by the service personnel to the customer site or in the factory factory to repair the unit, to normal use.
