Warranty: One year or 1, 000 hours from the date of shippment.
(15 Months or 1, 200 hours for Alternator Part).

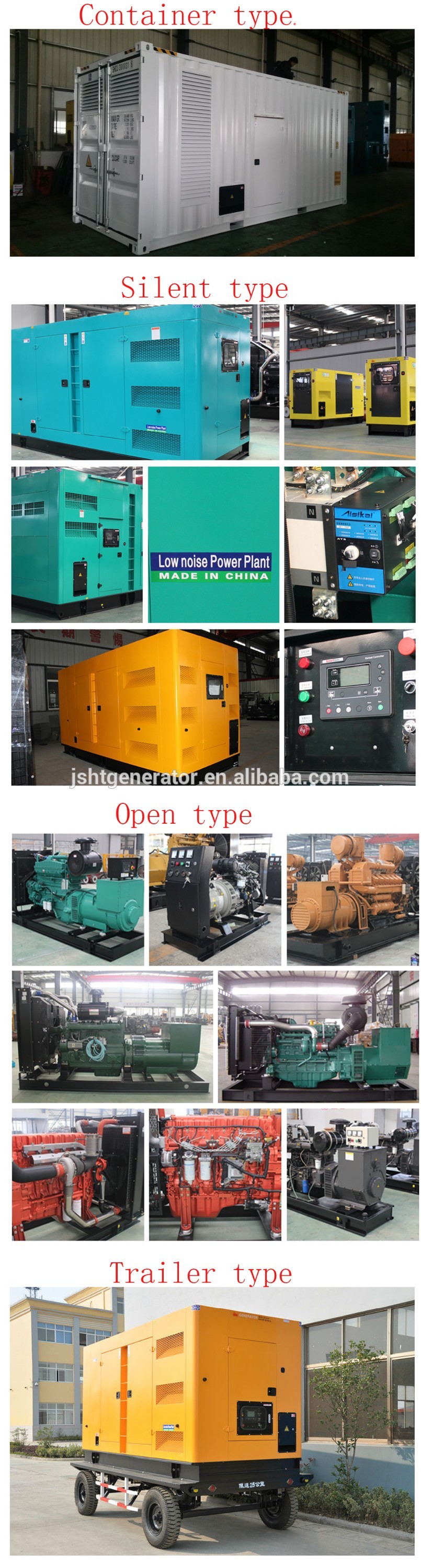

Our factory Have NENJO, Volvo, Deutz, daewoo, Shangchai, Weichai, Jichai etc World and Chinese famous brand generator set, and silent/low noise/sound-proof, mobile/ trailer generators. We have our own produced high quality 3 phase brushless alternators.

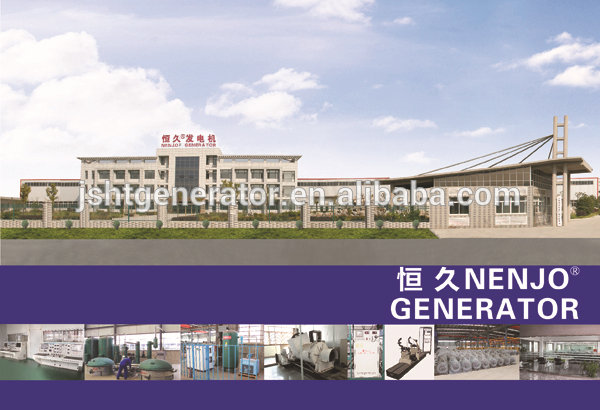

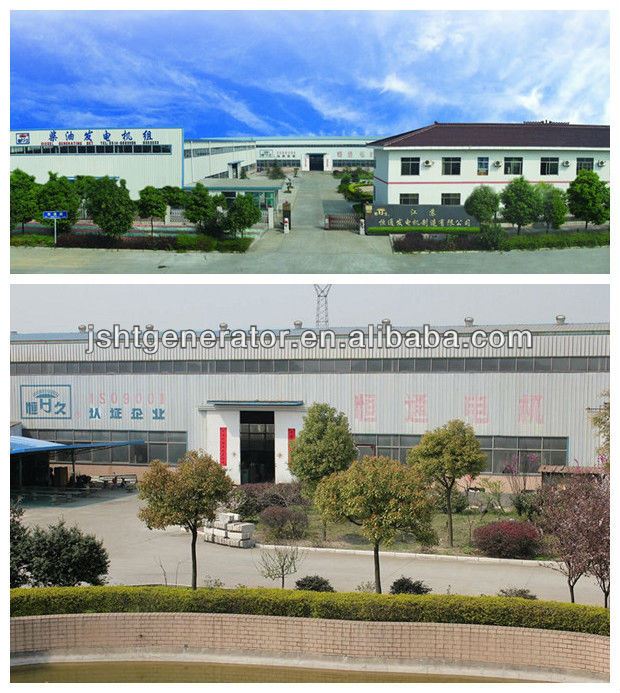

We are specialized in diesel generator manufacture for more than 20 years.We have two working plant meet any emergency orders. We have qualified employees who make products with high quality in short time.
We pass CE,ISO,CQC certificate. genset power range: 25-2000kva, alternator power range: 6.5-1760kw.
Technical parameters of diesel generator sets: | |
Generator Set | |

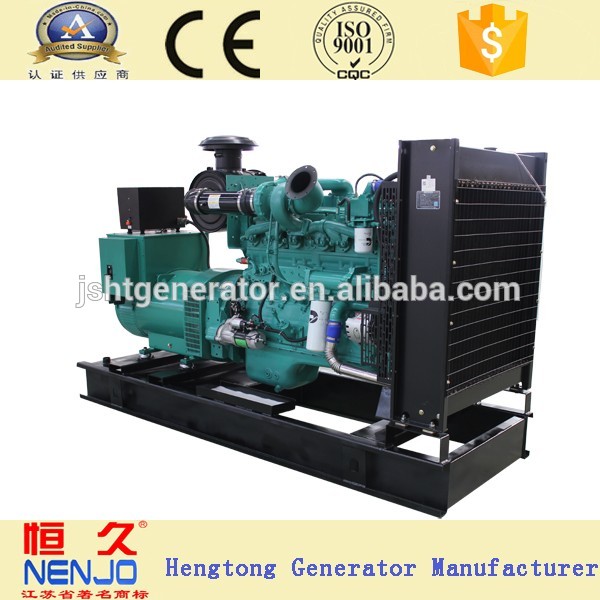

Generator Model | GF160C |
Prime Power | 160KW |
Rated Voltage | 400/230V |
Frequency | 50Hz |
Power Factor | 0.8(lagging) |
Genset weight | 1635 kg |
Dimension | 2500*800*1350mm |

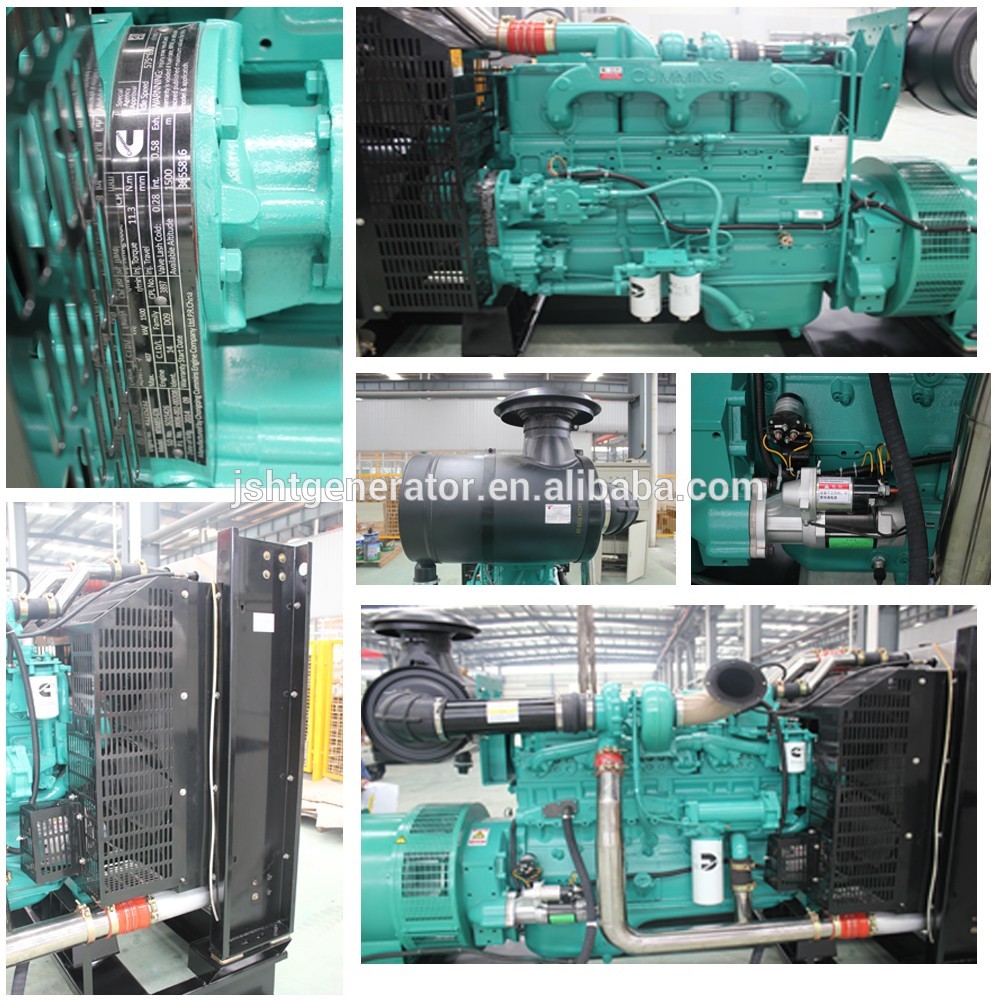

Diesel Engine | |
Brand | NENJO |
Prime Power | 176kw |
Type | 6CTAA8.3-G2 |
Cylinders/Arrangement | 6/L |
Rotating Speed | 1500RPM |
Cycle | Four stroke |
Aspiration | Turbocharged after water-cooled |
Boke×Stroke | 114*135mm |
Speed Governor | Electrical |
Cooling System | Water-cooled |
Consumption of fuel | 45.4 L/H |
Lub.oil Cap | 23.8L |
Coolant Cap | 30.1L |
Starting Method | 24V Electrical starting |
Alternator | |
Brand | NENJO |
Model | HJI160 |
Prime/Standby Power | 160/176kw |
Connecting Type | 3 Phase and 4 Wires |
Number of Bearing | single |
Protection Grade | IP23 |
Exciter Type | Brushless ,Self-exciting, AVR automatic voltage regulating |
Insulation Class | H |
Telephone Influence Factor (TIF) | ≤50 |
THF | ≤2% |
Voltage Regulation, Steady State | ≤±0.5% |
Transient State Voltage | ≤-15%~+20% |
Test before shippment
- Each Generator Set shall be put into commission more than 4 hours totally, tested on idle load, fully load and 10% overload.
- Noise level shall be tested.
- All of the meters on the control panel shall be tested.
- The appearance of the Set and the label, nameplate shall be tested. "
-Voltage available: 50Hz: 380-400-415V/ 220-230-240V; 60Hz: 220-380-416-440-480V/ 110-208-220-240V. Any special voltage is also available as cilent's request.

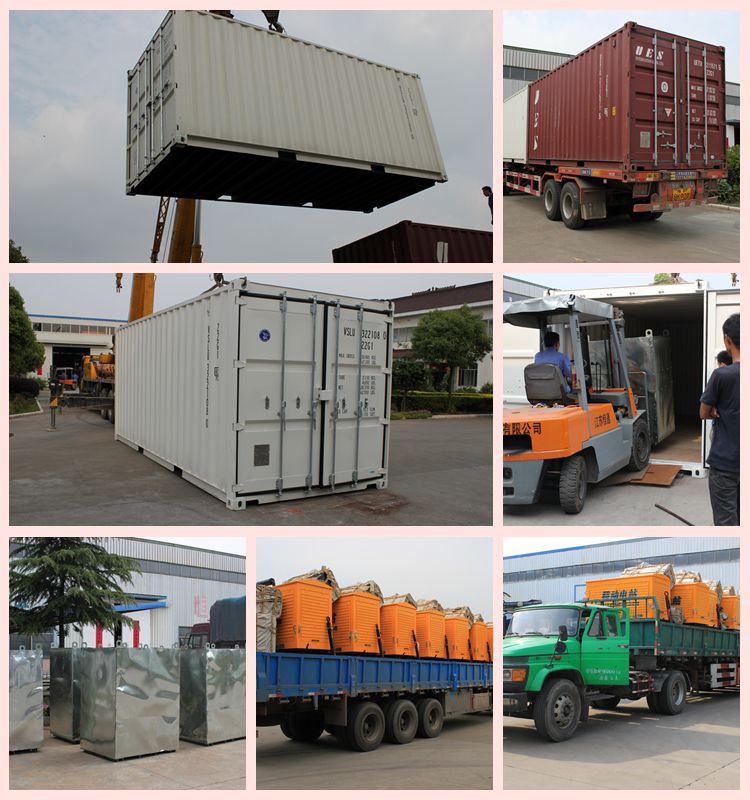

Packing
- Packing: Wooden Case, Plywood or Metal Case.

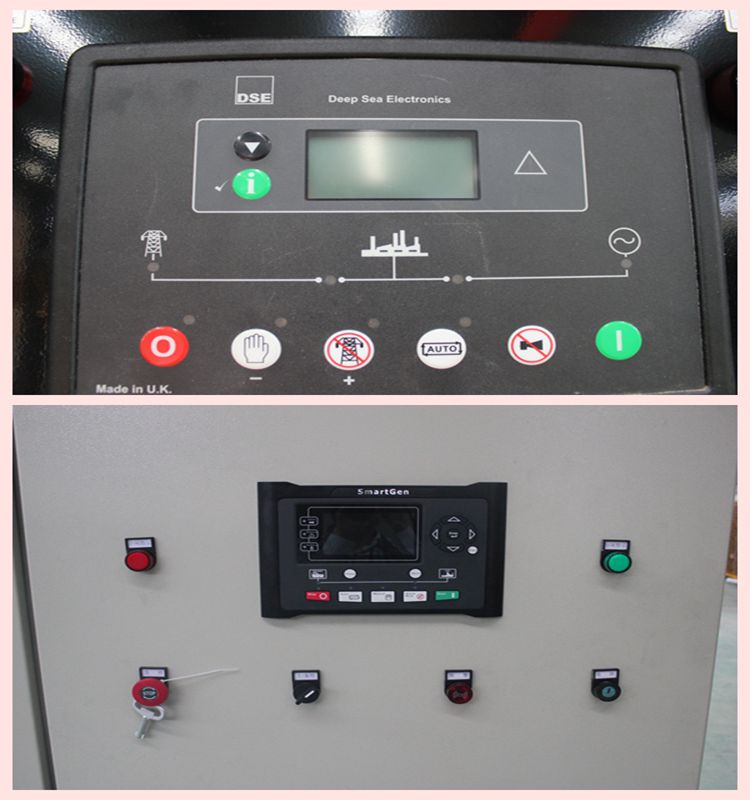

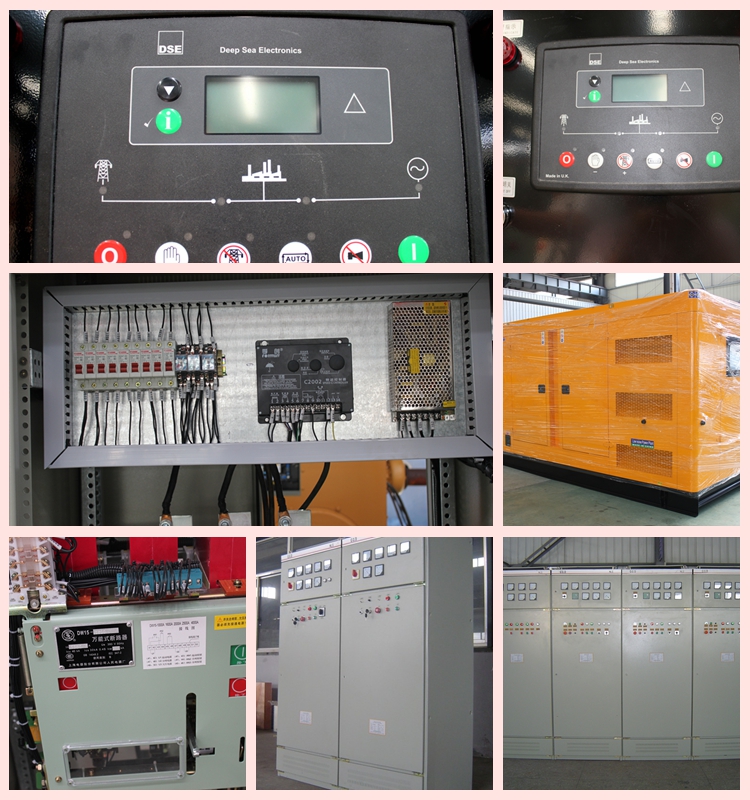

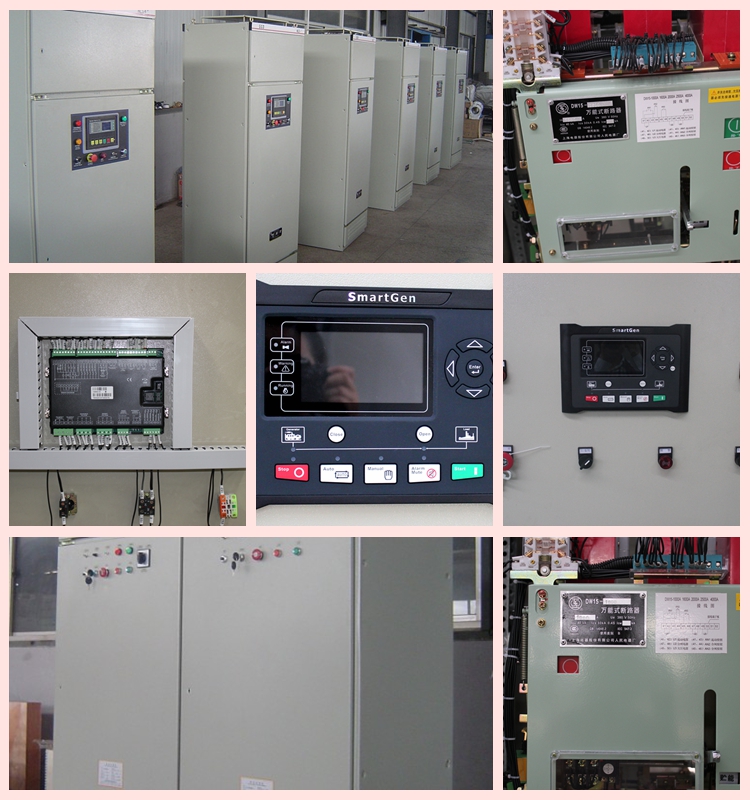

Control System:

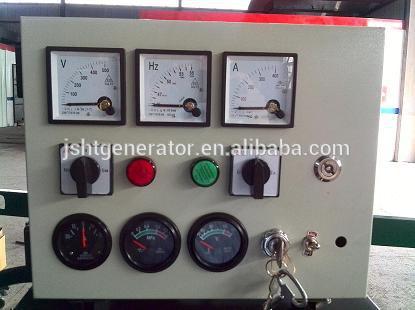

1, Manual control system, the basic type control system is provided with a current meter, a volmeter, a frequency meter, an oil pressure guage, a water thermometer and indicator lights on the control cabinet and 4 additinal protection fuctions are to be provided as required by customers.
2, AST (Automatic Start Type Control System), Optional Automatic Start Type System is provided When there is an interruption in the commercial power supply (or there is a start signal in other generator sets), this generator set will, subject to time delay acknowledgement (0-30 S adjustable), be automatically started (1-8 times
adjustable). In addition, it is provided with a basic protection function and digital or meter indication of voltage,
current, frequency and rotation speed parameters.
3, ATS (Automatic Transfer System), The optional system is provided with a fully automatic transfer switch, a control electric apparatus and an indicator light on the control panel and is coordinated with an automatic type contral cabinet, thus serving the fuction of automatic changeover between the power supplied by the grid and the power generated by the genset.

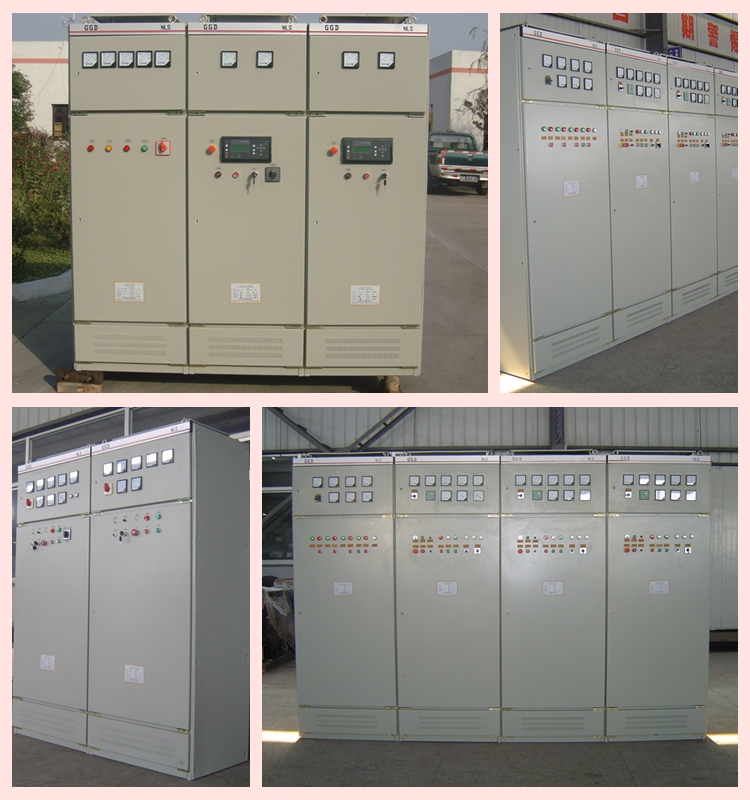

4, Sync Parallel Control System, this control system can connect 2 or 3 or 4 gensets to make more larger power.
such as: if you want 1000kw power, you can choose 2 sets 500kw gensets to work together, using this control system can make 1000kw power.
Payment:
T/T, 30% deposit, 70% will be payed before delivery
T/T, 30% deposit , 70% L/C at sight
100% L/C at sight
Delivery Time:
About 15 days After Receive Your Deposit
(1) Your company is factory or Trade Company?
Answer: We are professional diesel generator manufacturing factory.
(2) Your diesel generator power range?
Answer: Now we mainly produce 7KW to 2500KW diesel generator.
(3) Which brand Electrical Generator you produce?
Answer: Now we produce USA brand diesel generator, Sweden Volvo Generator, Korea Doosan diesel generator, German Deutz Electrical Generator, and China local brands' generator.
(4) Where is your main market?
Answer: We mainly export Electrical Generators to Africa, Middle East, Asia, and South Korea and etc.
