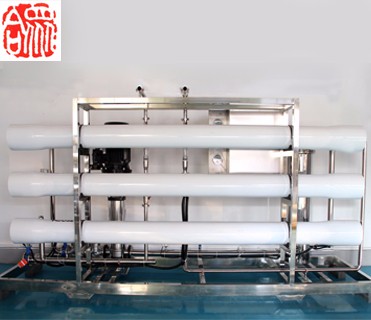

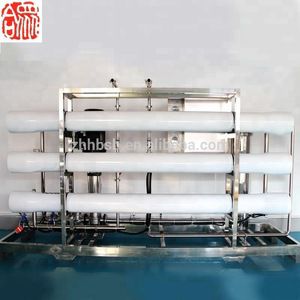

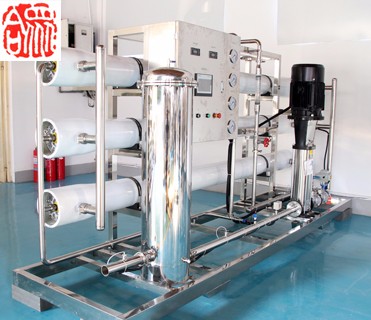

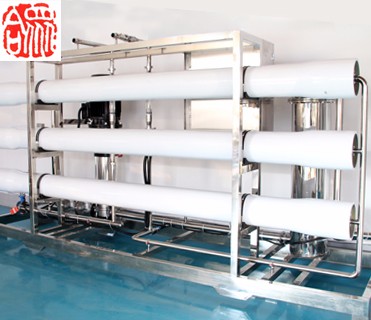

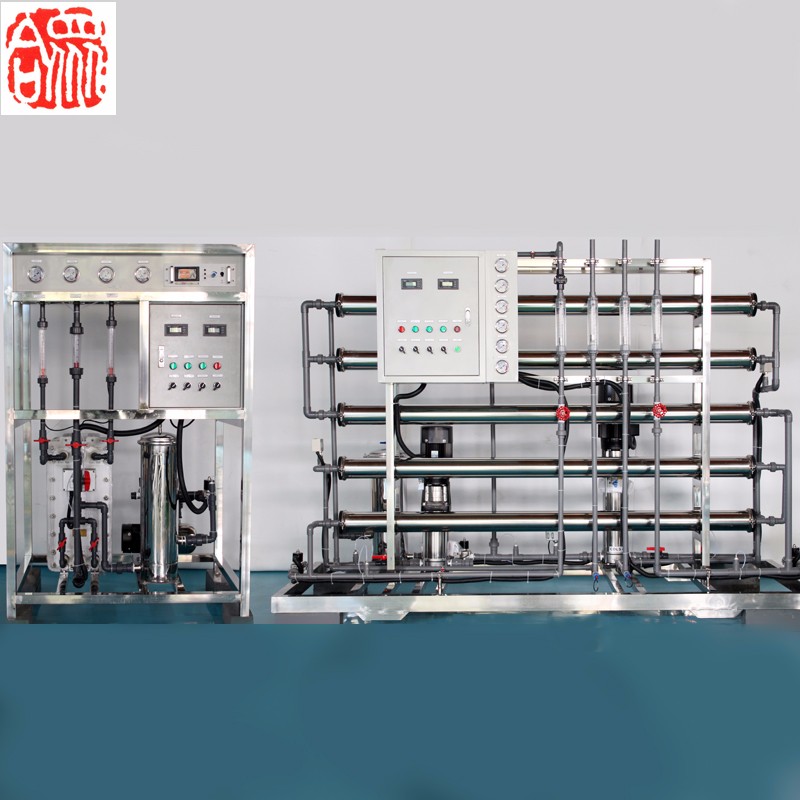

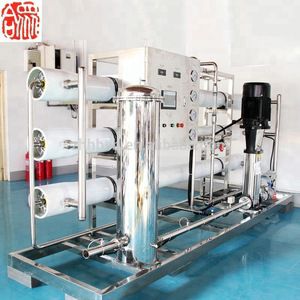

reverse osmosis systems 8000L factory supply water purifier system
RO reverse osmosis is relying on the reverse osmosis membrane under enough pressure, make solution by reverse osmosis membrane solvents in pure water, so as to achieve the goal of removing salt.
The pore size of RO reverse osmosis membrane is only nanoscale. Under a certain pressure, H2O molecules can go through the RO membrane, while the inorganic salts, heavy metal ions, organic matter, colloid, bacteria, viruses, and other impurities in the raw water can not pass RO membrane. Thus pure water and concentrated water are separated.
| Main parameters of the reverse osmosis system | |
| Model | ZHRO-8000L |
| Production capacity | 8000 L/H |
| Power | 15.5kw |
| Power supply | AC 380V 50Hz |
| Reverse osmosis (RO)membrane | BW30-400 8pcs USA DOW |
| Membrane housing | 8040-2 FRP |
| Raw water pump | CHLF16-40/4.0KW |
| Quartz sand filter, activated Carbon filter | Φ1200×2400 stainless stee 2pcs |
| Scale inhibitor feeder | WELL-3 |
| Security filter | 40 "× 5μm ,10core |
| High pressure pump | CDL16-12/11.0KW 1 set Nanfang |
| Activated carbon | 1800kg |
| Quartz sand | 900kg |
| Scale inhibitor | 25kg |
| Size(mm) | main machine: 3800X1000X1800mm filtering tank:Φ71200×2400mm |
| Desalination rate | more than 97% |
| Ion remove rate | 99.99% |
| Recovery rate | 55-75% |
Main Features
(1). Occupy little space, easy to operate, wide application range;
(2). operation cost is low, acid and alkali consumption is low, no secondary pollution;
(3). Reverse osmosis desalting rate ≧ 99%, machine desalting rate ≧ 97%, 100% of organic and bacteria can be removed;
(4). Finished water under good electronic conductivity, one stage ≦10u s/cm, two stage around 2~3u s/cm, based on raw water ≦ 600 u s/cm;
(5). High operation automation degree. It is unattended. The machine will automatically stop in case of no water. Timed flushing of front filtering materials by automatic controller. Automatic flushing of reverse osmosis film by Integrated circuit system. Online display of raw water and pure water electronic conductivity;
(6). Spare parts use domestic well-known brands.
Machine Parts

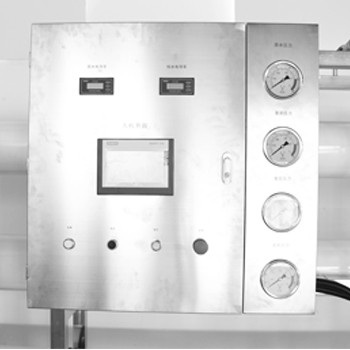

Name: Control System
Material: SUS304
Function:Executive control function, used to detect the controlled amount or output, by comparing the deviation between the input signal and the feedback signal, the controlled object is operated directly to adjust the controlled amount.
Machine Parts

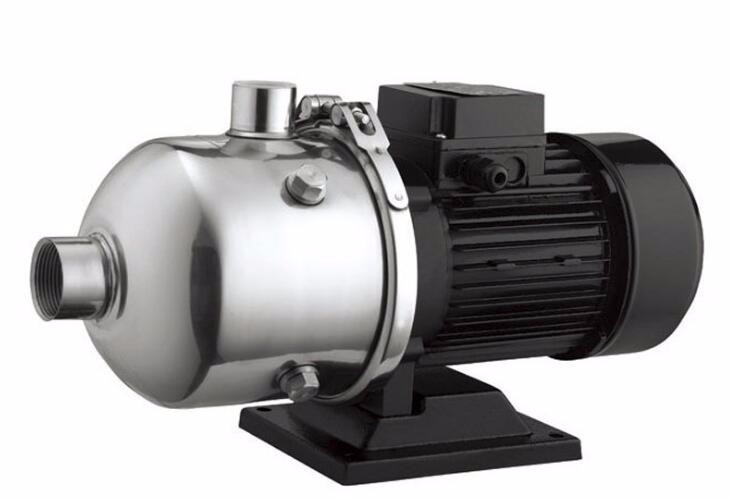

Name: Raw Water Pump
Brand: NanFang
Original: China
Function:
Connecting the raw water tank and filter, To guarantee adequate water supply at run time, and ensure enough pressure to flush the filter when flushing, raw water pump can provide sufficient pressure to push the raw water forward.
Machine Parts

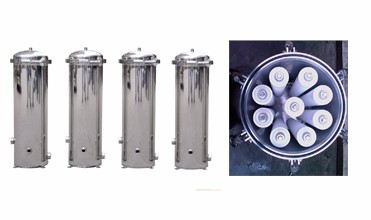

Name: Security Filter
Material: SUS304
Function:Use 5-20 micron sediment cartridge filter / bag filter, to remove the passed suspended solid from pre-treatment, so that to ensure the safety of the entrance of RO system
Machine Parts

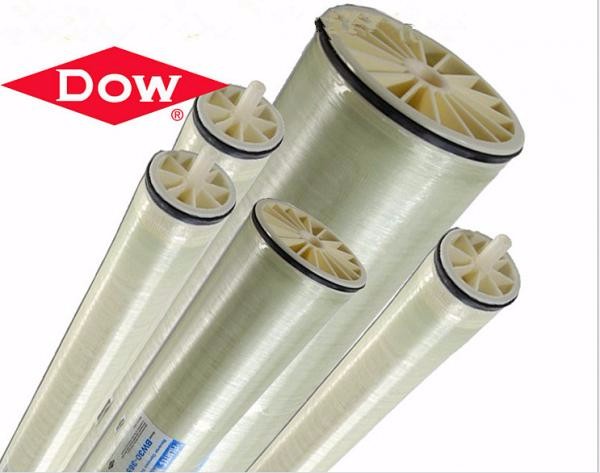

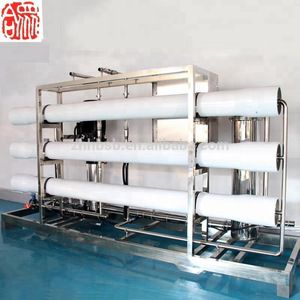

Name: RO-American DOW Membrane
Brand: American DOW Membrane
Function:
The nanometer RO membrane can intercept the inorganic salt, heavy metal ions, orangic matter, colloid, bacteria, viruses and other impurities, so it can produce the pure water.
Machine Parts

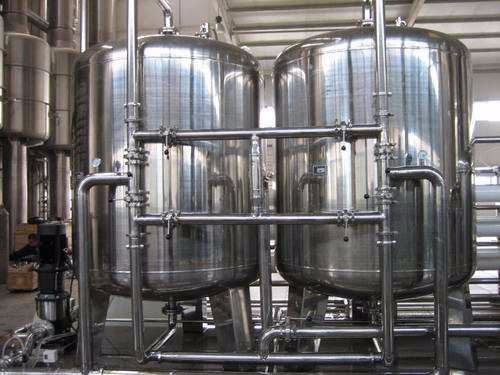

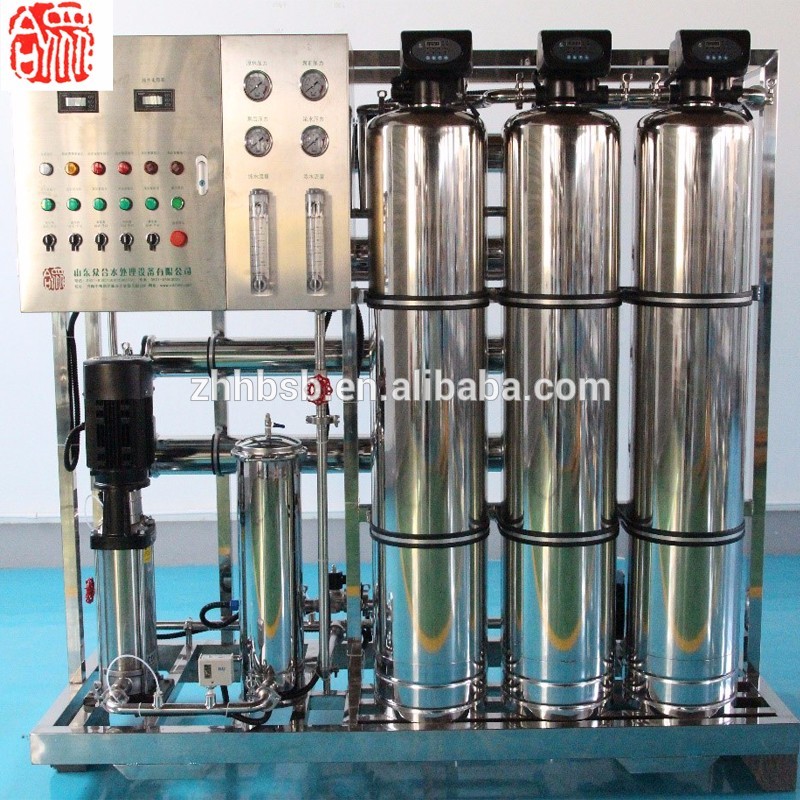

Name: Sand Filter, Active-carbon Filter
Material: SUS304
Function:
Sand Filter: Use quartz sand media with a diameter of 2-4mm to remove some big suspended solids like colloids, rust, mud, impurity etc.
Active-carbon Filter:Active carbon can absorb some organism, dissolved air, odor&color matter etc.
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.

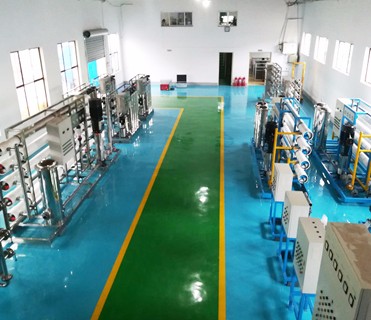

* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.

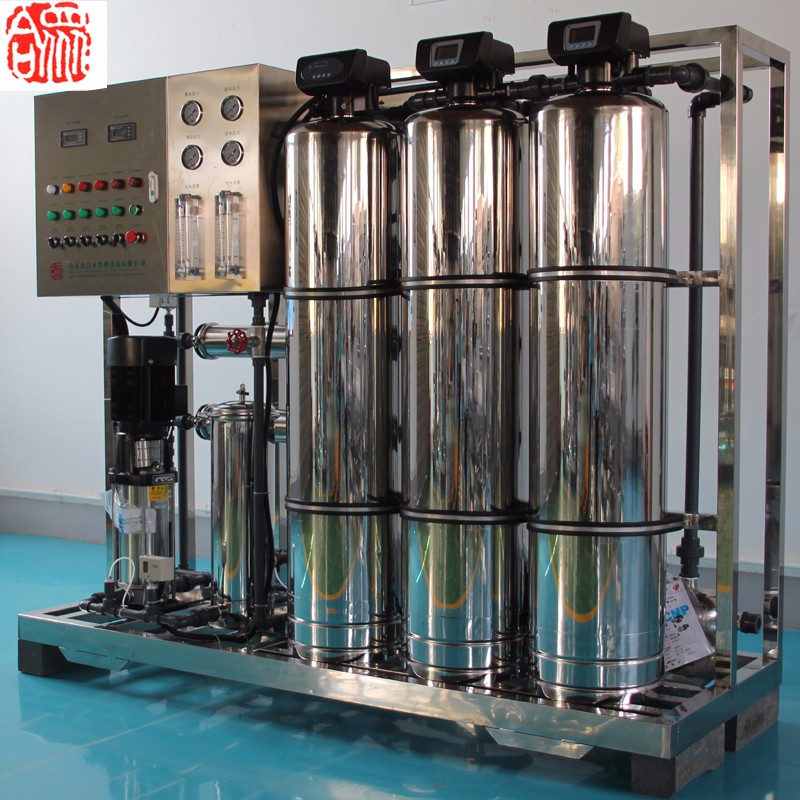

Best price reverse osmosis system 1000L water treatment systerm
91.8% Response Rate

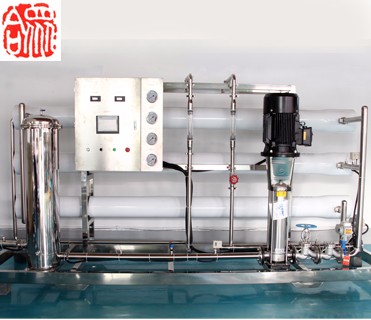

1000L factory reverse osmosis system water treatment system plant
91.8% Response Rate
Zhonghe 1000L pharmaceutical industry pure water treatment edi system
91.8% Response Rate

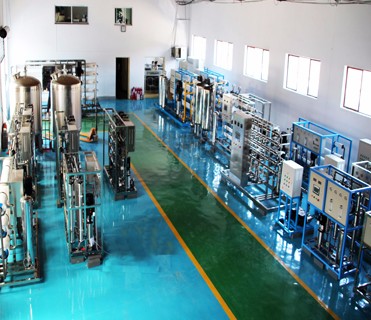

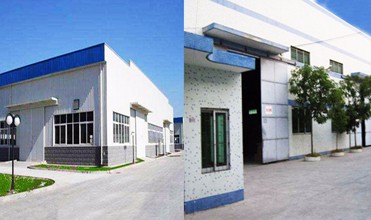

Zhonghe Water Treatment Company Limited,located in Jinan City, Shandong Province,PRC. Is a high-tech entity enterprise which make technology development, manufacturing, sales and after-sales service in one. Specializes in water treatment equipment, reverse osmosis equipment, pure water equipment, softened water equipment, mineral water, ultrafiltration equipment, EDI ultrapure water and sewage water treatment.
.
