RUNXIN Automatic Valve Water Softener System

Hard Water

Wells, rivers, lakes and oceans all have different types and levels of contaminants. These contaminants, other than living organisms or turbidity are in the form of dissolved solids. The total dissolved solids are all the salts or minerals contained in the water source. These salts and minerals can be broken down into ions. The positively charged ions are called Cations and the negatively charged ions are called Anions. The hardness ions are primarily calcium, magnesium and iron which are Cations. The hardness in water causes scale to form inside pots and pans, pipes, water heaters or boilers.

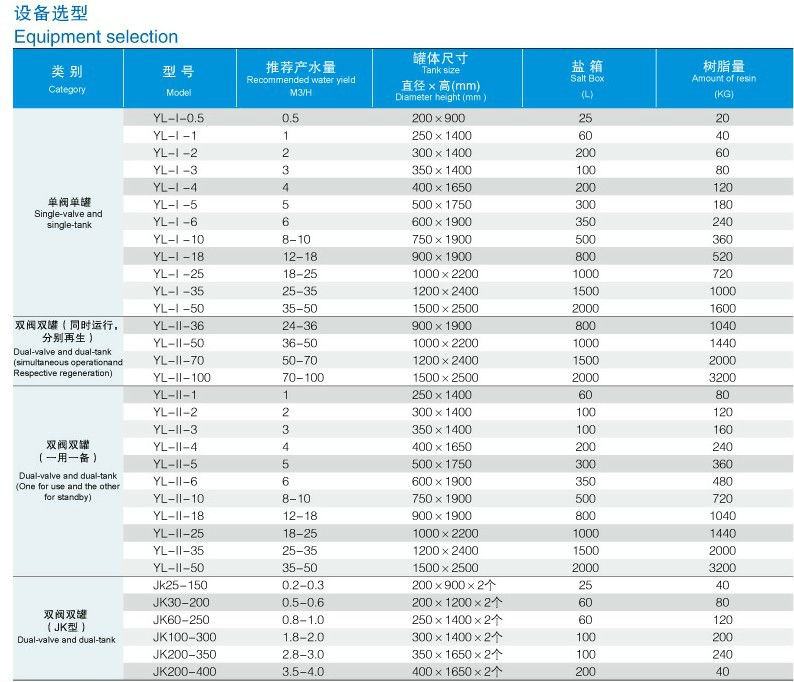

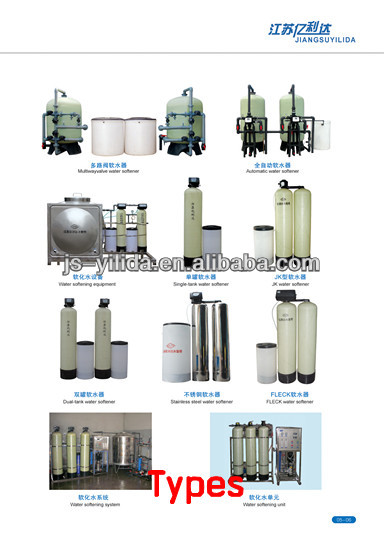

Water Softener type:

Single tank single valve water softener

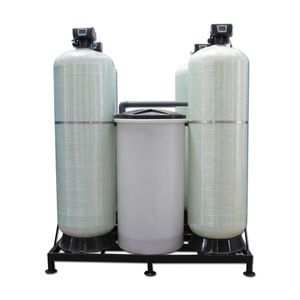

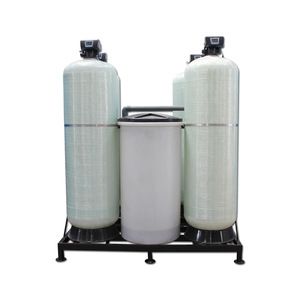

Dual tank dual valve water softener

Dual tank single valve water softener

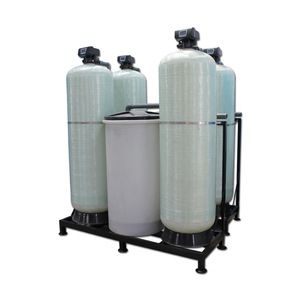

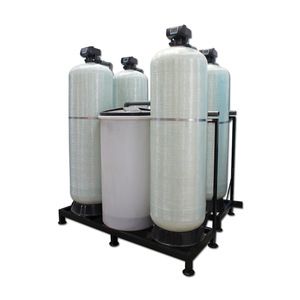

Multi valve water softener

RUNXIN Automatic Valve Water Softener System

The Ion Exchange Process Water Softeners remove hardness from water by a process known as ion exchange. The media, called resin; in the softener is charged with sodium (or potassium) ions. When the hardness ions come in contact with the resin beads the hardness ions are collected and the sodium (or potassium) ions are released, thus the term ion exchange. The hardness ions are exchanged for sodium (or potassium) ions. The typical cations found in the raw water are exchanged within the resin bed for sodium or potassium, as shown in the illustration. Normally, when two-thirds of the resin bed is exhausted, the softener will allow hardness to slip through. When this occurs, it is time to regenerate or recharge the resin bed using a salt and water mixture, known as brine. Sodium chloride (NaCl) or potassium chloride (KCl) are normally used for this purpose. Regenerating the resin bed refreshes its ability to exchange ions.

Advantages of RUNXIN Automatic Valve Water Softener System
Ion Exchange resins with high resistance to mechanical shock, longer life, high exchange capacity and low

consumption of salt.
The closely controlled resin bead size minimizes pressure loss.
User-friendly, low maintenance and easy to install.
Variety of cost effective standard models.
Improved aesthetics & rugged design.
Simpler distribution & collection systems.
Easily up-gradable for higher output.
Easy operation & maintenance.
Quick availability

What do water softeners do?

Industrial water softeners are specific ion exchangers that are designed to remove ions which are positively charged.
Softeners mainly remove calcium (Ca2+) and magnesium (Mg2+) ions. Calcium and magnesium are often referred to
as “hardness minerals”. Softeners are sometimes even applied to remove iron.

The softening devices are able to remove up to five milligrams per liter (5 mg/L) of dissolved iron and can operate
automatic, semi-automatic, or manual. Each type is rated on the amount of hardness it can remove before regeneration is necessary. Commercial water softeners collect hardness minerals within its conditioning tank and from time to time flushes them away to drain.

When an ion exchanger is applied for water softening, it will replace the calcium and magnesium ions in the water with other ions, for instance sodium or potassium. The exchanger ions are added to the ion exchanger reservoir as sodium
and potassium salts (NaCl and KCl).

Application:

Boiler Feed
Cooling Towermake-Up
Air Conditioning Plant
Textile Processing
Beverage Production
Filter High Quantity Of Water
Thermoelectric Power Plants
Low Pressure Boiler Feed
Dairies
Food and Beverages
Hotels and restaurants vCanneries
Laundries

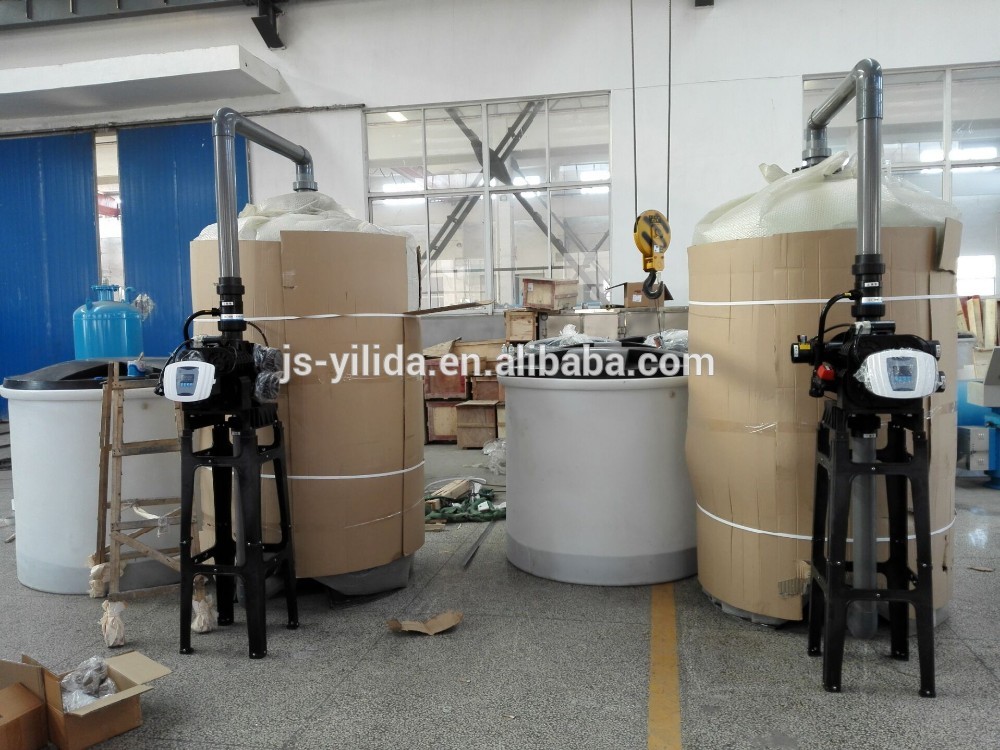

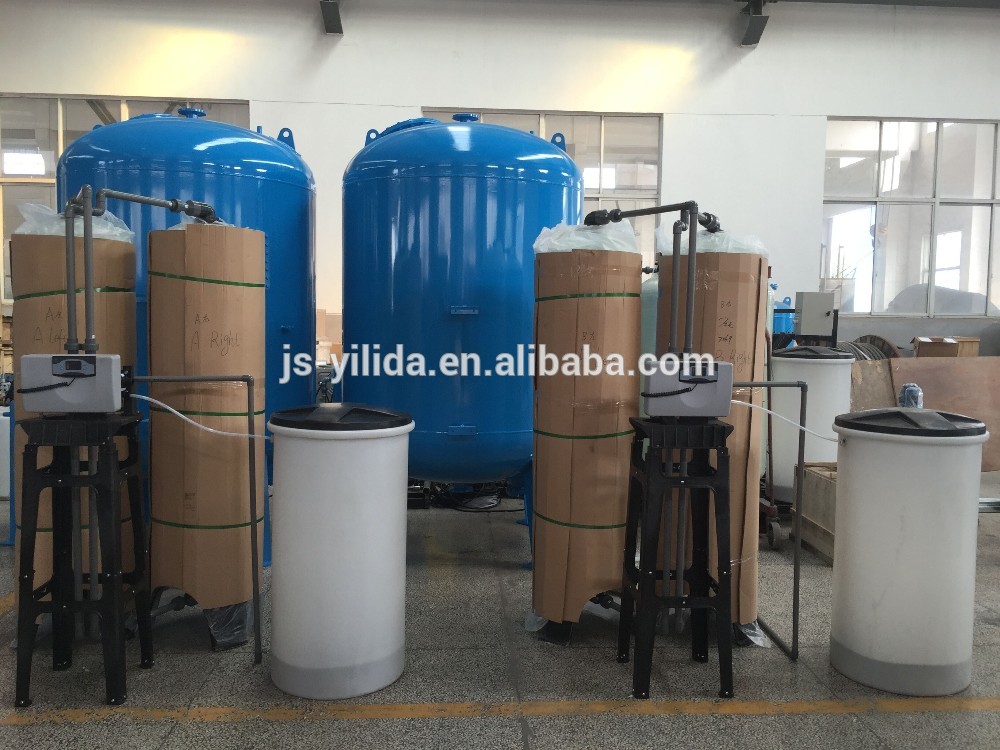

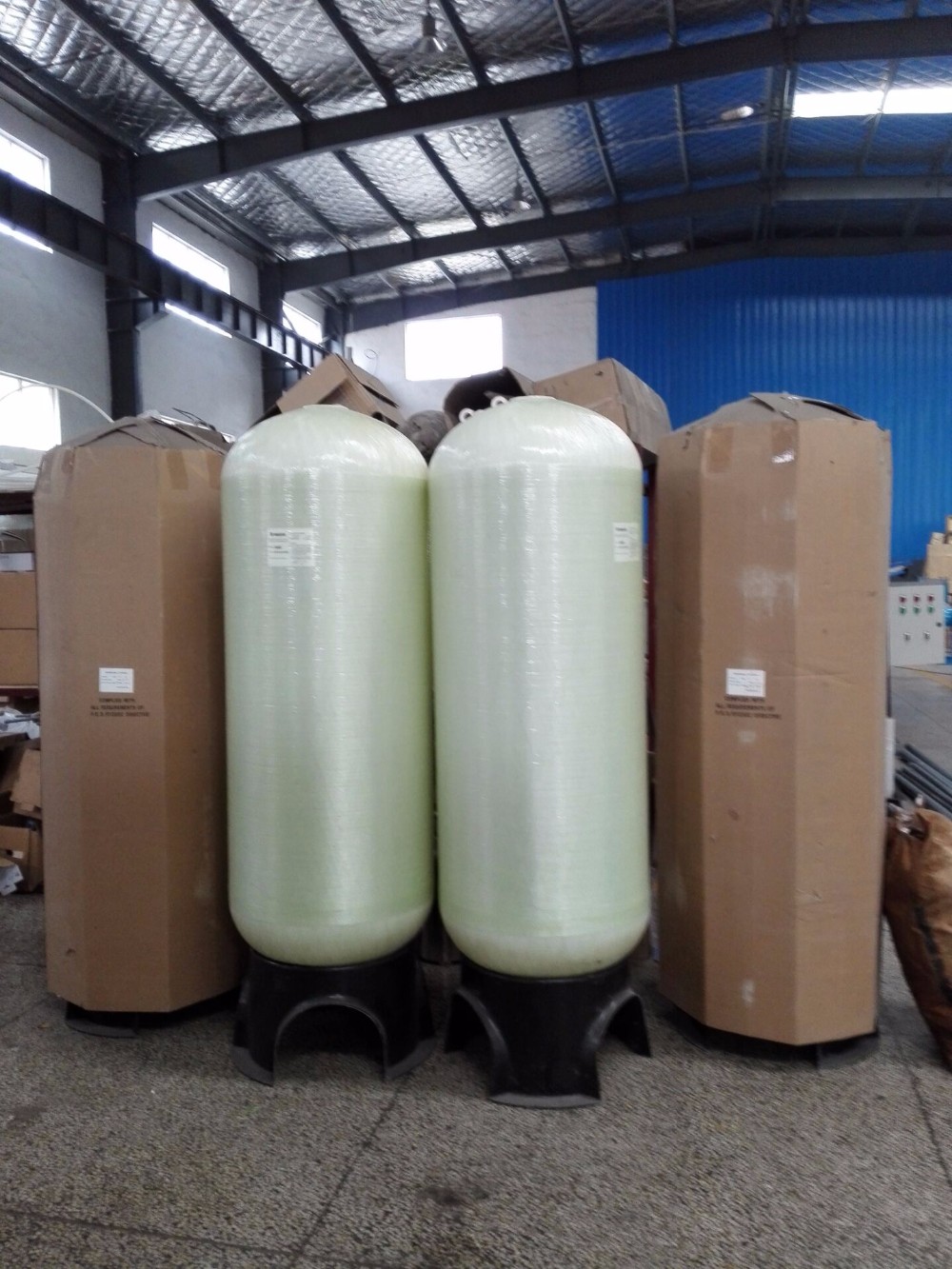

Water Softener Package& Delivery

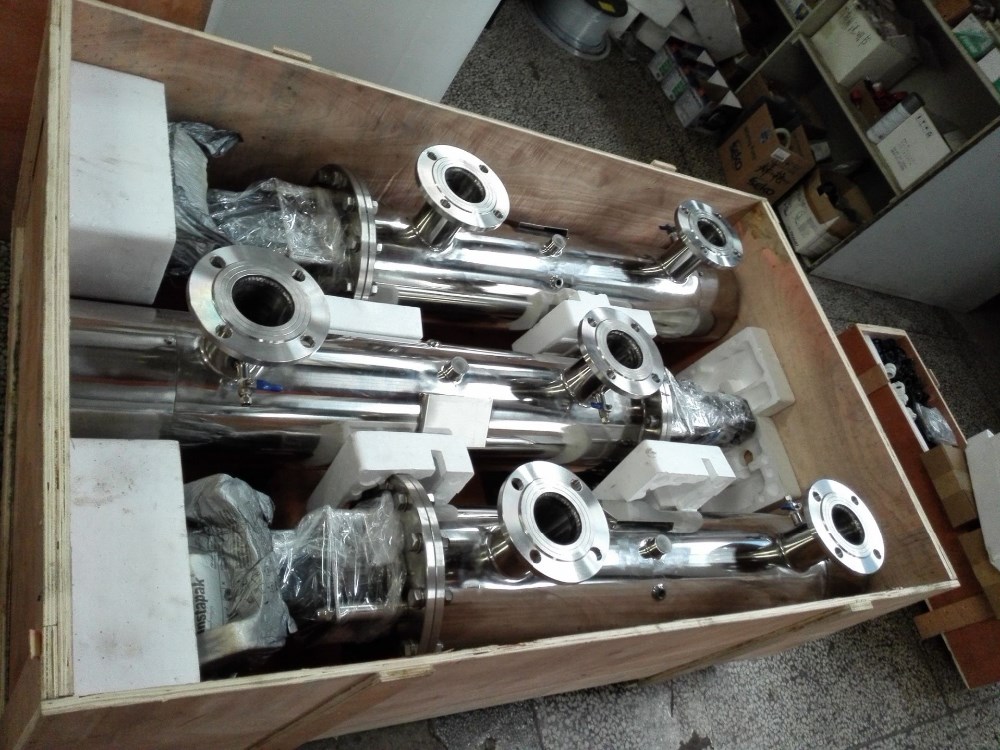

Package: Plywood case for automatic valves and accessories

Delivery: 10 working days after advanced payment confirmed

Shipping way: by sea, by air, By Fedex or DHL shipping

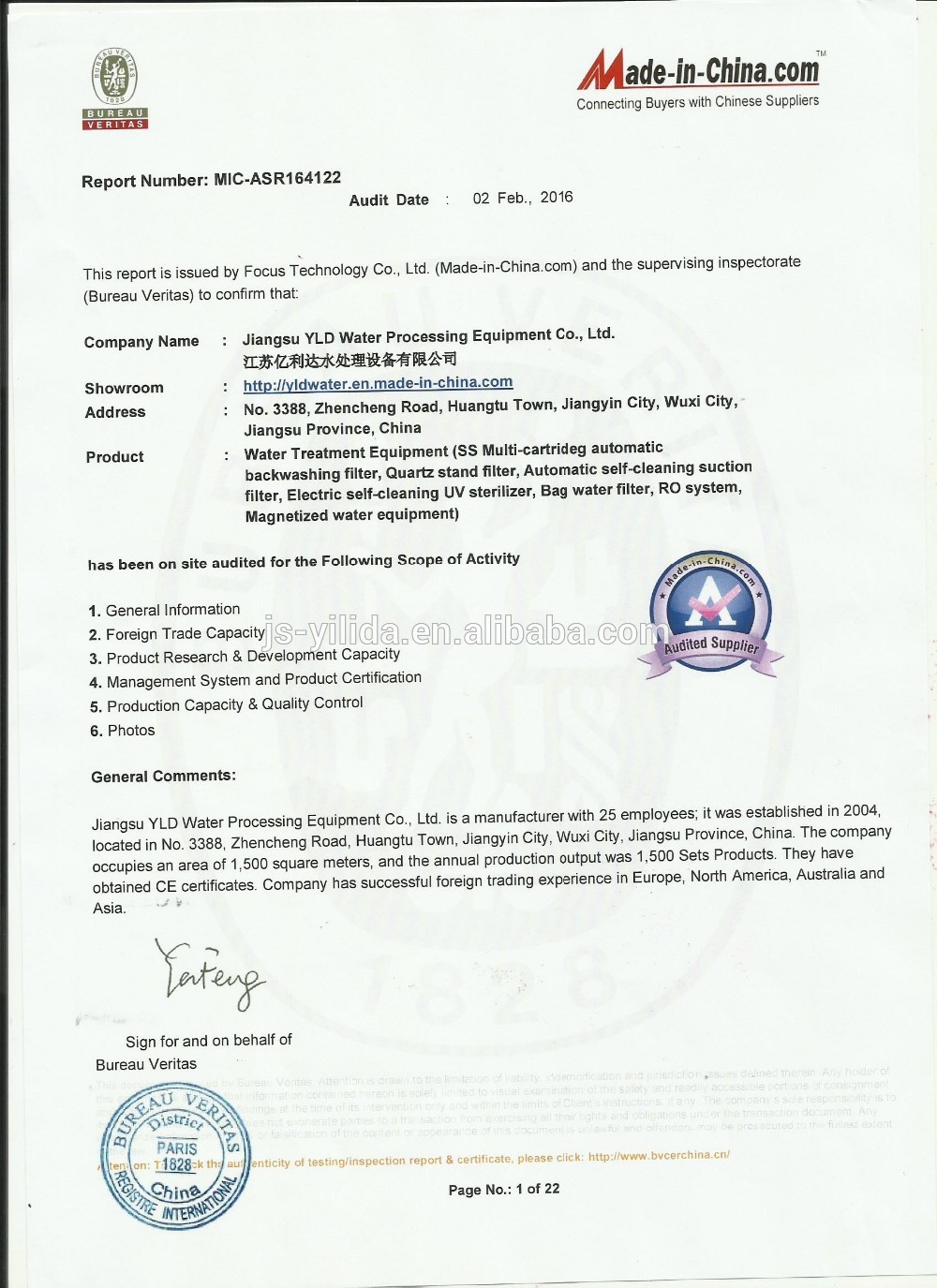

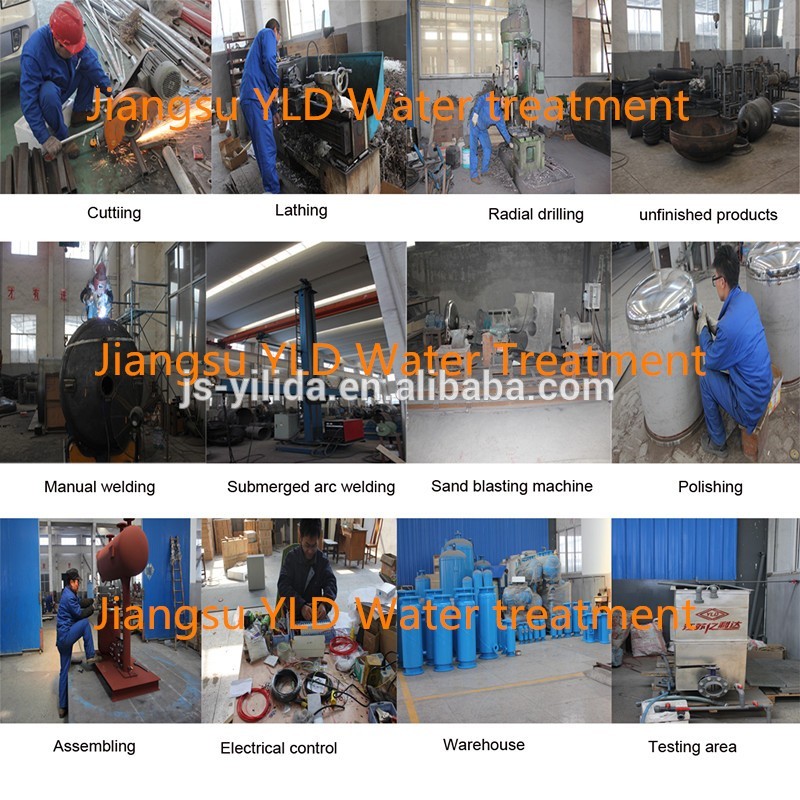

Our company introduction

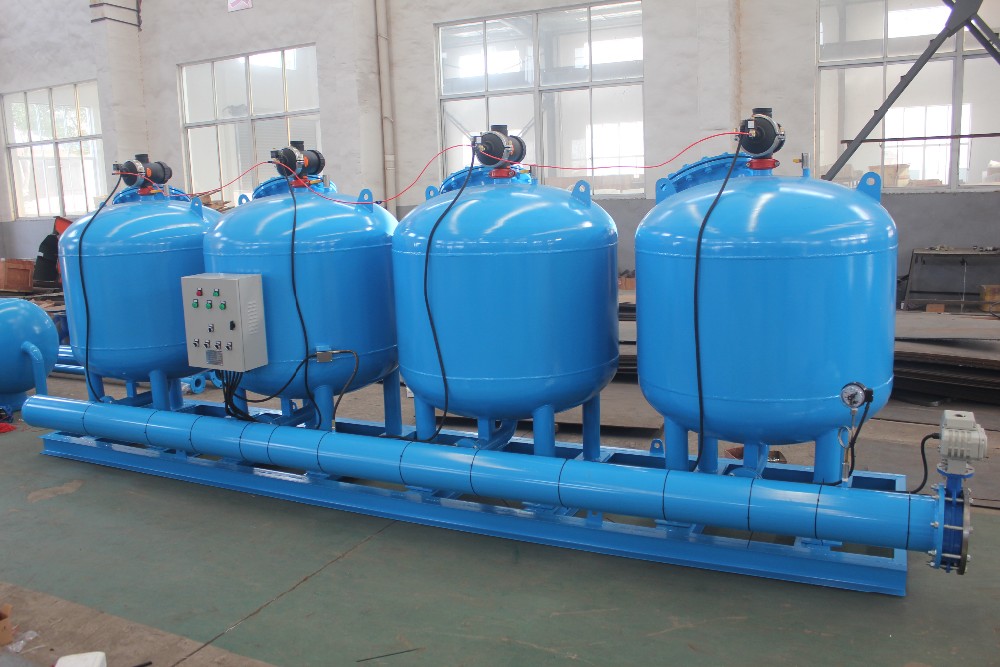

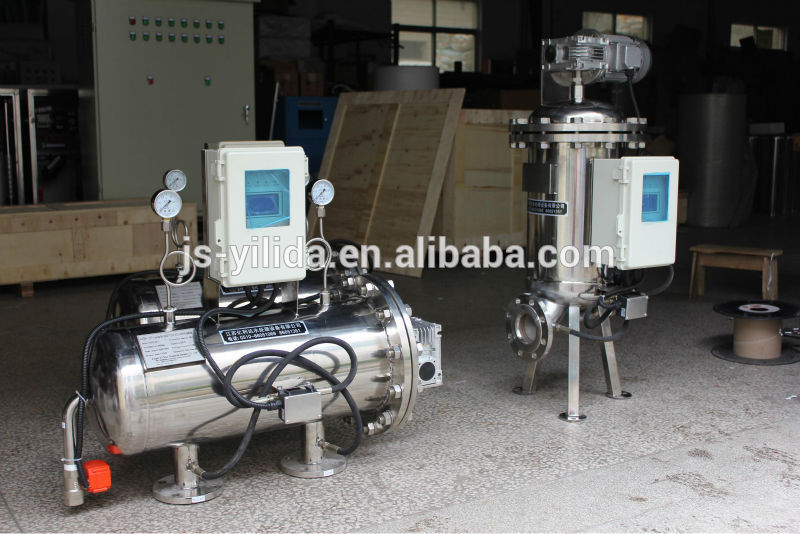

Jiangsu YLD Water Treatment Equipment Co., Ltd. is a high-tech enterprise, specialized in the research, development, design, manufacture, installation, technical consultation and personnel training. We mainly produce UV water sterilizer, automatic water softener, self-cleaning filter, industrial water filter, automatic backwash sand filter, activated carbon

filter, magnetic water treatment device, electronic water descaler, hydrocyclone desander,chemical dosing device,

condenser on-line cleaning device etc. With strong technical force and rich experience, our company strictly

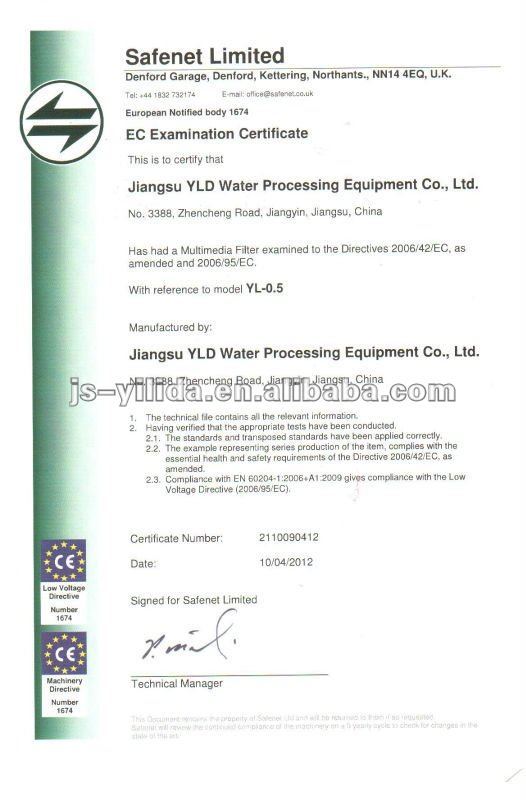

implements ISO9001 system in the plan and management. "High technology leads to market development" is our basic concept.

Our "LYD" high-quality products at reasonable prices and perfect after-sales services have won great trust from

worldwide customers,

We are willing to cooperate with the friends from all over the world and creat fine future together !
