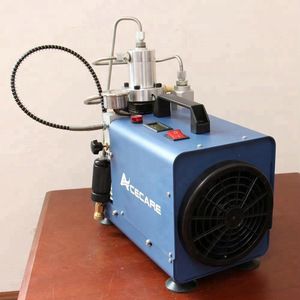

Pcp Air Gun cylinder Scuba Tank air compressor

Charge pressure: 30MPA; Working Pressure: 300BAR 30MPA 4500PSI.

Technical Feature

  • New
  • Piston
  • Portable
  • AC Power
  • Lubricated
  • Yes
Send Project Inquiry Add Inquiry List

0 Add Favorite

DESIGN SERVICE OVERVIEW

Project Design Scope

Project Service Scope

PRIMARY PARAMETERS

Condition
New
Type
Piston
Configuration
Portable
Power Source
AC Power
Lubrication Style
Lubricated
Mute
Yes
Place of Origin
Liaoning, China (Mainland)
Brand Name
Acecare
Model Number
Automatic shutdown version
Voltage

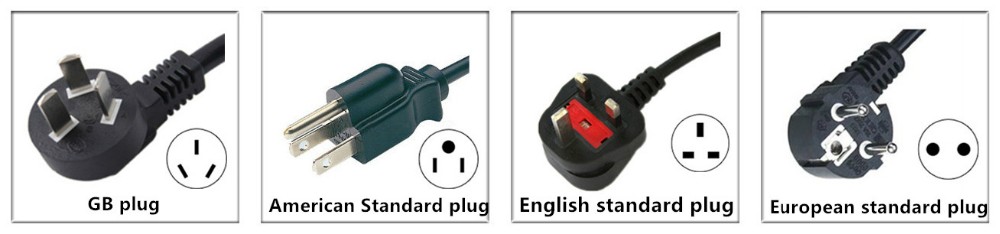

220V/110V, 220V/110V--50/60Hz
Dimension(L*W*H)
360*180*370(mm)
Weight
16KG, 16.3kg
Certification
ISO
Warranty
Delivery
After-sales Service Provided
Engineers available to service machinery overseas
Gas
Compressed air
Working Pressure
30Mpa
Displacement
50L/min
Power
1.8kw
Rotating speed
2800r/min
Cooling method
Water
Pressure Countrol
AUTOMATIC AT 30Mpa

DETAIL DESCRIPTION

Product Description

Power: 110V 60HZ; Motor Power: 1.8KW; Charge pressure: 30MPA; Working Pressure: 300BAR 30MPA 4500PSI. Air pump inflating speed: 2800r/min; Work flow: 50L/min

COOLING SYSTEM: Please prepare enough cooling water, it is recommended to be a vat of water to achieve better cooling effects. WORKING WITHOUT WATER IS FORBIDDEN!

PREMIUM QUALITY: Designed with two-stage compression and two water-oil separators for performance stability. It takes only 30 minutes to fill full 6.8L tank to 300BAR

WIDE APPLICATION: Perfect for fire fighting, paintball, leakage detecting, pressure-tight test, automobiles, air impermeability test, pressure proof test, etc.

WORRY-FREE PURCHASE: Backed by 1-year warranty for worry-free shopping experiences, free exchange or full refund if product is defective

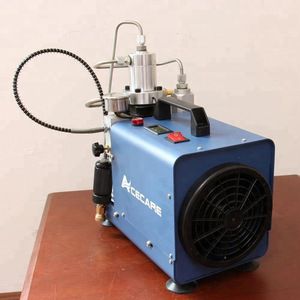

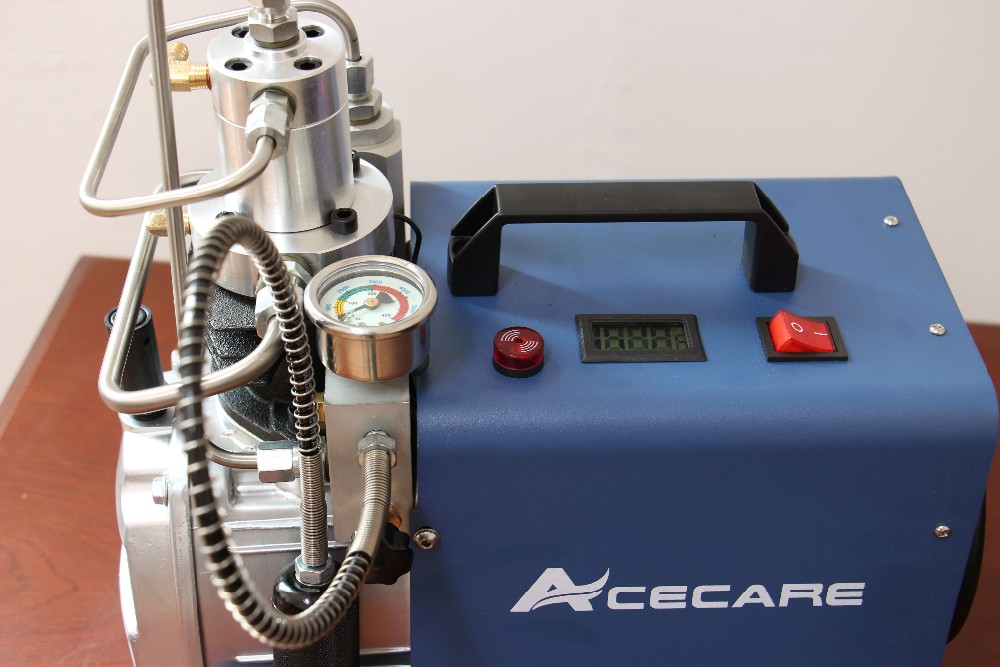

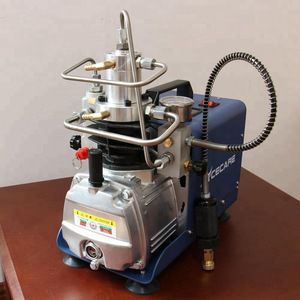

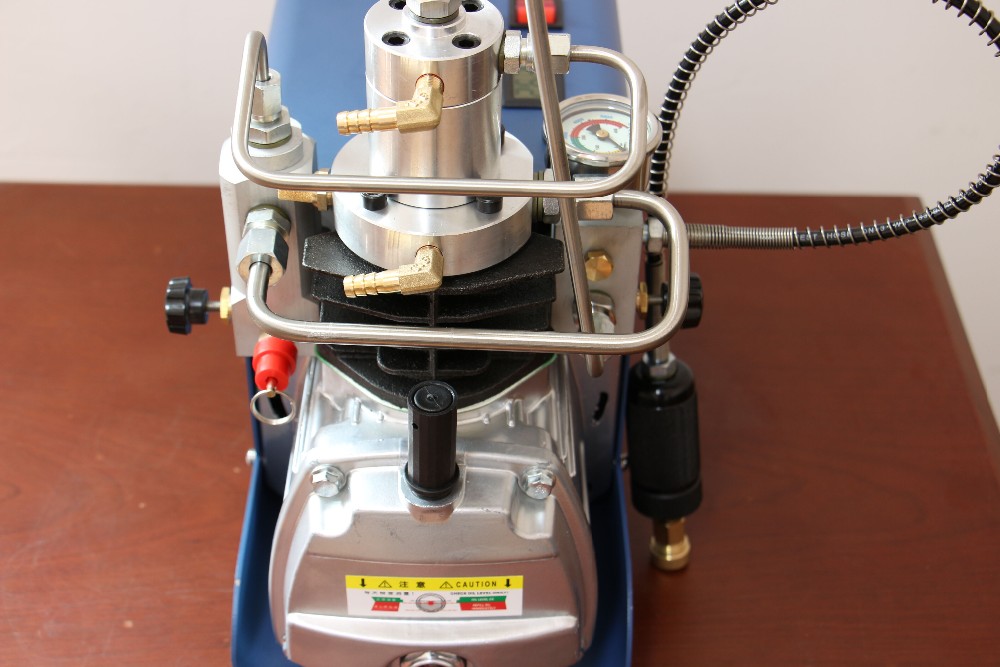

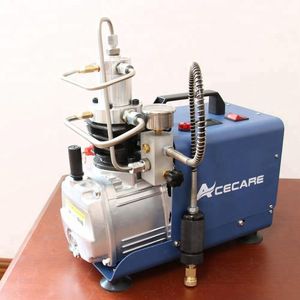

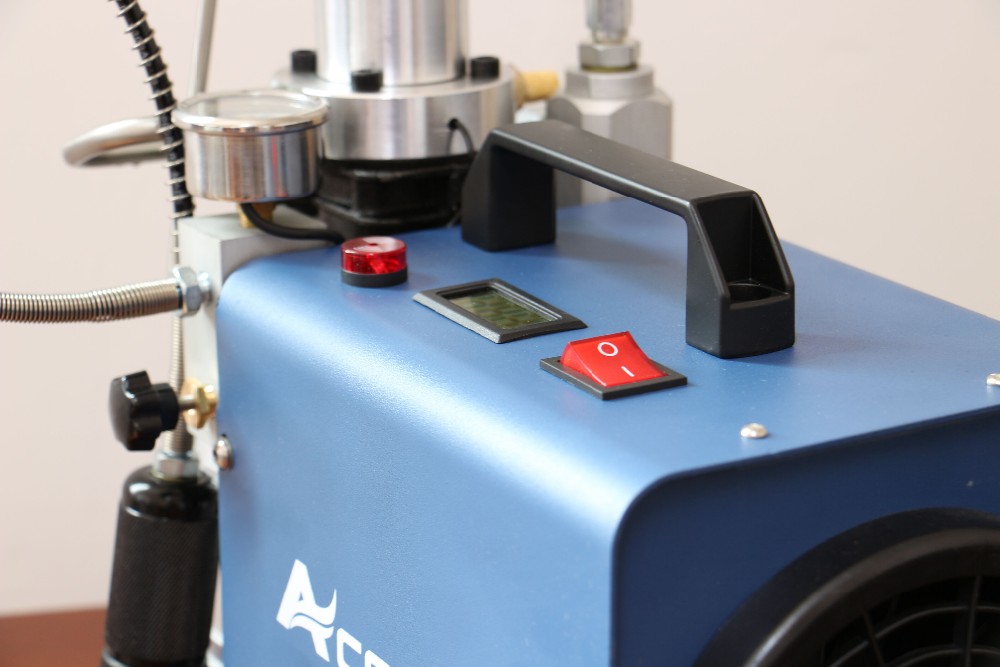

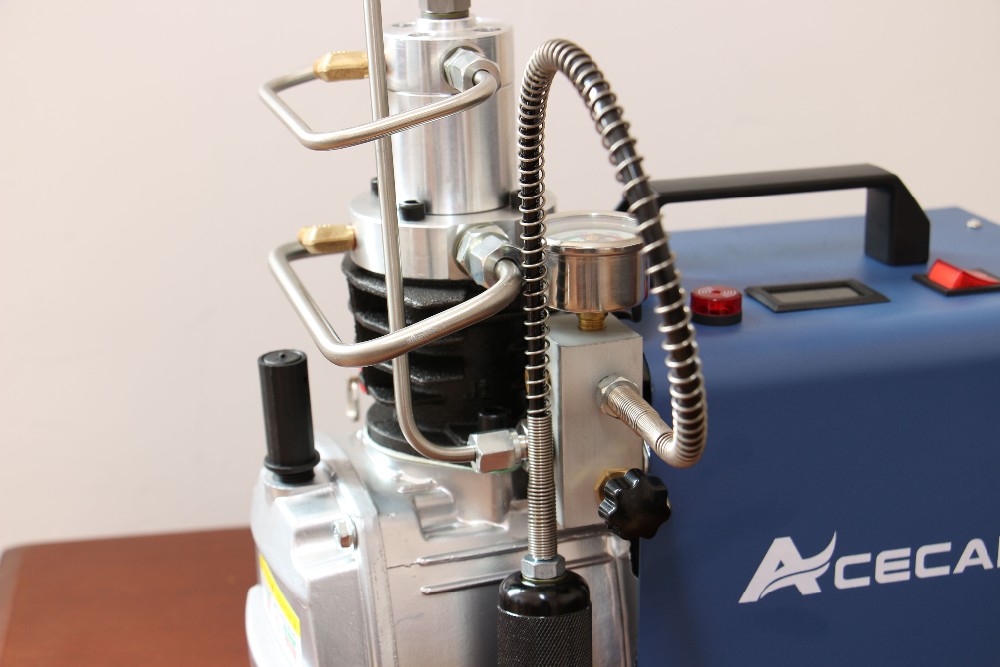

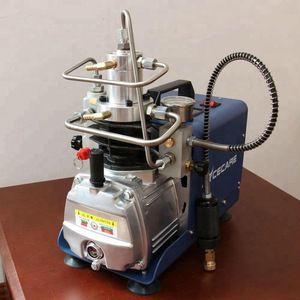

Detailed Images

Product description
(1) Keep this item out of children’s reach.
(2)Do not use this product in humid or inflammable places.
(3)Unauthorized detachment & repair is not recommended.
(4)Make sure your socket can withstand over 8A electric current, or the circuit may get burnt.
(5)To prevent scald, do not touch the head of the machine once it stops working.
(6)The machine will auto shut off once the pressure reaches 30MPA / 300bar.
(7)To keep the cylinder stator temperature in control, please change the cooling water every 30 minutes.
(8)Regularly check the engine oil and make sure oil level stays above the red dot; change engine oil if oil color turns.

Packing & Delivery

ATTENTION:
A single working time cannot exceed 30 minutes, the machine temperature cannot exceed 80 degrees Celsius. If the working time is too long or the temperature is too high, the device will enter the over-temperature protection state, automatic shutdown. If the machine is too hot, automatic shutdown is a normal phenomenon, have a rest after a few minutes the temperature can return to normal, then start again. When the pressure reaches 30MPA / 300bar, the pump will shut down automatically.
