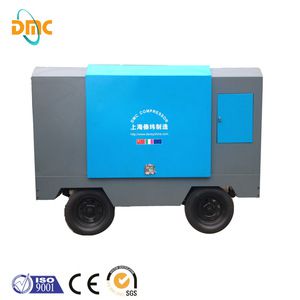

350 cfm Portable Diesel Air Compressor for Sandblasting

350cfm Protable Diesel Air Compressor For SandblastingModel :DSC92Diesel engine driven screw air compressorType:Rotary Twin Screw, one-StageNormal work pressure:7 barCapacity:10.0 m3/minCooling method:air-cooledControl type: Micro PLC controllerDri

Technical Feature

  • New
  • Screw
  • Portable
  • AC Power
  • Lubricated
  • Yes
Send Project Inquiry Add Inquiry List

0 Add Favorite

DESIGN SERVICE OVERVIEW

Project Design Scope

Project Service Scope

PRIMARY PARAMETERS

Condition
New
Type
Screw
Configuration
Portable
Power Source
AC Power
Lubrication Style
Lubricated
Mute
Yes
Place of Origin
Shanghai, China (Mainland)
Brand Name
DMC
Model Number
DSC92
Voltage
Customer's Requirement)
Dimension(L*W*H)
4000*2100*2300mm
Weight
2500kg
Certification
CE
Warranty
1 year
After-sales Service Provided
No overseas service provided
Product name
350cfm Protable Diesel Air Compressor
Application
For Sandblasting
Working pressure
7.5-13bar
Capacity
350CFM
Motor power
92KW
Cooling method
Air Cooling
Engine brand
cummins
driven method
diesel

DETAIL DESCRIPTION

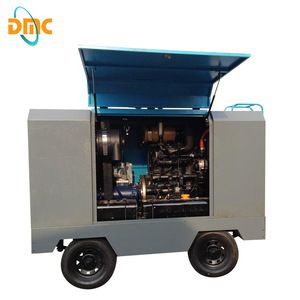

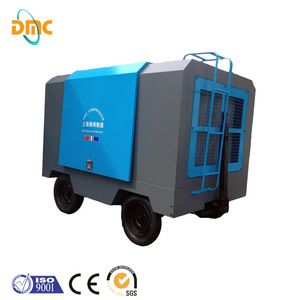

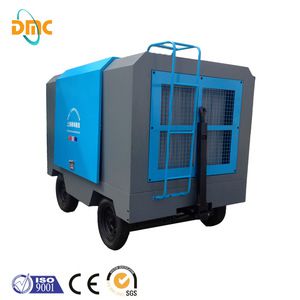

350cfm Protable Diesel Air Compressor For Sandblasting

  • Model :DSC92
  • Diesel engine driven screw air compressor
  • Type:Rotary Twin Screw, one-Stage
  • Normal work pressure:7 bar
  • Capacity:10.0 m3/min
  • Cooling method:air-cooled
  • Control type: Micro PLC controller
  • Driven: direct driven
  • lubrication tank capacity:50 L
  • Dimension: 3500*1500*2200mm
  • Weight:220kg
  • Noise level: less than 75db(A)
  • Outlet connection: 2
  • Connection size: G1” and G1 1/2"(can be customized)
  • Wheel: 16”*4 pcs

  • Type:4 Cycle Water cooled direct injection type turbo charger
  • Engine brand: Yuchai
  • Model:A7GG9
  • Rated Power:92kw
  • Use of Fuel:Diesel Fuel
  • Cylinder:4
  • Fuel tank volume:150 liters
  • Engine oil volume:15 liters
  • Coolant volume: 10 liters
  • Battery: 24V
