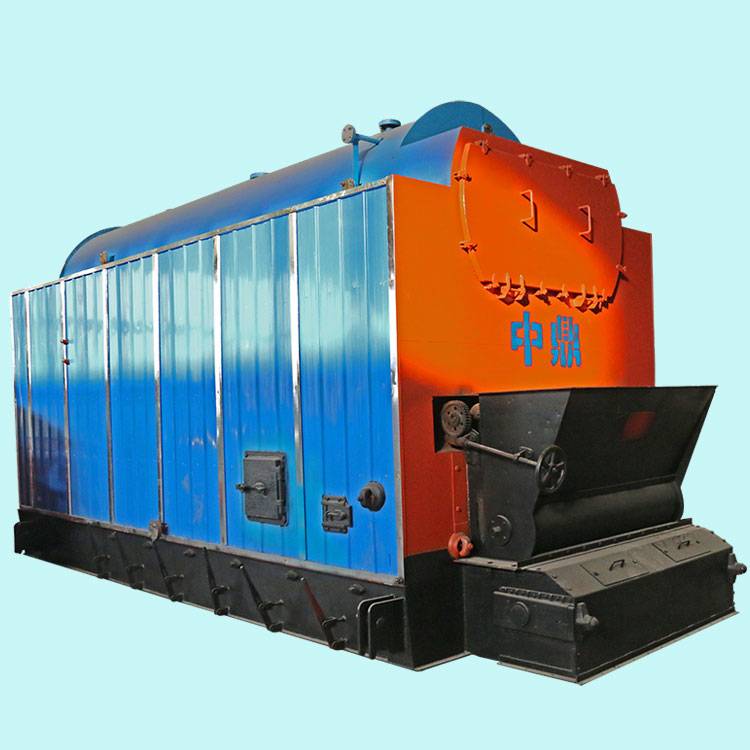

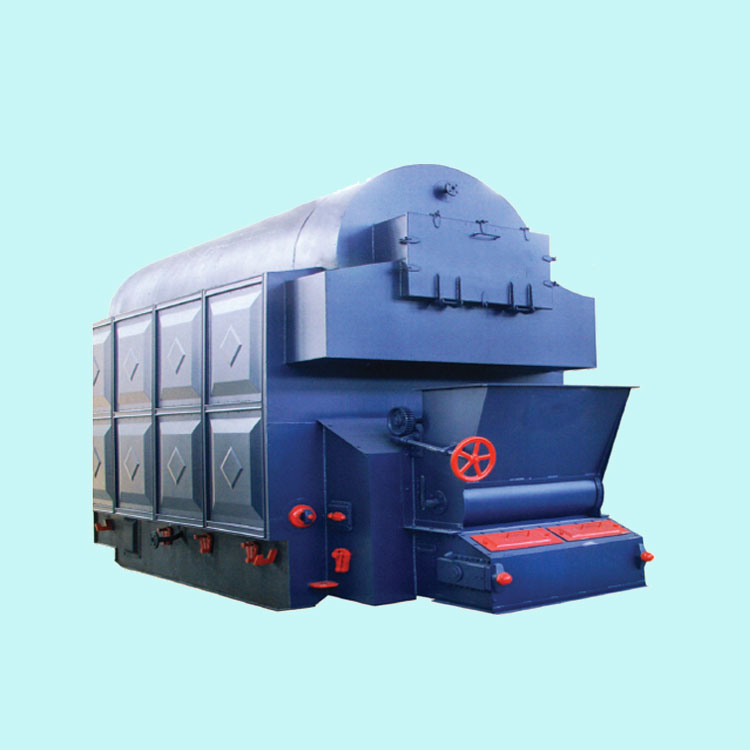

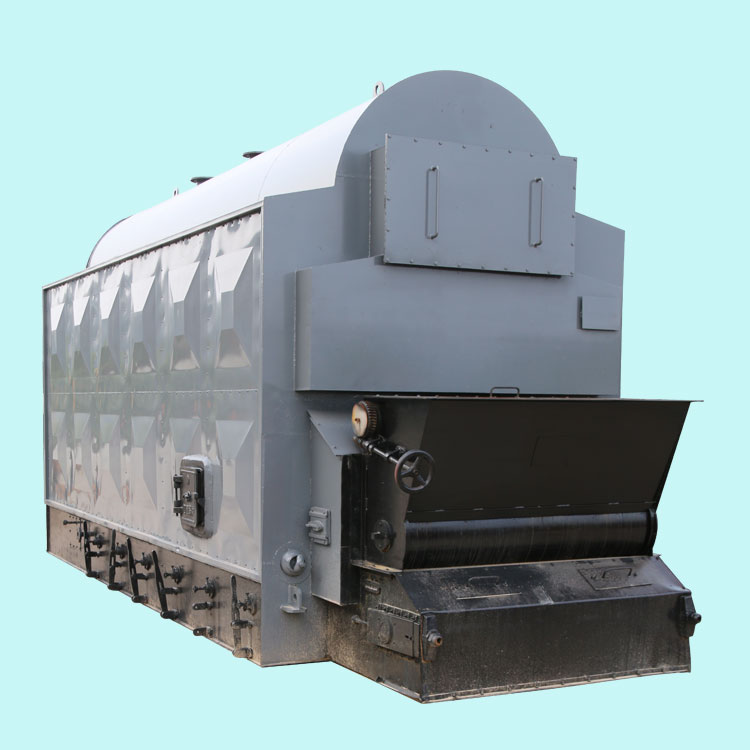

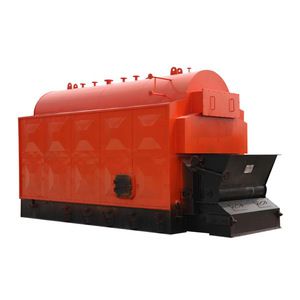

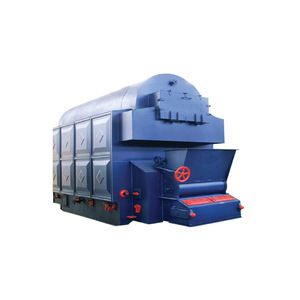

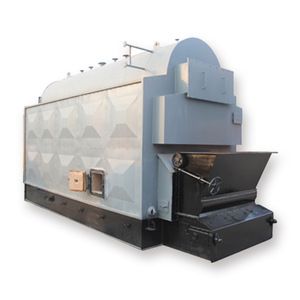

Steam Output 1-20ton/h Coal Fired Steam Boiler Price
 | Output: steam
Capacity: 1-20t/h
Fuel: Coal, rice husk, wood chips, pellet
Structure: Fire and water tube
Thermal Effiency: 68-83%

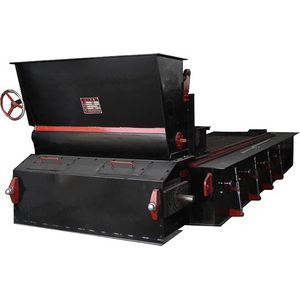

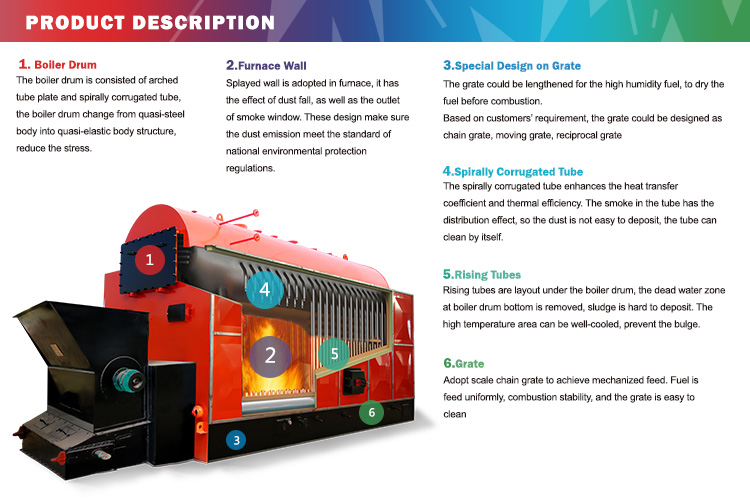

| Steam Output 1-20ton/h Coal Fired Steam Boiler adopts chain grate,suitable for molding pellet fuel,wood block, coal etc. It adopts the newest achievements in scientific research, such as:Arched Tube plate, thread smoke tube etc, solve the tube plate crack of shell type boiler, Water wall tube burst, low efficiency, insufficient of power,Poor pf coal type adaptability etc.
|
The fuel burning at the furnace through, the exhaust gas flow from the boiler barrel bottom to the smoke window outlet on the Eight character wall, then enter convection bank at the both wings, next enter the thread smoke tube through the front smoke box, pass by economizer, dust remover, and induced draft fan, finally discharged to the atmosphere by chimney.
Feeding System of 1-20ton/h Coal Fired Steam Boiler:
1.Conveyor feeding mode (For biomass particles)
2.Elevating automatic feeding (For coal)
3.Blast feeding (For size of less than 50mm of small sawdust, or rice husk)
4.Screw feeder
Technical Parameters of 1-20ton/h Coal Fired Steam Boiler:
Model | DZL1-0.7-T | DZL2-0.7-T | DZL4-1.25-T | DZL6-1.25-T | DZL8-1.25-T | DZL10-1.25 |
Rated evaporation | 1 | 2 | 4 | 6 | 8 | 10 |
Working | 0.7/1.0/1.25 | 0.7/1.0/1.25 | 1.25/1.6 | 1.25/1.6 | 1.25/1.6 | 1.25/1.6 |
Rated steam | 170/184/194 | 170/184/194 | 194/204 | 194/204 | 194/204 | 194/204 |
Feed water | 20 | 20 | 20 | 20 | 20 | 20 |
Effective area of | 2.22 | 4.1 | 5.85 | 7.95 | 9.75 | 10.77 |
Fuel consumption | 200 | 400 | 800 | 1200 | 1600 | 2010 |
Exhaust flue gas | 150 | 150 | 150 | 150 | 150 | 150 |
Thermal Efficiency | 82 | 82 | 82 | 82 | 82 | 82 |
Size(m) | 5.1x 2.2x 3.0 | 5.5x 2.3x 3.3 | 6.6x 2.6x 3.6 | 8.2x 2.9x 3.8 | 8.1x 3.1x 3.8 | 7.7x 3.2x 3.6 |
Weight (t) | 17 | 23 | 25 | 35 | 45 | 33 |
Advantages of 1-20ton/h Coal Fired Steam Boiler:
1.No need special protection when power off.
2.Higher efficiency,heating fast.
3.Safe and reliable.
4.Easy to install.

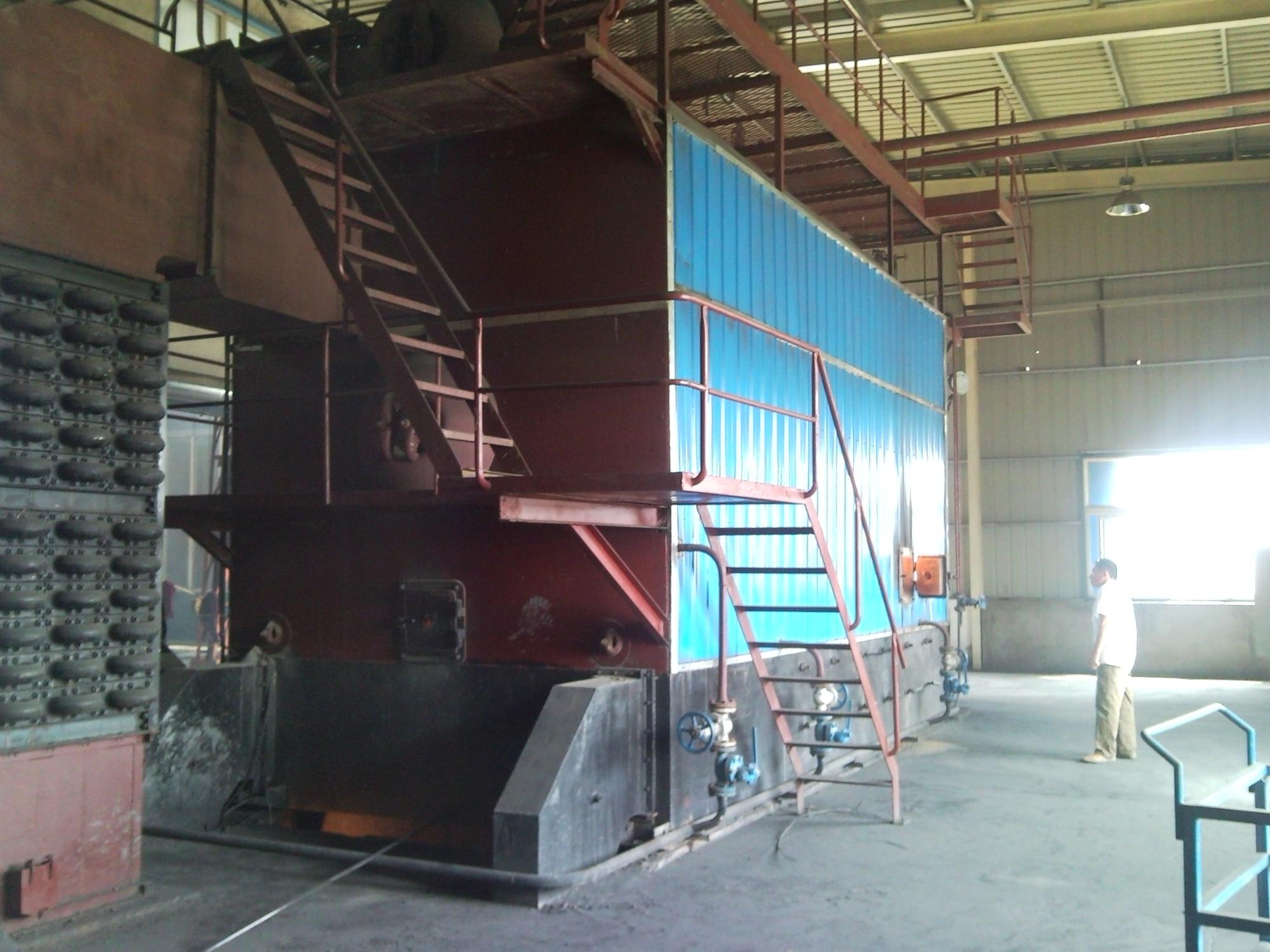

This is our boiler installation site in Serbia.
Medicine, chemical, light industry, textile, building material, cultivation, food and beverage, plastic foam, printing, dyeing and washing, rubber processing, paper products,wood processing, hotel, clothing and leather manufacturer etc.
Our boiler exported to many countries, Serbia, Nigeria, Sri Lanka, Ethiopia, Turkey, Uzbekistan, Egypt, Lebanon and Pakistan etc.
Why Choose us?
1.Chinese Famous Brand
2.Super High Quality, Competitive Price
3.Big Production Ability
4.Fast Delivery, Excellent After-sale Service
5.Certificate ISO9001, ASME, ISO14001, SGS, CE, BV
ZhongDing boiler co., LTD Is the national boiler manufacturing backbone enterprises, domestic boiler industry science and technology innovation-oriented enterprises, China's largest research and development of low circulating fluidized bed manufacturing base.Company has A-class boiler manufacturing license and the class-II and class-II pressure vessel manufacturing license, design level boiler installation license, the company passed the ISO9001 international quality system certification.ZhongDing boiler co., LTD was found the science and technology research and development of boiler manufacturing enterprise.
Turkey, Indonesia, Pakistan customers were visited our factory,they were interested in our steam boiler of coal biomass fired.
Warranty and after-sale service
Zhongding promises the top quality of every set of machine and best after-sales service as followings :
(A)The boiler body guarantee is two years , for accessories three years
(B)During the guarantee period , if the main body defective or broken without wrong operating , Zhongding must replace the parts for free or prepare the spare-parts for free.
(C)Zhongding should provide boiler technical service and operation guidance for whole life long.
(D)Regarding to the installation and training , the buyer should take all the correlative charges (accommodation and food , round -trip tickets)
 |  | |
