100 kg/h small steam boilers

Adopt corrugation furance,increase heating surface and make the boiler be more efficient.

Technical Feature

  • New
  • Natural Circulation
  • Industrial
  • Fire Tube
  • Low Pressure
  • Vertical
Send Project Inquiry Add Inquiry List

0 Add Favorite

DESIGN SERVICE OVERVIEW

Project Design Scope

Project Service Scope

PRIMARY PARAMETERS

Condition
New
Type
Natural Circulation
Usage
Industrial
Structure
Fire Tube
Pressure
Low Pressure
Style
Vertical
Fuel
Oil-fired, Fired (Gas or Oil)
Place of Origin
Henan, China (Mainland)
Brand Name
Bidragon( steam generator)
Model Number
LHS0.1gas steam generator
Output
Steam
Dimension(L*W*H)
1180mm*1100mm*1755mm
Weight
780kg, 760kg
Certification
ISO9001
After-sales Service Provided
Engineers available to service machinery overseas
Efficiency
92%
control system
Automatic control system
Boiler steel thick
12mm
Application
Restaurant, School, Hospital,laundry room
environment
No emmission, no pollution
telephone
86-372-2190222
Rated working pressure
0.4/0.7 Mpa
Warranty
One Year

DETAIL DESCRIPTION

        100kg/h small steam boilers



1. Product Name:



  100kg/h small steam boilers


2.Brief introduction of 100kg/h small steam boilers :



  • Adopt full automatic numerical-control system, reliable  and easy for maintainance
  • Be provided with automatic blowdown system (Independent patent technology) including auto detection, auto shutdown ,auto blowdown functions.
  • Automatic Scale alarm(Independent patent technology)
  • Burner top mounted, down fired power, flame flow get fully extended and sufficient burning
  • Adopt corrugation furance,increase heating surface and make the boiler be more efficient.
  • Vertical design - minimizing the space occupation

3. Application:



This steam generator is widely used in sewing industry, laundry, hospital, domestic and restaraunt.

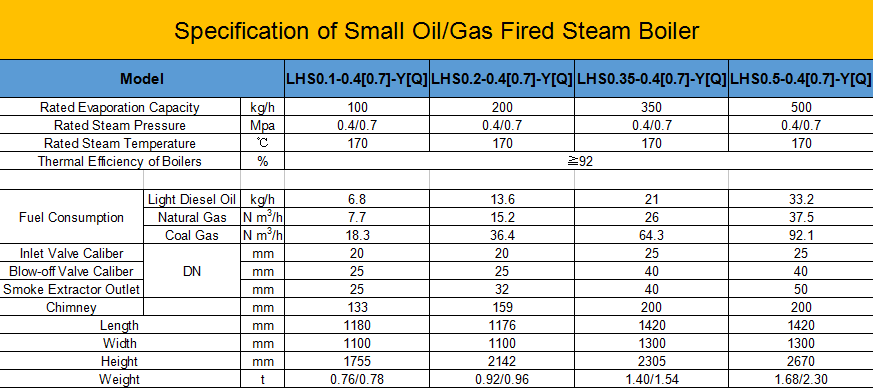

4. Parameter:





5. Our advantage:



  • 1) Safe and fast delivery
  • 2) Professional manufaturing
  • 3) Exquisite craft
  • 4) Exclusive service
  • 5) Strict quality management

6. Guarantee and After-sale service

1.One year guarantee for the boiler body and accessories

2.24 hours technical support by email

3.Engineers available to service overseas

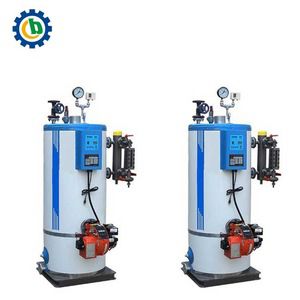

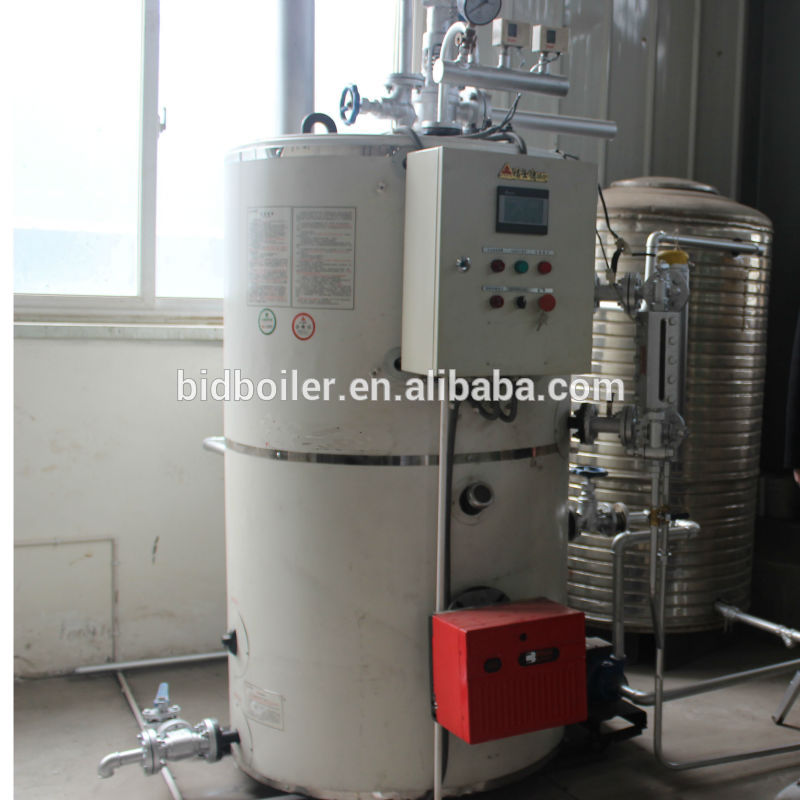

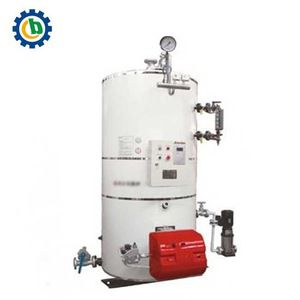

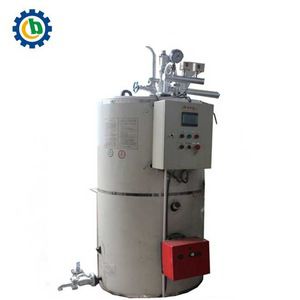

7. Product show:
