China best price 5 ton industrial gas diesel oil fired steam boiler for pharmaceutical industry

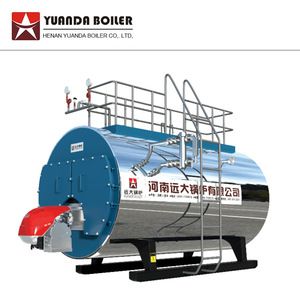

WNS series gas/oil fired steam boiler is horizontal three pass fire tube wet back full automatic steam boiler. It normally suitable for 500kg to 20ton/h capacity, use all kinds of gas and oil fuels,such as natural gas, lpg,lng,cng,city gas,biogas, diesel oil,heavy oil.
1.Model:WNS
2.Capacity:500kg, 1 ton,2 ton, 3 ton, 4 ton, 5 ton,6 ton, 8 ton,10 ton, 12 ton, 15 ton,20 ton
3.Design pressure:1.0Mpa(10bar/10kg/145psi), 1.25Mpa(13bar/13kg/180psi), 1.6Mpa(16bar/16kg/232psi),2.5Mpa(25bar/25kg/362psi)
4.Stem temperature:184℃,194℃,205℃,226℃
5.Design fuel:natural gas, lpg,lng,cng,city gas,biogas, diesel oil,heavy oil
6.Structure: three pass fire tube wet back
| Boiler model | Rated capacity | Rated pressure
| Rated steam tempe rature
| Fuel consumption | Thermal effiency | Weight | Diemension | |||
| natural gas | Diesel oil | heavy fuel oil | lpg | |||||||
| ton/h | Mpa(bar) | ℃ | m3/h | kg/h | kg/h | m3/h | % | ton | mm | |
| WNS0.5-1.0-Y(Q) | 0.5 | 1(10) | 184 | 43 | 33 | 34 | 14 | 92 | 3 | 3000*1500*1800 |
| WNS1-1.0-Y(Q) | 1 | 1(10) | 184 | 84.2 | 65.5 | 67.3 | 29 | 92 | 4.3 | 3561*1690*1910 |
| WNS2-1.25-Y(Q) | 2 | 1.25(13) | 194 | 165 | 129.6 | 132.2 | 57.3 | 92 | 7.2 | 4111*1950*2199 |
| WNS3-1.25-Y(Q) | 3 | 1.25(13) | 194 | 250 | 192 | 195 | 82 | 92.5 | 8 | 4330*2248*2564 |
| WNS4-1.25-Y(Q) | 4 | 1.25(13) | 194 | 323.6 | 256 | 261.9 | 109 | 93 | 9.6 | 4732*2150*2448 |
| WNS5-1.0-Y(Q) | 5 | 1.25(13) | 194 | 386 | 318 | 322 | 140 | 93 | 12.5 | 5970*2360*2796 |
| WNS6-1.25-Y(Q) | 6 | 1.25(13) | 194 | 450 | 380 | 390.6 | 164 | 93.5 | 16.5 | 5500*2600*2990 |
| WNS8-1.25-Y(Q) | 8 | 1.25(13) | 194 | 642 | 503 | 517 | 209 | 93.5 | 24.8 | 6450*2800*3200 |
| WNS10-1.25-Y(Q) | 10 | 1.25(13) | 194 | 805 | 628 | 643 | 264 | 94 | 26.8 | 6800*2900*3394 |
| WNS12-1.25-Y(Q) | 12 | 1.25(13) | 194 | 970 | 758 | 775 | 321 | 94 | 32 | 7050*3100*3450 |
| WNS15-1.25-Y(Q) | 15 | 1.25(13) | 194 | 1185 | 940 | 965 | 400 | 94.5 | 38 | 7150*3200*3540 |
| WNS20-1.25-Y(Q) | 20 | 1.25(13) | 194 | 1597 | 1250 | 1301 | 520 | 94.5 | 55 | 8200*3400*3826 |
Notice: 1. For rated steam pressure, we can also do 1.6Mpa(16bar) and 2.5Mpa(25) for boiler capacity above 2ton/h. 2.For fuel, this boiler can also use lng, cng,biogas as fuel. |

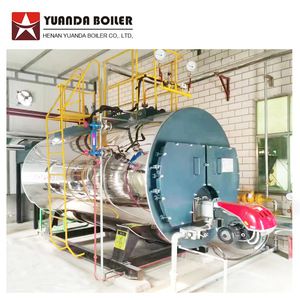

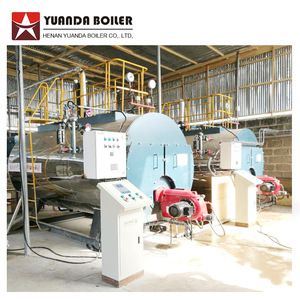

As gas oil fired steam boiler is one of our main products, we have projects also most all around the world. It is ok if you want to visit our projects in your country. You can contact Mandy for case's information.
(1) We need to know the boiler capacity, the fuel you plan to use and the steam pressure you need, and then we can confirm the boiler model. (2) Customer needs to provide us your name, email address and company name, and then we will send you price list immediately.And if you use whatsapp, skype or wechat, you can provide us your ID, it will be more convenient
Q2: Why should you believe our boiler quality?
(1).Strength calculation report with applied materials information;
(2).100%NDT(non-destructive inspection) report of steel plate, tube and welding rod;
(3).100% X-ray inspection(welding seam): ensure the quality of entire boiler;
(4).Hydrostatic test: ensure the standard working pressure and safety;
(5).Third-party inspection report:By Henan Boiler Inspection Institute;
(6).Passed ISO:9001 and SGS certificate.
After you receive the boiler, we will guide you to make some preparation for installation;If necessary, our expert will fly to your local place in 72 hours. The experts will responsible for guiding installation and commissioning.
A:Normally the boiler is designed for 20 years life span, but with right operation and good maintenance,the boiler can be used for 20-25 years.
