Qingdao Guolin Environmental Technology Co., Ltd was established in 1994, which is a high-tech enterprise based on advanced ozone technology and is ranked as the leading ozone system suppliers in China. Guolin is engaged in ozone generation mechanism research, ozone equipment design and manufacture, ozone application project design, installation, debugging, operation and maintenance for water treatment project, waste water treatment project and flue gas denitrification project.
GUOLIN ozone generator has been widely used for water and waste water treatment, industrial oxidation, flue gas denitrification, bottle water disinfection, swimming pool disinfection, packaging film, odor removal, air disinfection, food and beverage disinfection, pulp bleaching, aquaculture, printing and dyeing waste water treatment, petrochemical waste water treatment, etc.

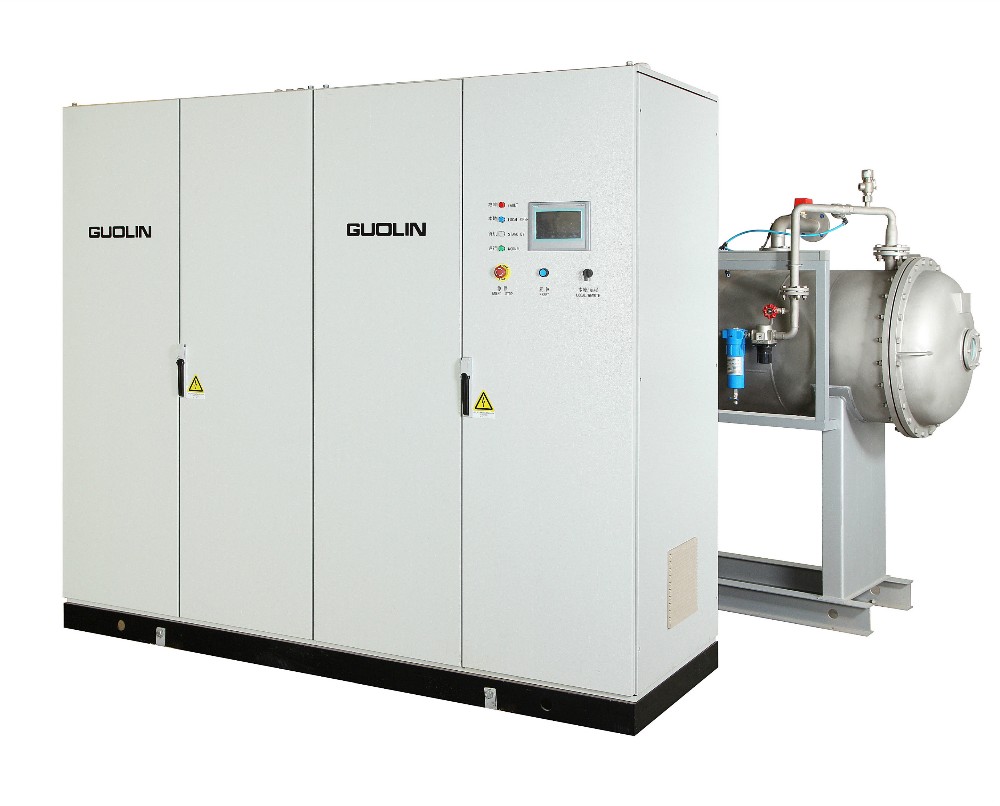

large Ozone Generator Application in Industrial Waste Water Treatment
Ozone with strong oxidation ability can decompose organics which is difficult to be treated by biological-chemical technology and poisonous substance in discharged waste water from industry of printing and dyeing, pharmacy production, pigment production, electronics and chemical, etc. Ozone also can remove color and odor in such kind of waste water. Waste water after treatment could reach discharge or reuse standards.
Main Features of Large Ozone Generator for Industrial Waste Water Treatment
1 Water cooling mode. Multi-stage cooling structure design ensures the cooling efficiency to be increased by 20%. Equipment can be running continuously for 24hrs;
2 Electrode tube is made of 316L stainless steel; imported medium coating material is used for dielectric tube;
3.Ozone capacity could be regulated with range of 10%-100%; high ozone concentration, large ozone capacity, more stable performance and longer life time;
4.Equipment has operation monitoring functions to current, voltage, temperature, flow rate, gas pressure and operation status and protection functions;
5. Control method includes manual control and automatic control for option.

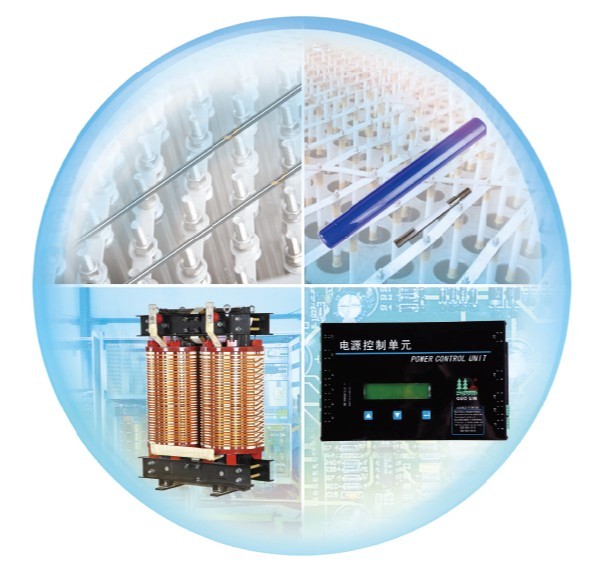

Core Technology of large Ozone Generator for Industrial Waste Water Treatment
------International leading glass and non-glass discharge dielectric technology
------Capacitive load high power inverter resonant power supply technology
------Capacitive load high power dry type high voltage transformer technology
------Power control technology based on IP core and digital logic circuit
------Embedded on-line detection and remote monitoring technology of ozone system
Ozone Treatment Process in Industrial waste water treatment
Ozone +combined process:
1.Because of the high concentration of COD, the direct oxidation of ozone is not economical, so combined process is always used.
2.Use ozone to improve biodegradability. The common combined process is ozone +BAF, ozone + catalyst, ozone +H2O2, MBR+ ozone, ozone +BAC.
Ozone function in Industrial waste water treatment
2.Open loop, decompose benzene, phenol and its derivatives;
3.Detoxification, reduce toxicity of waste water which includes cyanide, pesticides or others.
Decolorization, interrupting the chromophore group.

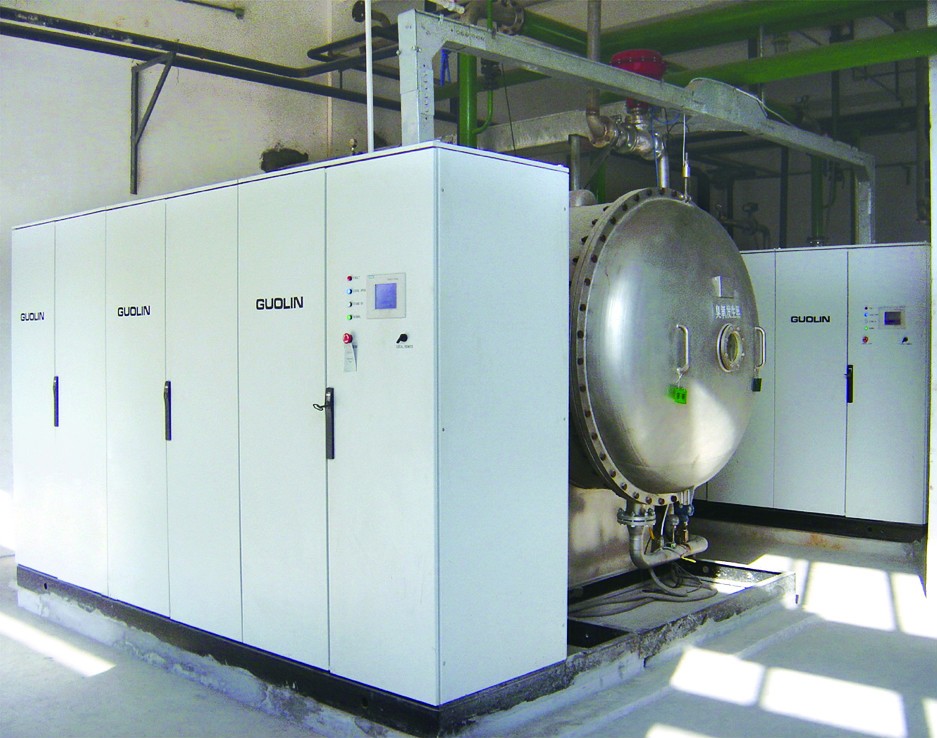

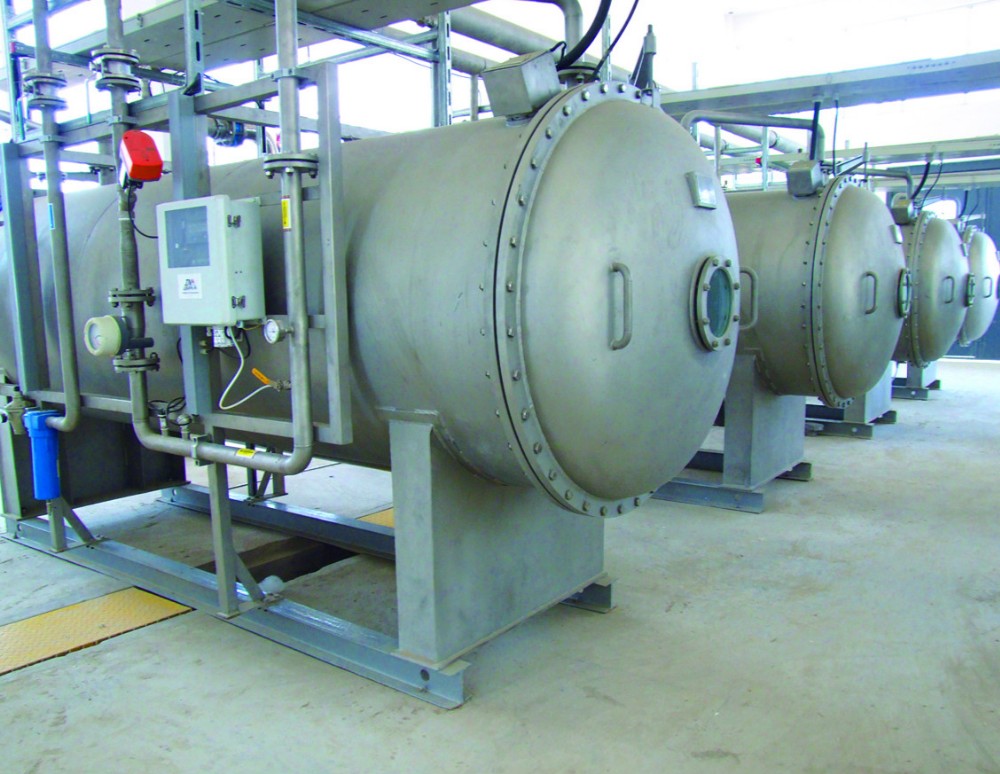

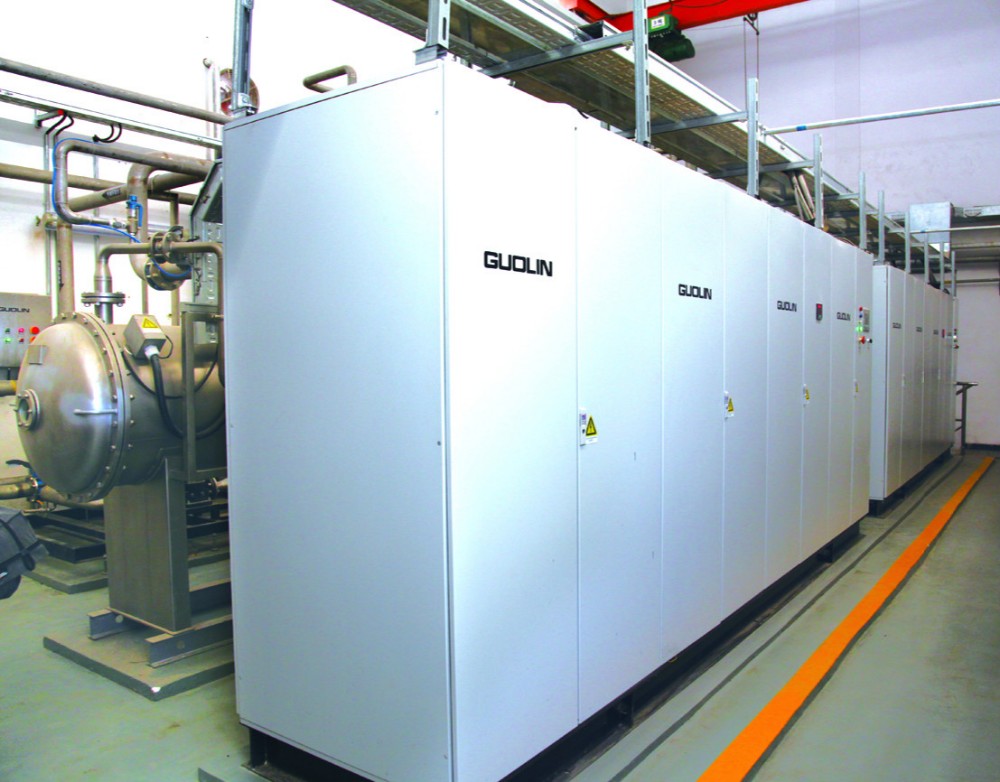

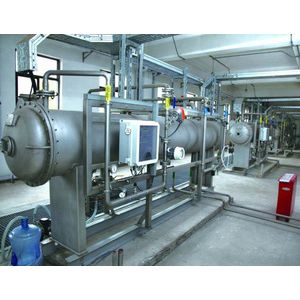

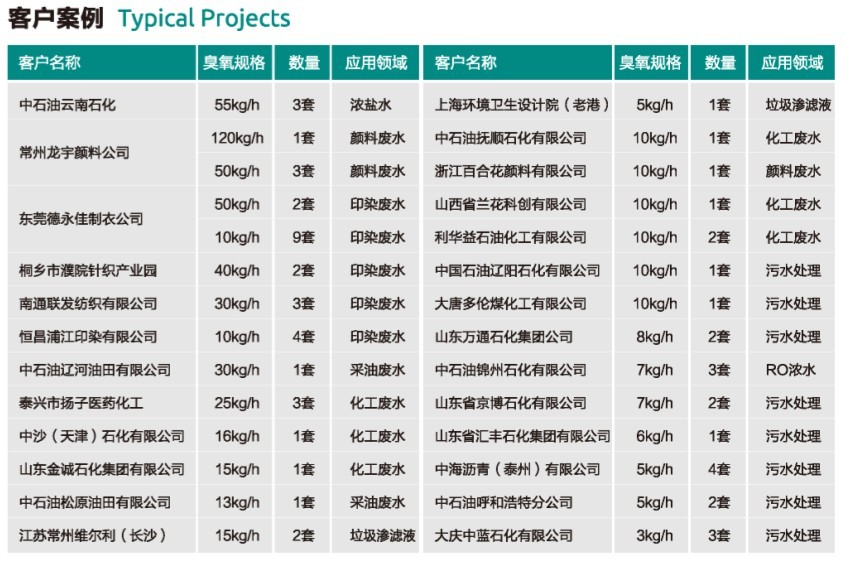

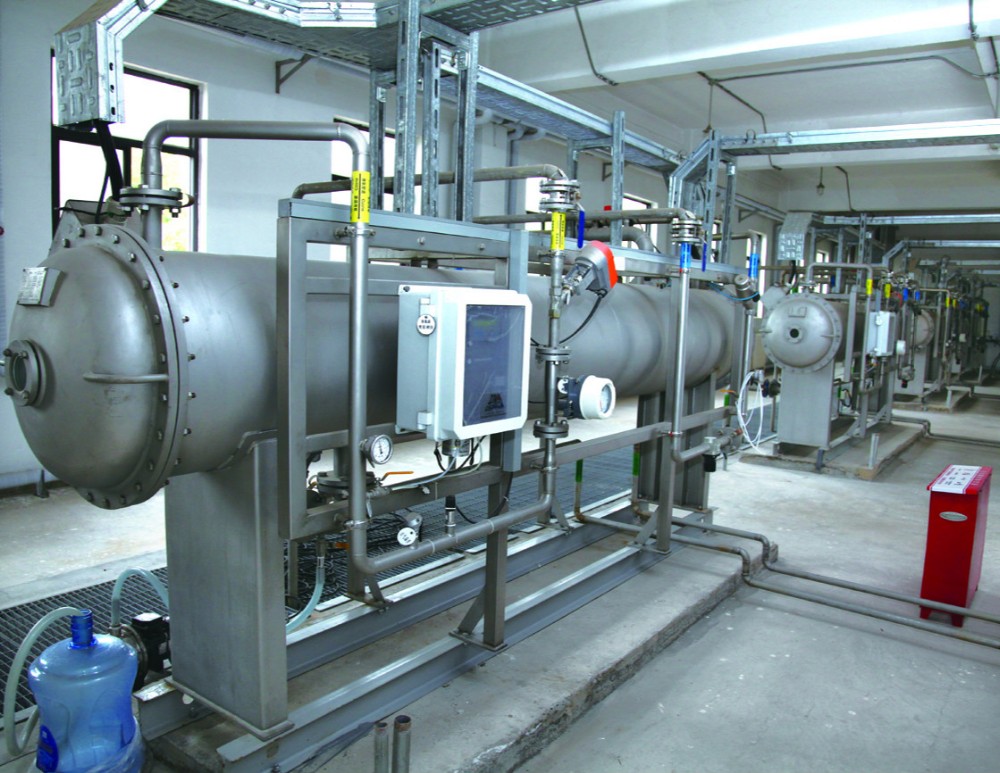

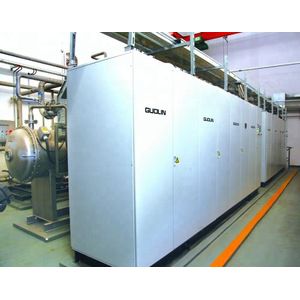

Typical Projects of large size Ozone Generator in Industrial Waste Water Treatment Application

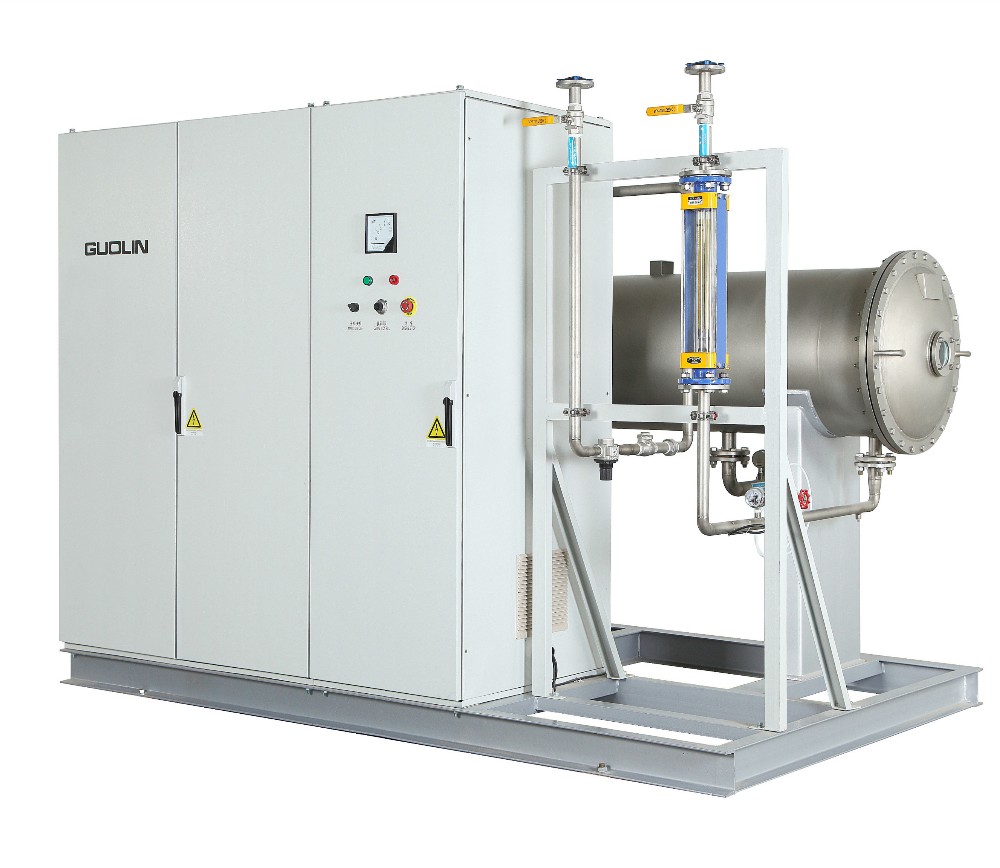

Product Composition

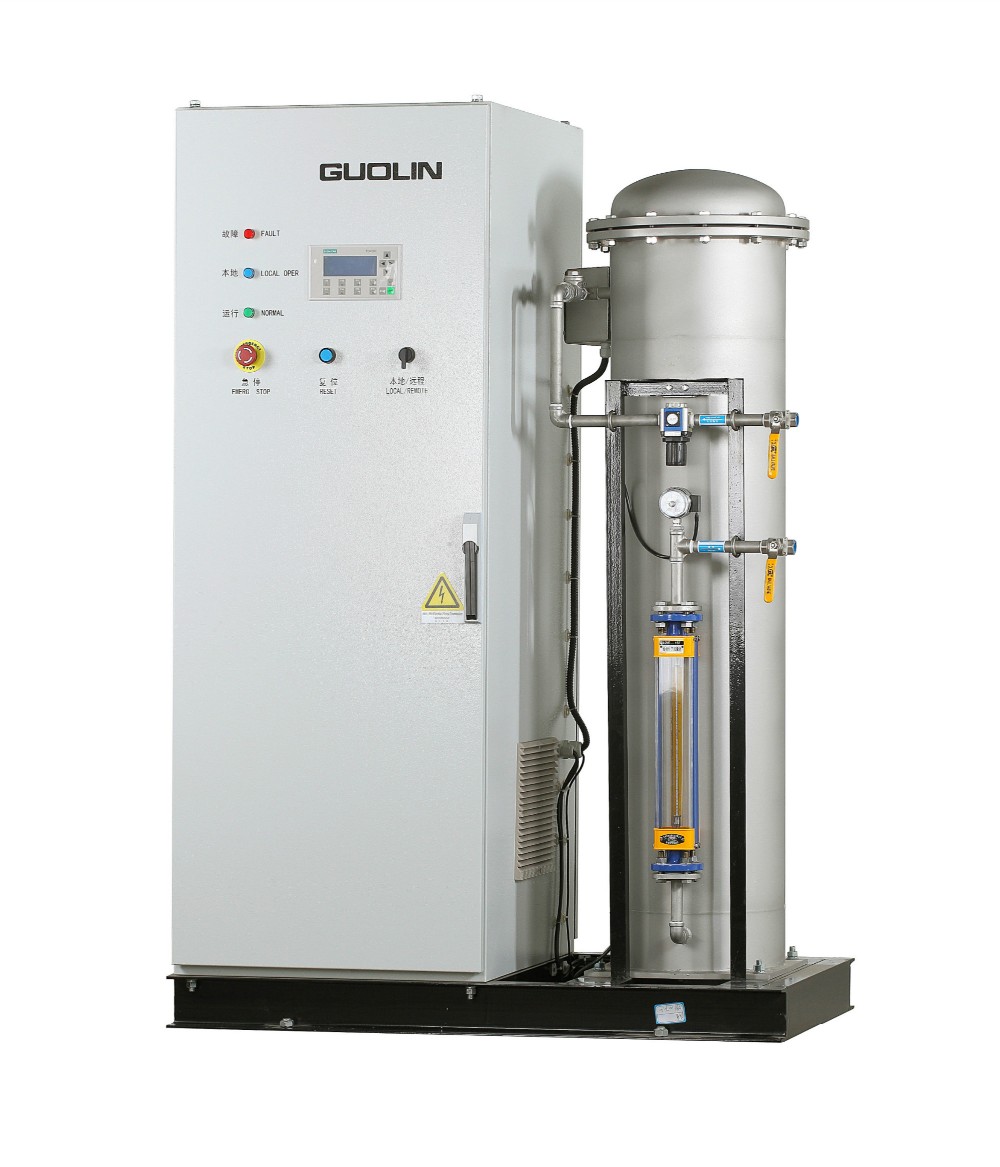

Name: large ozone generator for industrial waste water treatment
Brand: GUOLIN
Original: China
---ozone generation device (ozone generation tank, dielectric tube)
----PSU device(includes high voltage transformer, DC reactor, coil in reactor, rectifier and inverter, etc )
----control device (includes circuit board, power meter, ozone capacity adjusting knob, etc.)
----instruments and pipelines(gas flow meter, pressure relief valve, check valve, pressure switch and regulation valve, etc.)
----PLC control system and monitoring instruments (automatic control type)
After-sales Service Mode
Customer service center set up 400 and 800 national service hotline for the user to answer the questions during the operation of equipment. We make service commitment of "fast response, rapid action" and provide customers with convenient after-sales service.
After-sales Service Team
Customer service center works based on the strategic policy of "taking the technology as guide, quality as main line and customer satisfaction as the purpose ". We devote ourselves to build a professional after-sales service team. At the same time, the customer service center has a professional after-sales service vehicles and service equipment to provide customers with professional after-sales service.
After-sales Service Team
Guolin After-sales Service Center could provide a comprehensive pre-sales, sales and after-sales service for customers to make sure the stable operation of all products. Guolin will supply the most advanced products, the most convenient operation and maintenance and best service for all industries.
Packaging
Packaging Details:
All of GUOLIN ozone generators and corollary equipments are packed by plywood case which meet the requirements of export without fumigation.
