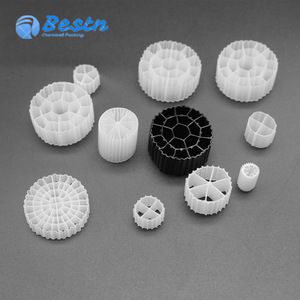

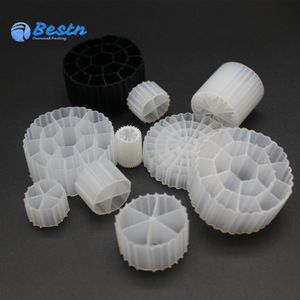

Bio Trickling Filters MBBR for Waste Water Treatment
Due to the turbulent movement of the bio filter media in suspension, the filter medium is Self-cleaning, requiring no maintenance. This allows the filter to reach optimum effectiveness without the disturbance of periodic maintenance, avoiding unnecessary loss of bacteria within the filter. This allows stable, low levels of ammonia and nitrite within the water.

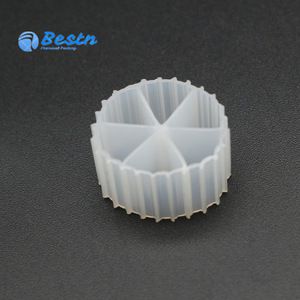

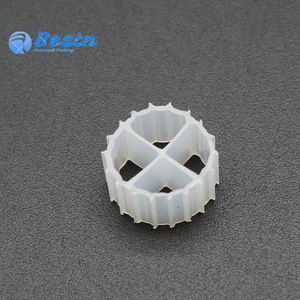

SPECIFICATIONS FOR MBBR FILTER MEDIA | ||||||
Item No. | Unit | PE01 | PE02 | PE03 | PE04 | PE05 |
Size | mm | Dia12X9 | Dia11X7 | Dia10X7 | Dia14.5X10 | Dia25X10 |
Hole numbers | pcs | 4 | 4 | 5 | 6 | 19 |
Effecient surface area | m2/m3 | >800 | >900 | >1000 | >800 | >610 |
Density | g/cm3 | 0.96-0.98 | 0.96-0.98 | 0.96-0.98 | 0.96-0.98 | 0.96-0.98 |
Porosity | % | >85 | >85 | >85 | >85 | >85 |
Bulk weight | kg/m3 | 120 | 135 | 140 | 120 | 95 |
Membrance-forming time | days | 3-15 | 3-15 | 3-15 | 3-15 | 3-15 |
Nitrification efficiency | gNH4-N/m3.d | 400-1200 | 400-1200 | 400-1200 | 400-1200 | 400-1200 |
BOD5 Oxidation efficiency | gBOD5/M3.d | 2000-10000 | 2000-10000 | 2000-10000 | 2000-10000 | 2000-10000 |
COD5 oxidation efficiency | Gcod/m3.d | 2000-15000 | 2000-15000 | 2000-15000 | 2000-15000 | 2000-15000 |
Applicable efficieny | ℃ | 5-60 | 5-60 | 5-60 | 5-60 | 5-60 |
Life span | year | >15 | >15 | >15 | >15 | >15 |
Process

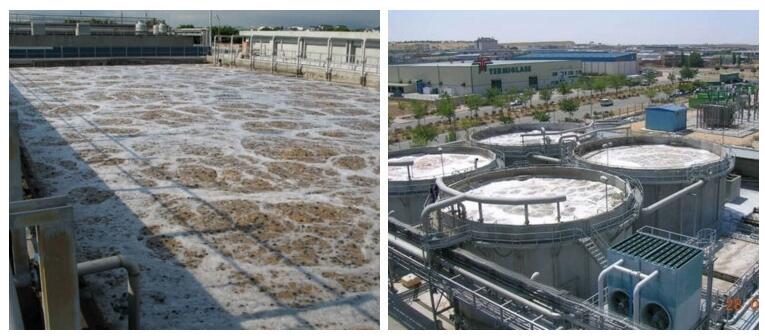

Application:

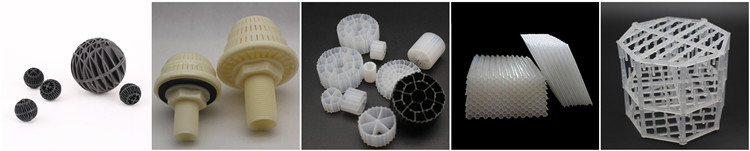

Related products
1.Q:Are you trade company or manufacture?
A:We are manufacture with more than 12 years experience,and the price is the factory price.
2.Q:How to control the quality?
A:We have strict quality by QC team.
3.Q:How long is the delivery time?
A:It is about 5 days after payment for stoct goods,10-15 days for new producing goods.
4.Q:How to get the sample ?
A:We are glad to send you the free sample.
5.Q:What is the payment terms?
A:Flexible and diverse payment ways can be chosen, make you more convenient
Generally,30% in advance,70% before shipment
6.Q:Can you do OES service?
A:Yes,size & shape could be made as customer requirments
