Product Name: Steel structure workshop prefabricated
Brief introduction:
We are a professional supplier for steel structure building, prefabricated house and container house.
We have professional steel structure engineering first class qualification ,and certified ISO-9001:2000 quality system authentication.
Specifications:
We can supply the following :
| 1) Steel Structure Building |
| 2) Metal Building |
| 3) Modular House |
| 4) Steel Structure Warehouse |
| 5) Workshop / Factory |
| 6) Garage |

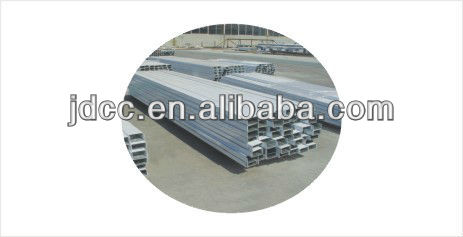

| 7) Steel beams other riveting and welding parts |
| 8) OEM projects |
We could design and provide structure drawings , 3D pictures , production drawings , installation instructions, etc.
Specification :
1) Different sizes: MOQ is 100 m2, width x length x eave height.
2) Different types: Single slope , Double slope ,
Single span , Double span , Multi-span
Single floor , Double floor
3)Different bases: Cement and Steel foundation bolts

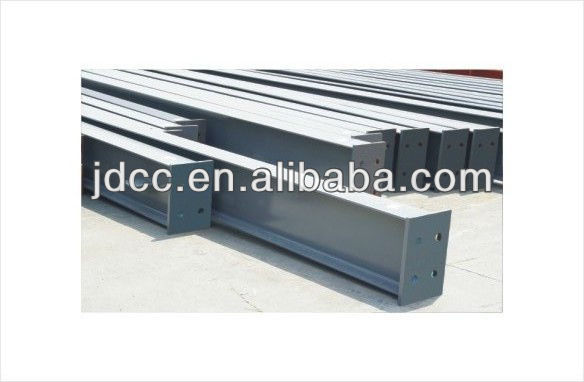

4)Different columns and beams: Material Q345 (S355JR) or Q235 (S235JR),
all bolt connections , straight cross-section and kinds of cross-section.
5) Different bracings: X type or V type or other type bracing .
6) Different purlins: C or Z type, size from C120-C320 , Z100-Z200.

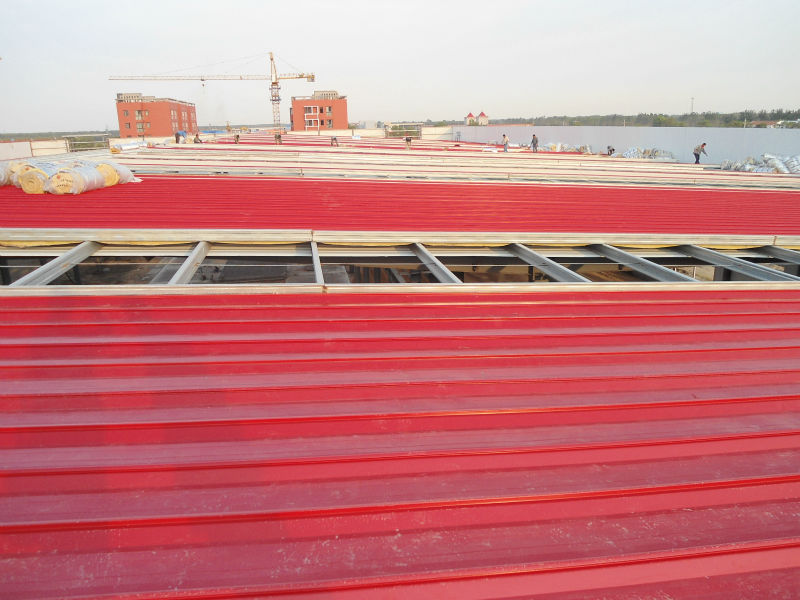

7) Different roof and wall panel: Sing colorful corrugated steel sheet (150mm wide) or sandwich panel with EPS , Rock wool , PU etc. Thickness of insulation material is around 50mm-100mm.
8) All accessories: Semi-transparent skylight belts , ventilators , dwn pipe , eave gutter ,etc.
9) Surface: Two layers of anti-rust paint.
10) Packing: Main steel frame without packing load in 40’OT , roof panel and wall panel load in 40’HQ.
Please kindly provide the following important technical parameters to us for a specific quotation:
| 1) Live load on roof (kn/m²) |
| 2) Wind speed (km/h) |
| 3) Snow load (kg/m²) - If Applicable |
| 4) Earthquake load - If Applicable |
| 5) Style of Doors and Windows |
| 6) Crane (if you have), Crane span, Crane lift height, max lift capacity, max wheel pressure and min wheel pressure |
| 7) Size: width × length × eave height, roof slope |
| 8) Or your idea! |
If you are not sure about the above information , don't worry, we will explain more details to you ,and will design the project according to your requirement. Please believe us ! :)
