Large car parking prefab steel structure metal building prices
Large car parking prefab steel structure metal building prices
Type of Portal Frame
Portal frame is lightweight house structure system,main body with H shape steel,applying light gauge cold-formed steel shape as purlin and wall beam,pressed metal plate as roof and wall,making heat insulation with material of polystyrene polyfoam,hard polyurethane polyfoam,rock wool,glass wool etc.
Type of Truss
Truss is section or space structure composed with triangle unit by straight pole. Under effect of loading,truss pole unit mainly bears axial tension and pressure to fully utilize strength of materials.It would be more material saving than solid web girder when in great span,reducing self weight and enlarging stiffness,is suitable for support structure and towering structure with great span.
Type of Steel Frame
Steel framework,composing with steel beam and steel column,is bearing system connected by steel or hinge joint. That is to say it's framework,composing with beam and column to resistant to horizontal load and vertical load in application. The structural house wall doesn't bearing, it just separate and protect in function. Comprehensively satisfy various demands of great span,multi levels, high load support,crame work, widely apply in kinds of industrial and civil buildings like residence,school,office building,theatre,shopping mail,gymnastic,station,exhibition,aeroplace shed,park and light industry workshop.
Large car parking prefab steel structure metal building prices

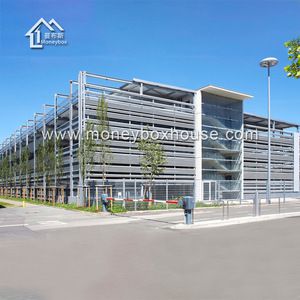

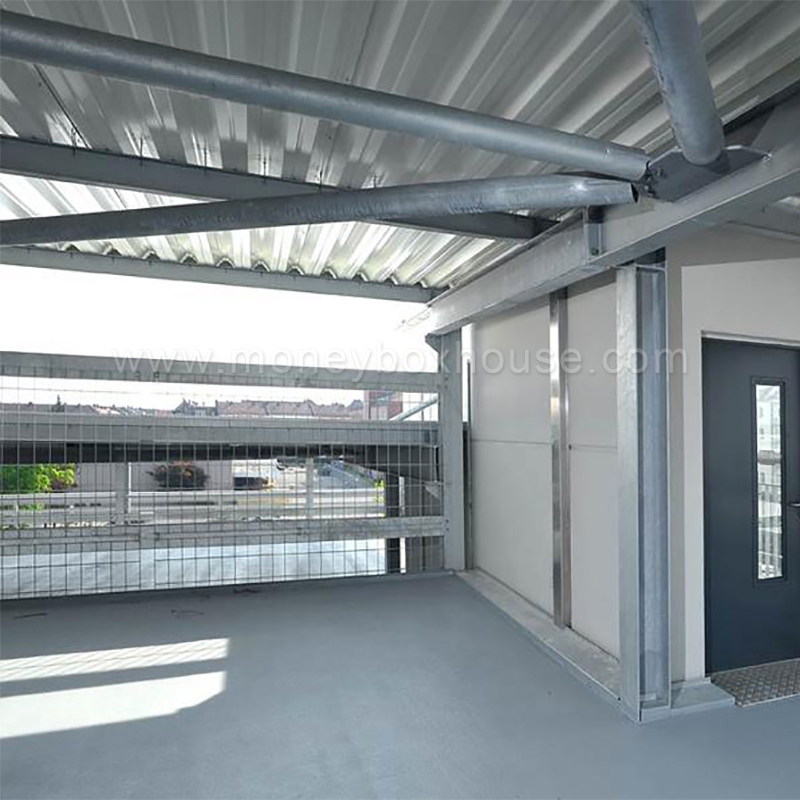

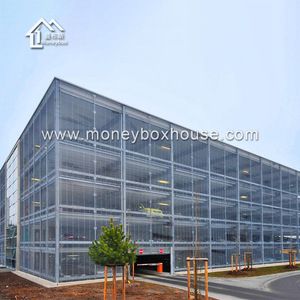

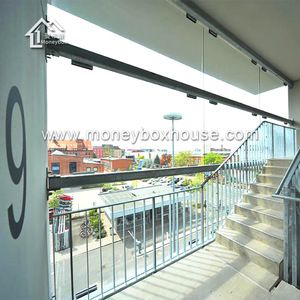

Large car parking steel structure building multi-storey
Large car parking steel structure building multi-storey
Construction class:
Simple Steel Construction | ||
Main structure | Single span: L -shorter than 18m, H -lower than6m | |
Maintenance system | Roof | Colored sheet with 50mm glass wool |
Wall | Colored steel sheet | |
Door | Wind resistance rolling door(within 10m2) | |
Window | Very few | |
Suitable market | No snow, wind load below 0.4kn/m2 |
Standard Steel Construction | ||
Main structure | Single span: L -shorter than 24m, H -lower than8m | |
Maintenance system | Roof | Colored sheet with 50mm glass wool |
Wall | Colored steel sheet or 50mm EPS sandwich board | |
Door | Wind resistance rolling door(within 15m2) | |
Window | Alu. Alloy (can use with skylight) | |
Suitable market | Snow loading below 0.5kn,wind loading below 0.5kn/m2 |
Coastal(High Wind Speed)Steel Construction | ||
Main structure | Single span: L -shorter than 18m, H -lower than 6 m | |
Maintenance system | Roof | Colored sheet with 50mm glass wool |
Wall | Colored steel sheet or 50mm EPS sandwich board | |
Door | Wind resistance rolling door(within 15m2) | |
Window | Alu. Alloy (can use with skylight) | |
Suitable market | Snow loading below 0.7kn,wind loading below 1.2kn/m2 |
Cold Region(Heavy Snow) Steel Construction | ||
Main structure | Single span: L -shorter than 18m, H -lower than 6 m | |
Maintenance system | Roof | Colored sheet with 50mm glass wool |
Wall | Colored steel sheet or 50mm EPS sandwich board | |
Door | PU foamed rolling door | |
Window | Alu. Alloy (can use with skylight) | |
Suitable market | snow loads below 3kn, wind load below 1KN/M2 |
Steel Construction with Crane(5T,10T,15T,20T) | ||
Main structure | Single span: L -shorter than 20m, H -lower than 10 m | |
Maintenance system | Roof | Colored sheet with 50mm glass wool |
Wall | Colored steel sheet or 50mm EPS sandwich board | |
Door | Wind resistance rolling door (within 15m2) | |
Window | Alu. Alloy (can use with skylight) | |
Suitable market | Snow 0.5kn, wind load below 0.5kn/m2 |
Project Characteristics:
1. Wide span: single span or multiple spans,the max span clear distance is 36m,without middle columns.
2. Low cost: unit price range from FOB USD25 to USD80 per square meter according to customer's request.

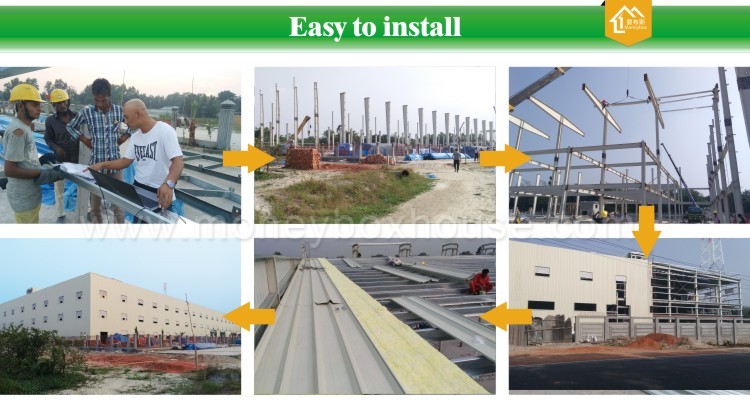

3. Fast construction and easy installation.
4. Long term service life: more than 50 years.
5. Other characteristics: environmental protection, stable structure, earthquake resistance, water proof, and energy saving.
In order to recommend both safe and practical,beautiful and economical structure,we generally requires the following elements:
Dimensions: length,width,height,whether there is clear width,clear height requirements;
Uses: business,warehouseing,manufacturing,whether store with equipment,goods;
Entrance: the number of pedestrian and vehicular entrance and dimensions;
Lighting: the number of pedestrian and vehicular entrance and dimensions;
Ventilation: shades quantity,whether typhoon or fan;
Interior partition: use of regional distinction,whether mezzanine;
Load: wind load,hanging loads,floor loads,etc.;
Appearance: single slope,double slope,arched,and even across the other;
Drainage: the need for ditches,pipes;
Electrical and plumbing: the need for electricity,plumbing,kitchen facilities,etc;
Materials:
choose the suitable materials after discussing with the sellers
1. 24 hours on line &one to one service, solve your problem efficiently.
2. Professional installation team and site engineers for foreign countries.
3.Customers are warm welcomed to visit our factory at any time, even during holidays.
4.Perfect arrangement for customers from Hotel booking to product shipping.
1. Q: Are you a factory or trading company?
A:Guangzhou Moneybox Steel Structure Engineering Co., Ltd. is a factory located in Panyu district, Guangzhou, Guangdong province.
2.Q: What's your supply capacity?
A:Annual Production: container house 72000sets,prefab house 564000square meters;portable toilet 24000sets;steel structure 360000square meters .
3. Q:How to install ?
A:We will provide installation instruction and video for you, technicians will be sent to help you if it is necessary. However, the visa fee, air tickets, accommodation,wages will be provided by buyers.
4. Q: How long is your delivery time?
A:Generally it is within 2-30 days ,definitely according to quantity and color.
5. Q: How do you guarantee the quality of the products?
A:Strict product quality control, quality makes the future.This is the tenet of our factory. Each product from our factory has strict testing procedures, and must be 100% quality before delivery.
6. Q: How can I get the quotation of the project ?
A:If you have drawing ,we can offer you our quotation according to your drawing .
If you have no design , Our engineer will design some drawings for you to confirm. And then offer you a quotation.
