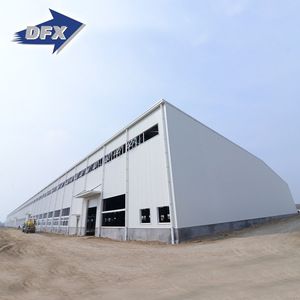

Dfx China Prefabricated Warehouse Workshop Building Steel Structure

We have been in this line more 10years.

Technical Feature

  • AISI, ASTM, BS, DIN, GB, JIS
  • Q235 Q235B Q345
  • Customers' Requirement
  • Shandong, China (Mainland)
  • DFX
  • Q345B Q235B
Send Project Inquiry Add Inquiry List

0 Add Favorite

DESIGN SERVICE OVERVIEW

Project Design Scope

Project Service Scope

PRIMARY PARAMETERS

Standard
AISI, ASTM, BS, DIN, GB, JIS
Grade
Q235 Q235B Q345
Dimensions
Customers' Requirement
Place of Origin
Shandong, China (Mainland)
Brand Name
DFX
Model Number
Q345B Q235B
Type
Light
Application
Steel Workshop
product name
Dfx China Prefabricated Warehouse Workshop Building Steel Structure
material
light steel frame ,sandwich panel
service life
more than 50 years
application
China prefabricated logistics warehouse building steel structure
alternative choice
crane, venting &electric system
grade
Q345steel &Q235 steel
charactor
easy to install, recyclable .
roof & wall panel
sandwich panel,steel sheet
Installation
engineer guide on site
surface processing
painted or galvanized

DETAIL DESCRIPTION

DFX China prefabricated warehouse workshop building steel structure

Product Description

2.  Specification

  Items  Specification
  Main Steel Frame  Column  Q235, Q345 Welded H Section Steel
  Beam  Q235, Q345 Welded H Section Steel
  Secondary Frame  Purlin  Q235 C and Z purlin
  Knee brace  Q235 Angle Steel
  Tie Rod  Q235 Circular Steel Pipe
  Brace  Q235 Round Bar
  Vertical and Horizontal  Support  Q235 Angle Steel, Round Bar or Steel Pipe
  Maintenance system  Roof Panel  EPS Sandwich Panel /  Glass Fiber Sandwich Panel /
   Rock Wool Sandwich Panel / Pu Sandwich Panel /Steel     Sheet
  Wall Panel  Sandwich Panel / Corrugated Steel Sheet
  Accessories  Window  Aluminiumn Alloy Window / PVC Window / Sandwich Panel Window
  Door  Sliding Sandwich Panel Door / Rolling Metal Door / Personal Door
  Rainspout  PVC
  Live load on Roof  In 120kg/Sqm (Color steel panel surrounded)
  Wind Resistance Grade  12 Grades
  Earthquake-resistance  8 Grades
  Structure Usage  Up to 50 years
  Finishing Options  Vast array of colors and textures available
  Paint Options  Alkyd paiting, two primary painting, two finish painting
 (gray paint, red paint, white paint, epoxy zinc etc.) Or Galvanized.

3. Characteristics

1. Wide span:  single span or multiple spans, the max span is 36m without middle column.

2. Low cost and maintenance: unit price range from USD35/m2 to USD70/m2 according to  customers request.

    3. Fast construction and easy installation:  time saving and labor saving.

    4. Long using lifespan: up to 50 years.

    5. Nice appearance.

6. Others: environmental protection, stable structure, High quake-proof, water proof and fire proof, and energy conserving.

We have been in this line more 10years. With well professional trained workers,professional architects and engineers,better quality control and experienced internationaltrade service team,more than 40 countries have our products.

Our factory is very near to Qingdao airport about 25-30 minutes by car.



Steel structure building is a new type of building structure system,which is formed by the main steel framework linking up H section,Z section and U section steel components,roof an walls using a variety of panels and other components such as windows, doors,cranes,etc.
steel structure building is widely used in warehouses,workshops,large factories, etc

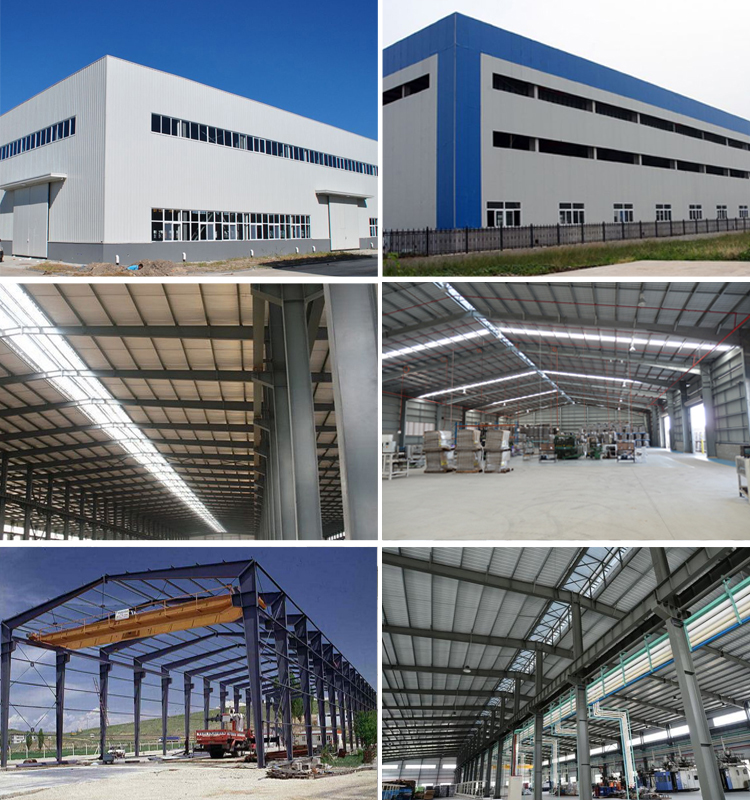

Product Show

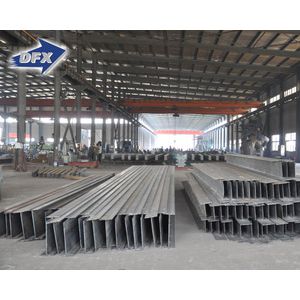

Main Material





Successful Project



1. Some main oversea projects we undertook in the last couple months

Industrial Warehouse (13000M2) Argentina

Warehouse (14000M2)----Republic of Uzbekistan

Workshop (12000M2)----Canada

Warehouse (3600M2)---Romania

Vegetable Market (2500M2)----Mauritius

Pig shed (3500M2)---USA

Chicken shed (2800M2) )------ Australia

Aircraft Hangar (1300M2)------Australia

Warehouse (900M2)----Mongolia

Prefabricated house (70M2)----800sets---Angola

Container house (20’)-----60 sets South Africa

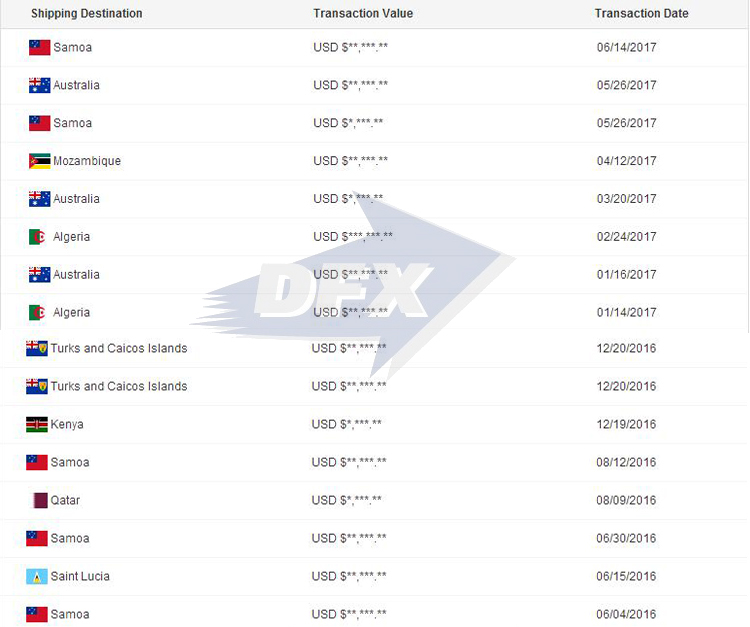

2. Transaction history

Company Information

ABOUT US

Qingdao Director Steel Structure Co., Ltd. is a China based manufacturer of steel structure building, prefabricated house and related steel products.

Factory established in 1997

Area of the factory: 40000 square meter

Workshop area: 20000 square meter

Production lines:

5 lines for H section steel

3 lines for steel purlin

3 lines for corrugated color steel

3 lines for sandwich panel

 DFX China prefabricated warehouse workshop building steel structure

FAQ
Q

You are manufacture factory or trading company?

A

We are manufacture factory. And you are welcomed to visit us for inspection. The quality control flow will show you ourprofessional. Also you will enjoy the best quality and competitive price.

Q

Whats the quality assurance you provided and how do you control quality ?

A

Established a procedure to check products at all stages of the manufacturing process - raw materials, in process materials, validated or tested materials, finished goods, etc. SGS, BV and other testing are available for us. We could deal with you by Trade Assurance via Alibaba.

Q

Can you offer designing service?

A

Yes, we have more than 10 design engineers. We could design full solution drawings as per your requirments. They use software: Auto CAD,PKPM, MTS, 3D3S, Tarch, Tekla Structures(Xsteel)V12.0.etc.


Q

Do you offer guiding installation on site overseas?

A

Yes, usually we will send you the detailed installation drawing, if you need, we can provide the service of installation, supervision and training by extra. We can send our professional technical engineer to supervise installation on site overseas.

Contact Us

Qingdao Director Steel Structure Co., Ltd.

Contact

Mr. Jason Dong

Mr. Jason Dong

Mr. Jason Dong

Mr. Jason DonName: Jason Dong

Tel: 0086-532-66716752

Email: jason(at)bigdirector.com.cn

Web: http://www.bigdirector.com

http://www.directorgroup.com.cn





One-Step Service: Design,Manufacture And Install Steel Structure Buildings.
