Metal Stamping Marine Industrial Steel Structure
Size | length X Width X Eave height, according to requirements |
Type | single slope, double slope, muti-slope; |
| single span,double-span ,multi-span; |
| single floor, double floors |
Column and beam | hot rolled or weld H section steel, grade Q345(S355JR) |
Bracing | X or V or other type bracing made from angle , round pipe |
Purlin | C or Z section size of C100~C320,Z160~Z300 |
Roof and wall | single colorful corrugated steel sheet; |
| sandwich panel with insulation of EPS, ROCK WOOL or PU |
Accessories | semi-transparent skylight belts, ventilators, down pipe, out gutter etc. |
Surface | frame steel:twice anti-corrosive primer and one finish paint; |
| secondary steel:hot galvanized |
Package and loading | nude cargo loaded into 40'HQ |
Connection type | Bolted,welding , rivet |
Design software | PKPM , TEKLA , 3D3S |
Certificate | ISO9001:2008 , BV. |
Color steel sandwich panel not only easy installation .high strength .protuction environment but also defensive fire and heat preservation.Beantiful shape and have diffferent colors we can choice.The real high-quality and low-cost.

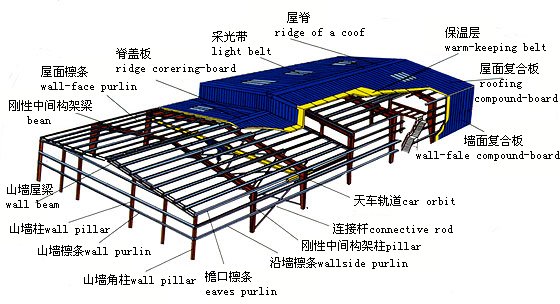

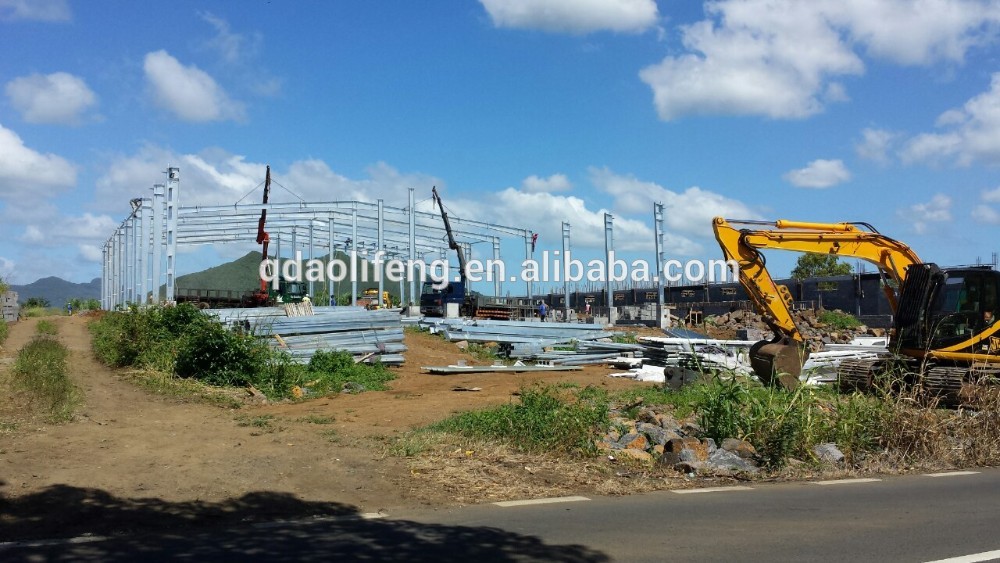

Light steel structure constitutes the framework system of the portable building, which makes it safe and reliable. It satisfies the criterion demand of the building design
1.Common type of the industrial building? Reply: Portal frame is the usual type in the industrial workshop and warehouse shed. Other types also could be designed and manufacturer as per clients’ request. |
2.What’s the quality grade of the steel structure components? Reply: Q345 is used for main steel structure, Q235 is used for secondary steel structure. |
3.How about the delivery time? Reply: Usually,within 45-60 days after the order confirmed, also depends on the fabrication quantity. |
4.How about the derust grade? Reply: Ball blasting Sa 2.5 on main steel structure ; manual derust St2.0 on secondary steel structure. |
5.What kind panel used for the roof and wall? Reply: Color corrugated steel sheet and sandwich panel could be used. Sandwich panel performs well on the heat insulation,sound insulation.Common sandwich materials are EPS, glass wool and PU. |
6.How to install it? Reply: We will furnish you the detailed construction drawing and the construction manual which could help you to erect and install the building step by step. We also could send the engineer to your local to help you if needed. |
7.Maintenance: Reply: Finish paint need be done after the frame installed, and do it again after 6-8 months. So the surface will stay more time. |
