Product Description
Description

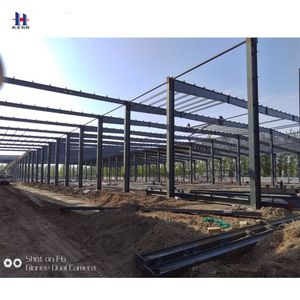

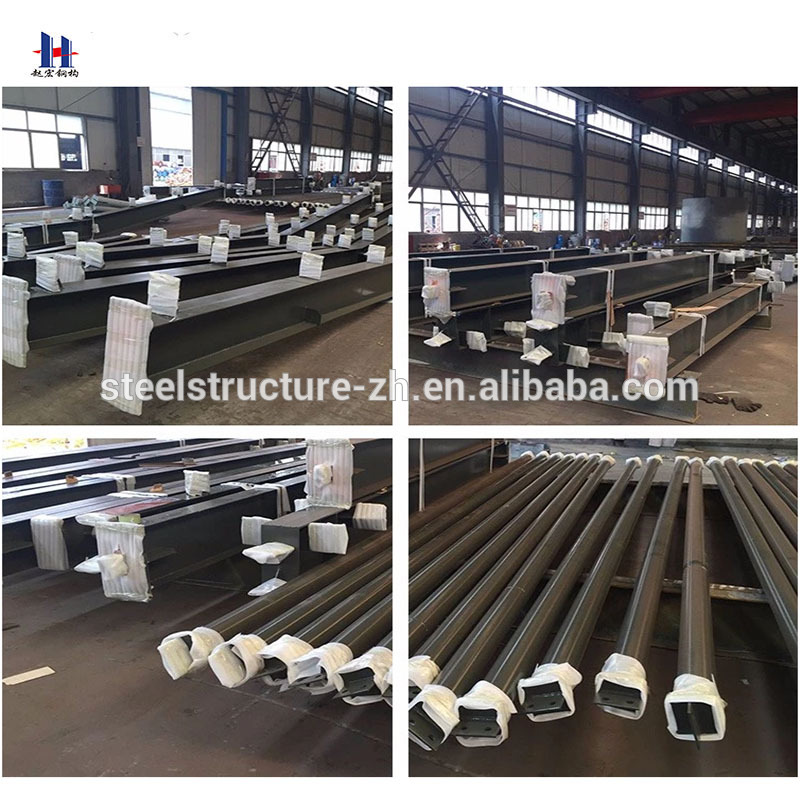

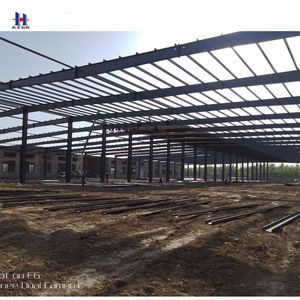

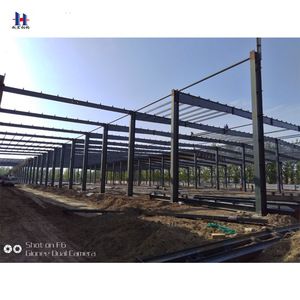

Steel structure workshop included the main structure (steel beam/girder, steel column/pillar), the secondary structure ( roof and wall purlin, steel bracing, tie-bar etc, ), door and windows, and other accessories.
Application

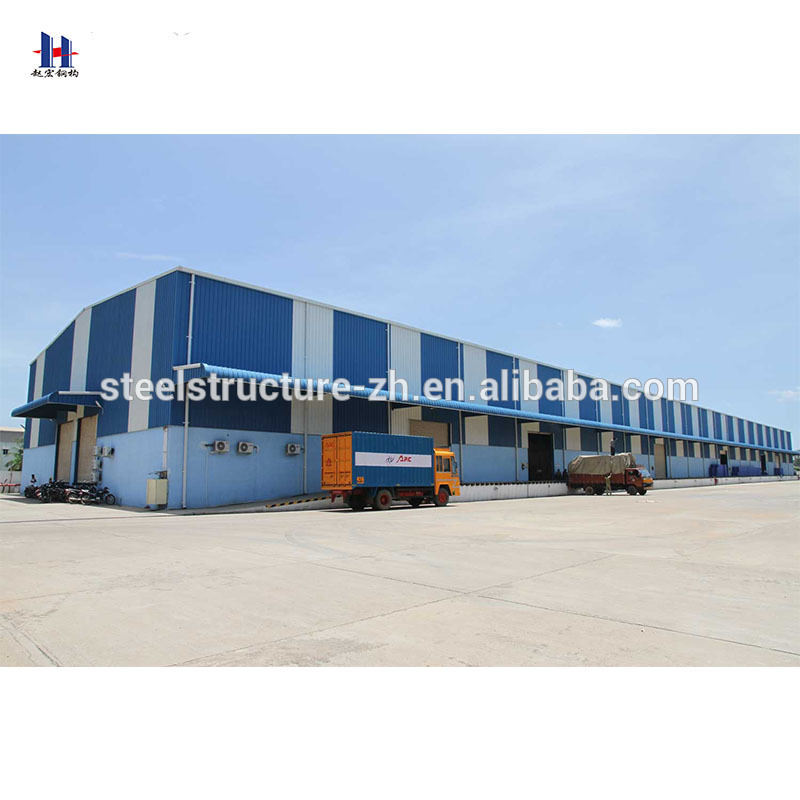

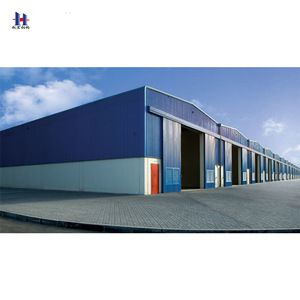

Steel Structure Workshop / Plants can be widely used in many products and industry, such as chemical industry, heavy industry, machinery plant, textile industry and so on.
Features and Advantages
1) High strength, can resistance grade 8 earthquake
2) Wind resistance, Max 35m/s
3) Long life span ,can be used more than 50 years;
4) insulation; sound insulation, fire insulation, temperature insulation
5) Environment friendly, Most of the excess material can be 100% recycled; no waste produced
6) Fast construction, time saving and labor saving;
7) Customized design, various layout, beautiful appearances, different colors for the walls and roof
8) Wide span , single or multiple spans, can have a maximum span distance in 36m without middle columns.
Company introduction
Hebei Zhao Hong Steel Structure Co., Ltd. (other used name Hebei Bao sheng light steel color plate factory) is an enterprise specialized in steel structure, and is well-known both at home and abroad. It was established in 1998 and located in Han Cun Town Zhao Xian Country Hebei Province China, not far from the famous precious cultural heritage “The An Ji Bridge”. The registration capital is RMB 1.8million.
We can provide you
Different sizes | MOQ is 100m², width X length X eave height |
Different types | Single slope ,double slope, Single span ,double-span ,Multi-span Single floors, Double floors |
Cement and steel foundation bolts | Cement and steel foundation bolts |

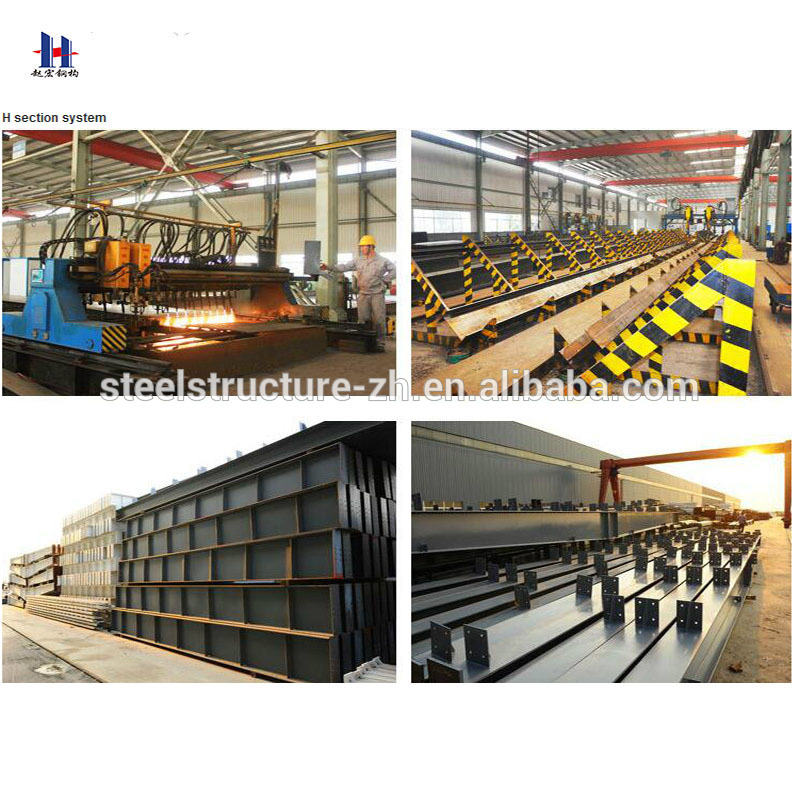

Cement and steel foundation bolts | Material Q345(S355JR) or Q235(S235JR) steel, all bolt connections. Straight cross-section or Variable cross-section. |
Different bracings | X-type or V-type or other type bracing made from angle, round pipe , etc. |
Different Purlins | C or Z type: Size from C120~C320, Z100~Z200 |
Different roof and wall panel | Single color full corrugated steel sheet 0.326~0.8mm thick, (1150mm wide), or sandwich panel with EPS, ROCK WOOL, PU etc. insulation thickness around 50mm~100mm |
All accessories | Semi-transparent skylight belts, Ventilators, down pipe, galvanized gutter, etc. |
Surface | Two layers of Anti-rust Paint! |
Packing | Main steel frame without packing load in 40'OT, roof and wall panel load in 40'HQ! |
Design parameters- need to provided
Design Parameters | 1) Live load on roof (KN/M2) |
2) Wind speed (KM/H) | |
3) Snow load (KG/M2) - If Applicable | |
4) Earthquake load - If Applicable | |
5) Style of Doors and Windows | |
6) Crane (if you have), Crane span, Crane lift height, max lift capacity, max wheel pressure and min wheel pressure | |
7) Size: width X length X eave height, roof slope | |
8) Or your idea! |
