High Technology MK Crystal Glucose to Sorbitol Production Machine/Line/Equipments/Plant

Application

1. Sorbitol is a knid of widely used chemical raw materials.

2. In food, cosmetic, pharmaceutical and other industries, it has the extremely widespread application.

3. Sweetner moisturizing factor, excipients, preservative, etc.

4. It also has the nutritional advantage of polyol at the same time, such as low calorific value, low sugar, tooth decay prevent, and so on.

Our production line

1. Advanced and reliable glucose processing technology.

2. Energy-saving, water-saving, labor-saving and little pollution. hot recycling close type production and the process water will be recycled .

3.Mostly machinery with fully stainless steel to be sure these is no corrosion.

4. Advanced surface treatment craft. Oil and dirty resisting.

5. Many various capacity option from 0.5 tph to 20 tph.

The best solution project and highest possible quality machines will be offered according to your Demands. Maximum your cost performance.

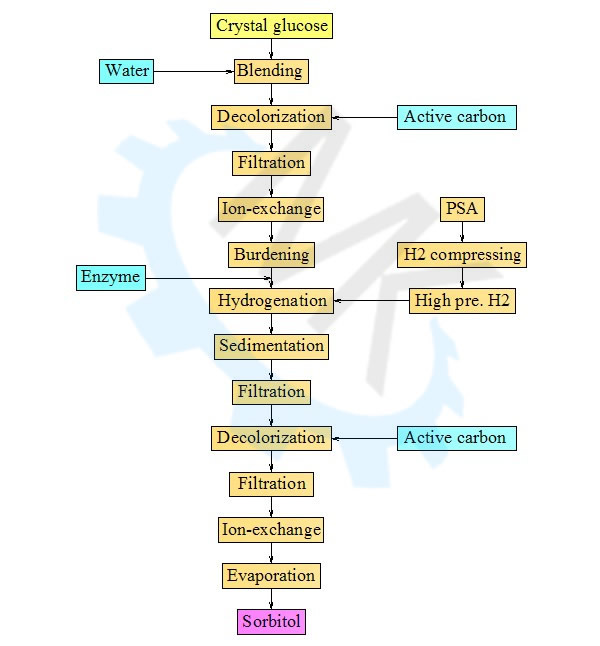

Glucose to crystal glucose general description process diagram

Process description

(1) Glucose syrup adjustment: Glucose syrup coming from crystal glucose plant is adjusted to the qualified DS with water.

(2) Decoloring and filtration: The qualified glucose syrup is sent to the decoloring tank for decoloring with active carbon input. After that the AC will be removed by the filter, and the syrup will be sent to the next section.

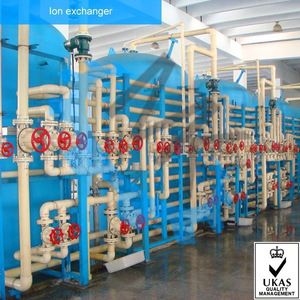

(3) Ion exchange: Tiny foreign items and bad odor is removed via ion exchanger. Then, the material will be qualified to the hydrogenation section.

(4) Hydrogenation: After burdening, the qualified material is sent to the reactor with aid of high pre. H2. By the reaction, the material will be turned to the crude sorbitol. Then the material is sent to the flash tank for cooling. And then it will be sent to the sedimentation tank.

(5) Sedimentation and filtration: After sedimentation tank, the accelerant is separated from the crude sorbitol, then recycled and reuse. The material is sent to the next section after filtration.

(6) Decoloring and filtration: The crude alcohol is sent to the decoloring tank for decoloring with active carbon input. After that the AC will be removed by the filter, and the syrup will be sent to the next section.

(7) Ion exchange: Tiny foreign items and bad odor is removed via ion exchanger. By this way, the material will be turned to be qualified.

(8) Evaporation: The qualified sorbitol is totally cleaned through safety filter, then it is sent to evaporator for concentrating to reach the required DS as final product.

Our team

1.Strong and vigorous technological force member.

2.Abundant theory and practical experience.

3.The zealous service and fast reply.

4.The scientific management system.

Our team will offer specialized and kindly service for you from end to end.

Our culture

Keeping Integrity, Profession, Efficiency, and Win-Win as our spirit and making friends through business contacts as our goal, we are always ready to provide satisfactory services for our friends from all over the world.

WE ARE WHERE YOU ARE!

By choosing MecKey you are choosing the perfect long-term partner for your daily operations. Our service network can reach you wherever you are.

About Meckey

Meckey is a shareholding company in corn, wheat, potato, cassava, processing area, secialized in project engineering & construction, equipment manufacturing, technical support & sevices to customers worldwide.

Turnkey solutions

1. Corn grain to corn starch, gluten, germ/corn oil, fiber.

2. Wheat flour to vital gluten, A starch, B starch.

3. Potato(cassava) to potato(cassava) starch, cassava flour.

4. Starch to glucose, DMH, sorbitol, HFCS55.

5. Corn flour(rice) to glucose, DMH, sorbitol, HFCS55.

6. Modified starch, maltodextrin, potato flakes.

7. L-lysine, GSM.

Payment item

As a routine, 30% down payment, 70% by L/C at sight, 10% Bank guarantee supplied by Meckey. Workable details should be as per discussion based on the contract.

Delivery

Both your destination port or China port are available according to terms of contract. All exporting transactions can be on our duty.

Warranty

The warranty period of each item of equipment delivered shall be 12 months from the date of the signing ACCEPTANCE MEMO or 17 months from the date of shipment, whichever is earlier.



MecKey=Thoughtful Service+High Quality Product
