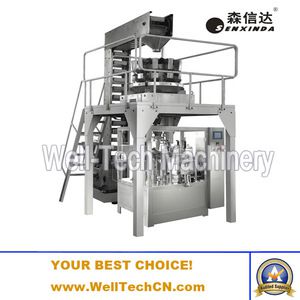

WT6/8-200/300-G Rotary Weighing & Packaging Line For Granule
Application: WT6/8-200/300-G Rotary Weighing & Packaging Line For Granule composited by rotary packing machine, 4-head combination weigher, working platform, which is suitable for packing all kinds of granules, such as washing powder, rice, chicken essence, monosodium glutamate, seeds, sugar, fodder, sesame seeds etc…
Standard Configuration:
- PLC control system.
- Pneumatic components
- Temperature control system
- Vacuum pump
- Output device
Optional Configuration:
- Rotary packing machine.
It is optional to choose WT6/8-230 rotary packing machine. Only one minute is needed to adjust the machine splint.
- Four-head linear weigher
- Working platform
- Material conveyor
- Dust exhaust device
- Vibration feeding device
- Metal detector
- Weight sorting scales
- Product conveyor
Main Advantages:
- To reduce production cost and administration cost. One packing line can deduct 4-10 workers. Investment cost can return with 1-2 years.
- Product quality is improved. The products achieve uniform standard from its appearance or packaging quality.
- To reduce the defect rate. Qualified product rate reaches 99.5% to avoid artificial packaging waste.
- To improve health standard. The packaging process without direct contact with people to avoid man-made pollution.
Main Performance and Features:
- A wide range of materials can be packed. E.g.: kinds of shapes, state, or natures of granules.
- Easy to operate. It adopts PLC control, human-machine interface operating system, to make the operation easy and intuitive.
- Convenient to adjust. The replacement of species can be completed within 10 minutes.
- Suitable for different types of bags or pouch.
- A sound prevention system to protect qualified product rate, to avoid waste of bags or materials.
- The pack machine parts made of stainless steel, to ensure the health and safety of materials and products.
- High degree of automation. The whole process of weighing and packaging is unmanned operation. Automatic alarm system is adopted too.
- Some imported engineering plastics without refueling, to reduce the pollution of materials.
- Oil-free vacuum pump is adopted to avoid contamination of the production environment.
10. Waterproof design can be rinsed with water, to reduce cleaning difficulty, and increase the machine life.
Main Technical Parameters:
6-Station Rotary Weighing & Packaging Line For Granule
Model | WT6-200-G | WT6-230-G | WT6-300-G |
Pouch Type | Flat bag, 3-side sealing bag, 4-side sealing bag, zipper bag, standup bag etc… | ||
Pouch Material | Laminated film, PP, PE etc… | ||
Pouch size | W:80-210mm L:150-300mm | W:80-230mm L:150-300mm | W:150-300mm L:150-300mm |
Packing weight | 5-1500g | 5-1500g | 5-1500g |
Packing Speed | 20-50Bags/Min (depends on the packing material and filling weight) | 30-60Bags/Min (depends on the packing material and filling weight) | 20-40Bags/Min (depends on the packing material and filling weight) |
Packing Accuracy | ≤±1% | ≤±1% | ≤±1% |
Power | 3.5KW,AC380V,50HZ | 3.5KW,AC380V,50HZ | 4.2KW,AC380V,50HZ |
Overall Dimensions (L*W*H)(mm) | 2200*2000*3000 | 2200*2000*3000 | 2770*2400*3200 |
8-Station Rotary Weighing & Packaging Line For Granule
Model | WT8-200-G | WT8-230-G | WT8-300-G |
Pouch Type | Flat bag, 3-side sealing bag, 4-side sealing bag, zipper bag, standup bag etc… | ||
Pouch Material | Laminated film, PP, PE etc… | ||
Pouch size | W:80-220mm L:150-300mm | W:80-230mm L:150-300mm | W:150-300mm L:150-300mm |
Packing weight | 5-1500g | 5-1500g | 5-1500g |
Packing Speed | 20-50Bags/Min (depends on the packing material and filling weight) | 30-60Bags/Min (depends on the packing material and filling weight) | 15-30Bags/Min (depends on the packing material and filling weight) |
Packing Accuracy | ≤±1% | ≤±1% | ≤±1% |
Power | 3.85KW,AC380V,50HZ | 3.85KW,AC380V,50HZ | 4.5KW,AC380V,50HZ |
Overall Dimensions (L*W*H)(mm) | 2600*2200*3000 | 2600*2200*3000 | 3200*2550*3350 |
Packing Samples:
