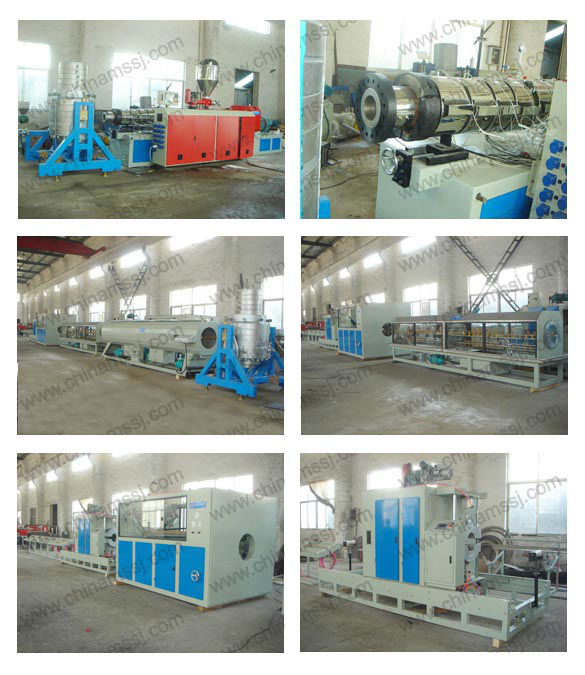

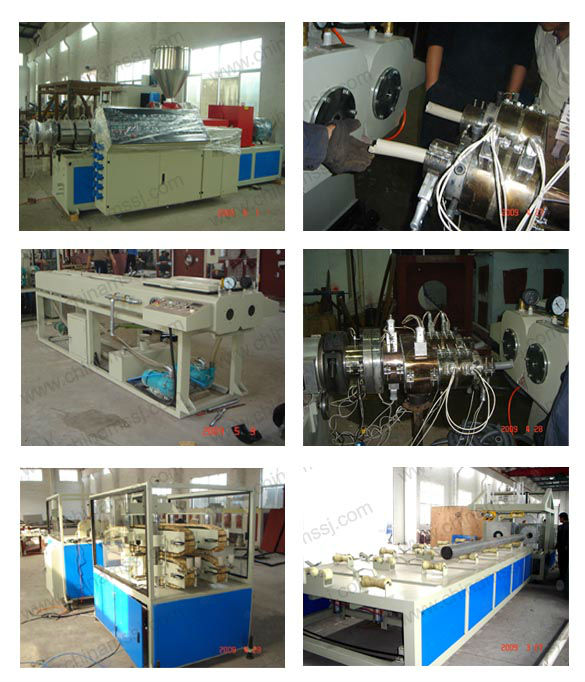

PVC water pipe machine / PVC water pipe making machine
The featured of PVC water pipe machine:
1) The conical double screws are with the newest structure and variable pitch improve the output by over 30%.
2) The hardened gear surface of the gearbox guarantees the heavy duty load and long service life.
3) Twin and multi-track system, and track can be adjusted for different sizes of pipes ranging from 20mm to 630mm
4) Automatic cutting unit can be used according to your specific requirements.
The application:
1. Water supply and drainage pipelines in building;
2. Rainwater drainage pipelines in building;
3. Electrical wiring pipe in building;
4. Air conditioning condensate water systems.
The working process of PVC water pipe machine:
PVC powder → screw feeder →
mixing → screw feeder → twin screw extruder → mould and calibrator → vacuum forming table → haul off unit→ cutting machine → stacker.
Auxiliary equipments: mixer, crusher, pulverizer, pipe belling machine, printer, etc.
Some parameter for reference:
Model number | PVC-16/63 | PVC-20/110 | PVC-50/160 | PVC-75/250 | PVC-110/315 | PVC-200/450 | PVC-315/630 |
Pipe diameter | 16-63mm | 20-110mm | 50-160mm | 75-250mm | 110-315mm | 200-450mm | 315-630mm |
Max output | 120kg/h | 120kg/h | 180kg/h | 300kg/h | 450kg/h | 650kg/h | 800kg/h |
Production rate | 1.5-15m/min | 0.8-8m/min | 0.5-5m/min | 0.4-4m/min | 0.3-2m/min | 0.1-1m/min | 0.07-0.7m/min |
Extruder model | SJSZ-50/105 | SJSZ-50/105 | SJSZ-55/110 | SJSZ-65/132 | SJSZ-80/156 | SJSZ-92/188 | SJSZ-92/188 |
Installed power | 45kw | 45kw | 55kw | 75kw | 105kw | 160kw | 205kw |
Center height | 1000mm | 1000mm | 1000mm | 1000mm | 1100mm | 1100mm | 1200mm |
Installation area | 22*2.5*2.0m | 24*2.8*2.0m | 24*2.8*2.0m | 30*2.8*2.2m | 35*3.0*2.4 m | 36*3.0*2.4 m | 38*3.2*2.8 m |
Covering with plastic film, wooden pallets and case
We recommend of machine and auxiliary equipment and relevant budgeting, human resources allocation and budgeting.
Our expert will answer any inquiry within 48 hours and it will be solved as soon as possible.
The customer can send the engineer to our company with training.
The Seller supplies the complete technical support documents and the relative drawings of the electric components written in Chinese and English.
Our engineer can go to the Buyer’s company for installation and testing the lines.

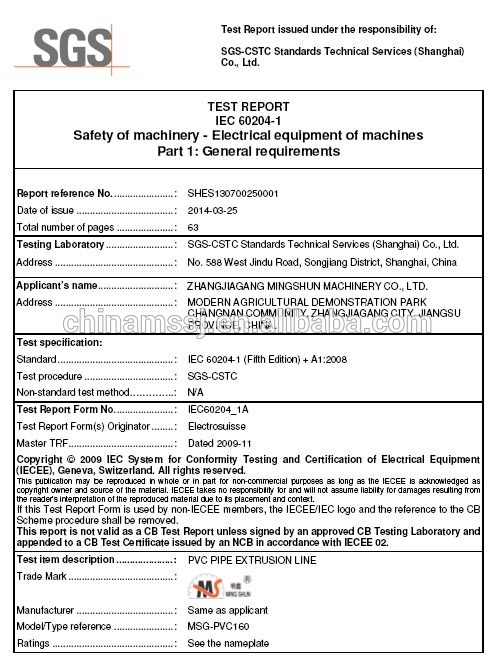

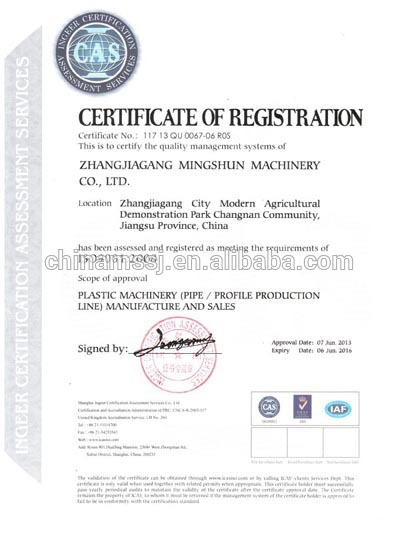

Our factory is near Shanghai city. We have passed ISO9001:2008, SGS.
We produce plastic straight, coiled pipe machine, pipe belling machine, plastic profile/panel/ceiling machine, plastic granulating line, shredder, mixer and so on.
In last few years we have exported to Russia, Ukraine, South Africa, Nigeria, Zambia, Saudi Arabia, Egypt, Jordan, Pakistan, Bangladesh, Argentina, Mexico, etc.
