PE pipe production/extrusion line

Now we've obtained rich experience in design and manufacture of the whole extrusion lines.

Technical Feature

  • New
  • Pipe Production Line
  • PE/PPR
  • water pipe, energy supply and so on
  • 0.2-12m/min
  • Jiangsu, China (Mainland)
Send Project Inquiry Add Inquiry List

0 Add Favorite

DESIGN SERVICE OVERVIEW

Project Design Scope

Project Service Scope

PRIMARY PARAMETERS

Condition
New
Type
Pipe Production Line
Pipe Material
PE/PPR
Application
water pipe, energy supply and so on
Production Capacity
0.2-12m/min
Place of Origin
Jiangsu, China (Mainland)
Brand Name
MS
Model Number
MSG
Voltage
as per your request
Power(W)
as per actual need
Dimension(L*W*H)
as per the configuration
Weight
as per the configuration
Certification
ISO9001
Warranty
one year
After-sales Service Provided
Engineers available to service machinery overseas
Color of machine
custom design
Electrical appliance
ABB, ORMON, Siemens
MOQ
one set
Technical support
lifetime
Test
PE pipe line will be tested before shipment

DETAIL DESCRIPTION

                                    PE pipe production / extrusion line



The application of PE pipe line:

1) It can produce HDPE pipe with diameter from 20mm-800mm. The pipes are usually used in the cable laying, water supply, and sewer etc.

2) It can also produce PPR pipe with different mould.



The working process of PE pipe line:

Raw material+master batches → mixing → vacuum feeding → material dryer → single screw extruder ( small CO-extruder ) → calibrator → vacuum calibration tank → spray cooling water tank → haul-off unit → cutting machine → stacker



 The list of one of PE pipe line for your reference:

NO.

Equipment

Qty.

1

Single-screw Extruder

1set

2

Vacuum feeding machine and dryer

1set

3

Mould (including heater and calibrator)

1set

4

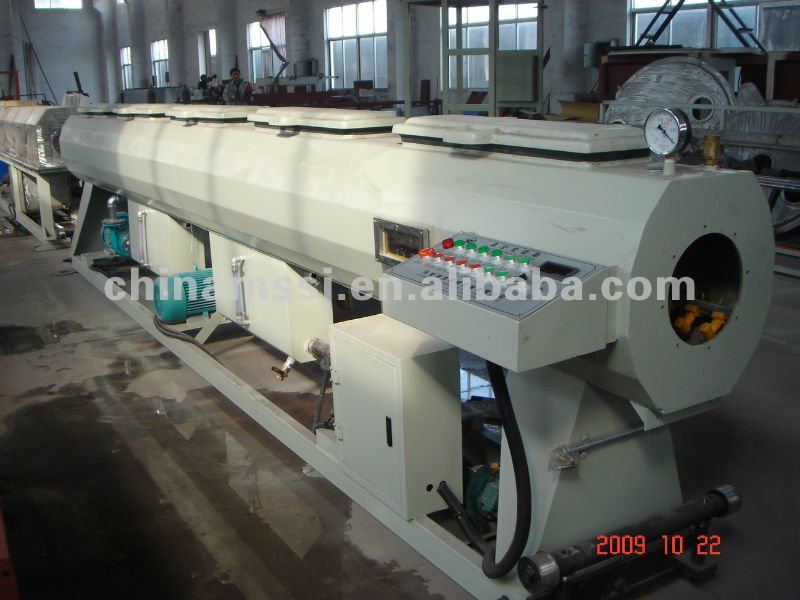

Vacuum cooling Tank

1 or 2set

5

Spraying Cooling Tank



1 or 2set

6

Haul-off unit

1set

7

Cutting machine

1set

8

Stacker

1set

9

SJ25 X 25 Characteristic Line Extruder

1set

10

Spare Parts(free)

1set



Now  PE pipe line is one of our leading products.  Now we've obtained rich experience in design and manufacture of the whole extrusion lines.

Pls feel free to contact us if you need any questions, such as specification, photos and videos about PE pipe line.
