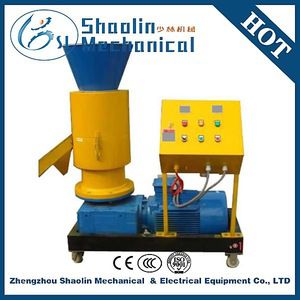

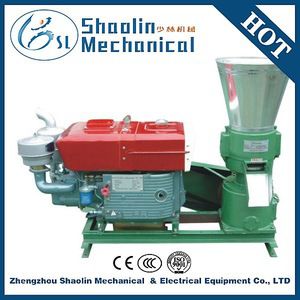

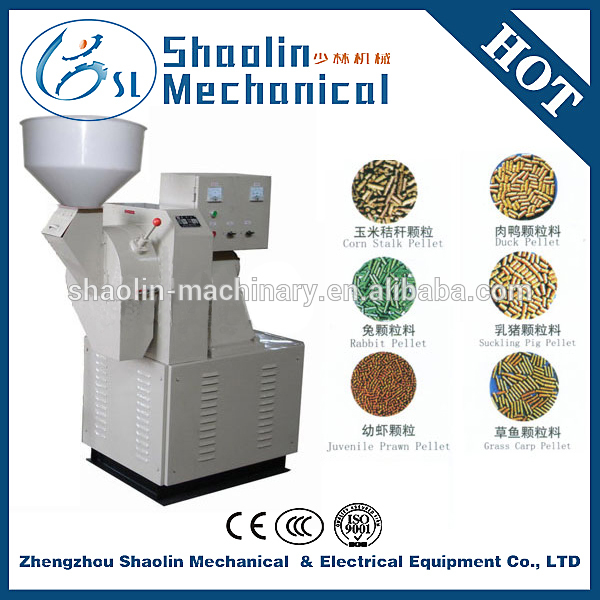

High efficiency Electric Ring Die Animal Feed Pellet Mill/Diesel Flat Die Feed Pellet Mill

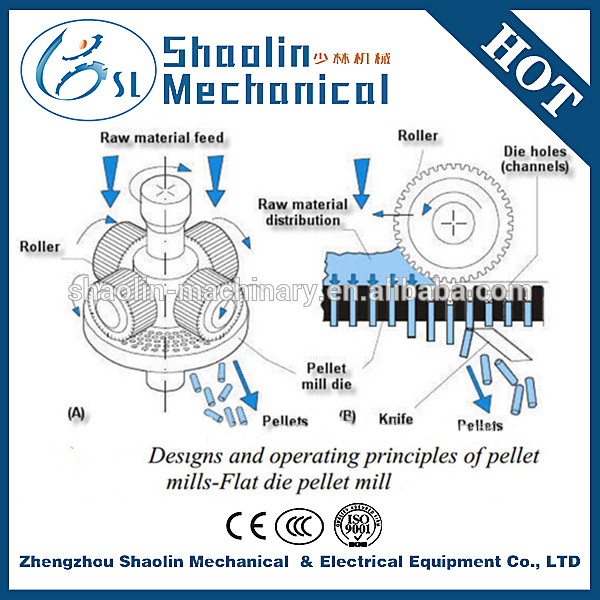

Working principle of Pelletizing machine
Pelletizing machine is one of the biomass molding equipment.
It can make powdered biomass materials into pellets.

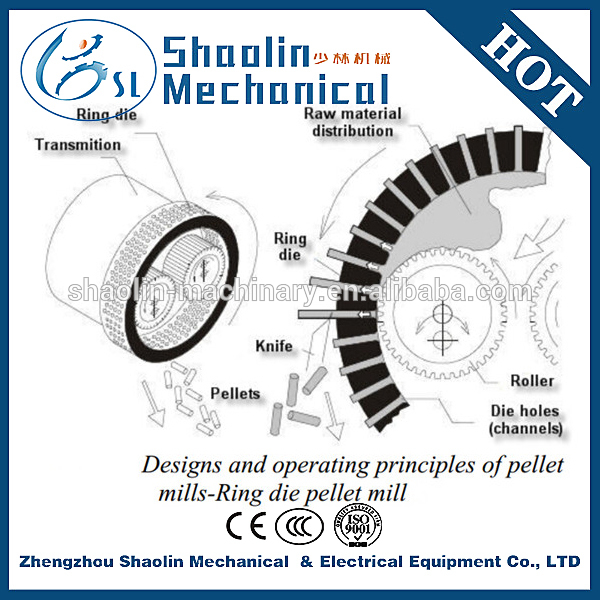

The starting materials for the production of pellets are pressed by the pressing roller in the matrix.
Due to the pressure and friction in the matrix, the starting materials are heated to a high temperature (nearly 60~80 °C). As a result of pressure and temprerature increasing, the materials were compressed into pellets. The output pellets will have very high strength after cooling.

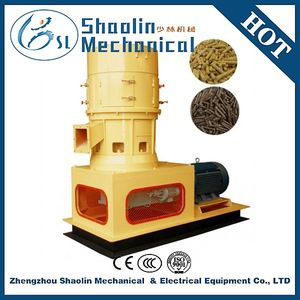

Wood pelletizing machine
Wood pelletizing machine is mainly used for wood, straw, cotton stalk, rice husk, peanut shell, bamboo, empty fruit bunch, pulverized coal or waste paper, ect.

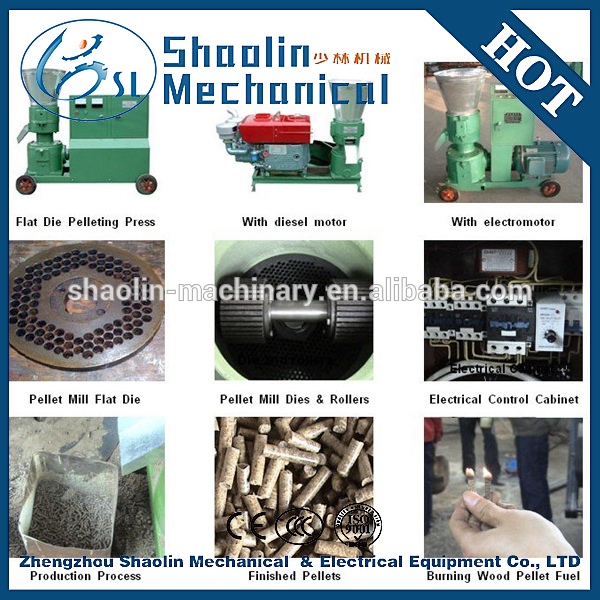

There are two kinds of wood pelletizing machine: ring die & flat die.
Advantage of our wood pellet machine is structure closely, easy to use, run stably; Advantages of output pellets is high density, high fuel value, low moisture and low ash content.
Feed pelletizing machine
Feed pelletizing machine is mainly used for making animal feed pellets. Corn, bean pulp, straw, grass, rice husk, alfalfa, wheat stalk, ect. Applicable industry: aquiculture, poultry feed making plant, stock farm, poultry farm, ect.
There are two kinds of feed pelletizing machine: ring die & flat die.
SKJ2- series pellet mill capacity for wood
Model | Power(kw) | Size (mm) | Weight(kg) | Capacity(kg/h) for wood Sawdust |
SKJ120 | 2.2-3 | 1150*300*550 | 120 | 10-30 |
SKJ150 | 7.5 | 1260*400*650 | 150 | 30-100 |
SKJ200 | 11 | 1300*500*850 | 220 | 100-200 |
SKJ250 | 15 | 1400*600*1000 | 520 | 150-250 |
SKJ280 | 22 | 1450*600*1100 | 680 | 150-300 |
SKJ300 | 30 | 1900*670*1600 | 780 | 200-500 |
SKJ2- series pellet mill capacity for feed and fertilizer
Model | Power(kw) | Size (mm) | Weight(kg) | Capacity(kg/h) |
SKJ120 | 2.2-3 | 1150*300*550 | 120 | 70-100 |
SKJ150 | 7.5 | 1260*400*650 | 150 | 100-300 |
SKJ200 | 11 | 1300*500*850 | 220 | 300-500 |
SKJ250 | 15 | 1400*600*1000 | 520 | 400-700 |
SKJ280 | 22 | 1450*600*1100 | 680 | 500-800 |
SKJ300 | 30 | 1900*670*1600 | 780 | 600-1000 |

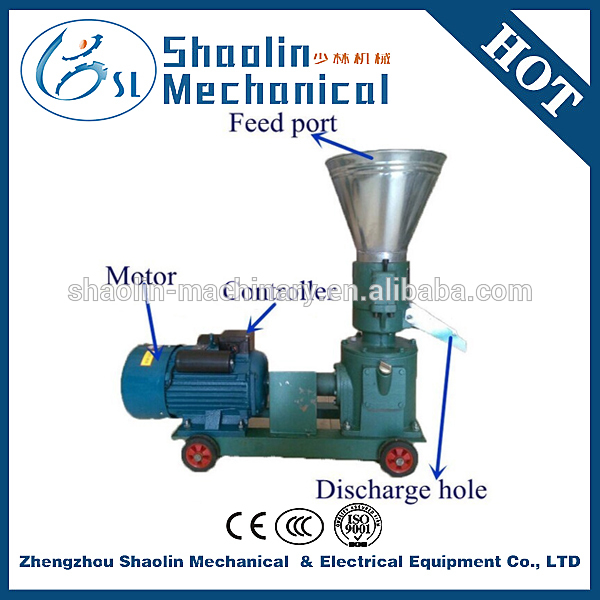

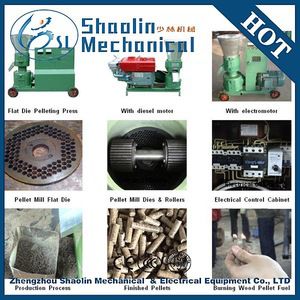

Contrustion of the Feed Pellet Machine:
Finished Products:
♥Wooden or metal case according to specific size of each equipment, we twine thick plastic coating for each machine.
♥Tight the equipment in the truck without space to ensure no rubbing during the transportation

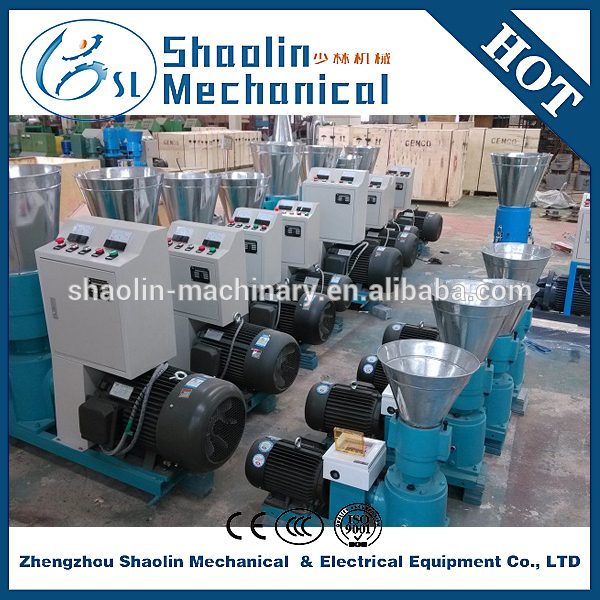

Zhengzhou Shaolin specializes in the feed pellet machines
We have good sales markets in North America, Africa, East Europe, East and South Asia and other countries and regions. We have professional engineers and salesmen to serve all of our customs.
Based on strong technical force, we are able to grow and develop well. We wholeheartedly welcome customers from both at home and abroad to visit us to discuss cooperation and seek common development. We believe our company is your most reliable partner and friend.
1.Q:Are you a factory or trading company?
A:We are a 20 years factory with more than 60 engineers.and have gained the supplier assessment.
2.Q:Where is your factory located? How can I visit there?
A:Our factory is located in Zhengzhou City, Henan Province, China,.You can fly to Xinzheng airport directly.All our clients, from home or abroad, are warmly welcome to visit us!
3.Q:How does your factory do regarding quality control?
A:"Quality is priority.
We always attach great importance to quality controlling from the very beginning to the very end.
Our factory has gained BV,SGS, CCC,ISO certification.
