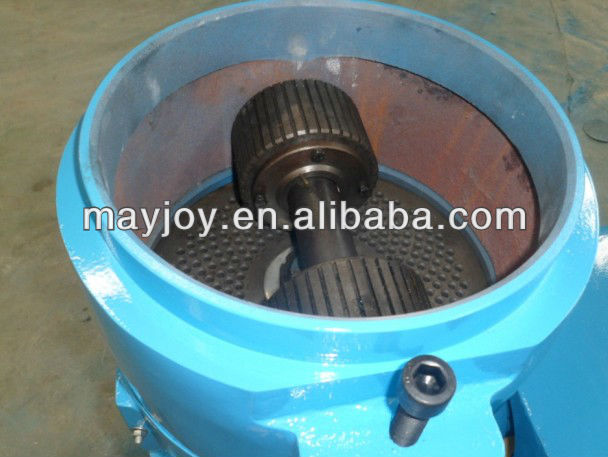

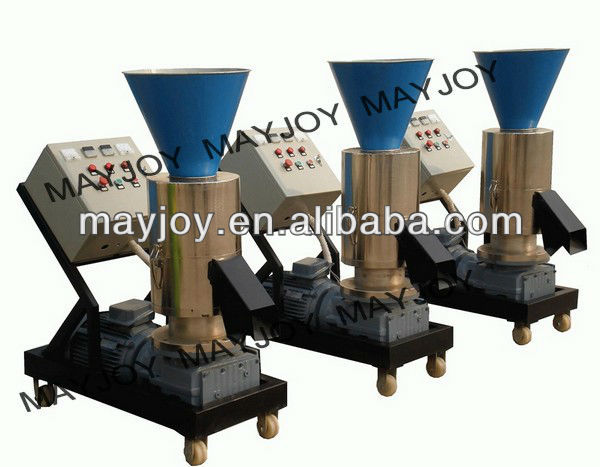

Electric and Diesel Flat-die chicken/cow/pig feed pellet making machine

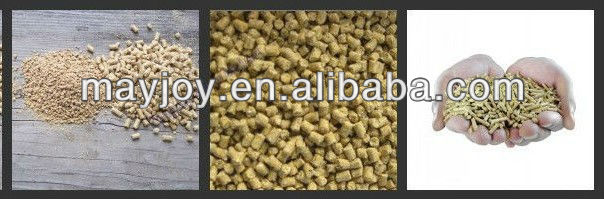

This machine is widely used for pelletizing high rank poultry & Livestock feed pellets and biomass pellets.
Advantage of livestock/Poultry Feed Pellet Mill
1.Small animal feed pellet machine , the production process in the machinery itself under
pressure, make feed starch occurrence of a certain degree of maturation role,to produce
a concentrated flavor and feed hard texture, in line with the biological characteristics
of the pig, cattle, sheep, rodents gnawing, improved feed palatability, increase the
intake of the animals.
2.Small animal feed pellet machine , the particle formation process enables the grain, legume
trypsin boycott factor degeneration, reduce adverse effects on the digestion, can kill the
parasite eggs and other pathogenic microorganisms, reducing the variety of parasitic diseases
and digestive tract system diseases.
3.Small animal feed pellet machine to facilitate feeding, high utilization, easy to control
the feeding amount, saving feed, clean and sanitary. Especially fish, feed pellets dissolved inwater is very slow and will not be flooded by the sediment can reduce waste.

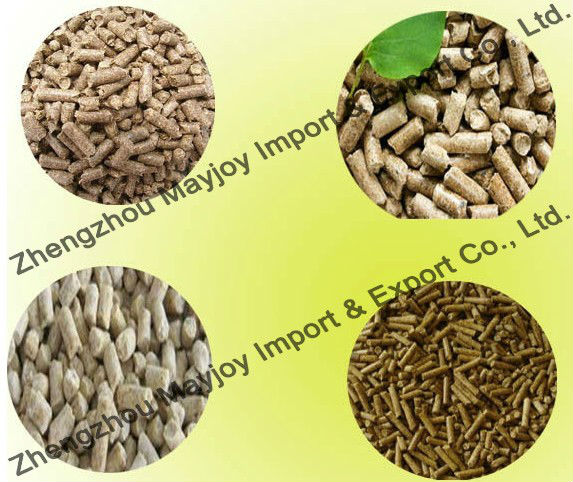

4. Our machine can also make wood pellets and biomass pellets from sawdust,wood shavings,straw, rice husk and othe materials.
Technology Data:

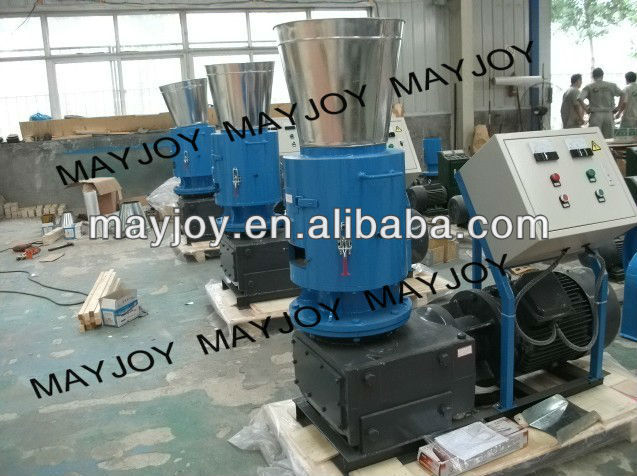

Electric Type
Model | Power | Capacity for Feed(Kg/h) | Capacity for Wood (Kg/h) | Net weight/ Gross weight | Dimensions (mm) |
MJSP120B | three phase 3KW |
75-100 |
40-80 |
210Kg |
670*390*910 |
MJSP150B | three phase 4KW |
90-120 |
50-90 |
95Kg/210Kg |
700*350*650 |
MJSP200B | three phase 7.5KW |
200-300 |
80-120 |
200Kg/230Kg |
900*430*950 |
MJSP230B | three phase 11KW |
300-400 |
150-300 |
290Kg/320Kg |
1140*470*970 |
MJSP260B | three phase 15KW |
400-600 |
200-450 |
320Kg/360Kg |
1120*490*1070 |
MJSP300B | three phase 22KW |
600-800 |
300-600 |
480Kg |
1170*520*1070 |
MJSP360B | three phase 22KW |
700-900 |
500-700 |
500Kg |
1270*520*1070 |
MJSP400B | three phase 30KW |
900-110 |
400-800 |
580Kg |
1470*600*1150 |

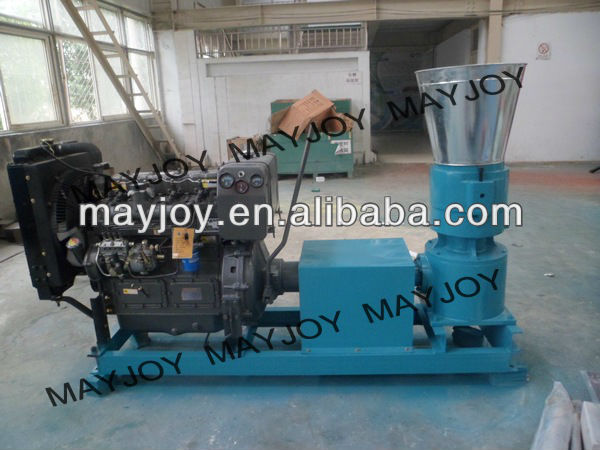

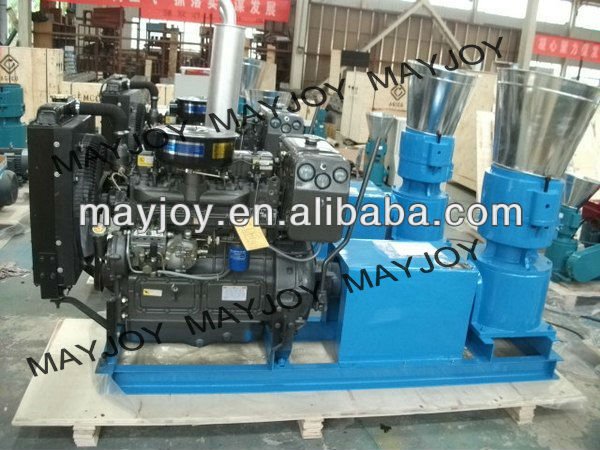

Diesel Type:
Model | Power (diesel) | Capacity for Feed (kg/h)
| Capacity for Wood (kg/h) | Net weight/gross weight (Kg) | Packing dimension (mm) |
ZLSP120A | 8hp | 75-100 | 40-80 | 120/140 | 900*440*730 |
ZLSP150A | 6.5hp | 50-90 | 100-150 | 180/220 | 870*440*700 |
ZLSP150A | 8hp | 50-90 | 100-150 | 180/220 | 870*440*700 |
ZLSP200A | 15hp | 250-350 | 80-120 | 210/240 | 1000*460*900 |
ZLSP230A | 22hp | 300-400 | 150-300 | 280/310 | 1180*560*1020 |
ZLSP260A | 30hp | 400-600 | 200-450 | 330/360 | 1200*500*1070 |
ZLSP300A | 55hp | 600-800 | 300-600 | 410/450 | 1220*600*1000 |
ZLSP360A | 55hp | 700-900 | 500-700 | 470/500 | 1220*600*1000 |
If you have interests in our products,welcome to contact me:
