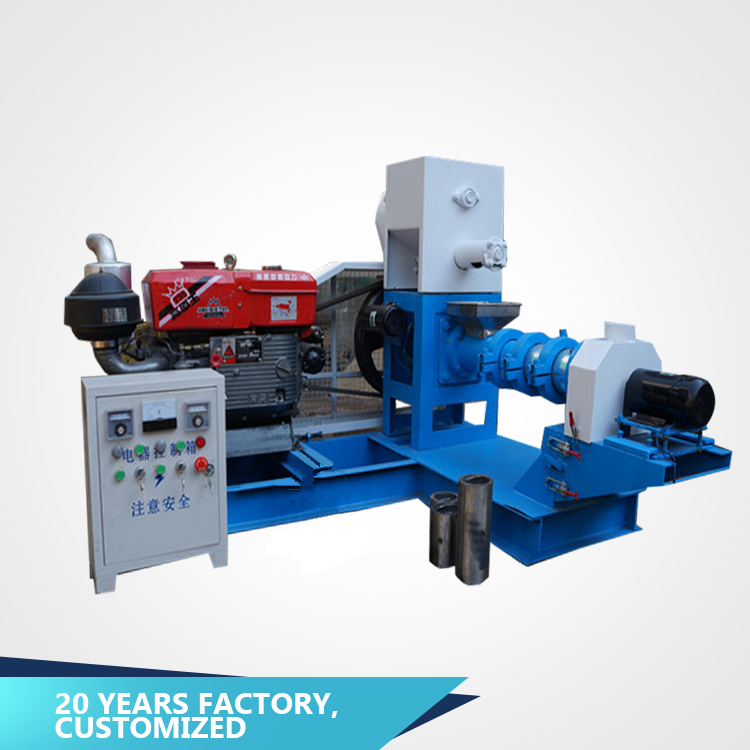

AT-DGP series floating pellet feed equipment can produce a variety of flower shapes, and also can be customized according to the requirements, suitable for processing sink, floating aquatic feed, pet food, ornamental fish feed, etc.
This product has the characteristics such as novel design, high yield and stable operation. The main parts are made of special alloy materials by heat treatment, which have high wear resistance and long service life.
Model | Capacity (kg/h) | Power (kw) | Feeding power (kw) | Screw diameter (mm) | Cutter power (kw) | Pellet size (mm) |
AT-DGP50 | 60-80 | 7.5/11 | 0.4 | Φ50mm | 0.4 | 1-15 |
AT-DGP60 | 120-150 | 15 | 0.4 | φ60mm | 0.4 | 1-15 |
AT-DGP70 | 180-200 | 18.5 | 0.4 | φ70mm | 0.4 | 1-15 |
AT-DGP80 | 200-250 | 22 | 0.4 | φ80mm | 0.6 | 1-15 |
AT-DGP90 | 300-400 | 30/37 | 0.6 | φ90mm | 0.8 | 1-15 |
AT-DGP120 | 500-600 | 55 | 0.8 | φ120mm | 2.2 | 1-15 |
AT-DGP135 | 800-1000 | 75 | 1.1 | φ133mm | 2.2 | 1-15 |
AT-DGP160 | 1200-1500 | 90 | 1.5 | φ155mm | 2.2 | 1-15 |
AT-DGP200 | 1800-2000 | 132 | 1.5 | φ195mm | 3.0 | 1-15 |
For More Information Contact Us
CONTACT SUPPLIER
Product features:
1. The international advanced cutting structure, stepless speed change, can cut the material into the desired length products arbitrarily.
2. The design is novel, unique, simple in structure, easy to dismantle and easy to unload, easy to operate.
3. The screw sleeve and screw rod are made of alloy steel with special wear-resisting high temperature, which has the advantages of wear resistance and long life after heat treatment.
4. Equipped with unique pressure charging device to ensure the yield and quality of feed; It is equipped with electric heating device to improve feed bulking rate.
5. The main motor adopts the high-quality Y series three-phase motor to ensure the power.
6. Adjustable speed feeding device, it is more convenient to operate, feed evenly, and prevent the machine.
7. It is simple to replace the discharging template, and it is necessary to replace the required aperture template with different pore diameter feed.
8. The floating pellet of production can be floating on the water surface for at least 12 hours without dissipating, and fish and poultry are easy to digest.
Q1 : How is the quality of your products ?
A1 : Our products are manufactured strictly according to national and international standard, and we take a test on every equipment before delivery.
Q2 : How long is your guarantee ?
A2 : One Year guarantee. We shall supply free exchange for spare parts. After this period, we shall charge at low cost to keep after service. You will be welcome to contact us with any problem might occurred.
Q3 : How about price ?
A3 : Yes, we are factory and be able to give you the lowest price than market one, and we have a policy that “ for saving time and absolutely honest business attitude,we quote as low as possible for any customer, and discount can be given according to quantity”.
Q4 : Service and Payment Terms ?
A4 : A. We usually accept T/T, L/C; B. T/T: 30%-50% in advance as down payment, the balance before delivery; C. We take pictures of finished products before delivery.
Q5 : Will you send engineers to install the plant ?
A5 : Sure,overseas engineer service is available when needed. And we can provide free training for on-site workers.
