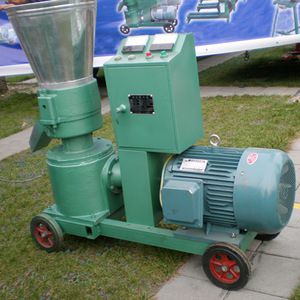

Farm flat die electric or diesel sheep poultry animal feed granulator

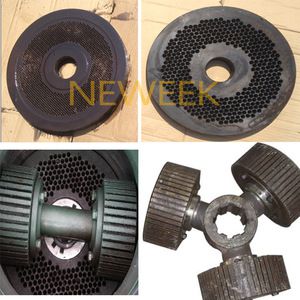

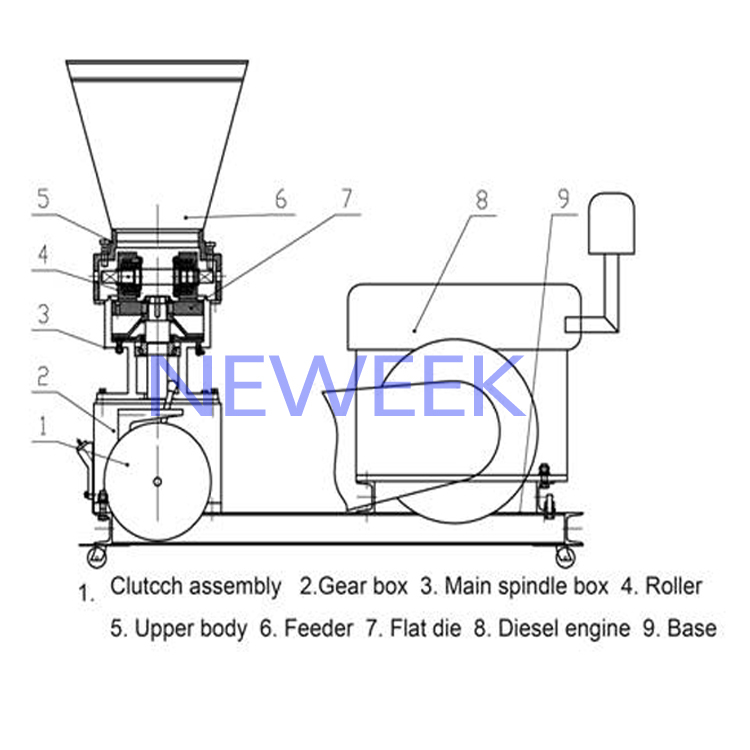

Poultry animal feed granulator adopts double-stage driving of belt and worm and gear. It has reliable operation and low noise.The feeding relies on the gravity of the material itself, which can avoid jams. The rotation speed of the main shaft is about 60 RPM, the linear speed of the roller is about 2.5 m/s, which can effectively removes the gas in the material and increases the tensity of the products.
Due to the lower linear speed and the decrease in noise and wear of parts in the operation of the machine,the roller bearings have the features of permanent lubrication and special seal, so it can prevent the lubricant pollution in the process of granulation and reduce the loss of lubricant.
According to the materials,the poultry animal feed granulator can be also divided into different types like wood chips,sawdust,straw,biomass, and plastic.
Type | Power | Capacity (kg/h ) | Dimension (mm) | weight |
NA 120 | 3kw | 75-100 | 750*320*510 | 100kg |
NA 150 | 4kw | 100-150 | 750*350*650 | 120kg |
NA 200 | 7.5kw | 200-300 | 1000*430*950 | 230kg |
NA 230 | 11kw | 300-400 | 1140*470*970 | 320kg |
NA 260 | 15kw | 400-600 | 1200*500*1070 | 360kg |
NA 300 | 22kw | 600-700 | 1270*520*1070 | 370kg |
NA 360 | 22kw | 700-800 | 1270*520*1070 | 450kg |
NA 400 | 30kw | 800-1000 | 1470*600*1150 | 500kg |
