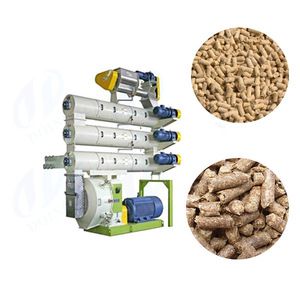

Features of ring die feed pellet mill
1. Ring die feed pellet mill's main drive use high precision gear driven, ring die use quick- release hoop type, efficiency higher appr.20% than compare with the belt driven type.
2. The drive use high-quality imported bearings( NSK or SKF) and seals, to ensure the transmission efficient, stable, low noise.
3. The international advanced level of compensation type serpentine spring coupling, has novel and compact structure, safty, low malfunction and other properties.
4. The ring die feed pellet mill has a special feeding mechanism, feeding evenness, reliable, designed for pressing light materials which density from 0.3g / cm3 to 0.6g / cm3.
5. Overload protection for main motor.
6. Easy to change the speed of screw feeder.
7. Ring dies are made up of alloy, highstength, can be used for a long time.
8. Has lifting device for the ring die,easy to change the ring die.

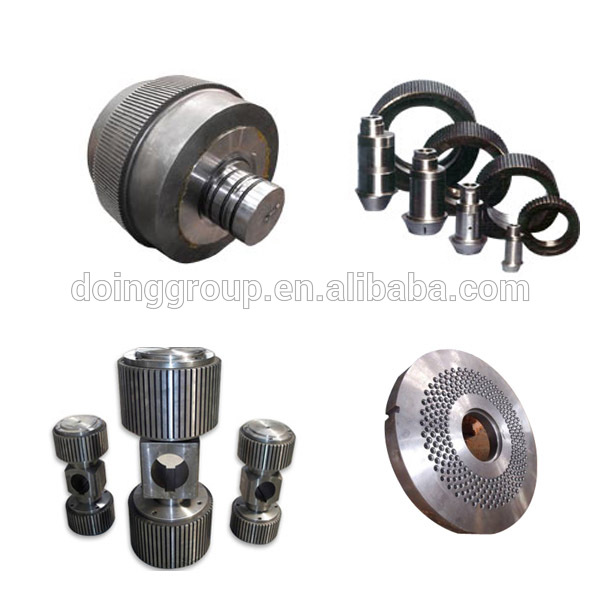

Some parts of ring die feed pellet mill
| Model | DY320 | DY350 | DY400 | DY420 | DY560 |
| Capacity | 2-5T/H | 1.5-8T/H | 2-10T/H | 3-12T/H | 4-20T/H |
| Main motor power(kw) | 37 | 55 | 75/90 | 110 | 132/160 |
| Feeder power(kw) | 0.55 | 0.75 | 0.75 | 1.5 | 1.5 |
| Conditioner power(kw) | 2.2 | 2.2 | 2.2 | 5.5 | 7.5 |
| ID of ring die(mm) | 320 | 350 | 400 | 420 | 508 |
| Speed of ring die | 305RPM | 336RPM | 307RPM | 287RPM | 287RPM |
| Speed of feeder | 12-120RPM | 12-120RPM | 12-120RPM | 12-120RPM | 12-120RPM |
| OD of roller shell(mm) | 140 | 165 | 190 | 206 | / |
| Noise | ≤86dB(A) | ≤86dB(A) | ≤90dB(A) | ≤90dB(A) | ≤90dB(A) |
Raw material for ring die feed pellet mill
2.Ring die feed pellet mill can press high crude fiber biomass waste and chemical fertilizer materials into 28MM diameter pellets. it is specially fit for biomass waste from wheat straw or rice straw, corn stalk, rice husk, palm fiber,palm shell or groundnut shell, very hard wood etc. before pelletizing , raw materials should crush into fine powder, humidity keeps 15-20%.
As the core process in the production of feed, batching accuracy has direct impact on the formula composition which in turn will make sure the animal can get enough nutrition from the feed. Mixer of high efficiency can make sure of balanced nutrition of the feed.
And the feed pellets from the ring die feed pelelt mill is smooth and fragrant,and looks very nice.The feed pellets can be adjusted for your needs according to the device of ring die feed pellet mill.
Why choose Doing Company
1, Our factory has been set up for many years, and we have a lot of professional technological people in wood pellet machine,they are ready to service for you at any time;
2, We can design and manufacture wood pellet making machine for you according to your special requirements;
3, You can find the best price of the wood pellet machine from here, because we are the factory, and we are factory directly sales;
4, Our company will free of charge to arrange technical personnel for training you until you have no question about the wood pellet machine
5, We promise you timely and effective service once you need us.
