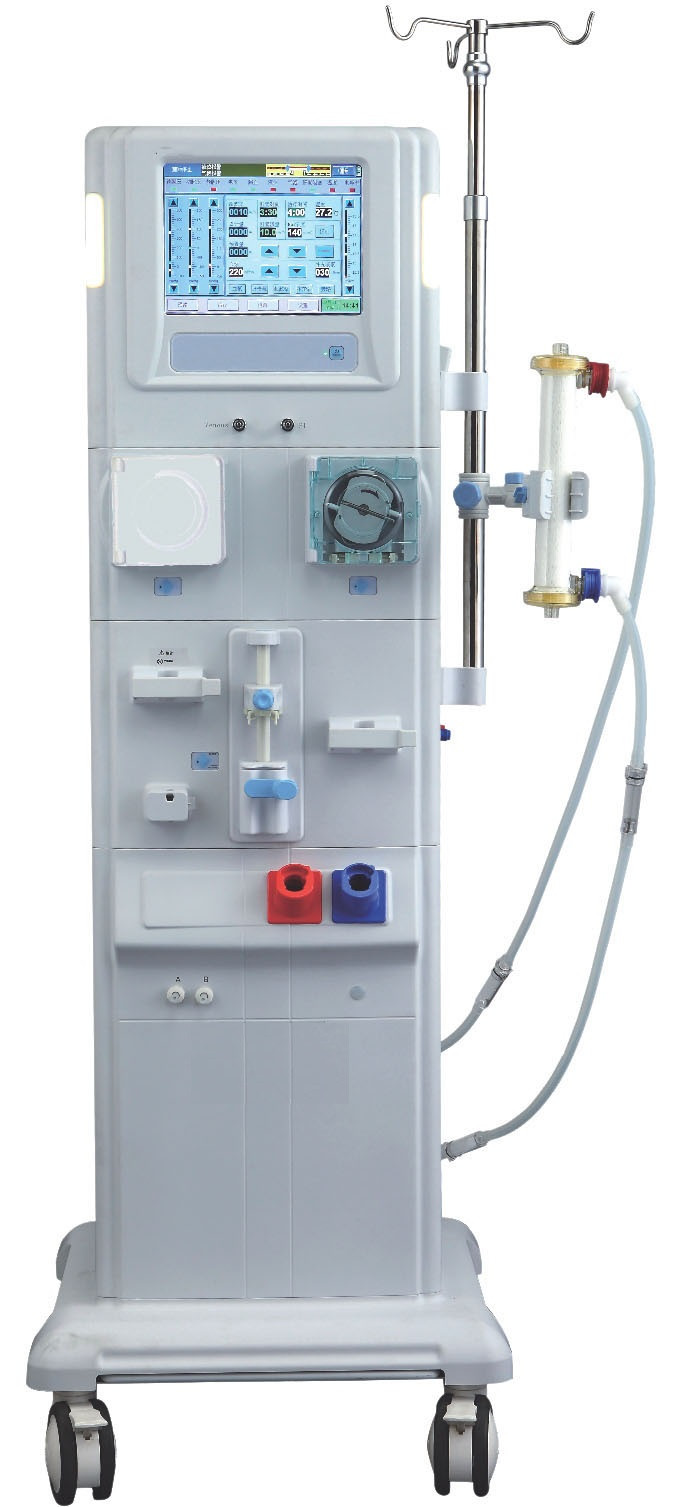

Technical Specification of MSLHM04 Single Pumps LCD Touch Screen Hemodialysis Machine

Apply to hemodialysis, hem perfusion, ISO UF, plasma exchange, etc.
User friendly operation
All-around security system
Precise UF system
Powerful functions
User friendly operation
10” LCD touch screen
Automatically activates treatment program when blood is detected flowing through
Auto self-test, prime, rinse, disinfection, hot disinfection, treatment and power off, etc.
Records in table and graphs
All-around security system
Conductivity
Temperature
Air bubble & Blood level
Blood leakage
Blood pressure
Arterial, Venous & TM Pressure
Anti-coagulation
Backup battery
Precise UF system
Classic waterway system controls the UF precisely
Double circulation waterway system to prevent cross-infection
Powerful functions
Na+, UF & HCO3- Profiles
Suitable for any dialysate formula
Dialysate flow linearly adjustable
Kt/V
Optional: Bicarb-cartridge holder, Pyrogen filter port, Network connection, etc.

◆ Volume (length× width ×height): 370mm×340mm ×1420mm
◆ Weight: about 90kg 　　
◆ Power supply voltage: AC220V±10% 　　
·Frequency: 50HZ ~ 60 HZ   ·Power: 1700W
◆ Blood pump:
·Flux: 10 ~ 460 ml/min (Ф 6.4mm)
·Flux: 20 ~ 620 ml/min (Ф 8mm)
◆ Heparin pump:
·Flux: 0.1ml/h～10ml/h(±5%)
·Precise: 0.1ml/h
·Injector size: 10ml/20ml/30ml(selectable)
◆ Arterial pressure:

display scope:-300mmHg～+400mmHg(±10mmHg)
◆ Venous pressure:
display scope:-200mmHg～+500mmHg(±10mmHg)
◆ Dialysate flow:
·300ml/min～800ml/min linearity adjustable(+10%)
·Temperature:35.0℃~39.0℃
·Resolving rate:0.1℃
·Conductivity:12.3mS/cm~15.8mS/cm(±0.1 mS/cm)
◆ UF flow scope: 0～4000ml/h
◆ ISO UF flow scope:0～4000ml/h(±30ml/h)
◆ TMP Scope:-100mmHg～+600mmHg(±20mmHg)
◆ Blood leakage monitor:

over 1ml blood per liter dialysate(flow:500ml/min)
◆ Blood level monitor: ultrasonic sensor
◆ Air bubble monitor: Infrared and response threshold value:
Single air bubble of 200uL exists when blood flux is 200ml/min
◆ Inflow pressure: 0.12MPa～0.6MPa, 0MPa～0.6MPa (Optional)
◆ Inflow temperature: 5℃～30℃
◆ Environment temperature: 10℃～38℃, Relative humidity≤80%
◆ Rinse/disinfection: chemical disinfection (citric acid, peracetic acid)
◆ Hot rinse: ≥80℃
◆ Back-up power supply: last for 15-30min after electric-cut.
