SUS304 one layer citric acid linear vibration sieve

We can design screening machines with special specifications according to the technical information such as technical data and size of the equipment provided by customers.

Technical Feature

  • New
  • Linear
  • seasoning linear vibration sieve
  • Henan, China (Mainland)
  • HENG SHUN
  • HY-1020-1S
Send Project Inquiry Add Inquiry List

0 Add Favorite

DESIGN SERVICE OVERVIEW

Project Design Scope

Project Service Scope

PRIMARY PARAMETERS

Condition
New
Type
Linear
Application
seasoning linear vibration sieve
Place of Origin
Henan, China (Mainland)
Brand Name
HENG SHUN
Model Number
HY-1020-1S
Voltage
220v,380v or as your requirement
Power(W)
0.55kw
Dimension(L*W*H)
2230x1390x1640mm
Weight
810kg
Certification
ISO, CE, BV
Warranty
12 Months
After-sales Service Provided
Engineers available to service machinery overseas
function
screening, separating, grading
material
stainless steel 304
feature
large processing capacity
layer/deck
1 - 6 layer/deck
power
2*0.55kw
vibration source

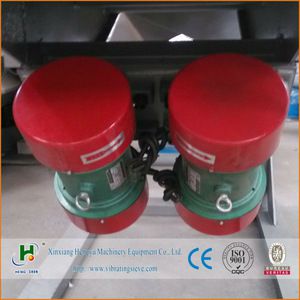

double vibration motor
certification
ISO9001
cleanig system
bouncing ball
application
particles,powders,liquids
customization
accept

DETAIL DESCRIPTION

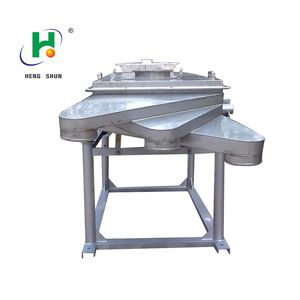

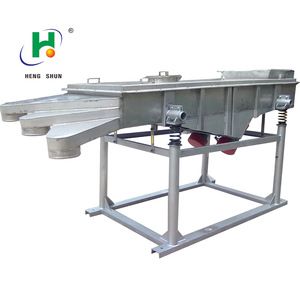

SUS304 one layer citric acid linear vibration sieve



HY citric acid linear vibrating sieve uses motor as the vibration source, making materials be tossed and move forward in astraight line on the screen. There are several balls on the bottom of screen frame hit each otherwhen vibrating, which can clear screen and avoid blocking effectively.



Features

1) Continuous production, single or multi-layer auto-classification filtering

2) Good sealing performance, no dust overflow.

3) Energy-saving and low noise with vibration motor.

4) Start fast and stop smoothly

5) Simple installation, easy operation and maintenance

6) High utilization rate of screen, large unit area, not easy to block, but easy replacement of screen.

7) High-precision screening reach to 96% or above, large processing capacity

.



Using scope

HY citric acid linear vibrating sieve is widely used in food industry :peanut grading, coffee powders, ground coffees, dried milk, sugars, salts, cereals, starches, spices, nuts, flour, sugar, potato powder and flakes, powdered eggs, candies, powdered cheese, and bread crumbs.It can be also applied in flowing line to achieve automatic operation.

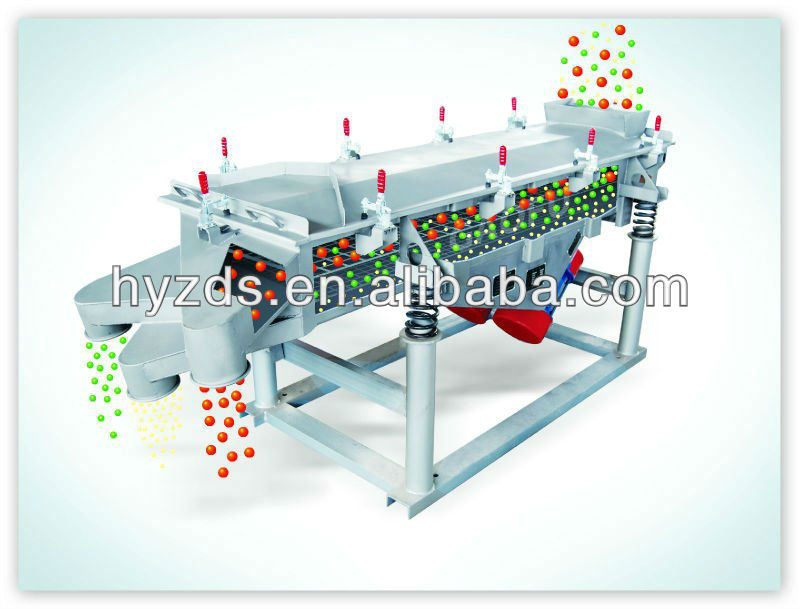

Working principal

Technical parameters

Model

HY-520

HY-525

HY-1020

HY-1025

HY-1030

Appearance Dimension

500×2000

500×2500

1000×2000

1000×2500

1000×3000

Material  Granularity

0.074-10

0.074-10

0.074-10

0.074-10

0.074-10

Angle

1°-7°

1°-7°

1°-7°

1°-7°

1°-7°

Amplitude

3-4.5

3-4.5

3-4.5

3-4.5

3-4.5

Layer

1-6

1-6

1-6

1-6

1-6

Power

2× (0.37-0.75)

2×(0.37-0.75)

2× (0.55-1.1)

2× (0.55-1.1)

2× (0.55-1.1)

Note: We can design screening machines with special specifications according to the technical information such as technical data and size of the equipment provided by customers.

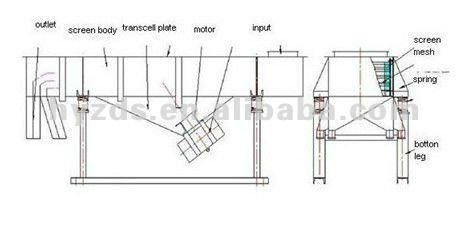

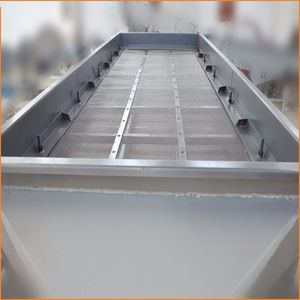

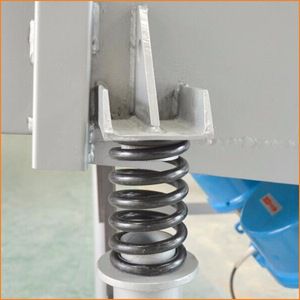

Structure

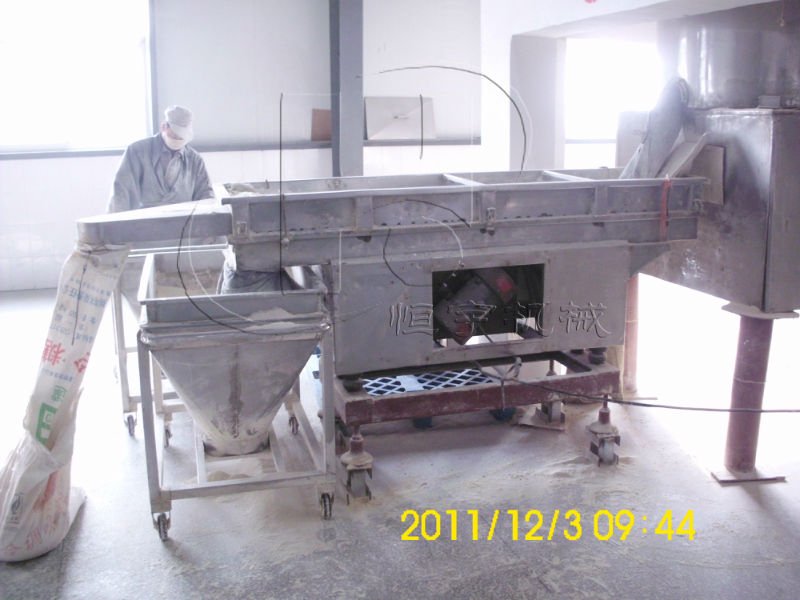

Sieving flour picture
