Product Description

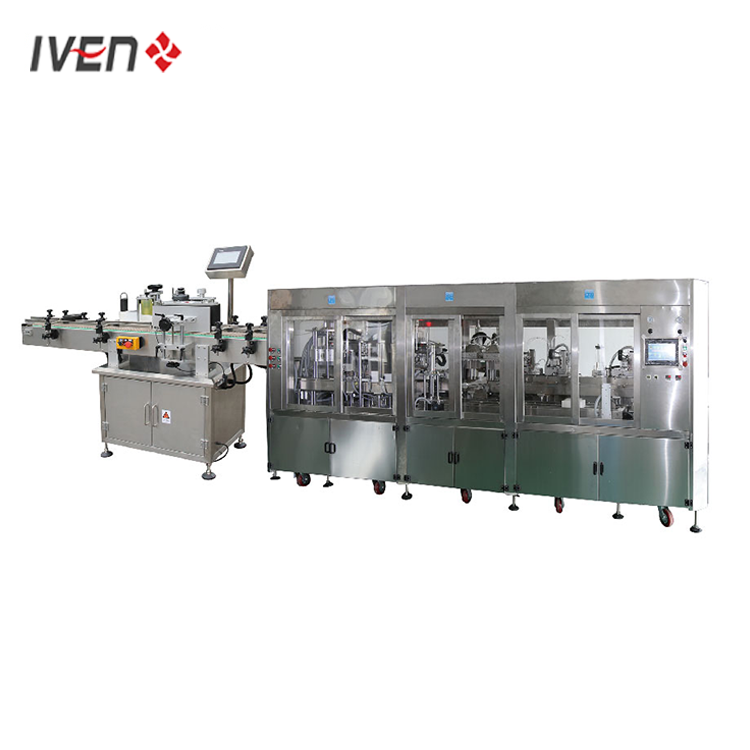

Intelligentized disposable vacuum Blood collection tube machine for sodium citrate
Brief introduction & Advantage
Tail-labeling machine connected online, non-label tube to be auto detected by world leading image technology after stoppering & capping and vacuuming (including rift of stopper or cap or glass tube, foreign matter inside tube, no additive, less additive and etc.). Conform tube move to labeling machine, non-conform tube to be rejected. Manual inspection-free technology is world leading.
1. Save labor cost:
Other company’s production line need large manual inspection for each tube, include label, dosing, foreign matters inside tube and etc. Our line using world leading image technology to reject non-conform tube (include rift of stopper or cap or glass tube, foreign matter inside tube, no additive, less additive and etc.), reach 100% accuracy rate.
2. Reduce secondary pollution. Decrease tube multiple exposure, better guarantee tube aseptic. Glass tube after high temp sterilizing.
(PET tube produced in Class 100,000 clean room workshop), worker only contact tube one time when loading tubes into auto loading machine, ensure tube cleanness during production in Class 10,000 clean room workshop.
3. Testing qualified products for automatic labeling, ensure packaging sequence according to Barcode Numbers.
Packaging sequence according to Barcode Numbers can be up to export standard and usage requirements of large hospitals.
4. Auto inspection device rejects labeled tube if no label.
Slanting label, poor adhesive label and etc., ensure labeled tube and finished tube with pass rate 100%.
5. Labeling speed matches the auto assembly line speed well to ensure whole line production capacity get 18000~24000pcs/h
6. The whole line only needs 3 skilled workers.
Only manual tube loading at the very beginning, online image and labeling inspection rejects non-conform tubes automatically to ensure 100% pass rate. Save at least 15 workers to get production capacity of 18000~24000pcs/h.
Main technical parameters
| Tube size | Diameter 13mm (length 75mm or 100mm), diameter 16mm(length 100mm) |
| Stopper & cap | According to the sample provided, or we provide standard size |
| Production capacity | 18,000 ~ 24,000 pcs/hour |
| Stoppering & capping pass rate | ≥99% |
| Vacuuming stopper-cap pass rate | ≥99% |
| Power supply | 380V/50HZ |
| Power | 12KW |
| Atomization dosing volume | Error≤1%, 10ul/time, 20ul/time, 30ul/time, 40ul/time, 200ul/time, 300ul/time, 400ul/time, 500ul/time, 600ul/time |
| Air consumption: clean compressed air pressure | 0.6 ~ 0.8Mpa, clean compressed air consumption: 300 L/ min |
Company Information
Our Services

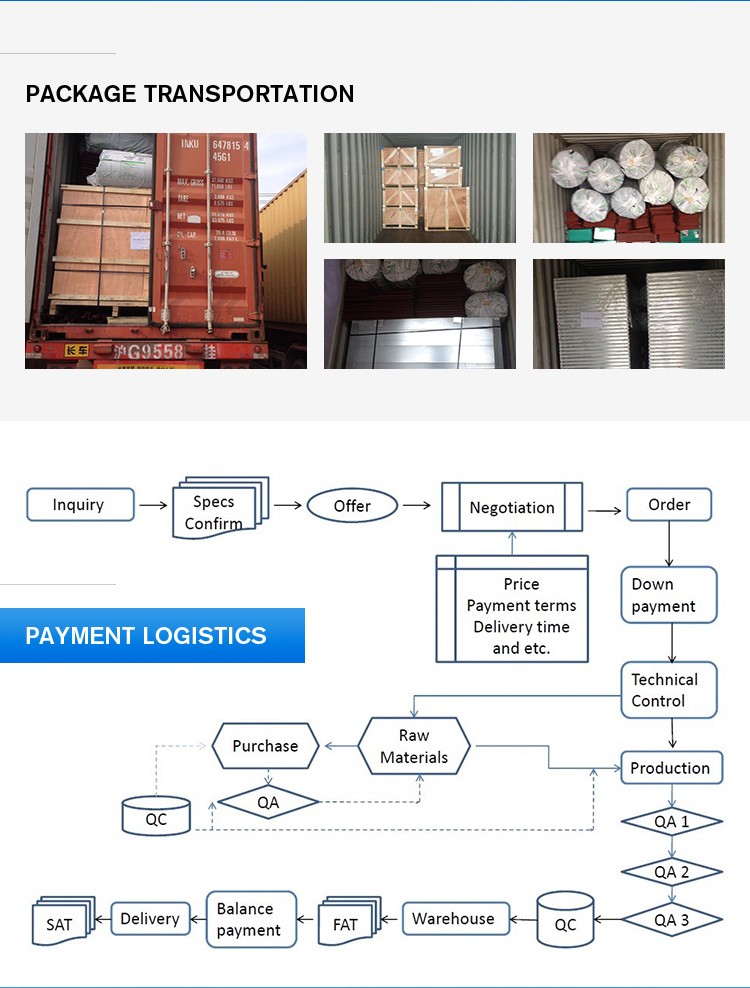

Packaging & payment
