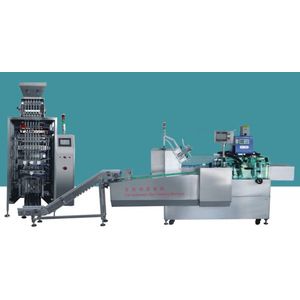

One,multi-lanes back sealing powder bag packing machine
This is a multilanes stick pack sachet packing machine, applicable for packing powder materials such as milk powder, juice powder, coffee powder, chocolate powder, grain powder, green tea powder, medicinal powder, healthy powder etc in the industries of phamacy, food and agricultural chemicals.
Filling product | Powder |
Filling volume | 1-30ml |
Lane | 4 lanes |
Max.packing width | 280mm |
Width of bag | 15-40mm |
Bag length range | 35-200mm |
Packing material core diameter | 70—76mm |
Total power (Kw) | 6kW |
Filling accuracy | ±2% |
Power supply | 380V 50Hz |
Compressed air consumption | 0.25m3/h |
applicable film | CPP/PE/OPP,CPP/PT,PE/KOP,CPP,PET/AL/PE,PET/PE,NY/AL/PE,NY/PE |
Max.width of packing material(roll film) | 280mm |
Max.cutting frequency | 40-50bags/min/lane X 4lanes,it is depended on size of actual bags. |
Max.capacity | Max.200bags/min |
dimension(L*W*Hmm) | 1.1mX1.2mX2.2m |
Weight | 1350kg |

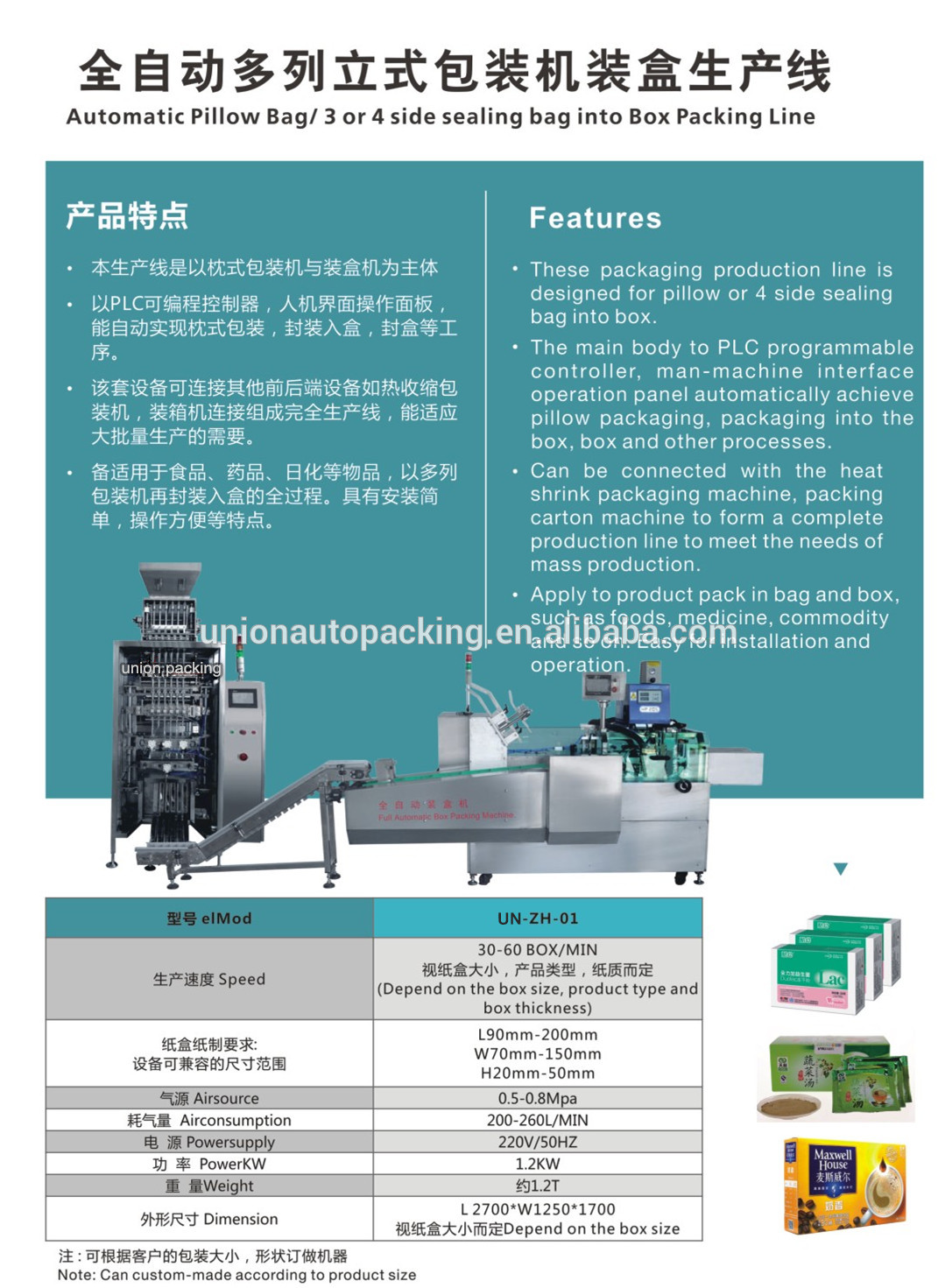

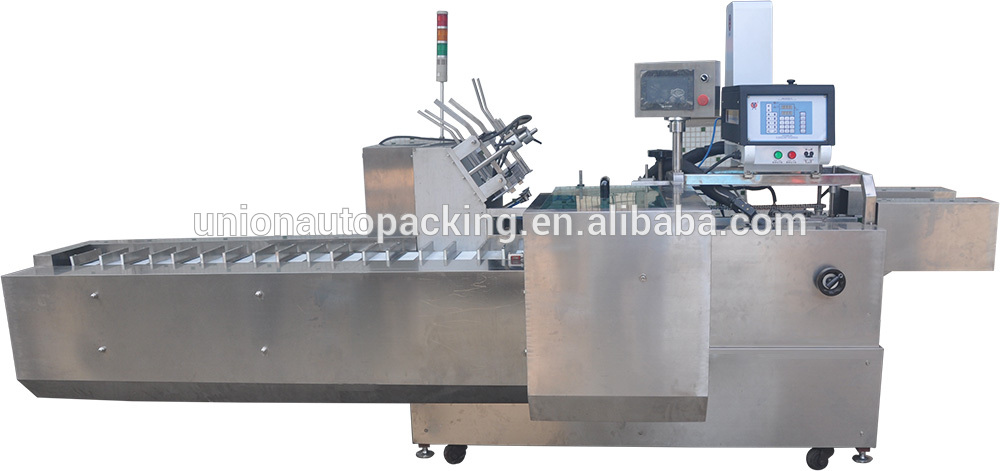

Two,Full automatic box packing machine
Our packaging machine, according to customer demand, in the hot melt adhesive box machine on the basis of the improvement, due to multiple box stacked together, the phenomenon of expansion, resulting in the use of traditional cartoning machine difficult to box, Our engineers use the press belt to promote the technology, a smooth solution to this problem.
Automated procedures: manual discharge, automatic how, automatic hot melt adhesive box
Sealing object: paper products, such as envelopes, postcards, also apply to paper towels, sanitary napkins and other paper box products.
1) Multi-lines packing machine adopted advanced PLC and photoelectric control system.
2) Be able to weight, bag-making, filling, sealing, cutting, lot number, cutting easy tearing notch etc. automatically.
3) Servo Motor, good and fast speed and very high accuracy and more durable.
4) To has color control system which can get the complete trade mark design.
5) Intelligent temperature control by temperature controller to make heat balance better. Using bilingual (English and) Chinese) display screen control system and stainless steel (SS304) cabinet.
6) Fine packaging performance, low noise, clear sealing texture and strong sealing performance.
7) Hot code number by high temperature pressing code.
8) Advantage: to operate simply; high accuracy; save electricity& speed fast.
9) Operation manual and warranty card will be delivered to the clients with machine
10) With Original Imported PLC Control System, make machine very good stability , good use, durable in using time.
11)it has the features of compact body and convenient movement,widely used and the packaging size of the equipment can be adjusted.
