full automatic gypsum plaster production line/gypsum board processing machinery

We adopts the horizontal flow, vertical airflow heat exchanger heating system, the raw material feeding system and edge cutting and edge sealing and edge grinding and recycling system and stacking system are all controlled by computer.

Technical Feature

  • New
  • Building Materials Machinery
  • Automatic
  • 2million sqm--30million sqm
  • Shandong, China (Mainland)
  • Tengfei
Send Project Inquiry Add Inquiry List

0 Add Favorite

DESIGN SERVICE OVERVIEW

Project Design Scope

Project Service Scope

PRIMARY PARAMETERS

Condition
New
Application
Building Materials Machinery
Automatic Grade
Automatic
Production Capacity
2million sqm--30million sqm
Place of Origin
Shandong, China (Mainland)
Brand Name
Tengfei
Model Number
TFGB002
Voltage
380V/220V/415V
Power(W)
245KW
Dimension(L*W*H)
Length 90m x Width 30m xHeight 6m
Weight
200TON
Features
High Efficiency
Certification
ISO9001
Warranty
12 Months
After-sales Service Provided
Engineers available to service machinery overseas
Raw materials
Gypsum powder, water, additives
Additive included
Foaming agent, water reducer, citric acid, fiber glass etc
Fuel
Oil,coal, natural gas both are availbe
Capacity
2~30million Square Meter
Type
Hot Air
Motors
SIEMNES
Gear box
SKF
Electrical component
SIEMENS
Workshop size
90mx30mx6m
Main process
Feeding,Mixing,Forming, Drying,Conveying,Stacking

DETAIL DESCRIPTION

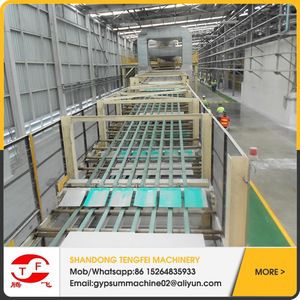

full automatic gypsum plaster production line/gypsum board processing machinery

Product Overviews

Gypsum board manufacturing machine adopts advanced technology. We adopts the horizontal flow, vertical airflow heat exchanger heating system, the raw material feeding system and edge cutting and edge sealing and edge grinding and recycling system and stacking system are all controlled by computer. All the whole line is full automation.

1 .Raw material supplying system
Raw material is transported and lifted to feeding hopper, after measurement it comes to vertical mixer. Face and back paperboard are lifted to each shelf. They are tensioned with special tension unit. Mixed material from vertical mixer falls down to back paperboard, then formed into shape and covered with face paperboard, after last flattening the semi finished plasterboard is completed.

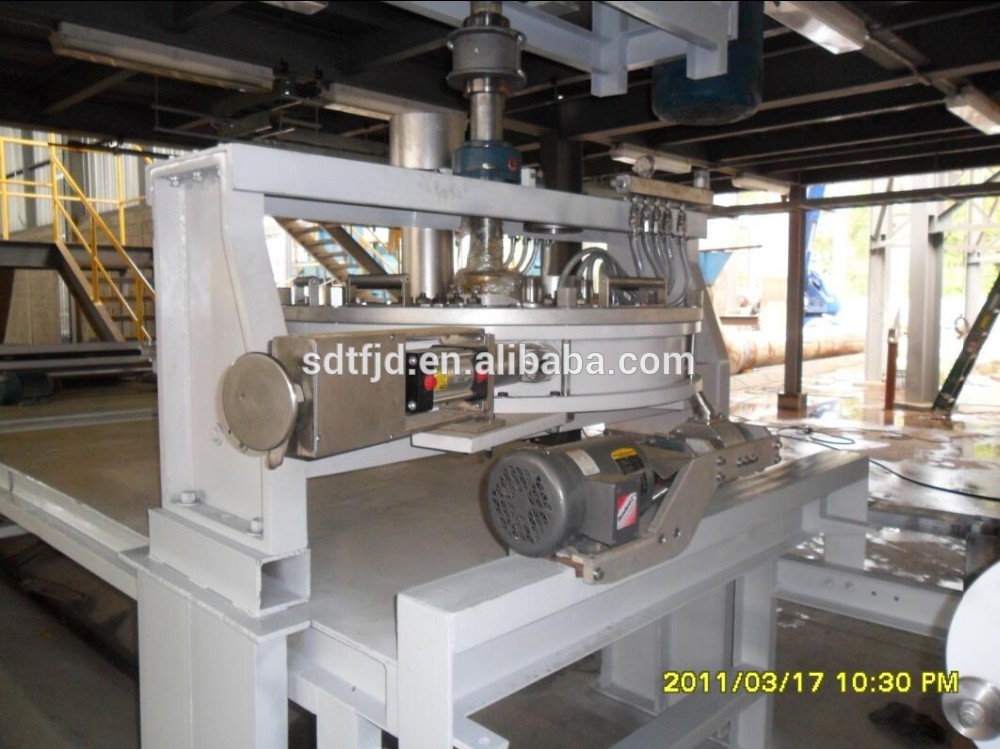

2.Mixer
It will mix the raw material completely.
Vesicant and starch and powder and water will be blended in the mixer.


3.Conveying system
Semi-finished plasterboard from formation section is automatically edge trimmed into continuous palsterboard, conveyed to concreting station and automatically cut.

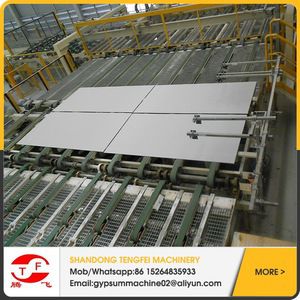

4. Transferring system
Transferring section Concreted plasterboard automatically transferred and cut in middle, saving raw material.

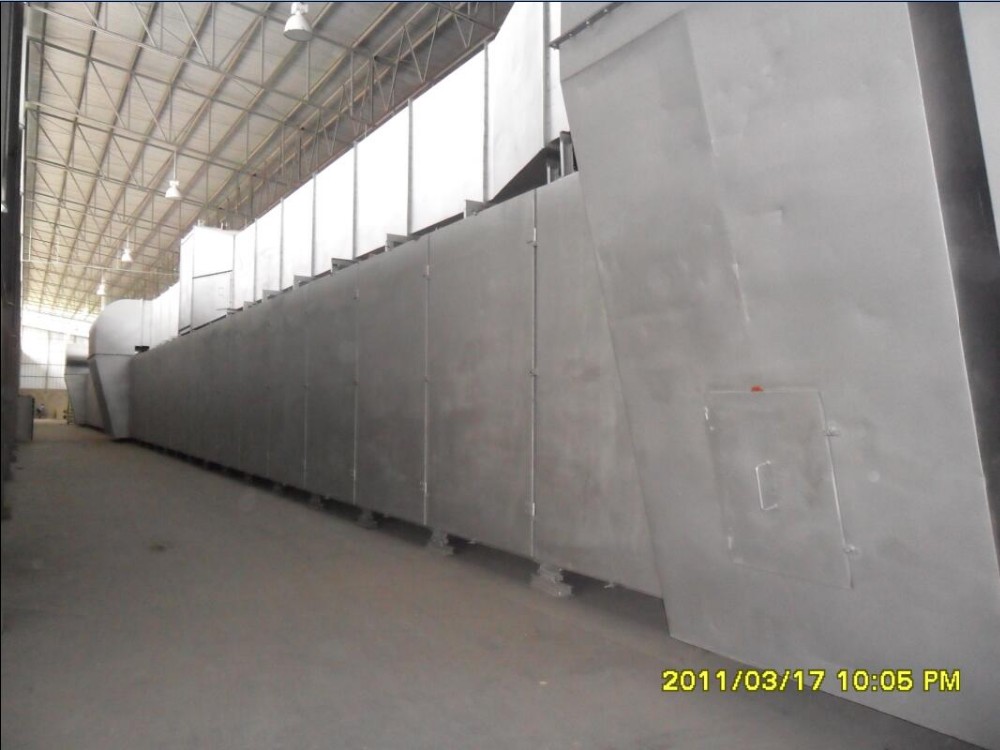

5. Drying system
Plasterboard Transferred automatically into drying room which has shelves 5-storey or 6-storey supporting 2 lapped sheets, with 50m, 60m, 70m, and 90meters length range.

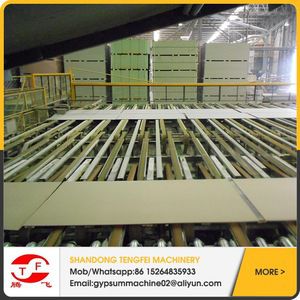

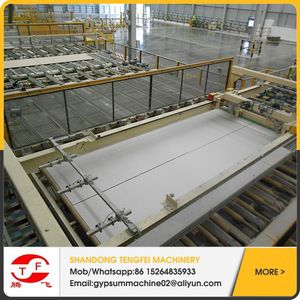

6. Stacker system
Automatically cut into dimensions you pre-set to avoid defect product occurrence and higher efficiency.

7. Gypsum board controlling system





Packaging & Shipping


Company information

Shandong Tengfei Mechanical and Electrical Technology Co., Ltd located at the foot of the famous Mountain Tai, our company near the Beijing to Shanghai high-speed, Beijing to Fuzhou High-speed, 104 State Road. We are a integrated science and technology joint-stock enterprises, and we can design,manufacture,install,commission gypsum board and gypsum powder and gypsum block machine ourselves. At present, our company have the ability to design and manufacture gypsum board production line with annual capacity from 2 Million M2 to 50 Million M2, gypsum block production line with annual capacity from 100,000 M2 to

1.5 Million M2, gypsum powder production line and phosphogypsum powder production line and FGD gypsum powder production line and fluorine gypsum powder production line with annual capacity from 30,000 tons to 500,000 tons, and we also can produce PVC laminated gypsum board equipment and gypsum board light frame equipment.
