potato flakes machinery / potato chips line / potato flakes production line

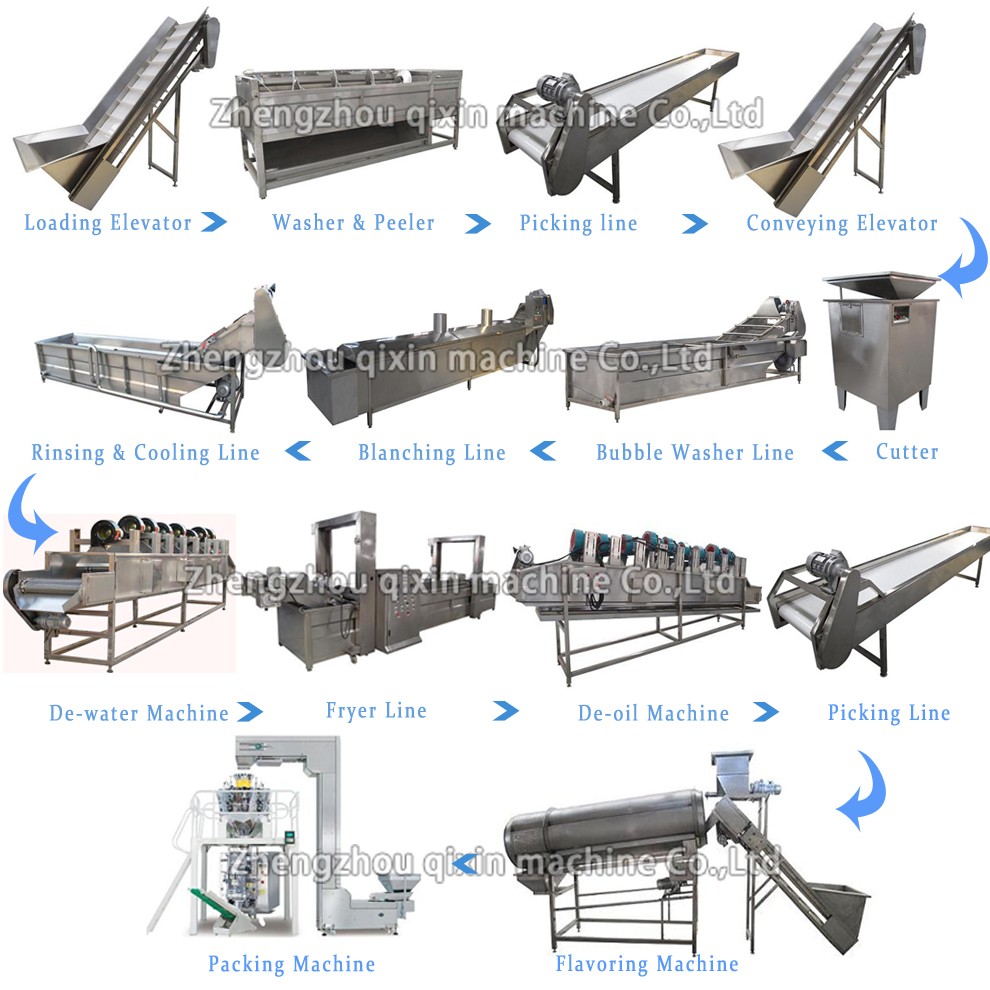

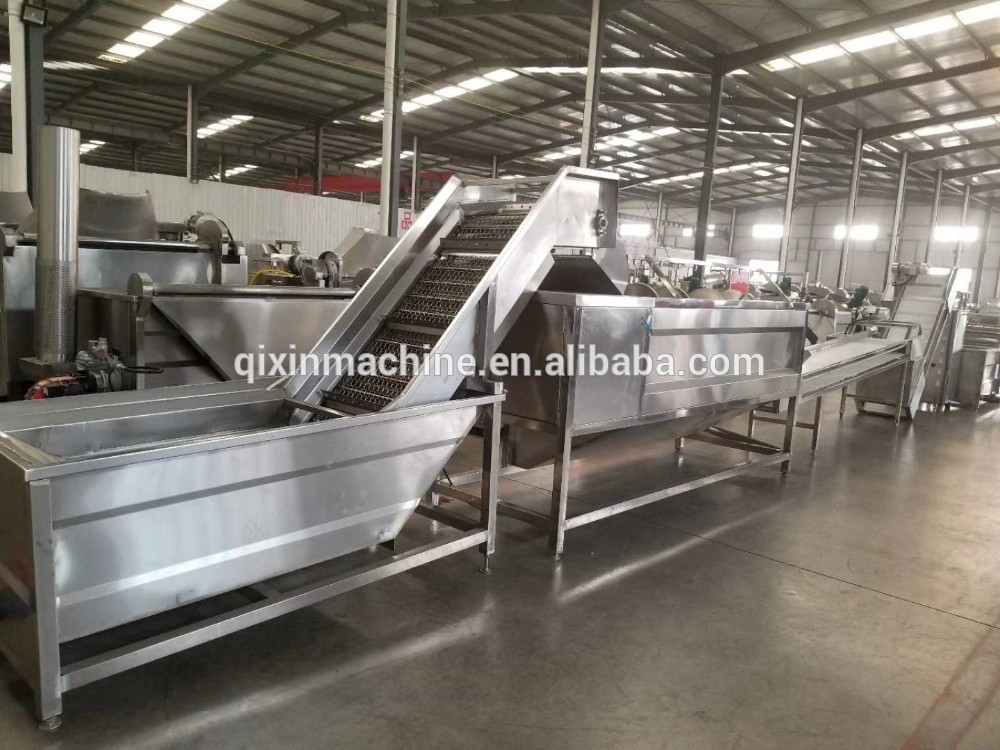

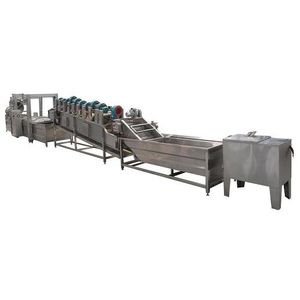

This line is of high automation,large capacity,low energy consumption,labor-saving,small area occupation,easy operation,good quality and high profit.The line mainly include the process of potato washing peeling, cutting, washing, blanching, dewatering, frying, deoiling ,flavoring and packing.We will provide formula and technology guidence free of charge to make sure you can make high quality and delicious potato chips.With small changes and add freezer to the line,you can make frozen french fries.
Motor: copper wire National standard motor
| Item | Products | Parameter |
| 1 | Loading elevator | Dimension: 2535x700x2150mm Material: stainless steel+food grade pvc Power : 0.37kw 380v |
| 2 | Spiral cleaning and peeling machine | Dimension: 3050x700x1600mm Material: stainless steel Brush: nylon Power: 2.75kw 380V |
| 3 | Picking line | Dimension: 3000x740x1100mm Material: stainless steel+food grade pvc Power : 0.37kw 380v |
| 4 | Loading elevator | Dimension: 1800x700x1600mm Material: stainless steel+food grade pvc Power : 0.37kw 380v |

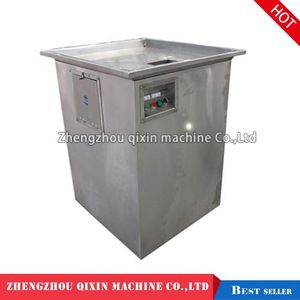

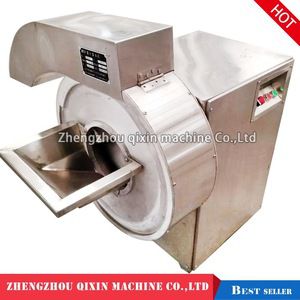

| 5 | Cutter | Dimension: 745x590x1385mm Material: stainless steel Power : 0.75kw 380v |
| 6 | Bubble washer line | Dimension: 2500*1300*1400mm Material: stainless steel Mesh belt width: 600mm Power : 1.87kw 380v |
| 7 | Blanching line | Dimension: 4000*1070*1400mm Material: stainless steel Mesh belt width: 600mm Power : 40.5kw 380v |
| 8 | Rinsing & cooling line | Dimension: 2500*1300*1400mm Material: stainless steel Mesh belt width: 600mm Power : 1.87kw 380v |
| 9 | De-water machine | Dimension: 3000*900*1700mm Material: stainless steel Mesh belt width: 600mm Power : 4.5kw 380v |

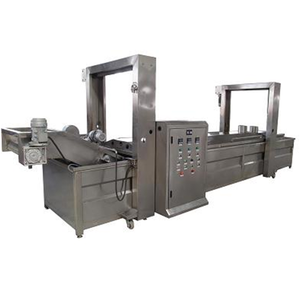

| 10 | Fryer Line | Dimension: 5000*1700*2250mm Material: stainless steel Mesh belt width: 600mm Power : 118kw(heating) & 7kw(assist),380v |
| 11 | De-oil machine | Dimension: 3000*900*1700mm Material: stainless steel Mesh belt width: 600mm Power : 4.5kw 380v |
| 12 | Picking Line | Dimension: 2500*740*1100mm Material: stainless steel+food grade pvc Power : 0.37kw 380v |
| 13 | Flavoring machine | Dimension: 2500*850*2200mm Material: stainless steel Drum diameter: 500mm Power : 1.12kw 380v |
| 14 | Packing Machine | Capacity: about50 bag/min Accuracy: ≤±1.5% Bag size: (L)60-300mm (W)60-200mm Film width: 420mm Bag type: Pack with film, upper seal, lower seal and back seal by automatic bag making machine Film thickness: 0.04-0.09mm Package material: thermal composite material., likeBOPP/CPP, PET/AL/PE etc Air consumption: 0.8Mpa 0.5m3/min Total powder: 4.745KW Voltage: Four wire three phase 380V 50HZ Air compressor: Not less than 1 CBM Total height: 3.308 m |
Zheng Qixin Machine Co.,Ltd, was established in 2012. Which is specialized in production for food machine. Our factory was built in 1993. By rich production experience, we have been a high-tech enterprise and offer a complete set of speciallized designing, manufacturing, installation, sale and after-sale service for our customers.
Thank you for taking your time to visit our website.Pls leave an inquiry to konw more details about Price,Packing ,Shipping and Discount.Explore for more product information.
