frozen potato flakes production line
Introduction
This production line is special for making frozen french fries.
AUS full-automatic frozen french fries production line is a elite of frozen french fries processing products, but keep the advantages of the production line machine, it is also designed according to the feedbacks from customers. Low cost,low energy-exhausting,multifunction, small dimension,high profit, and easy-repairing are its best features. It is composed of Washing & Peeling Machine, potato chips machine, Blanching machine, dewatering machine, frying machine, deoiling machine,packing machine
There are three kinds of output for this line: 180kg/h,300-400kg/h,800-900kg/h
The Procedure as follows:

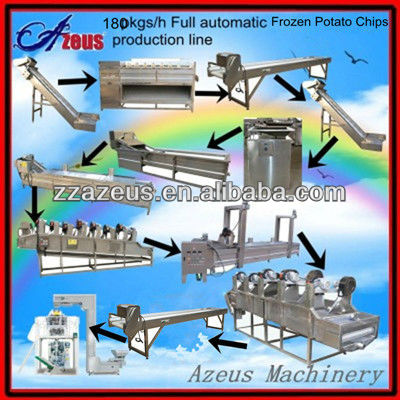

Hoisting & Feeding---Washing & peeling ---Selecting---Hoisting---Potato chips cutting---Potching--Blanching---Dewatering----Frying --Deoiling--Conveyor--Packaging
3, Technolegy Parameter of frozen potato flakes production line :
| NO. | Commodity | Power/Voltage | Frenquency | Measurement |
| 1 | Hoister | 0.55kw/380v | 50Hz | 3350x720x2250mm |
| 2 | Washing & Peeling Machine | 2.75kw/380v | 50Hz | 2800x830x1550mm |
| 3 | Selecting Line | 2.75kw/380v | 50Hz | 3900x730x1100mm |
| 4 | Hoister | 0.55kw/380v | 50Hz | 1600x700x1800mm |
| 5 | Potato Chips Cutting Machine | 1.5kw/380v | 50Hz | 1000x800x1600mm |
| 6 | Potching Machine | 1.87kw/380v | 50Hz | 3000x1030x1350mm |
| 7 | Blanching Machine | 54.55kw/380v | 50Hz | 4500x1130x1400mm |
| 8 | Air-Cooling Dewatering Machine | 6.75kw/380v | 50Hz | 4000x950x1880mm |
| 9 | Electric-heated Fryer Line | Power:57.37kw/380v | 50Hz | 4200x1080x1380mm |
| 10 | Deoiling Production Line | 18.75kw/380v | 50Hz | 4000x1000x2250mm |
| 11 | Selecting Line | 0.55kw/380v | 50Hz | 3700x800x1130mm |
| 12 | Packaging Line | 6kw/380v | 50Hz |
Packaging method:
All the machines are wrapped in plastic bags firstly before being convolved with straw rope. Then they will be put in a strong wooden case, lined with metal wire if necessary. So there will be no any damage during shipping to your country
