Potato Flakes Powder Made Chips Production Line

DESIGN SERVICE OVERVIEW

Project Design Scope

Project Service Scope

PRIMARY PARAMETERS

Condition

New

Place of Origin

Tianjin, China (Mainland)

Brand Name

SOFT

Model Number

SPCS250

Application

Chips

Voltage

380V

Power(W)

110kw

Weight

40tons

Dimension(L*W*H)

43000mm

Certification

CE ISO

Warranty

12 Months

After-sales Service Provided

Engineers available to service machinery overseas

DETAIL DESCRIPTION

Product Description

Basic information

Automatic stackable pringles potato chips production line is developed on the basic of European and American technology, we not only take use of their advantages but also improve the design during the practical use. Our clients come to inspect the potatoes crisps making line, they give us high praise. We are very professional with 20 years' experience. Meantimes, we also own customers in local market,easy for viewing operation. Warmly welcome you to visit our company and have a deeply talking of this production line.

Item	Content
Raw Material	Potato Flakes, Potato Starch, Seasoning Powder Etc.
Finished Product output capacity	220-250kg/h
Frying Oil	Palm Oil
Frying Temperature	170-190°C
Heating Fuel for Boiler	CNG 50-85m3/h
Power Supply	380/220V, 50Hz
Power Consumption	Electric:110Kw. Water:100-120kg/hr. Compressed Air:4m³/min,0.5-0.8mpa.
Main Machine material	Food Grade Stainless Steel

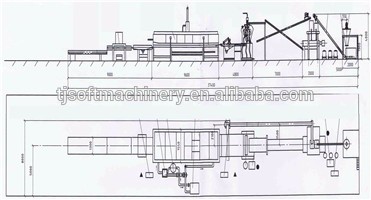

Overall Dimensions	4364.3m(LWH), At least 400-450㎡

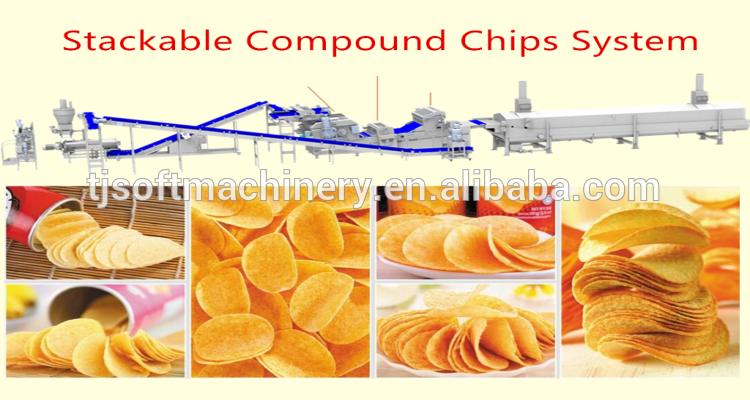

Finished Products

Detailed Images

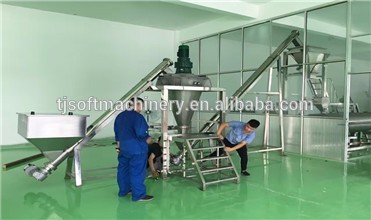

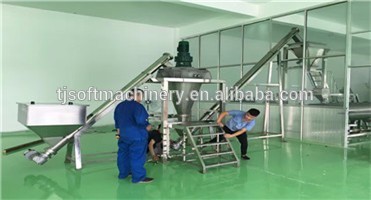

Dry material Cone Mixer

Preliminary mixing of raw materials.
Power: 2.2kw
Throughput: 300kg/h
Weight: 515kg

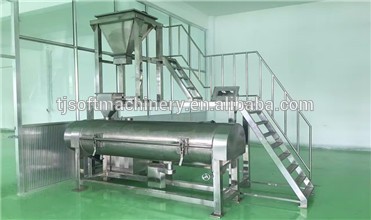

Wet material mixer

Wet mixer is used for mixing the powder raw materials with the water to become the moist dough flakes. Balance block and frame baseplate is milky white spray-painted carbon steel The material for safety hood and mixing tank is stainless steel

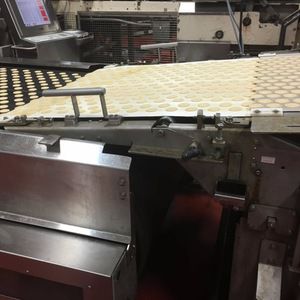

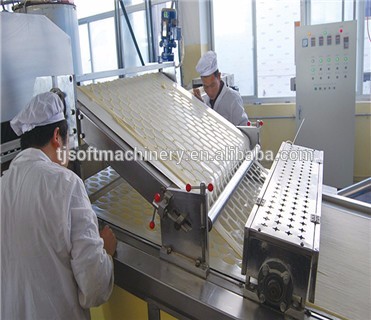

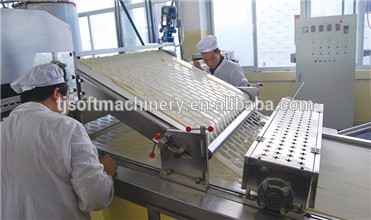

Dough Sheeting System

Sheeter is the machine which can press the moist dough to the evenly sheet, just like the picture showed.The material for protective cover, cylinder base and drum is stainless steel.

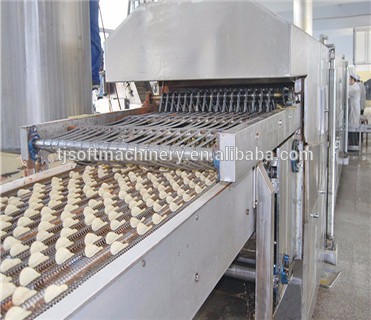

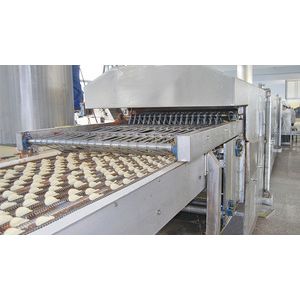

Frying System

Fryer is used for frying the potato chips with the edible oil. there are many moulds in this machine, the moulds function is for making the round potato chips to oval and curving shape.

Flavoring System

Flavor machine is used for flavoring the potato chips in seasoning powder, we can change the different flavors seasoning material to get different taste potato chips.
The material for the machine body is stainless steel The material for the frame is stainless steel square tube

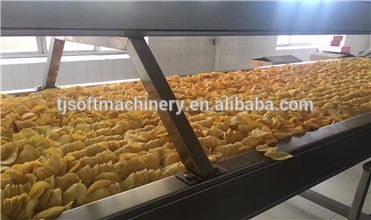

Finsihed Products Conveyor

This conveyor is used for cooling the potato chips and transfer to the packing line. The material for conveying belt is Food Grade PU, The material for the machine body is stainless steel
