100kg/h fresh potato chips slicing machine production line / frozen French fries machinery / potato flakes maker equipment

DESIGN SERVICE OVERVIEW

Project Design Scope

Project Service Scope

PRIMARY PARAMETERS

Condition

New

Place of Origin

Henan, China (Mainland)

Brand Name

juyoumech

Model Number

JU series

Application

Chips

Voltage

220V/380V

Power(W)

45kw

Weight

standard

Dimension(L*W*H)

standard

Certification

CE ISO

Warranty

1 Year

After-sales Service Provided

Engineers available to service machinery overseas

Name

100kg/h fresh potato chips slicing machine production line

Material

Stainless Steel

Color

Silver

Usage

making potato chips

Capacity

60-100kg/h

Raw material

Fresh Potato

Final Products

Fried Chips

Package

Wooden Case

Payment Term

T/T

spare parts

yes

DETAIL DESCRIPTION

100kg/h fresh potato chips slicing machine production line / frozen French fries machinery / potato flakes maker equipment

Description:

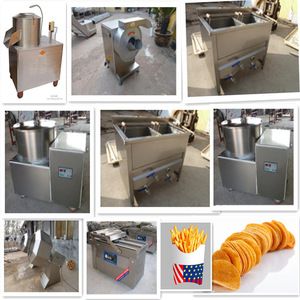

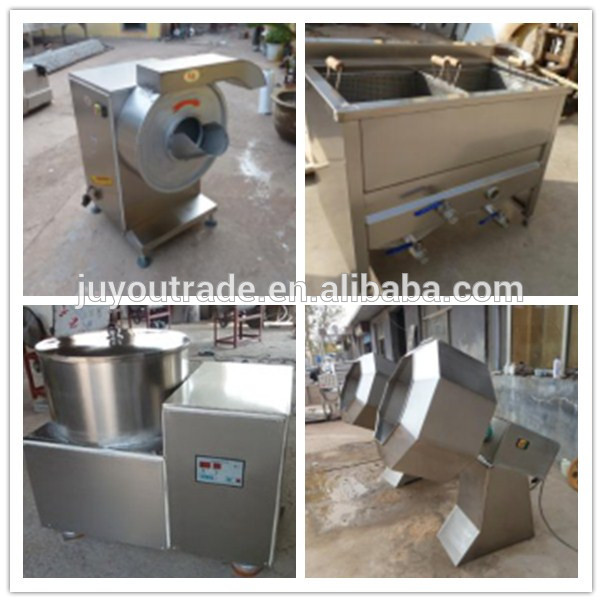

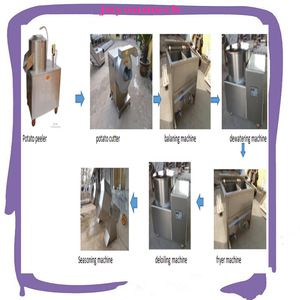

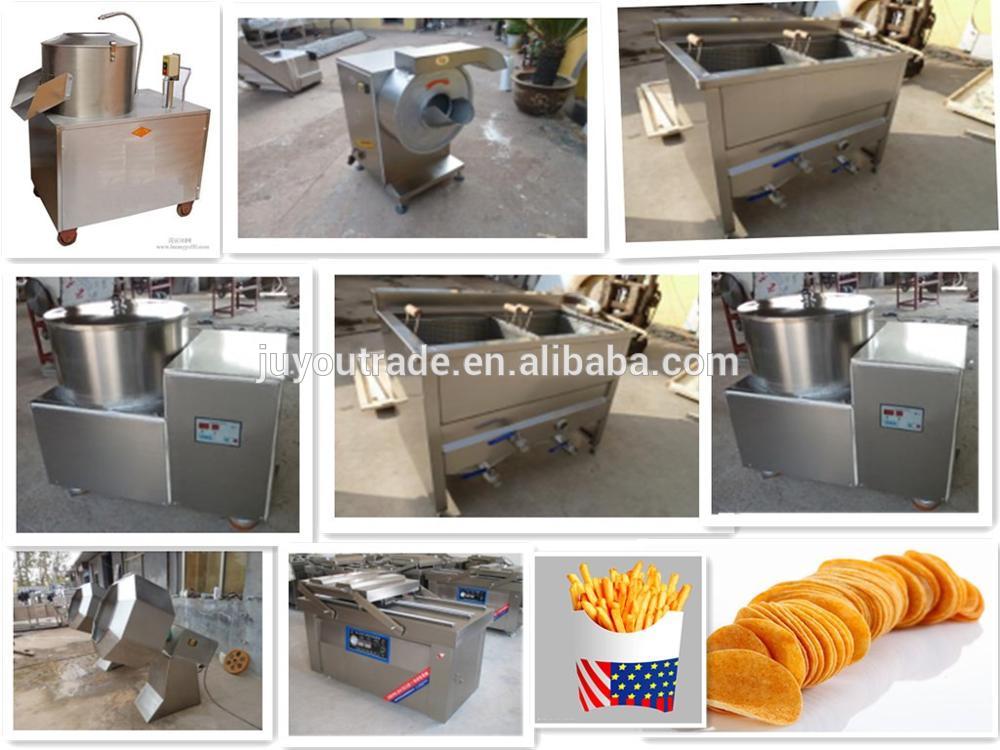

This potato chips production line is the best choice for making potato chips with low investment and power consumption. This whole line is made up of potato washing peeling machine, potato cutting machine, blanching machine, dehydrating machine, frying machine, deoiling machine, flavor mixing machine and nitrogen filling packing machine.

1.Peeler: cleaning and peeling process at one time, high efficient and low consumption.

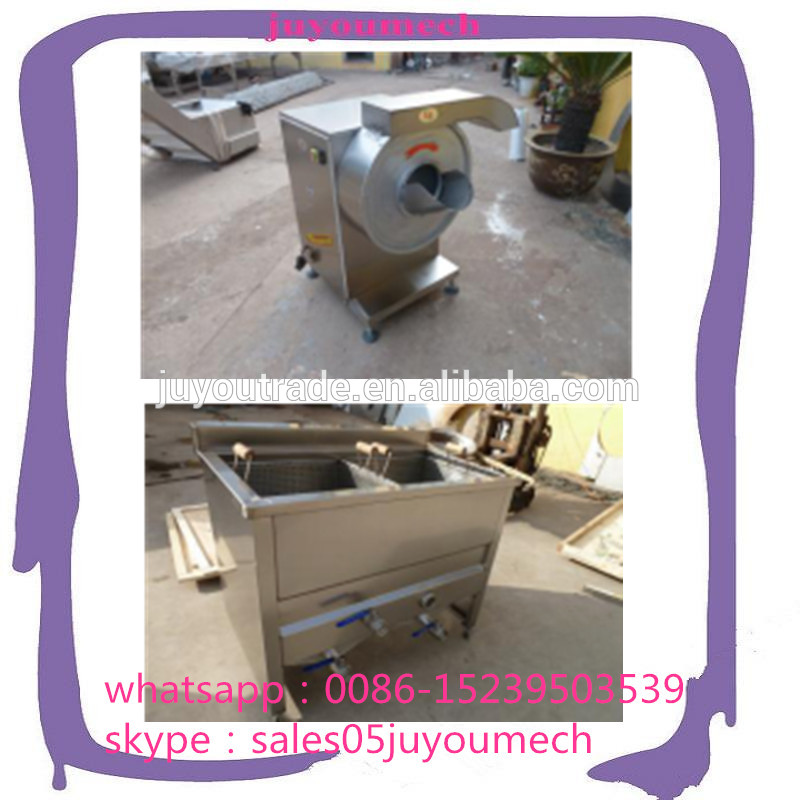

2. Cutter: cut into strip,flake and julienne shape, adjustable cutting size

3. Blanching machine: do rinsing and color protection of the cut potato chips.

4. Dehydrator: centrifugal dehydration, reduce the time when drying, and improve the taste of the potato chip.

5. Fryer: keeps the potato chips quality and taste.

6. De-oiling: use the centrifugal, overcome the shortcoming of botheration.

7. Flavor Machine: make the potato chips turning even, use the spray type to add the seasoning, not easy to break.

8. Vacuum package machine:when packing, put into nitrogen, can avoid break of the potato chips.

Technical Parameters:

for capacity 100kg/h

Machine	Technical parameter
Potato peeler	Power:1.1kw voltagge: 220V-3 capacity:200kg/h *Dimension:1400850800mm*
Potato cutter	Power:1.1kw voltage:220v-3 capcity:110kg/h *Dimension:9509001000mm*
Blanching machine	Power:24kw voltage: 220v-3 capacity 120kg/h dimension:1200700950mm
Dewatering machine	Powe:1.1kw voltage:220v-3 Capacity: 200kg/h *Dimension: 1000500850mm*
Fryer machine	Power:24kw voltage:220v-3 *Dimension:1200700950mm* Capacity:100kg/h
Deoiling machine	Power:1.1kw voltage:220v-3 dimension:1000500850mm Capacity 200kg/h
Seasoning machine	Power:1.1kw voltage:220v-3 *Dimension:11008001300mm*
Packing machine	Power: 1.5kw Voltage: 220/380v *Dimension:1200600850mm*
