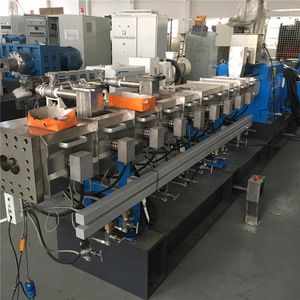

Ainsko potato starch plastic compostable granulating machinery/ twin screw extruder
What we can offer
Starch and pp pe ps are degradable after mixing,and it is mainly used as agricultural film and horticultural material in agriculture; the application in catering industry is mainly used as fast food boxes, disposable cups, plates, and knives and forks; the packaging materials are mainly the packaging of daily items, including various shopping bags, Bags, garbage bags, food bags, etc.
The machines are designed by using the "toy bricks" principle, the screw configuration, barrel setup, L/D or mode of feeding and venting, screen changing, way of granulating, and the control mode can be optimally adjusted according to different material properties and requirements in consideration of the versatility in each general applications.
Functions and Features :
1.Integrate feeding material, weighting, bag clipping, bag packing, conveying and sealing.
2.Automatic pack reduction and automatic calibration during the weighing each time.
3.Have functions such as long-range controlling and trouble diagnosing, repairing , ultra difference alarms and so on.
4.Adopt gravity feeding method internally inside the package to ensure high metering accuracy and fast packing speed.
5.Full enclosure design, negative pressure operation inside the unit, without dust escape, with clean environment.
6.Weight meter adopts aluminum alloy enclosure, with high anti-interference performance and simple operation.
Representative Materials of Co-rotating Twin screw Extruder (Reference Values)
Process | Representative materials |
Mixing nature-changing | PE,PP,PS+SBS,PA+EPDM,PP+NBR,EVA +Silicon rubber, etc. |
PE,PA,PC,CPE+ABS(alloy),PBT+PET,PP+ PE etc. | |
Filling nature-changing | PE,PP,EVA, etc.+ Calcium carbonate, talcum powder, titanic powder ABS,PC,PS, etc.+ aluminum hydroxide, magnesium hydroxide, antimony oxide. |
PP,PA,ABS +ferrous powder, sulphuric powder ceramic powder | |
Functional machine pellets | PP,PA,ABS,PBT, etc+ anti-burning agent and other auxiliary agents: combustion-supporting machine pellets |

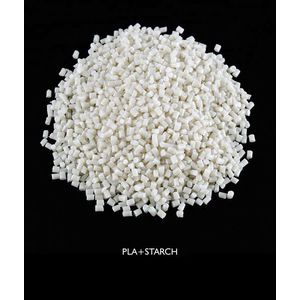

PE,PP,PS, etc+ starch: de-composing machine pellets | |
PE+ fog-preventing dipper, stabilizer: dual-prevention machine pellets | |
PE,EVA=ABS etc+ carbon black: black machine pellets | |
Colored machine pellets | PE,PP,ABS,AS,PA,EVA,PET +pigment and auxiliary |
Intensified glass fibers and carbon fibers | PP,PBT,ABS,AS,PA,PC,POM,PPS,PET etc.+ long fibers, small fibers, carbon fibers, crystals and so on, etc. |
Various cables | HDPE,LDPE,LLDPE,MDPE,EVA,PVC,PP, etc. insulating cables,coatings, PE peroxide silicon alkyl crossing cables: radialization crossing cables |
Special materials | EVA heat-melting glue, polyurethane, fluorine rubber, fluorine plastics, PP cigarette filtering material and TPR sole material |
Reaction extruding | Poly-amide condensate, poly-amide melting polymerization, poly-amide polythene-adding, poly-carbonate condensate, etc. |
Exhausting and volatilization | Polystyrene oxide, high-absorbing resin, chlorine sulphur polyethylene |
Powder paint | Polyester, ring oxide, lactide, polyurethane, acrylate |
Specifications and Technical Data:

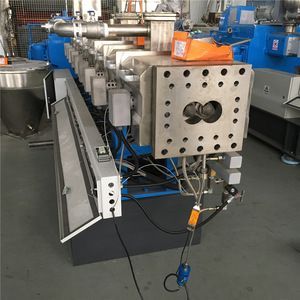

Advanced twin screw extruder characterized by high efficiency mix-ing combined with low energy con- sumption per kg output. The under water pelletizer cuts polymer strands into pellets immediately after they have passed the die plate.
Ainsko’s Pelletizing System
1. water cooling strands cutting line
2. Water ring Pelletizing line
3. Air-cooling Hot-cutting Pelletizing Line
4. Air-colling face pelletizing line
Jiangsu Ainsko Environmental Technology Co., LTD. (A Dart Extrusion Company) is a high-tech manufacturing company in plastic machinery making field. Our company is a professional manufacturer of granulating extruders for coloring/dyeing, filling masterbatch production, as well as plastic modification and compounding , plastic recycling. Our main products with single/twin/triple screw extruder,under water pelletizing system,sheet/film/plate extrusion system.We have obtained CE Certificate and ISO.
Our mission is to make the highest quality plastic extrusions, with a commitment to incorporating innovative technologies, always displaying honesty and integrity.
. Q: Where is your factory?
R:Our factory is based in Nanjing , Jiangsu Province, China,
1) You can fly to Nanjing Lukou Airport or you can fly to Shanghai then take high-speed trian to Nanjing South Railway Station.
2) We will arrange the pickup in Nanjing Lukou airport or South Railway Staition
2. Q: Why chose us?
R: 1) Quick response. Once we got the inquiries from you, we will reply you within 12hours.
2) Promising leading time. To guarantee the quality, the machine will be finished within max 20days.
3) Before leaving factory, all the machine will be fully tested.
4) Customized package(Wooden) will ensure a safety shipping.
3.Q: How is the payment?
R: 1) Alibaba Trade assurance 2) T/T payment; 2) L/C;
4.Q:Warranty
R: 1) 1 years warranty
