Automatic Multihead Granule Puffy Food Filling Production Line Potato Chips Packing Machine

New design, beautiful appearance, reasonable structure, more advanced technology.

Technical Feature

  • Multi-Function Packaging Machine
  • New
  • Filling, Sealing, Wrapping
  • Commodity, Food
  • Bags, Film, Pouch
  • Plastic
Send Project Inquiry Add Inquiry List

0 Add Favorite

DESIGN SERVICE OVERVIEW

Project Design Scope

Project Service Scope

PRIMARY PARAMETERS

Type
Multi-Function Packaging Machine
Condition
New
Function
Filling, Sealing, Wrapping
Application
Commodity, Food
Packaging Type
Bags, Film, Pouch
Packaging Material
Plastic
Automatic Grade
Automatic
Driven Type
Electric
Voltage
220V
Power
2.2KW
Place of Origin
Guangdong, China (Mainland)
Brand Name
GELGOOG
Model Number
GG
Dimension(L*W*H)
1217*1015*1343mm
Certification
CE Certification
After-sales Service Provided
Engineers available to service machinery overseas
Product name
Multihead Granule Puffy Food Filling Line Potato Chips Packing Machine
Name
Potato Chips Packing Machine
Usage
Bag Making Potato Chips Packing Machine
Main Function
Weighing Forming Filling Sealing
Machine type
Vertical Automatic Packing Machine
Packing speed
5-60bags/min
Packing material
Plastic Film
Item
Seal Packing Machine
Bag type
Punching Bag
Film material
Hot Seal Film

DETAIL DESCRIPTION

Automatic Multihead Granule Puffy Food Filling Production Line Potato Chips Packing Machine

Product Description

Function And Structure Characteristics of Potato Chips Packing Machine

1. New design, beautiful appearance, reasonable structure, more advanced technology.

2. Imported PLC computer control system, color touch screen, easy, intuitive and efficient.

3. Import servo film transporting system, import color sensor, accurate positioning, machine performance, packaging beautiful.

4. Multiple automatic alarm protection, reducing the maximum loss.

5. Bag-shaped variety, can provide customers with pillow-shaped bags, Alphascope bags, hanging bags, even bags.

Technical Specifications of Potato Chips Packing Machine

ModelGGTCLB-420GGTCLB-520TGGTCLB-720
Film widthMax. 420mmMax. 520mmMax. 720
Bag length80~300mm80~350mm100~450mm
Bag width60~200mm80~250mm100~350mm
Film roll diameterMax. 320mmMax. 320mmMax. 400mm
Packing rate5~60 bags/min10~50 bags/min10~40 bags/min
Measurement range150~1500ml150~2000ml150~4000ml
Film thickness0.04~0.08mm0.04~0.08mm0.04~0.08mm
Power220V, 50/60Hz, 2.2KVA220V, 50/60Hz, 3.0KVA220V, 50/60Hz, 3.6KVA
Machine size(L)1217 * (W)1015 * (H)1343(L)1488 * (W)1080 * (H)1490(L)1716 * (W)1260 * (H)1820
Machine weight650kg750kg900kg

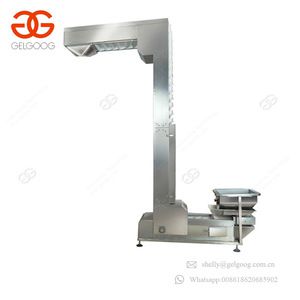

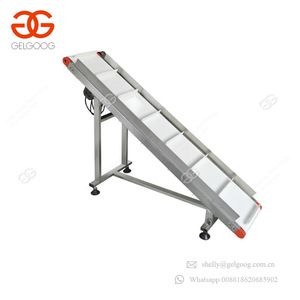

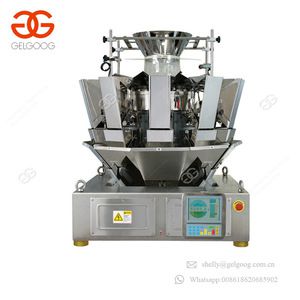

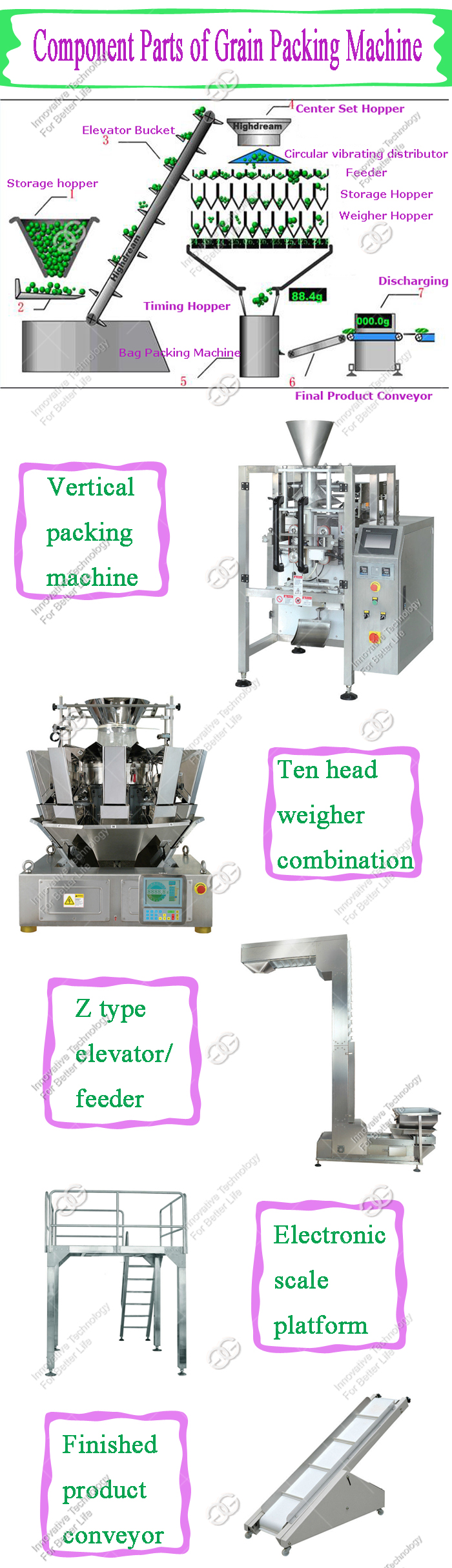

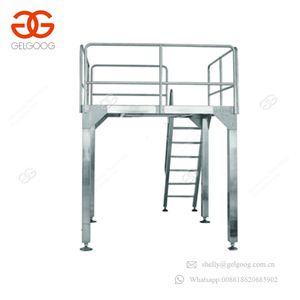

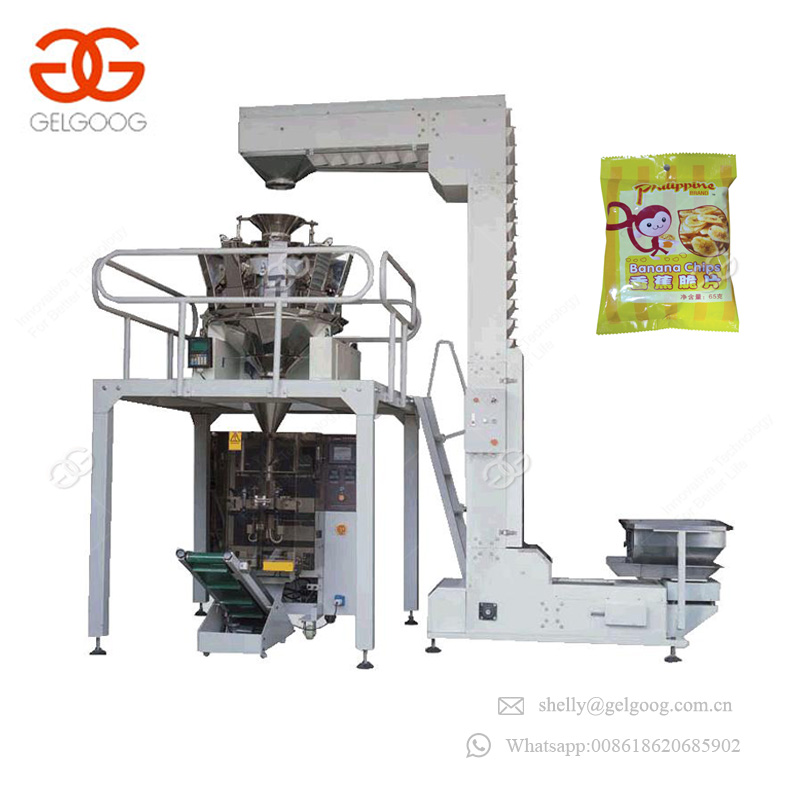

More Pictures of Potato Chips Packing Machine

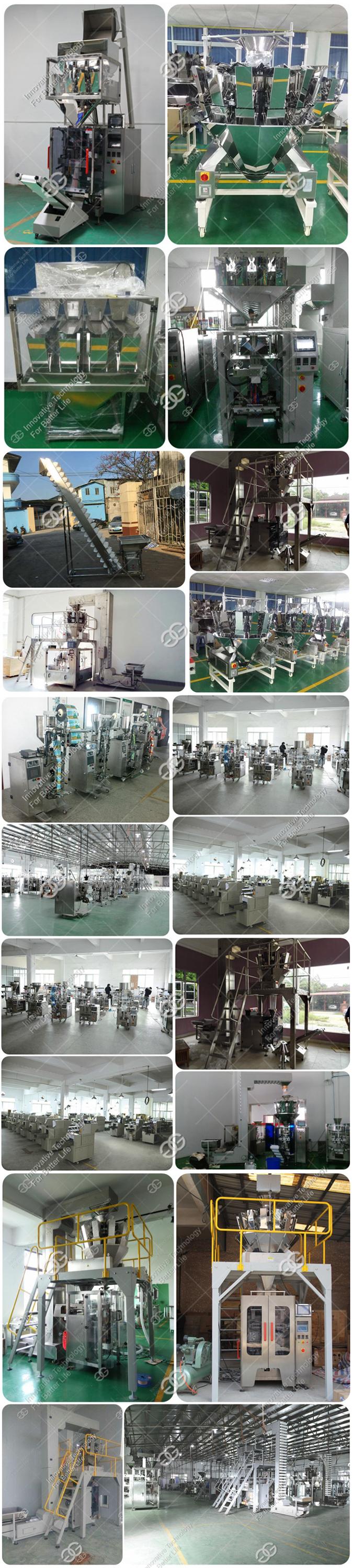

                    Final Product of Potato Chips Packing Machine

Packaging & Shipping

1.Machine Packing:

Our machine uses export standard wooden packing for our customers.

2. Machine Shipping:

We usually ship machines for our cutomers with the following modes:

1). by sea   2). by air    3). by express     4). by train

3. Delivery time:
We will delivery your machines in 5-10days after received 40% of the whole payment.



Our Services

1. Our Quality Guarantee Period is for one year;

2. Oversea Engineer service is available;

3. We can supply Technical Support by phone, email or video all the time.

4. We promise our customers that if there is something wrong with the product within the Guarantee Period, we will repair the products within 10 days or return money or re-produce the products with no charge.


Company Information

 About us:Guangzhou GELGOOG Industrial Technology Co., Ltd. (hereinafter referred to as GELGOOG) is a large-scale industrial group mainly specialized in food processing machines, covers french fries machinery, instant noodles machinery, butter machinery, starch machinery, sugar machinery, biscuits machinery, prawn cracker production line.

We located in Guangzhou city, the capital of Guangdong Province in China. With years of manufacturing and sales experience in machinery industry, GELGOOG has achieved a good fame for providing high qualitymachines and best service concept of "Quality First, Service Foremost", and established a recognized brand in machinery industry. We have on the basis of domestic market, developed international market and established a sales network throughout the world. Our products are sole very well throughout China and are also introduced to South – east Asia, Eastern Europe, and Africa. Our market share is increasing each year.


FAQ

1.Ask:What is your potato chips packing machine guarantee?
Ans:Usually our machine guarantee is 1 years, and we will keep contact with our customers for after-sale servise, we aim to produce better machines and make our customers satisfied.
2.Ask:What's the machine voltage or power of your potato chips packing machine?
Ans:Usually in our country voltage is 220v,50hz, single phase , or 380v, 50hz, 3 phase, if you have special requirement , pls tell us, we will vetify the voltage according to your requirement.

3.Ask:How to install the potato chips packing machine for us?
Ans:We can instuct the machine install by vedio, email ,picture, etc, and if for large project , we can also arrange our workers help you to install it in your country .

4.Ask: If we have problems when we use your potato chips packing machine, what should we do?

Ans: If you have any problems, just contact us, we will help you to solve, and if necesary, we will arrange our engineers to help you in your place.

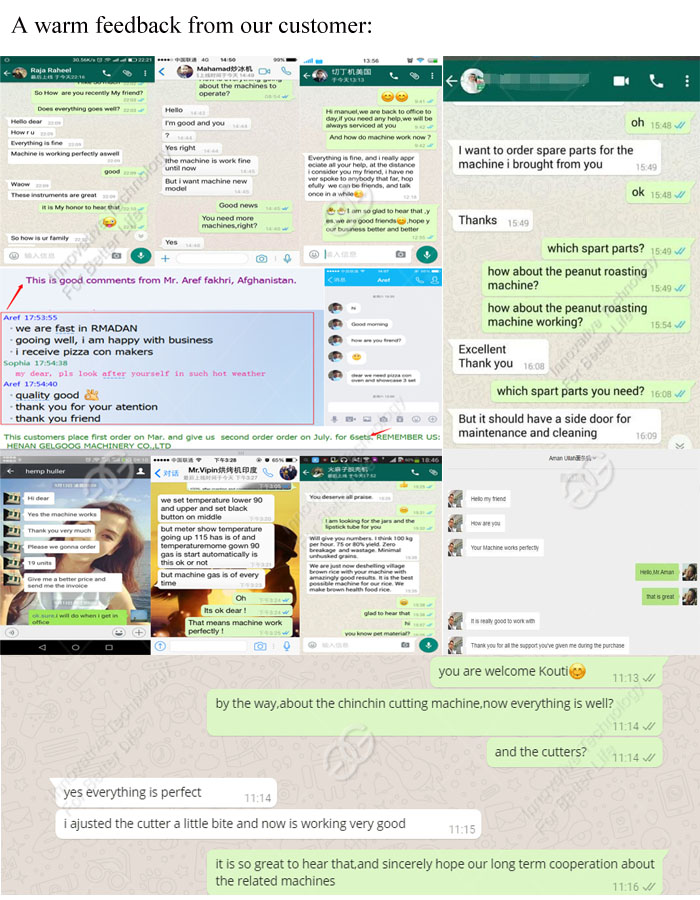

Customers' Feedback


Contact Informations

Any more details about our potato chips packing machine,please contact me freely!We will provide to you the best project!
