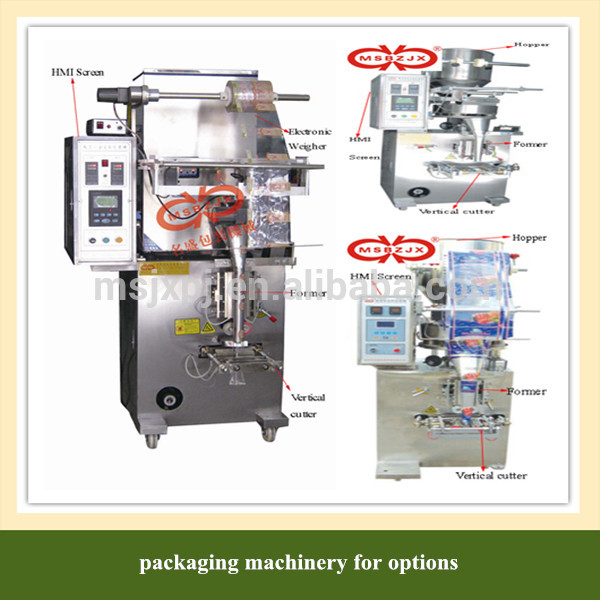

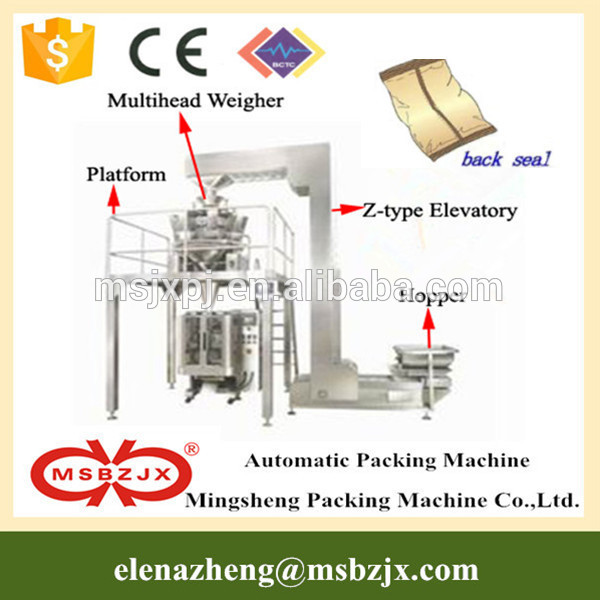

Hot new product JX026 Automatic sweet potato chips packing machine with combination scales
Application:
Applicable for packaging of granule,strip,slice irregular products ranged from 100-1200g.As photo chips and other granule food.
Features:
1. 1.Chinese/English version touch screen display for easy operation.
2. PLC computer control system for convenient modification of any parameters without stopping the machine, ensuring running stability.
3. Able to store 10 groups of parameters, for easily changing material kinds.
4. Servo motor to draw the film, for accurate orientation.
5. Independent temperature control system up to accuracy of ±1

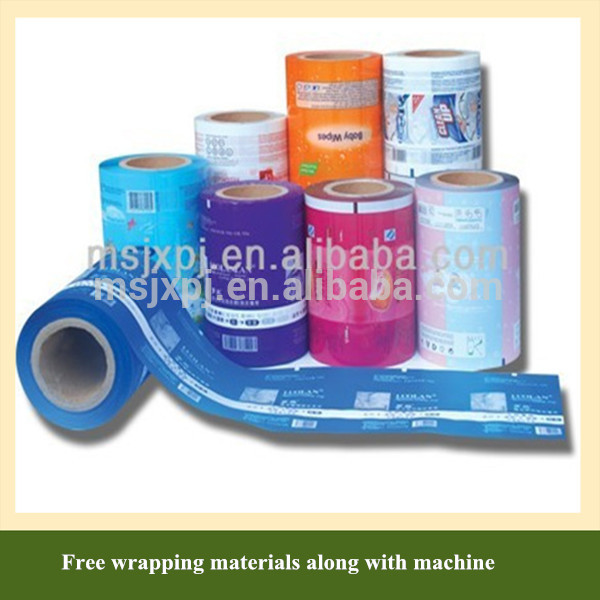

6. Separate horizontal and vertical temperature control, suitable for various laminated film, PE film etc materials.

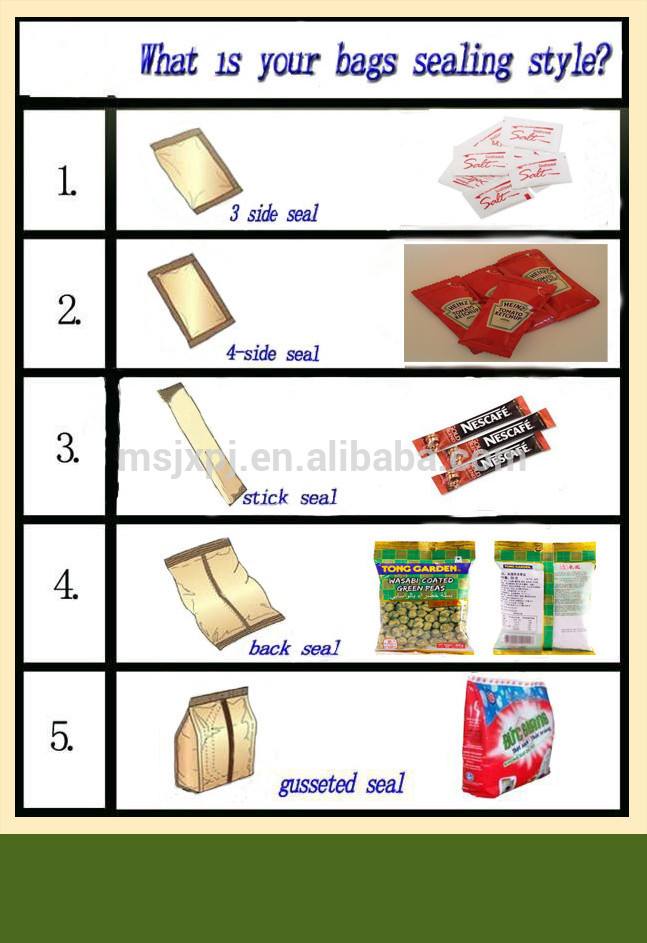

7. Packaging diversification involved back sealing, stand pouch, multiple bags linkage, punching etc.
8. Bag-making, sealing, packing, date printing in a single pass.
9. Quiet operation with less noise.

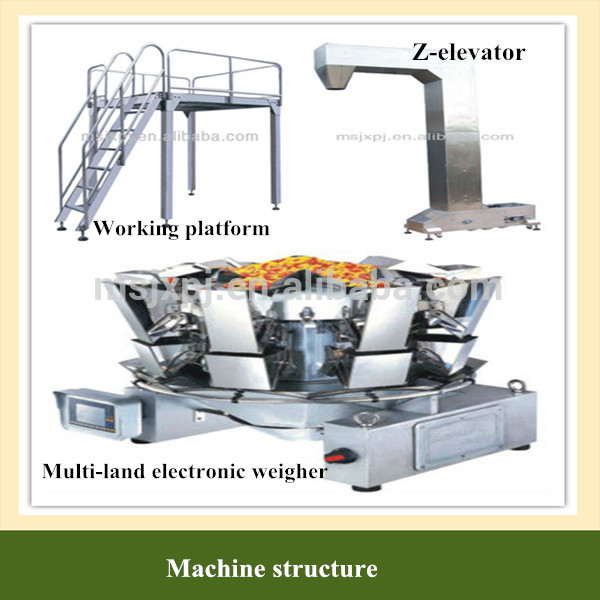

10. Electronic multi-head weigher system ensure accuracy and lower cost.
Technical parameters:
Bag length | 80-300mm(L) |
Bag width | 200-500mm(W) |
Film width | 420mm |
Packaging speed | 10-30bags/min |
Measuring range | 100-1000g |
Air pressure | 0.65Mpa |
Air consumption | 0.3m3/min |
Power supply | 220V/2.2Kw |
Dimension | (L)1320mm x (W)950mm x (H)1360mm |
Machine weight | 540Kg |
We are professional supplier offering One- Stop Packaging Solution and OEM
Service.
Your business and success are always our Concern and Commitment.
We welcome your visit !
Our website : http://stmsjx.1688.com/
www.msbzjx.com
1.One year warranty
2.Hotline services : +86-13902745448(Lency) / +86-754-88313222 /+86-754-88258222
3. On-line video solution : SKYPE mingsheng-packaging
4. Agent /Distributor/Sales overseas support.
5.Engineers services overseas available.
1. Payment: 30% down payment, 70% against acceptance from customers
2. Strict with complete testing and well adjustment according to customers’ requirement before shipment.
3. Customization is available.
