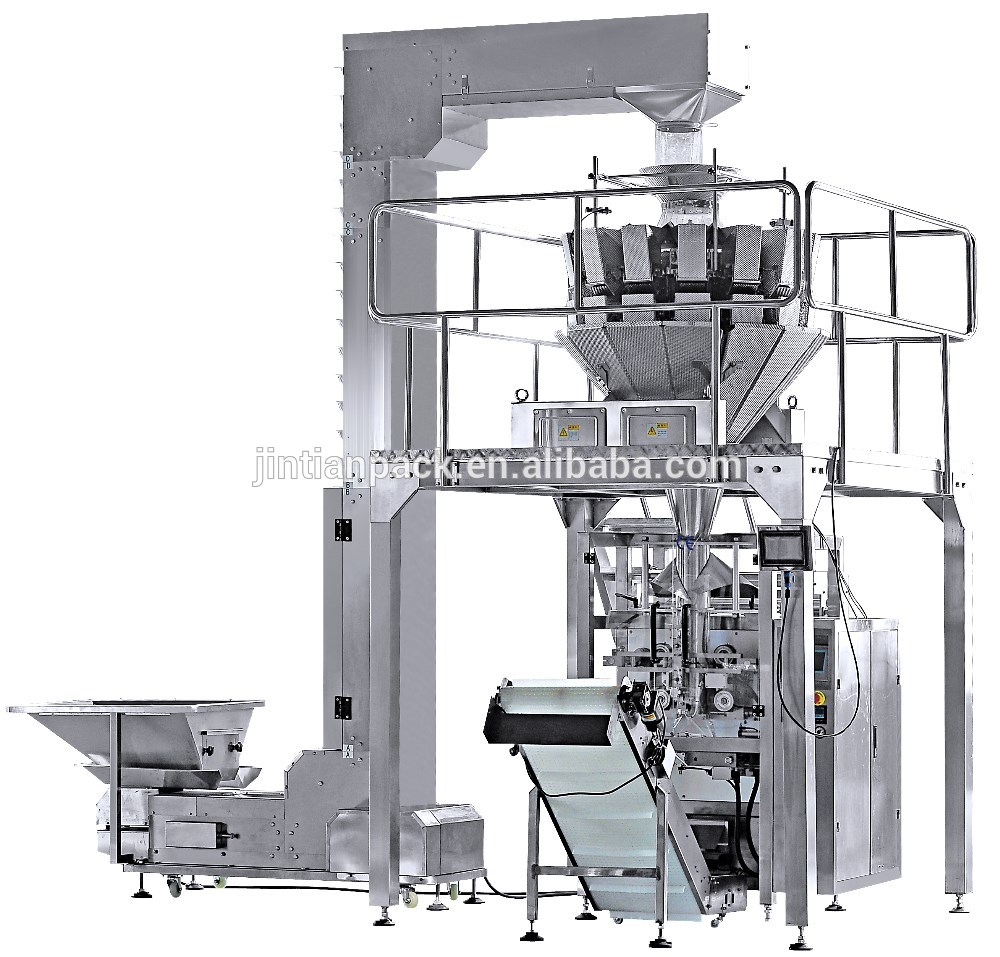

puffed food potato chips banana chips packing machine
WITH 10/14 HEADS WEIGHER
Application:
All kind of grain material, sheet material and abnormity material which such as candy , melon seeds, chips, peanuts, nutlet, preserved fruit, jelly, biscuit, confect, puffy food, hardware and plastic can be weighed by the ration .

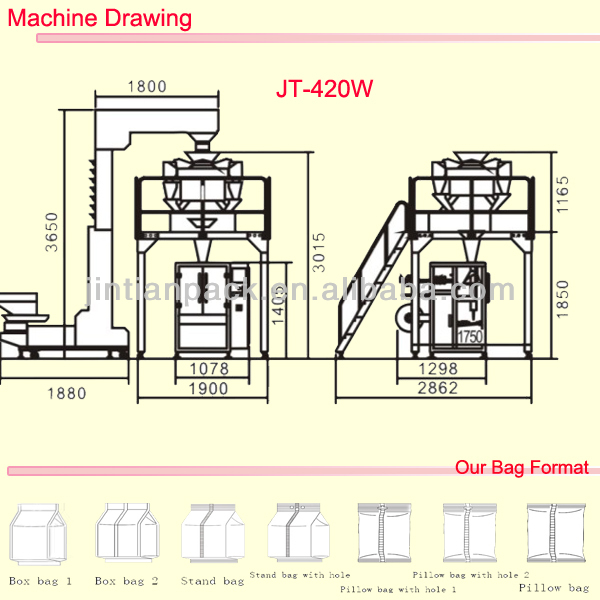

JT-420W including:

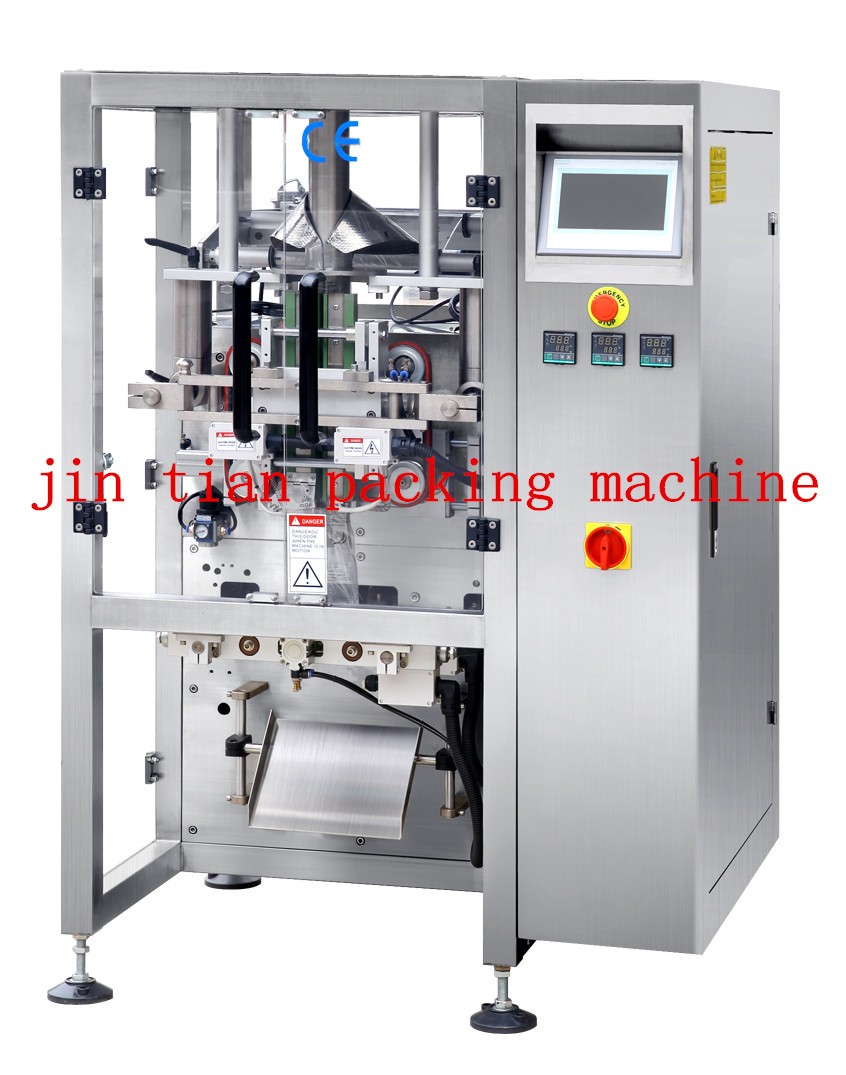

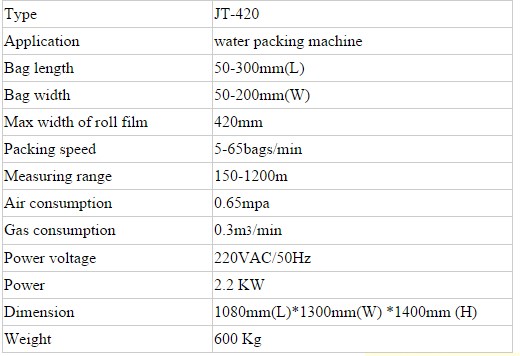

JT-420 LARGE AUTOMATIC VERTICAL PACKING MACHINE
Technical parameters:

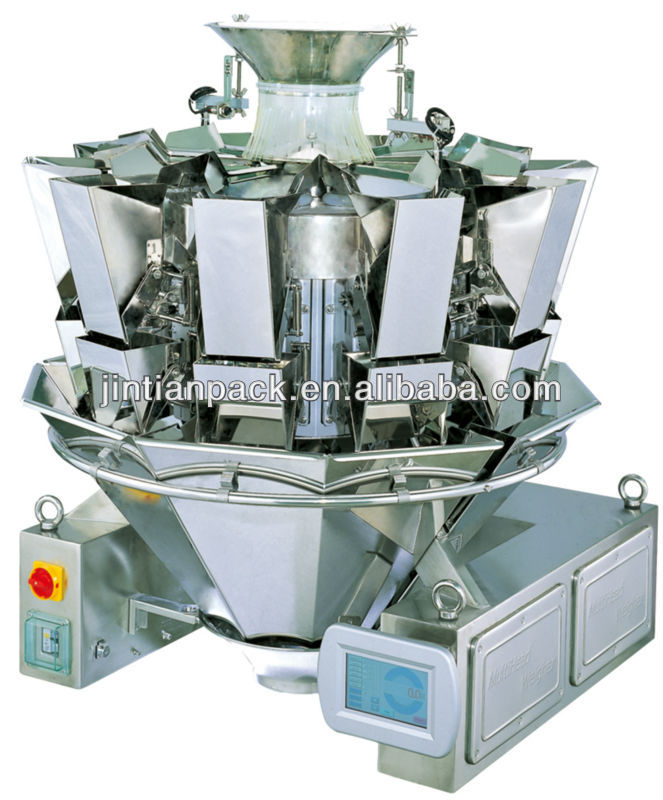

JT-10 HEADS WEIGHER
Technical characteristics:
1. Select the best combination immediately from diversified weight combination through computer with perfect combination of high precision and high speed.
2. High precision data-type weighing sensor realizes precise weighing.
3. Liquid crystal screen operating system in multiple languages such as Chinese and English, etc.
4. IP65 grade water-proof and dust-proof design. It’s clear and sanitary with all stainless steel parts. Full sealed design prevents accumulation of material and facilitates cleaning.
5. It can fine the opening and closing speed of hopper door according to the feather of items to be weighted, and prevent crushing and blocking of material.
6. With powerful digital automatic counting function. It can record the index for each batch such as total bag number, pass rate and difference of single bag, etc.
7. Optional devices: trigliyph balance ball, suction hopper, printing device, tolerance sorting device.
Technical parameters:
Type | JT-10 |
Measure number | 10 |
Range of single weighing | 10-1000g |
Quantity precision | 0.1-1.5g |
Average tolerance of single bag | 0.2-0.7g |
Weighing speed | 50-100bags/min |
Hopper capacity | 1300ml |
Hopper type | Double hoppers without memory |
Preliminary programs | 99kinds |
Net/gross | 300/370Kg |
Overall size | 1140mm(L)×1210mm(W)×1680mm(H) |

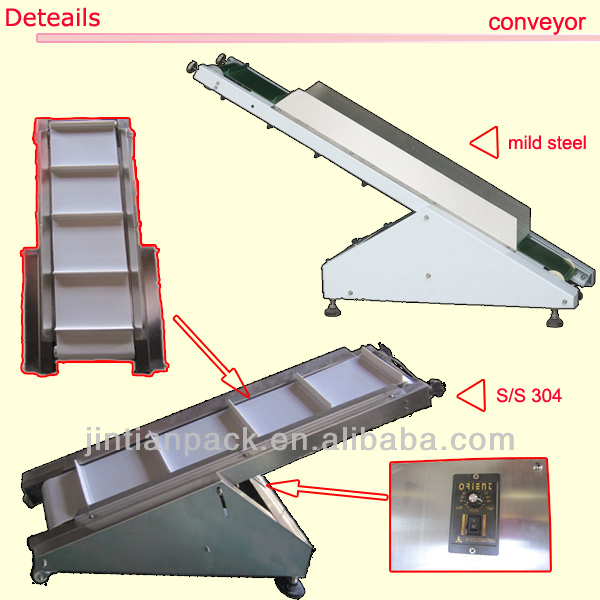

JT-130 FINISHED PRODUCTS CONVEYOR

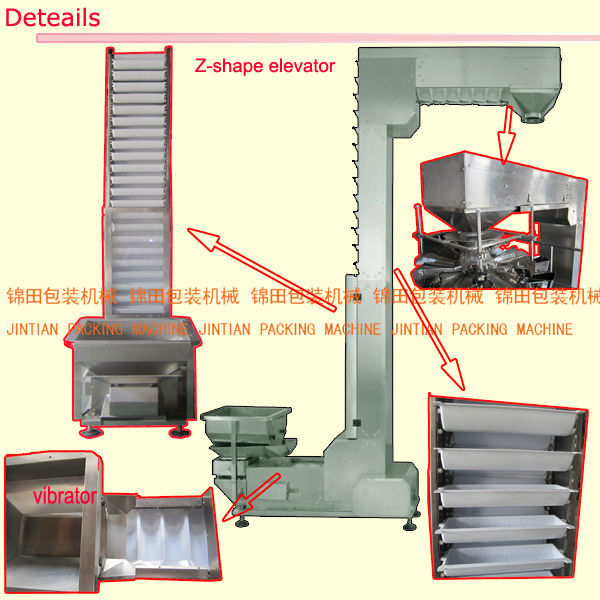

JT-350 Z-SHAPED AUTOMATIC MATERIAL ELEVATOR
Technical parameters:
Model | JT-130 | JT-350 |
Convey speed | 1500mm | 3750mm |
Power | 100W | 750W |
Convey Measure | 400mm/min | 4T/H(Rice) |
Overall size | 1500(L)×650(W)×1100(H)mm | 3000(L)×650(W)×3750(H)mm |

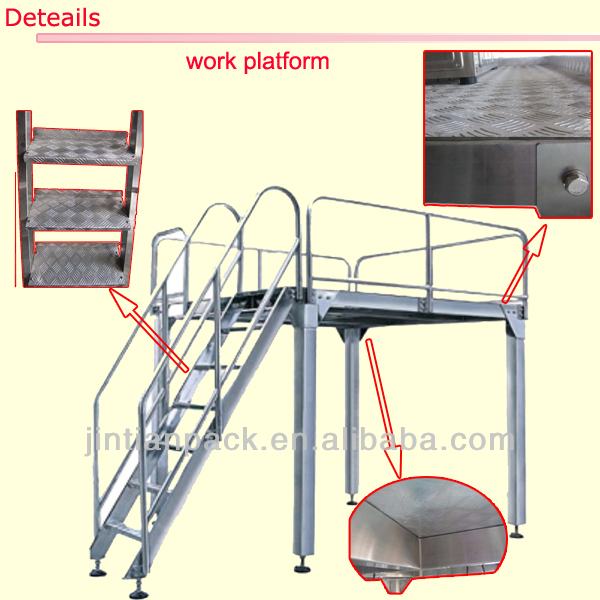

JT-2-2 PLATFORM
Technical parameters:
Model | JT-2-2 |
Equipment size | 2000mm*2000mm*2000mm |
Maximum loading weight | 2T to 3T |
Net weight | 350kg |
