Product Description
Product Application

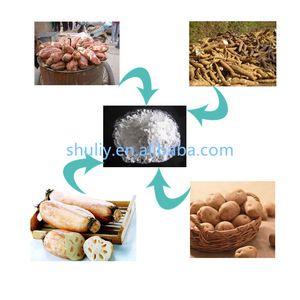

This production line can process sweet potato, cassava, potato and lotus root. They can be produced into starch automatically. The starch rate can reach 98% with a higher white degree.
Main Features
1) Simple structure in linear type ,easy in installation and maintation.
2) Adopting advanced technology in pneumatic parts ,electric parts and operation parts.
3) Unique technique of multistage crush, multistage filters, multilevel extrusion in circulation.
4) Running in a high automatization and intellectualization,no pollution.
5) Low energy consumption, high starch extraction yield, good quality of output starch.
SPECIFICATIONS FOR STARCH PRODUCTION LINE

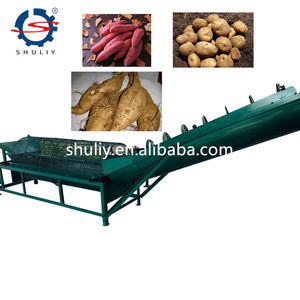

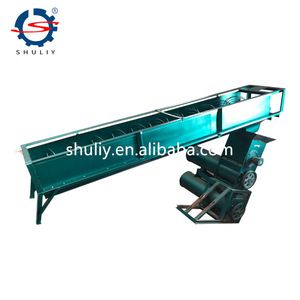

| Washing Machine | |||
| Model | SL-Q1 | SL-Q2 | SL-Q3 |
| Motor | 1-1.5kw | 1.5-2.2kw | 1-1.5kw |
| Capacity | 1-2t/h | 2-3t/h | 4-6t/h |
| Size(front) | 3500*900*1200mm | 2500*900*1100mm | 3300*700*600mm |
| (rear) | 2300*700*600mm | 2300*700*600mm | |
| Weight(front) | 200kg | 150kg | 200kg |
| (rear) | 100kg | 100kg | |

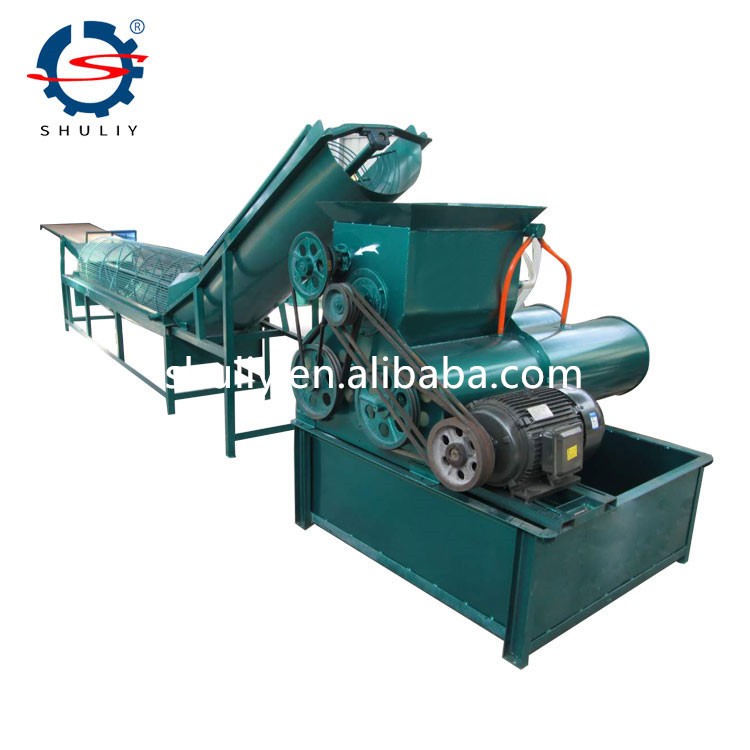

| Crushing and Filtering Machine | |||
| Model | SL-F1 | SL-F2 | SL-F3 |
| Motor | 5.5kw | 7.5kw | 10-11kw |
| Capacity | 1-1.2t/h | 1.5-2t/h | 2-3t/h |
| Size | 1300*600*850mm | 1500*600*950mm | 1300*1100*1000mm |
| Weight | 130kg | 150kg | 200kg |

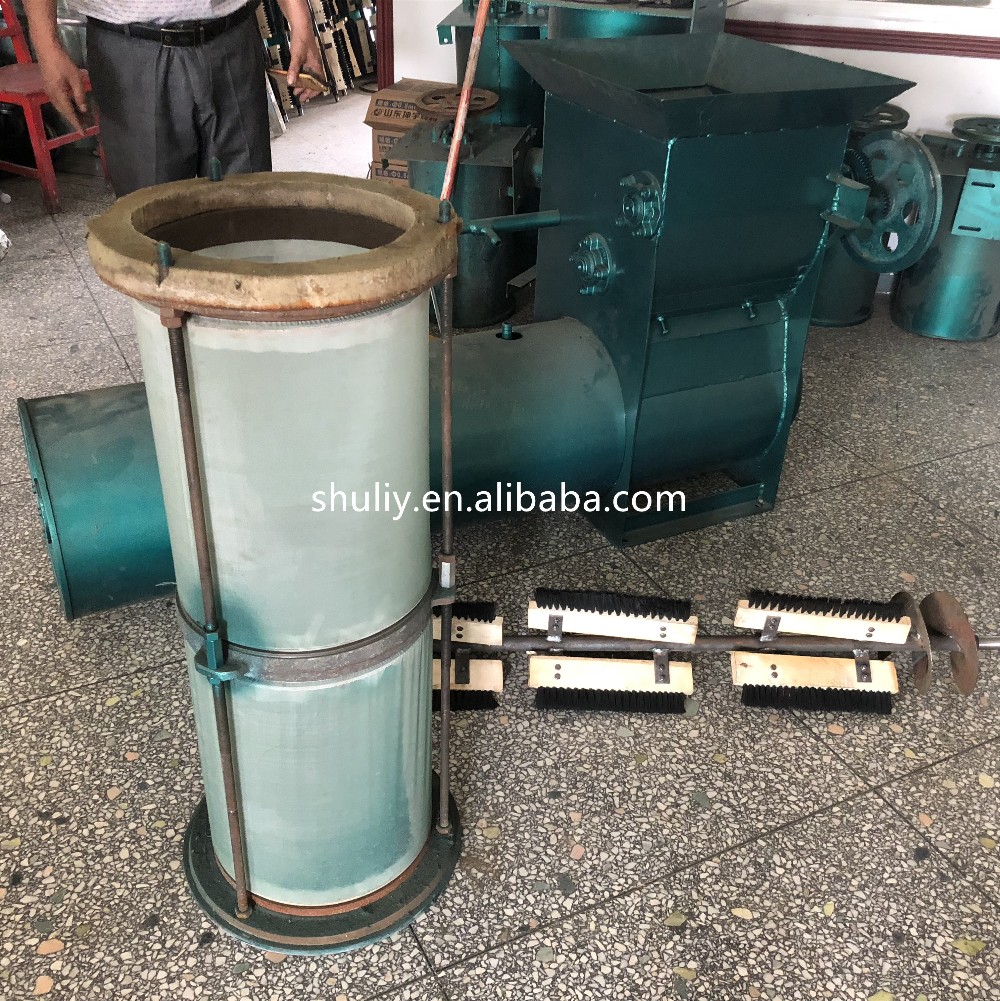

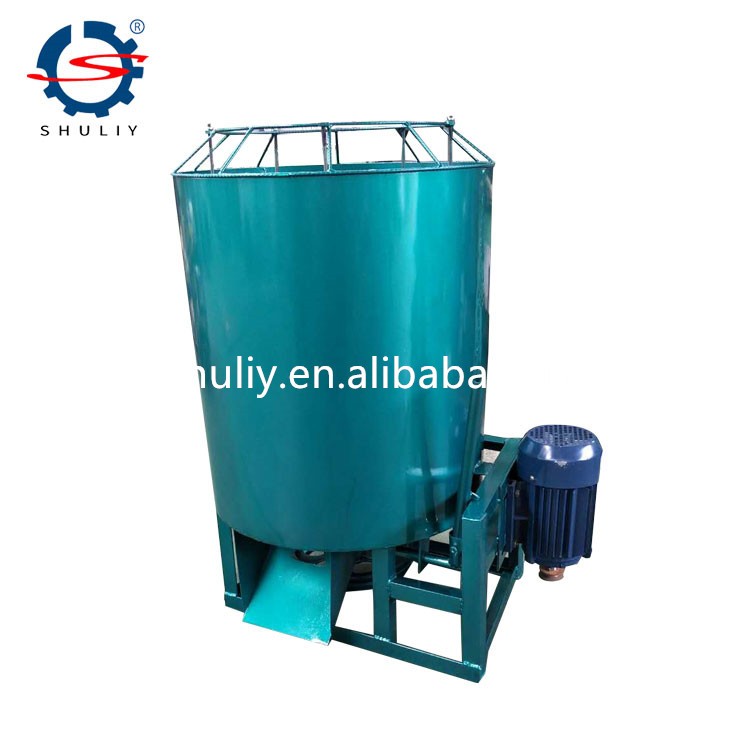

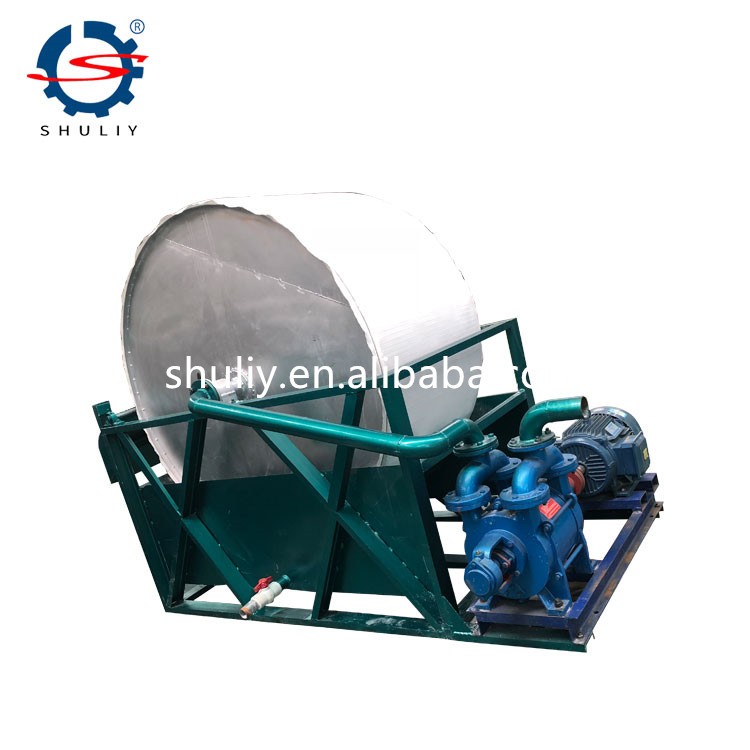

Detailed Images

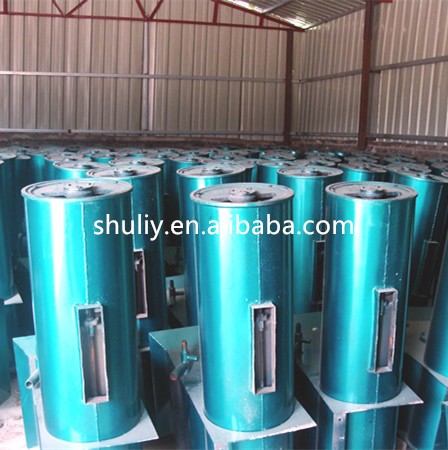

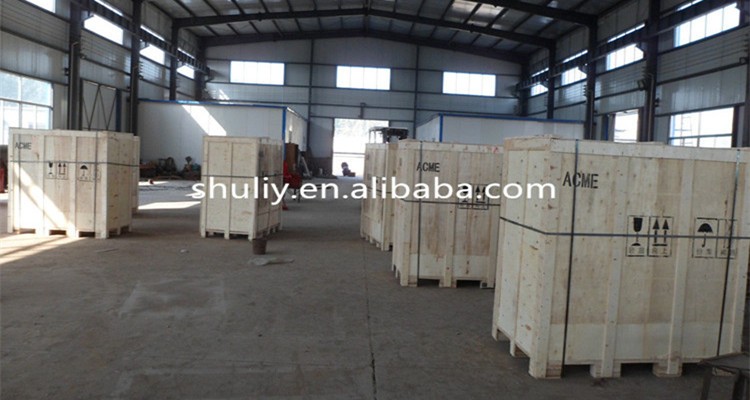

Packing & Delivery
Certifications

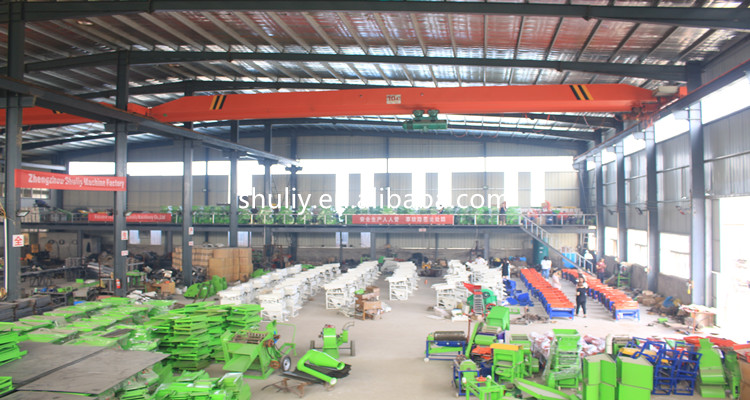

Our Company
