30,000tons annual capacity potato cassava starch project in Jordan

Potato cassava starch is a kind of white powder of potato that is dehydrated and dried after starch extraction.

Technical Feature

  • Henan, China (Mainland)
  • DOING
  • DY001
  • Grain Processing Equipment
  • Engineers available to service machinery overseas
  • Potato cassava starch project
Send Project Inquiry Add Inquiry List

0 Add Favorite

DESIGN SERVICE OVERVIEW

Project Design Scope

Project Service Scope

PRIMARY PARAMETERS

Place of Origin
Henan, China (Mainland)
Brand Name
DOING
Model Number
DY001
Type
Grain Processing Equipment
After-sales Service Provided
Engineers available to service machinery overseas
Name
Potato cassava starch project
Color
Silver
Capacity
As your requests
Material
Full stainless steel
Function
Cassava starch production
Application
Cassava deep processing
Raw material
Cassava, tapioca
Power
5.5kw
Voltage
380v/50hz
Feature
High Efficiency

DETAIL DESCRIPTION

Product Description

Jordan potato cassava starch project introduction:

Potato cassava starch is a kind of white powder of potato that is dehydrated and dried after starch extraction. It is widely used in food industry and non-food industry. Potato cassava starch project is a very promising market. Doing company mainly engaged in the design, processing and manufacturing of the starch equipment, and make installation and commissioning for the supporting projects.

Potato cassava starch project production process:
Technical process:

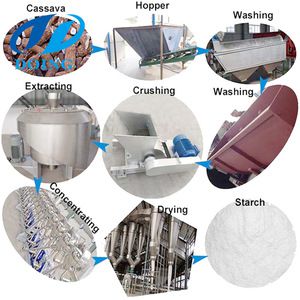

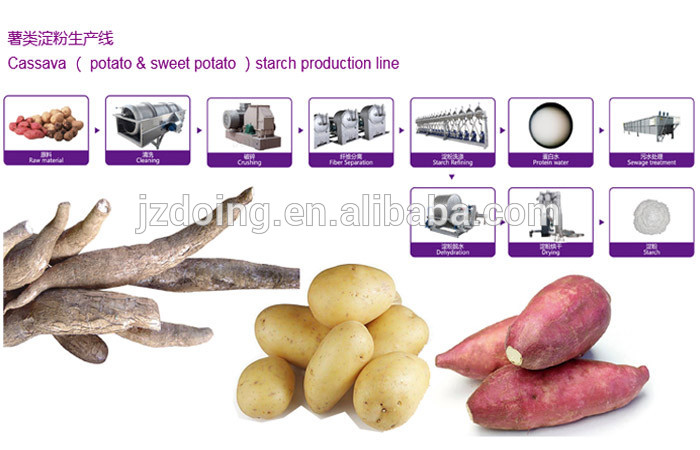

Fresh potato - Potato cleaning and washing - Grinding - Starch extraction - Filtering and desanding - Starch concentration and purification - Dewatering - Drying


Machine order:

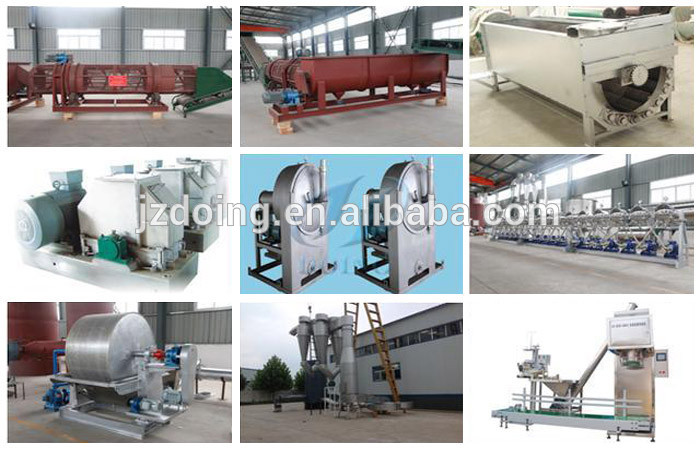

Dry sieve - Paddle washer - Cutting machine - Rasper - Centrifuge sieve - Fine fiber sieve - Disc separator - Hydrocyclone - Vacuum filter - Flash dryer

Main equipments and its function in this potato cassava starch project:

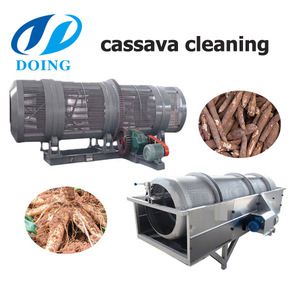

1) Cleaning parts of potato cassava starch project:
Dry sieve: Widely used in impurities pre-removal for potato cassava starch project. It's used to remove dirt, sand, small stones, weeds and other impurities that are attached on the surface of potato, sweet potato and cassavas.
Paddle washer: Mainly used to wash the Sweet potato raw materials. Adopted countercurrent washing principle. By the effect of paddle pushing, the raw material flows in the converse direction against water currently, which makes washing completely and eliminate sand and mud at most.
2) Crushing parts of potato cassava starch project:
Cutting machine: Its main function is cut cassavas into small pieces, 3-5cm, for further processing.
Rasper: Break the materials, crush cassavas into slurry, release starch particles from cell, with high starch dissociation rate.
3) Starch extraction of potato cassava starch project:
Centrifuge sieve: Used for the extraction of starch from the potato cassava materials, remove fiber from starch slurry, high starch extraction rate.

4) Starch filtering and desanding of potato cassava starch project:
Fine fiber sieve: It is a machine mainly for separating small particles of fiber from starch slurry. This process is achieved by gravity of the slurry and screen mesh inside the drum.
5) Starch concentration and purification of potato cassava starch project:
Disc separator: It is widely used in processing of starch to separate protein and cell liquid out of slurry, with high separating factor.

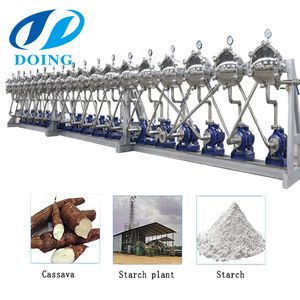

Hydrocyclone: It is designed to get rid of related substances such as fiber and protein in the starch milk. For the starch's washing, concentration and purification.
Usually suggest this two machine used in combination, make the production high efficiency and high quality.
6) Drying system of potato cassava starch project:
Vacuum filter: Widely used for the starch dewatering, final starch water content is 38%-42%.

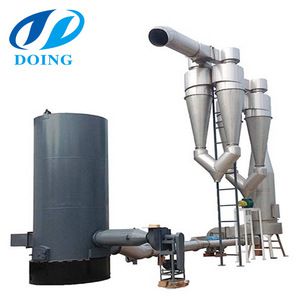

Flash dryer: This is the last step for potato cassava starch production. It adopts low temperature drying system, which will prevent starch gelatinization. Final starch water content is 12%-14%.

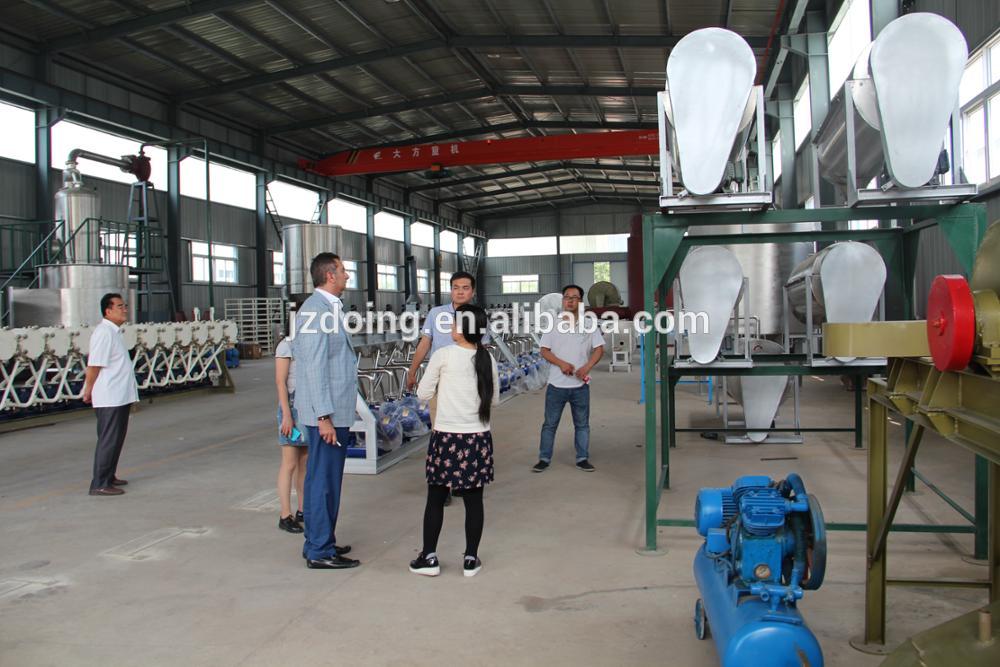

Doing Factory
Our Service

1.We can appoint specialized after sale service staff to your country for installation and debugging the equipment.
2.Train operating personnel.
3.All the machines will be checked OK before delivery.
4.Warranty for 12 months.
5.We provide technical support in overseas.
