1. Sino-German technology is a European Technology professional company that manufacture and provide services to clients, which including turnkey project,
engineering consulting, equipment supply, technical R&D, customer service. We are active in the fields like food, agricultural products, etc.
2. Our main business scope including:
Starch processing production line, including: potato, cassava, corn, wheat, sweet potato, pea;
Modified starch production line;
Starch sweeteners production line, including: glucose, maltose, fructose syrup
Potato products production line, including: potato flake, granule, French fries, potato chips
and other etc.
We have long cooperation international reputable end users, including National Starch, etc., and our products and services are approved by them.
For details about our company, please visit our website at: www.sgm-cn.com, or our alibaba website: http://sgt-cn.en.alibaba.com/
If you need these production lines or equipments, please feel free to let us know, we'll be glad to give you further information.
Hope to cooperate with your esteemed company in the near future.
1. Overview
Desanding cyclone can remove sand and other heavy impurities inside the starch slurry that processed by rasper, is an essential equipment in starch processing industry, also suitable for removing the heavy impurities in other fluid.
The equipment features simple structure and advanced design. It is made of high quality raw materials, the conical cyclone is made of high grade ceramic material, durable and high efficient, is SGM's unique technology.
2. Structure and principle (Attached drawing)

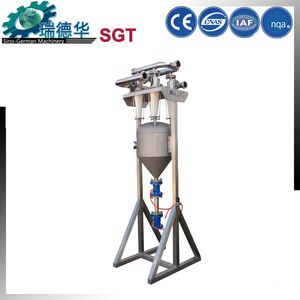

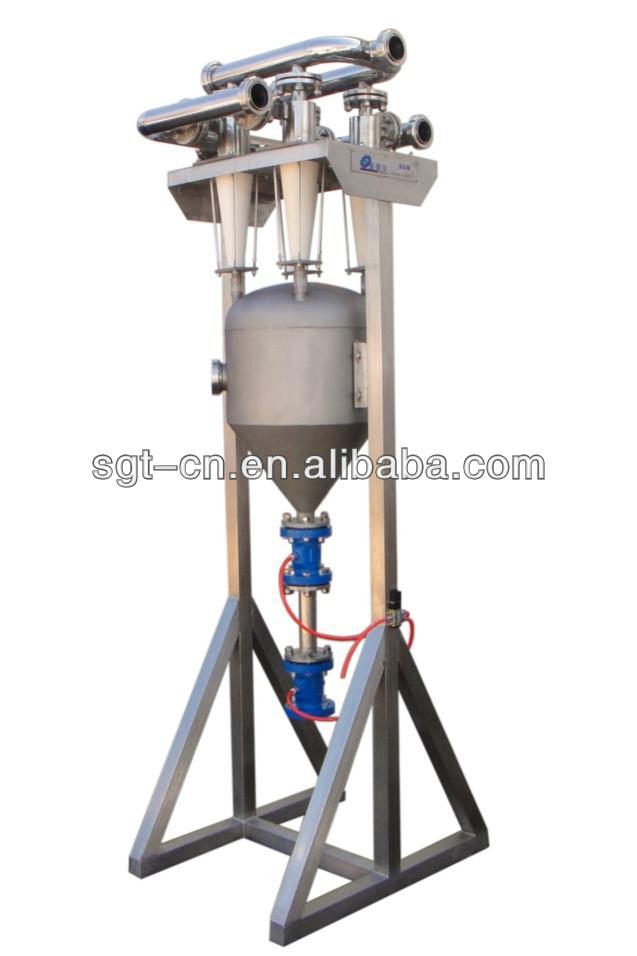

Desanding cyclone is composed of stainless steel feed inlet, discharge outlet (overflow pipe), conical ceramic cyclone, conical stainless steel tank (with two observation windows), automatic or manual sand dump valve (normally installed two desanding valves) and upstream wash water valve.
The Operating principle of desanding cyclone
When operating, starch slurry is pumped into desanding cyclone, as the effect of centrifugal force, lighter materials (starch) are discharged through overflow pipe, heavier materials (sand, etc.) are discharged from the bottom along the conical inner wall, sand downflow into the collecting pot, discharge through manual or automatic sand dump valve.
3. Main technical parameters
Model | Capacity m3/h | Desanding efficiency | Dimension |
TDS-100 | 30~35 | 99% | 635×800×2700 |
|
|
|
|
Note: Refer to the nameplate.
4. Spare parts details
Affiliation Equipment | Name | Model | Specification | Remark |
TDS100 | Air sac |
| Special purpose |
|
TDS100 | Ceramic cyclone |
| Special purpose |
|
TDS100 | O ring |
| φ110×5 |
|
TDS100 | Seal ring |
| φ50/φ30×3 |
|
Engenieer available on site
We have sucessfully done many project at home and abroad, as below is the reference site:
potato starch project
cassava starch project
modified starch prject
If you want to learn more about our products or you have any questions, you can contact us anytime, we are willing to serve for you.Alice 8618756012409
China
