Potato Powder Production Line/potato starch production line/ best seller potato
Cassava Potato Starch Processing Machine
Introduction
It is used for extracting starch from sweet potato,cassava/tapioca,potato,Pueraria/
kudzu root,lotus/ root,ternip/carrot,taro/ dasheen,yam,arrowroot etc.Suitable for the farmers
individual and small scale processing.
Parameter
Model | TZ-1000 | TZ-2000 | TZ-3000 | TZ-5000 | |
Capacity (t/h) | 1 | 2 | 3 | 5 | |
Motor (kw) | Washing machine | 1.5 | 1.5 | 1.5 | 1.5 |
Cleaning and separating machine | 5.5 | 7.5 | 11 | 22 | |
Second separating | 1.5 | 1.5 | 2.2 | 2.2 | |
Water consumption (Cubic metre / h) | 8 | 10 | 12 | 15 | |
Covering area (Square meter) | 30 | 50 | 60 | 100 | |
Operators needed | 2 | 2 | 2 | 2 |

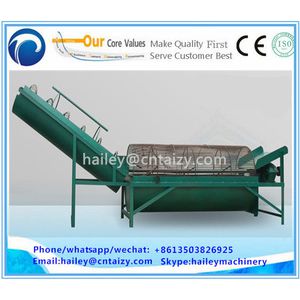

1.Washing And Peeling And Conveying Combined Machine
It is used to wash the cassava , make it clean and peel the our skin at the same time,as there
is also screw conveyor in it , the cassava after washing and peeling will be transported to the
next machine for crushing .

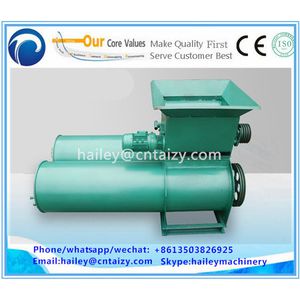

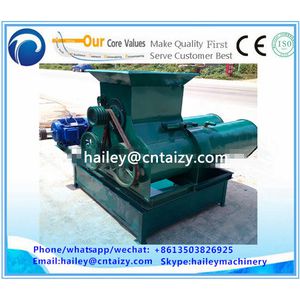

2.Crusher and Starch Extracting Machine
Feeding port is compsed of roller with shape rack,when feeding, raw materails is crushed
into very small pieces to drop to below chamber which is with inside brush and outer screen.
The screen hole diameter is very fine, only starch with water could though it out
from the screen,big scum come out from the end of the machine.
3.Second starch extracting machine
The instructure is same as above main machine, just inside screen hole is more fine,so you
could better quality starch from this.
If only choose machinery from above three basic step, you will get final starch with
water.So please dig some small tank to store that, let them dry in the sun. After dry for
about 1-2 days to moisture is about 20%,get them into small bags drying further till
get your satisfyed one.
