Hot sale automatic cassava starch processing line,cassava starch production line,sweet potato starch processing plant
Cassava harvester-washing machine-cassava slicing and peeling machine-cassava drying machine

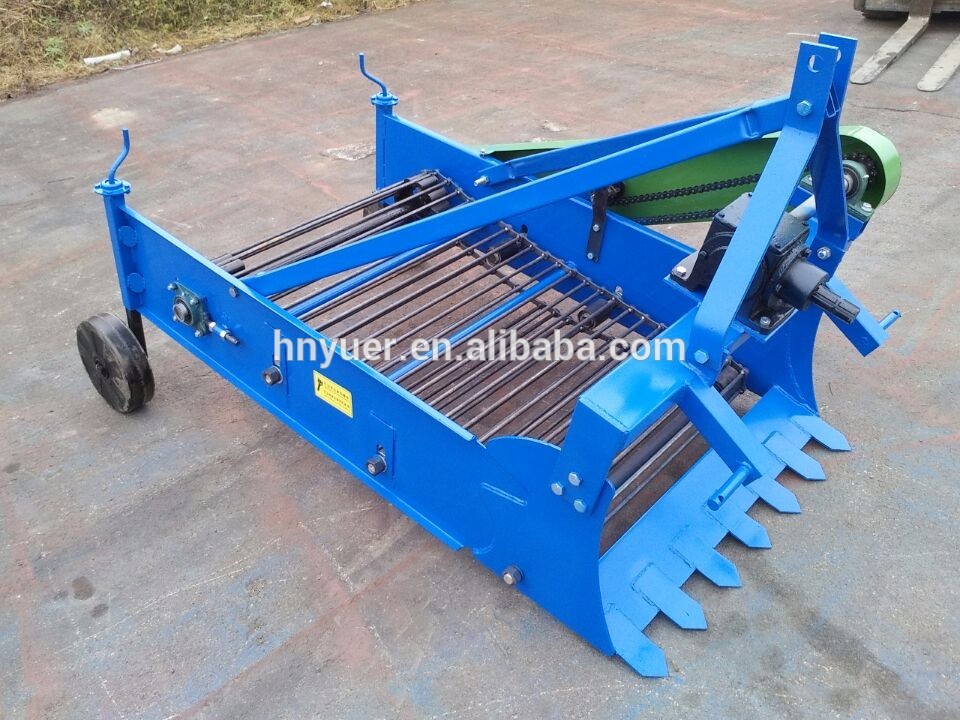

1.Cassava harvester machine
1)Description of cassava harvester machine
1.Cassava harvester is one very helpful machine to reap one row of cassava.
2.It is suitable for tuber harvesting, such as cassava, yam, potato, sweet potato, taro, carrot.
3.Also suits for some Chinese medicine crop of deep root, like astragalus membranaceus, with stiff materials.
4.It also can work in an uninterrupted time without repair.
2)Features of cassava harvester machine
1. excellent performance, good appearance, best quality
2.high-working efficiency, lower breakage rate
3.light & quick running without vibration, no jamming
2.Cassava washing machine
1)Description of cassava washing machine
This machine is designed accroding to the market needs of potato chips,frech fries processing,It is mainly used for cleaning cassava,potato,sweet potato,taro and other materials.The washing machine has some fetures of large volume,high efficiency,water saving,continuous cleaning,simple operation,long service life etc,the material of washing brush roll is treated specially with durability,high wear resistance.
2)Technical Parameter of fruits and vegetables washing machine
Type Model | Output | Power | Weight | Overall dimensions |
YEXD-1000 | 500-800KG/H | 0.75KW/380V | 280KG | 1600*840*900MM |
YEXD-1500 | 1000-1200KG/H | 1.5KW/380V | 300KG | 2100*840*900MM |
YEXD-1800 | 1200-1500KG/H | 2.2KW/380V | 460KG | 2400*840*900MM |
YEXD-2000 | 1500-1800KG/H | 3KW/380V | 500KGS | 2800*835*880MM |
YEXD-4000 | 1000-4000KG/H | 4KW/380V | 600KG | 3050*1200*1160MM |

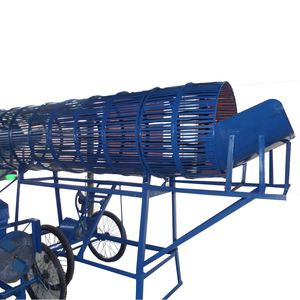

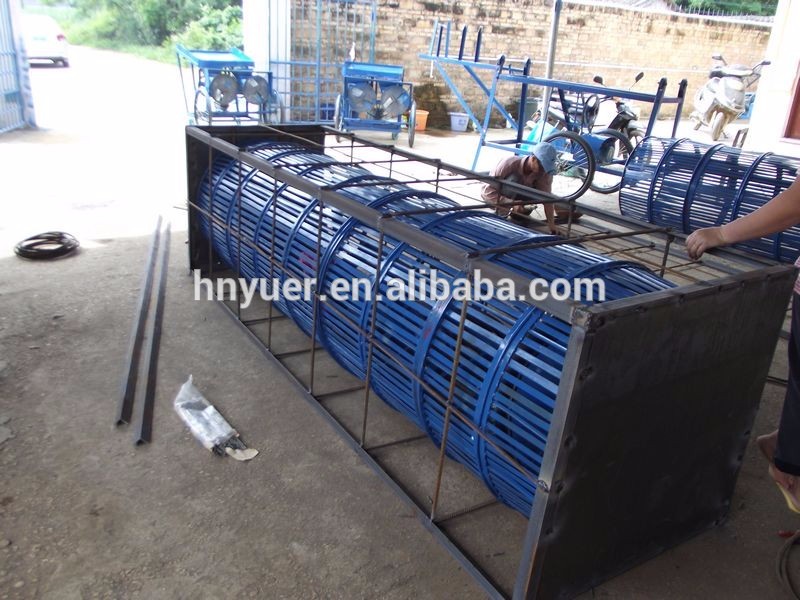

3.Cassava slicing and peeling machine
<1>Features of cassava slicing and peeling machine
1)This cassava combination can peeling and slicing the cassava at the same time.
2)The drum peeling and processing the rough peeling firstly, the slicer can cut the cassava into oval shape, the thickness is adjustable.
<2>How to adjust the slicer thickness?
First step:
1)We can loose the screws which are mainly used to tighten cutter plate and blade to change the distance (1.5-2.0cm is the best) between cutter plate and blade.
2)After adjusting the distance into our requirement,we should tight the screws again.
Second step:
1)loose the screws which tight the feeding funnel in order to adjust the distance (2cm is the best)between feeding funnel and the cutter blade.
2)After making sure there is no friction between the feeding funnel and blade plate,we can tight the screw again.
Parameter of cassava slicing and peeling machine
Model | Capacity | Cutting size | Power | Mark |
(Unit) | (T/h) | (mm) | (kw) | (Unit) |
AMSFM-MSQP-4D | 4 | 5-15 | 1.5 | Cassava slicer with motor |
AMSFM-MSQP-10D | 10 | 5-15 | 1.5 x 2 | Cassava slicer with motor |
Model | Capacity | Cutting size | Power | Mark |
(Unit) | (T/h) | (mm) | (kw) | (Unit) |
AMSFM-MSTP-S | 500-800 | 5-15 | None, manual | manual cassava slicer |
AMSFM-MSTT-S | 150-200 | 5 | None, manual | manual cassava slitter |
AMSFM-MSTPTT-S | 500-800 | 5-15 | None, manual | manual cassava slicer & slitter |
Model | Capacity | Peeling rate | Cutting size | Power | Mark |
(Unit) | (T/h) | (% min) | (mm) | (HP) | (Unit) |
AMSFM-MSTPQP-4C | 4 | 85 | 5-15 | 6 | Cassava peeler & slicer with diesel |
4.Cassava drying machine
1)Description of cassava drying machine
Cassava drying equipment can widely apply on agriculture industry, herb industry , food industry , Condiment industry etc. such as soybean, peanut ,honeysuckle , chrysanthemum, lotus seeds, melon seeds, garlic , ginger , onion , chinee yarm , potatoes, banana chips, apple slice , chinese date,vegetable etc
2)Working principle of cassava drying machine
The material will be distributed on the mesh betl by the distributor evenly. The hot air are blowed into dryer equipment then contact with material .After heat exchange, the moisture from material change to steam and absorbed by the draft fan. .During drying process, the control panel will adjust the temperature automatically to realize the best drying effect..
3)Parameters of cassava drying machine
Model | Motor (kw) | Capacity (kg/day) | Machine size (mm) | Material | Application |
YE1.9*8-4 | 15+1.5+2.2 | 2000 | 1.9*8*2.3 | The contact surface is stainless steel with color plate | soybean , peanut ,honeysuckle, chrysanthemum, lotus seeds.melon seeds, garlic , ginger,onion etc. |
YE1.9*9-4 | 15+2.2+2.2 | 3000 | 1.9*9*2.3 | ||
YE1.9*12-4 | 22+2.2+3 | 4000 | 1.9*12*2.3 |
1 ) Quality guarantee
2 ) Pre-Testing before forwarding
3 ) Operation Video and instruction
4 ) Full Technical service
1.Q:Are you a factory or trading company?
A:Yuer Machinery is a factory who has rich experiences in food, agricultural industrials, we offer OEM services in the last over 10 years, and now we have our own brands and own designed machines for sale!
2.Q:How long is your delivery time?
A:All machines can be ready and shipped in 15 or 30 days after order!
3.Q:What's the payment you prefer?
A:Our standard payment terms are T/T with 30% deposits and balanced before shipment.
4.Q:Can you provide after-sale service?
A:Yes ,sure.We have engineers available to service overseas .
5.Q:Can i visit your factory and send team for learning and inspecting?
A:Yes,sure.We will do our best to teach you how to use the machine.
6.Q:What is our advantages?
A:1.Competitive price
2.Excellent technical support
3.Best service
