Automatic cassava starch processing machine|potato processing plant
Scope of application:
It is used for extracting starch from potato, sweet potato, kudzu root, etc.
Suitable for the farmers individual and small scale processing.
Features and Advantages:
1. Integrating functions of grating and multi-stage separation. Grating and separating is carried out continuously, avoid the oxidative browning of the starch in the extracting process, production of starch is fine white.
2. Grating is fine and uniform with high ionization rate. Crushing component using the national patent spike roller, grating the material into threadiness and slices, less fine slag, do not jam nets hole, available to extract starch. Adopting overflow principle, fully extend the broken material washing time, starch and fiber have enough time to be separated
3. Separating parts adopt communicating vessels principle to ensure the water level of
the first elutriation chamber high enough, filtering rate is greatly improved.
4. Energy and water saving. Processing fresh material 1 to 3 tons per hour, power 5.5 to 7.5Kw. Two steps of elutriation are carried out in turn, the water can be circularly used.
5. Easy operation, and only one or two person can operate.
6. Low investment. Common peasant household can buy, or some households united purchase.
7. Compact structure, covers small area
Parameter:

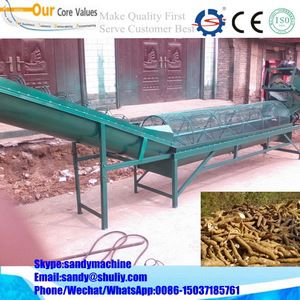

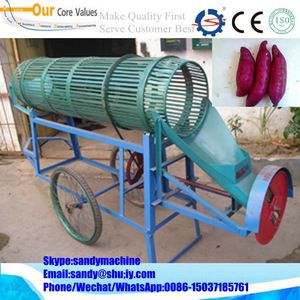

1.Washer peeler conveyor combined machine
Model | Capacity | Power |
SL-1500 | 1 t/h | 1.5 kw
|
2.Cassava crushing and serous starch separator
Model | Capacity | Motor power | Weight |
SL-1388 | 1 t/h | 4 - 5.5 kw | 250 kg
|
3. Second Cassava serous starch separator
Model | SL-1000 | |
Capacity (T/H) | 5 | |
Motor (KW)
| Motor for conveyor | 1.5 |
Motor for washer,peeler and conveyor | 1.5*3 | |
Motor for crushing machine | 22 | |
Motor for starch serous separator | 2.2 | |
Water consumption(M3 / H ) | 15 | |
Covering area (M2 ) | 100 | |
Operators needed | 2 |
If you are interested in our product,please feel free to ask me.
