Shijiazhuang Huanpai Machine Co.,Ltd is a professional manufacturer of all types of flour milling machine for wheat/maize/corn/grain.
Our factory has more than 30 years of experience in this field. we provide a turnkey project of our machinery, including special design, installation, commissioning and training workers.

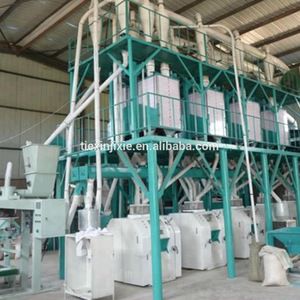

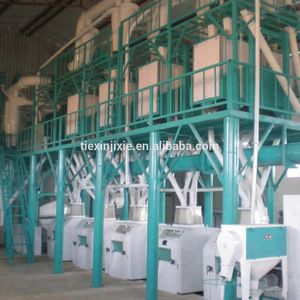

grain roller mill / corn, maize , wheat flour mill processing plant
10ton/day flour mill machine
Production capacity: 10-13 tons of maize/24 hour

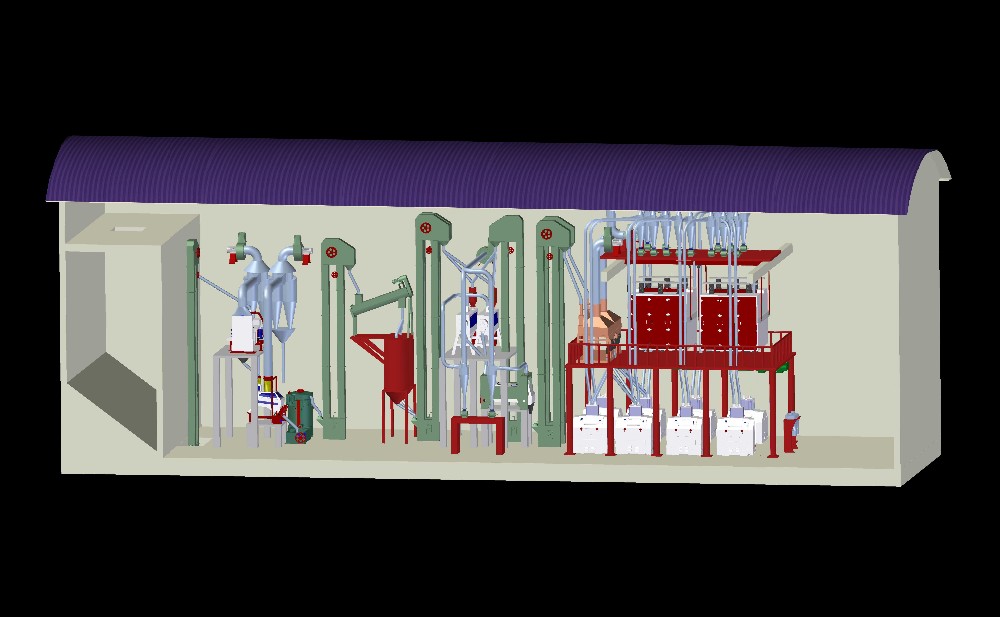

2. Workshop (L×W×H, m): Length 15m, width 7m, height 4.5m under beam.
3. power supply：About 34kW
4. Container: 1×20’
50ton/day flour mill machine
1.Production capacity: 48－53tons maize /24h
2.Workshop (L×W×H): 32×9×7.2m.
3.Power supply: About 155kW.
4.Container ：2 container 40feet
100ton/day flour mill machine
1．Production capacity: 100t/24h
2．Products variety: 1) Maize fine flour ,all 2) Maize germ ;3)Maize bran;4) Fodder flour
3．Production yield
1）fine Maize flour: 50~55%2) Second maize flour 30-32%
3）Maize germ:7－10%4）Maize bran and Fodder flour: 13－18%
4．Workshop (L×W×H): 36×10×10.5m.
5．Power supply: About 265kW.
6．Container40’×4

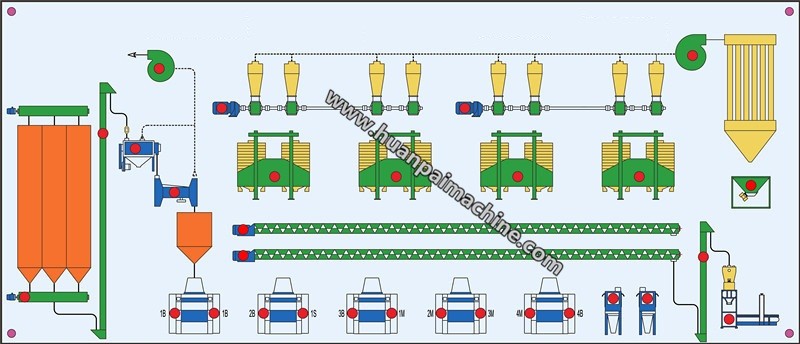

1. The clean part:
To clean out the middle and small impurity from wheat,corn,maize. e.g., dust, stone, magnetic material, wheat,corn,maize was bitten by insect and so on. Includes beating, screening, destoner, magnetic separator and dampening.this section is make the wheat,corn,maize to prepare for millling part and to protect the machinery as well.
2.The flour milling part:
(1) Mill: mill the wheat,maize,corn to break the integrity by the roller moving
(2) Sifter: to separate the flour and bran, also separate large size and small size to enssure flour quality.
3.Packing part
The packing part can be manual one also can be auto one, this can be designed according to requirement and machine capacity.
Main Features
2.Complete function precessiong as cleaning wheat, corn maize, peelling maize, and grinding wheat, corn maize into wheat,maize corn flour and maize corn grits and wheat,maize bran.
3.Clean wheat,corn maize to remove stone, metal, sand and all sorts of impurities.
4.Peel maize to remove maize skin, remove maize germ, remove black maize hilum. After cleaning and peeling, it prepares best maize material for further processing into maize flour or grits.
5.You can choose the mesh to make the flours fine as you requirement.
6. Simple structure in linear type ,easy in installation and maintation.
7. Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.
8. High pressure double crank to control the die opening and closing.
9. Running in a high automatization and intellectualization,no pollution
10. Apply a linker to connect with the air conveyor ,which can directly inline with filling machine .
Main machines

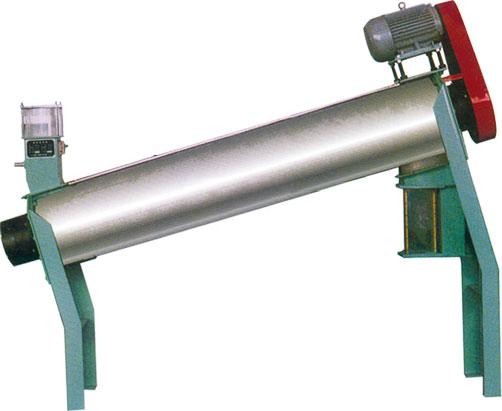

SJH series damper
It is used to wet the grain to improve the toughness of the cortex which can maintain the intact of bran and improve the quality of finished product.
Type：SJH18×120、25×150、32×210、36×230。

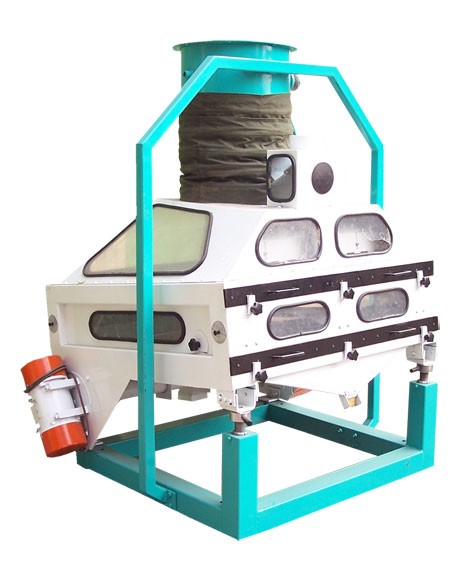

TQSF series suction gravity classifying destoner
Main types：TQSF60、80、100、125
Suction stoner is designed specially for removing same size stones in the wheat, rice and other grains. It holds the good effect of stone removing and no dust escaping.
TQLZ series high efficiency vibrator
Main types：TQLZ60×100、80×100、100×100、100×150、100×200、125×200
It is used in screening,cleaning and classifying for granule material of grain processing plant.It can remove the big,small and light impurities.It is simple structure,smoothness of operation,small size,light weight,low noise,low power consumption,cleaning effect is perfect.

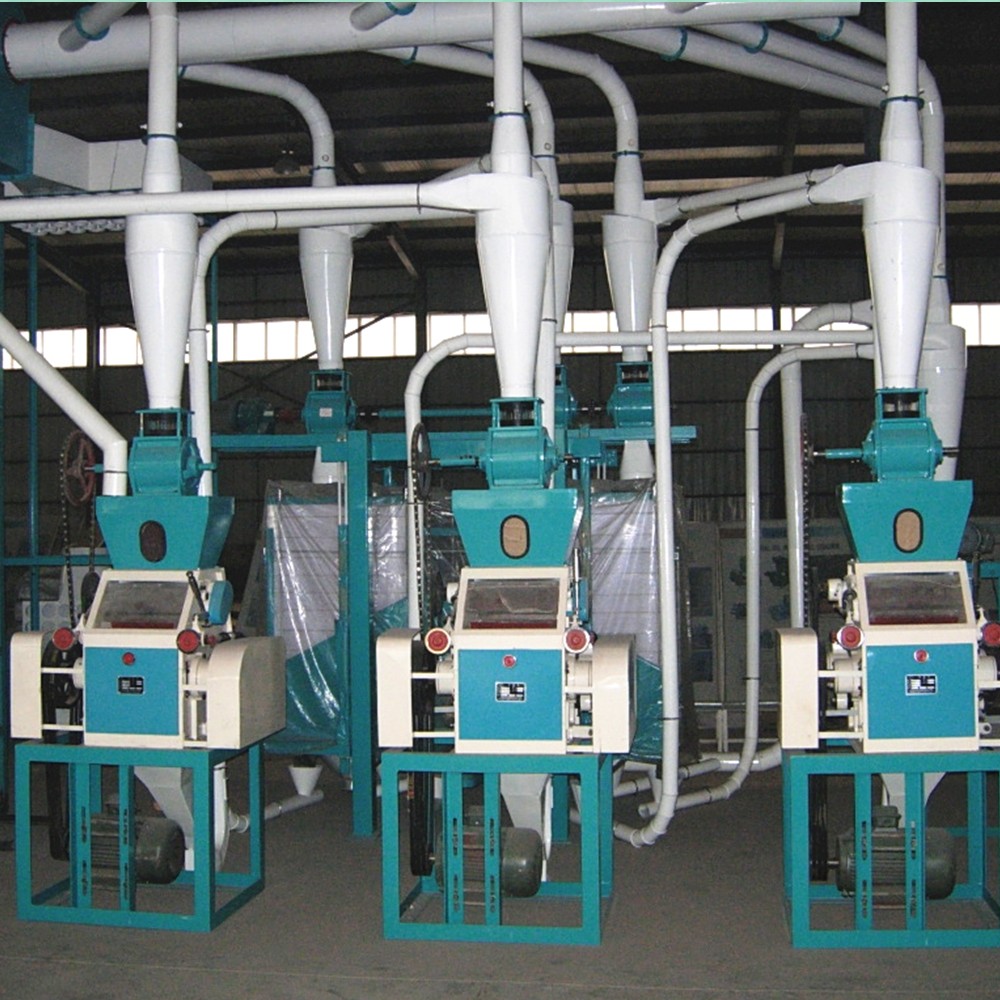

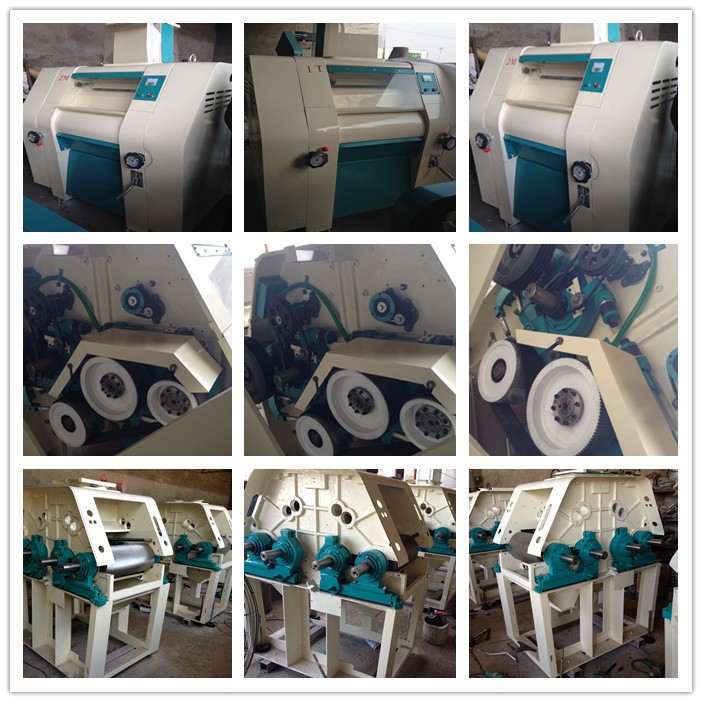

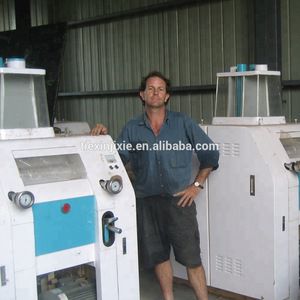

FMFQ25×(60、80、100) Pneumatic control mills
It is equipped with denti-wedge belt drive of slow and quick rollers and fed by pneumatic clutch control which is suitable for large and middle flour mills.
Characters:
Highly structured,modern design,easy operation,high efficiency,long life.
Cast iron foundation,smoothness of operation.
Feeding system drive seperately if you click it, dirigibility,make sure feeding first,milling later.
Roller is horizontal,mill is self-maintaining,operation is relatbility,the effect of grinding is fine.

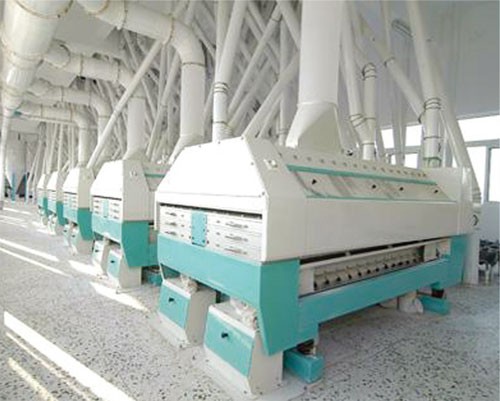

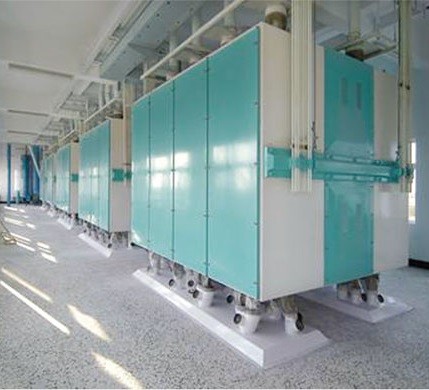

Name:FSFG series plansifter
Mian types：FSFG4×16、4×22、6×22、6×24
It is the efficient level revolving plansifter.It is composed of flour or six or eitght isolate storehouse.It can adapt to classify material under the mill of every screen according to the requirements of flour mill.The effect of screening is fine, operation is reliability, operating maintenance is convenient, low power consumption,high efficiency.It is the main plansifter for large and middle grain processing plant.
FQFD series purifier
Main types：FQFD49×3×2、49×3×1、60×3×2
It is used for the precise classification of middle material to improve the quality of the finished product.This machine is smoothness of operation,convenient in maintance,low noise,no dust overflow.

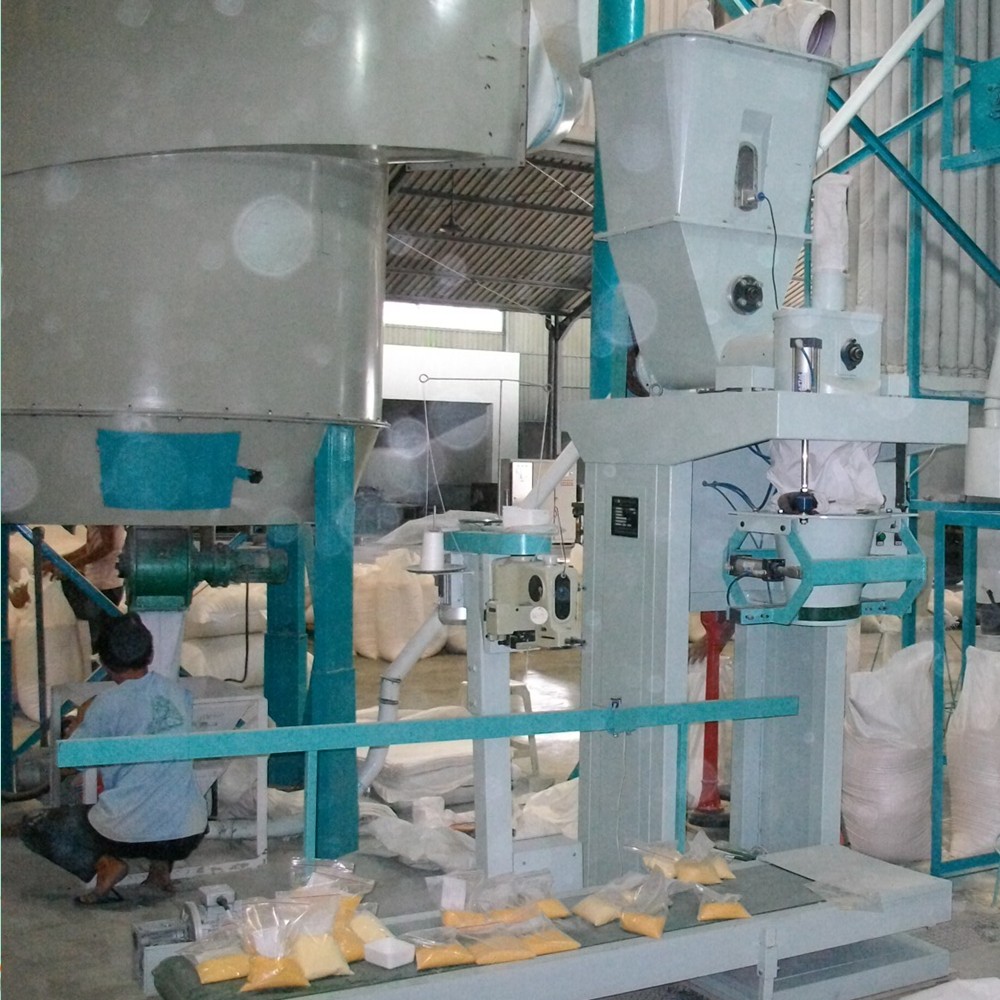

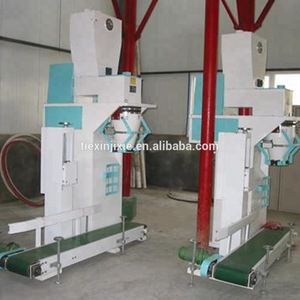

Cumputerized auto packing machine
It is used for the weighing and packing of power ,granule and bran.
Packing and Delivery
The machine will fixed by steel rope inside the container. Make sure it is in good condition when arrived destination.
Our maize flour mill machine can produce different grades of wheat flour according to client's demand. And the final production can be used for Ugali,Nshima, making corn puffs, beer,baby food etc.
Pre-sale service.
* Inquiry and consulting support.
* Special design.
* View our Factory.
Installation services
An experienced engineer will be send to project site to ensure the successful completion of each phase of the plant, which enables us to provide professional consultation, design, manufacture, installation and project management services.
Our products are exported to more than 30 countries in the world. For example: Australian, America, Algeria, Angola, Burkina Faso, Belgium, Canada, Congo, Cameroon, Ghana, Egypt, Philippines, Libya, Zambia, Kenya, Ethiopia, , Yemen, Malawi, Tanzania, Tajikistan, Afghanistan, Vietnam, Israel, Mozambique, South Africa, Sudan, Somalia, Togo, Uganda, Uzbekistan, Tajikistan, Rwanda, Kazajastan and other country.
FAQ
1. Q: Which kind of flour mill can you processed? And what about the capacity
-- A: we can offer wheat flour mill and maize / corn flour mill with the capacity 5T/24H ------1000T
2. Q: what is the basic processing step?
-- A: Full automatic line:Cleaning the raw material--Milling the material into flour--Packing the flour into bags.
3. Q: Which kind of wheat we can use in the processing line?
-- A: Durum wheat, Hard wheat, Soft wheat
4. Q: Which kind final products we can get from the wheat flour mill? And the usage of the products?
-- A: Semolina(very high gluten)--Pasta flour (gluten >13%)---Bread
Plain flour (gluten 9%-12%)--Noodle, Steamed bread Soft flour (gluten<8%)---Cake ,Biscuit
5. Q: Which kind of final products we can get from the maize / corn flour mill?
-- A: maize flour, maize grits (meal), maize germ, bran and animal fodder.
6. Q: Are you manufacturer or trading company?
-- A: We are professional wheat flour milling machine/maize flour mill manufacturer with more than 20years experience. And we have our own factory, welcome you come to China and visit our factory.
7. Q:Never engage in flour industry.Don't understand how to operate the flour milling machine?
--A:Your don't need to worry anything, Our professional Chinese engieer will go to you country to help you install the machinery and train workers.
*Training how to install the machine, training how to use the machine,maintainenance.
* Engineers available to service machinery overseas.Providing professional support for the consultation of engineering technology and technical problem.
8. Q:what is the basic processing step?
--A:Full automatic line，Cleaning the raw material--Grinding the material into flour--Packing the flour into bags.
9.Q: How does your factory do regarding quality control?
--A:Quality is priority. We always attach great importance to quality control from the very beginning to the end of the production. Every product will be fully assembled and carefully tested before it's packed for shipment.
