DESIGN SERVICE OVERVIEW

Project Design Scope

Project Service Scope

PRIMARY PARAMETERS

Condition

New

Place of Origin

Hebei, China (Mainland)

Brand Name

Goldrain

Model Number

6FTF-60

Production Capacity

72-85%

Voltage

380V adjusted

Power(W)

163kw

Weight

44T

Dimension(L*W*H)

32*7.5*7.8m

Certification

ISO9001

Warranty

three years

After-sales Service Provided

Engineers available to service machinery overseas

Name

Installation form

After-sales Service Provided

condition

Design

Raw material

soft/durum wheat

final product

wheat flour, bran

application

bread, cake, biscuit, noodle

advantage

low noise and energy-saving

DETAIL DESCRIPTION

Wheat flour milling plant, grinder mill, wheat flour machine

What We Do?

Our business scopes: flour mill for wheat/maize.
We do the turnkey project: your requirements------we design-------production------inspect the goods------loading & shipping-----installation--------test & training--------after sale services.

Product Description

Raw Material:

Soft or hard wheat → wheat flour → wheat flour in bags

Suit For: noodle, spaghetti, cake, bread, biscuit

Wheat flour milling machine

Material

Capacity

Final Products

Processing Way

Flour Extraction

Wheat

hard/soft wheat

durumwheat

5T/D--1000T/D

fine flour,standard flour,fodder

Cleaning---Milling---Packing

1.grade 1 flour: 78-80%

2.grade 2 flour: 6-10%

3. Fodder flour: 10-15%

This production line includes three sections:

Cleaning section

Remove large, small and magnetic impurities from wheat, condition the wheat in suitable moisture for easy milling.

Main machine in cleaning section:

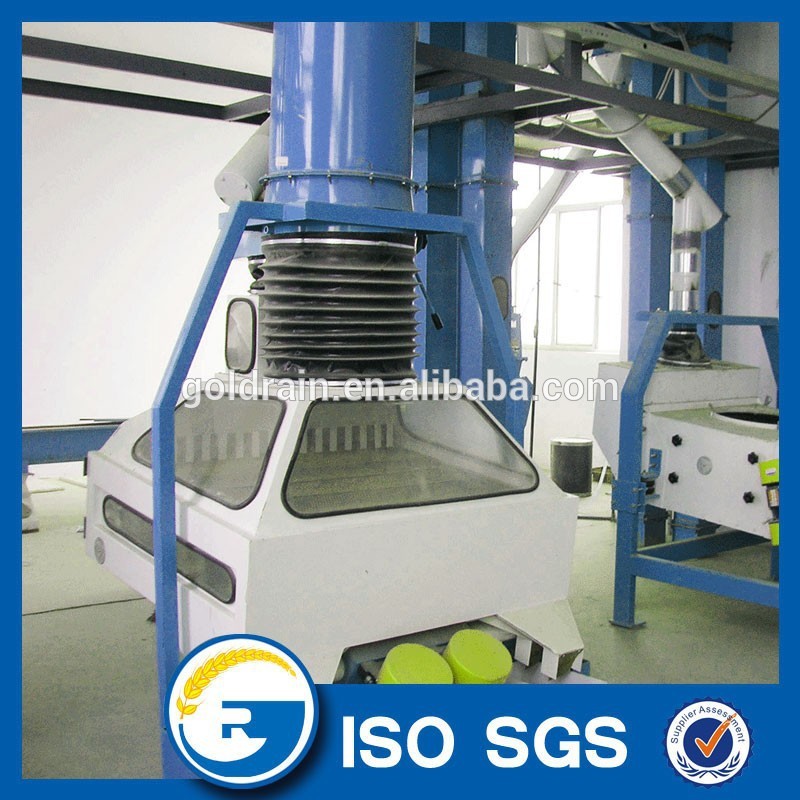

	High-frequency vibrating screens are used to separate feeds containing solid and crushed ores down to approximately 200μm in size, and are applicable to both perfectly wet and dry grain. Working principle: The frequency of the screen is controlled by an electromagnetic vibrator which is mounted beside or directly connected to the screening surface.

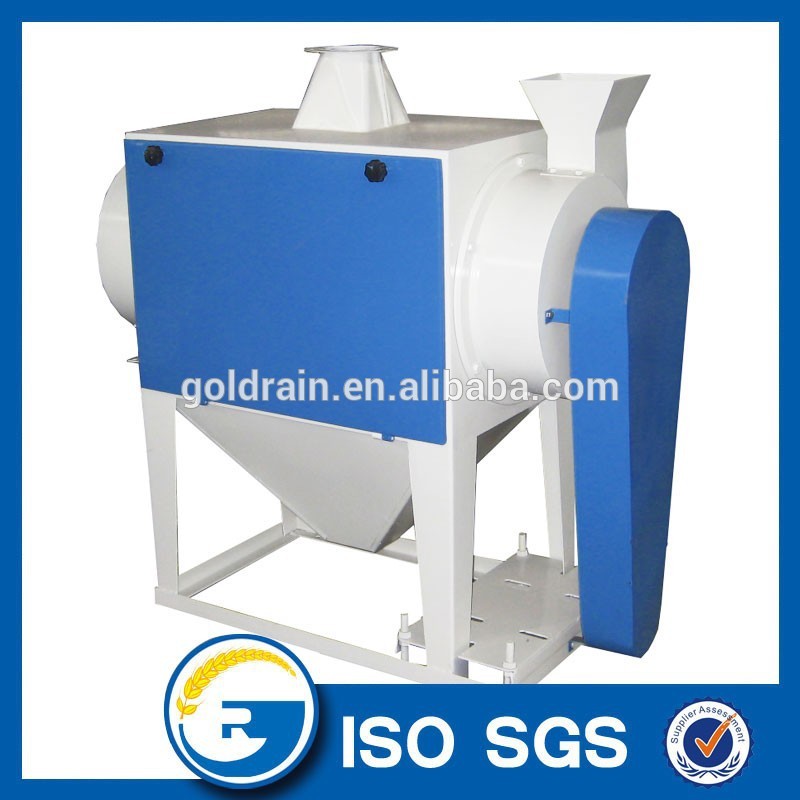

	Scourer eliminates the dust, the arista and beards from the kernels furthermore, it crumbles insects and detaches empty kernels and lumps of mud. Working principle: An intensive friction and rubbing action between the kernels, the cover and the paddle type beaters will reduce the bacterial potential in the flour.

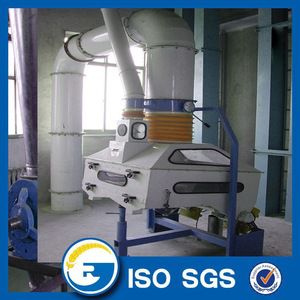

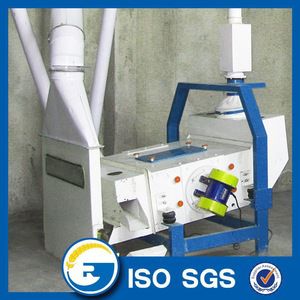

	Destoner is a machine that removes stones and clods from grain material so that they are free from grain. Working principle: They remove stone using a series of webs (2~5 webs). Under the bump function, the grain stay on the web and move down along the web, while the clay move reverse direction and fall into a trench.

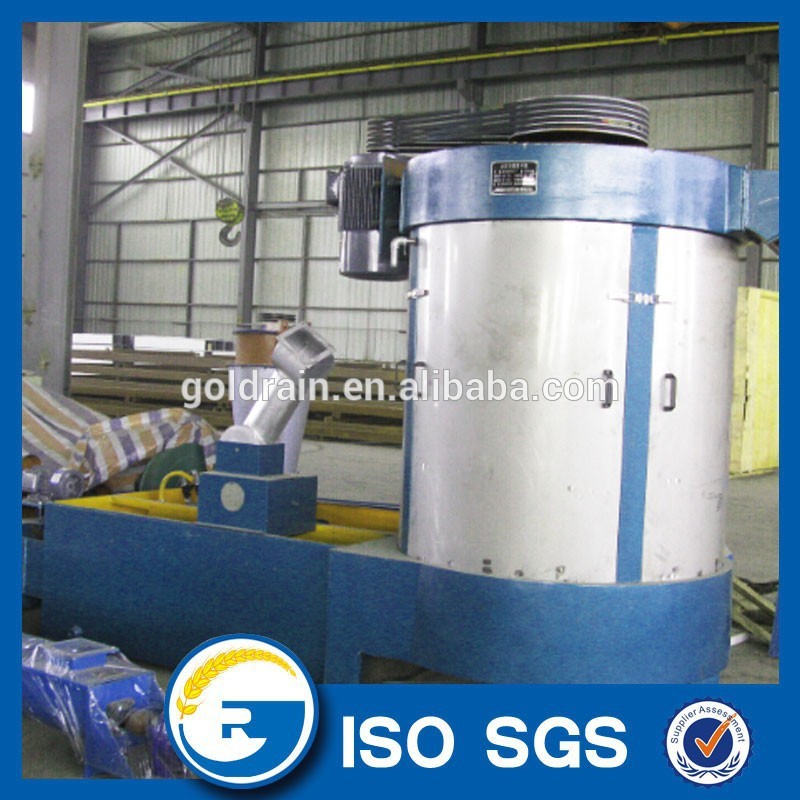

	Washer is an agricultural product processing equipment, particularly to former milling wheat for unprocessed wet washing to remove mildew, heat change, pesticide residues and other wheat smell, wash away dust and wheat belly trench microorganisms, gravel, further reducing the amount of ash and sand, increasing grade cleaning wheat flour whiteness washing machine. Working priciple: According to the wheat washer, through multiple times of washing, mould, the thermal change and pesticide residues can be removed, dust, microorganisms and gravel are effectively cleaned out, flour whiteness is improved, the flour yield is increased

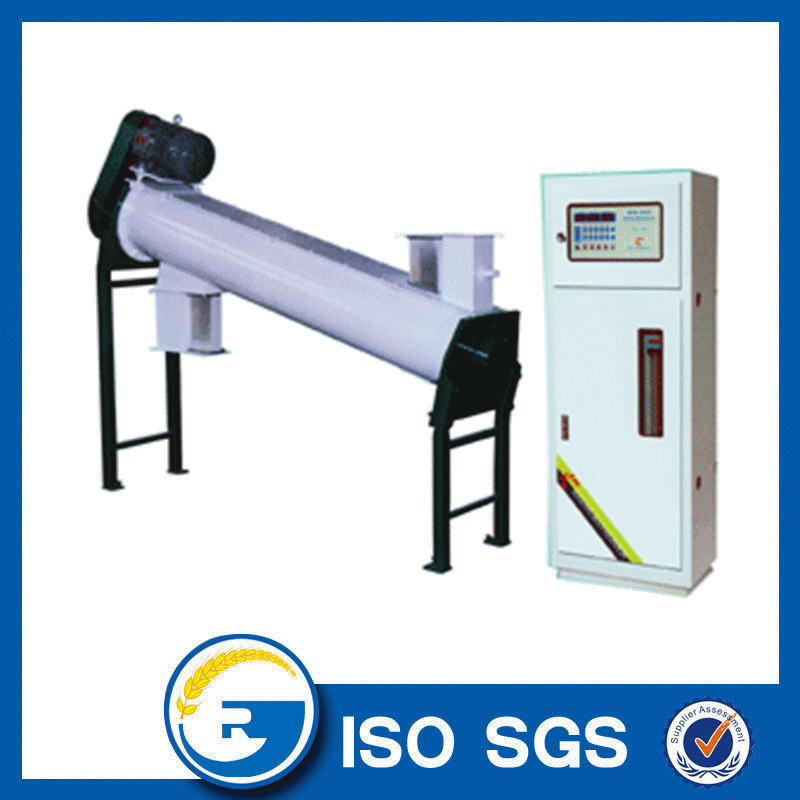

	Dampener: To produce refined (white) wheat flour, grain is usually tempered, i.e. moisture added to the grain, before milling, to optimize milling efficiency. Working priciple: It softens the starchy "endosperm" portion of the wheat kernel, the addition of moisture also toughens the bran and ultimately reduces the energy input required to shatter the kernel, while at the same time avoiding the shattering of bran and germ particles to be separated out in this milling process by sieving or sifting.

Milling section

Separate wheat bran and endosperm, mill wheat endosperm into wheat flour.

Main machine in milling section:

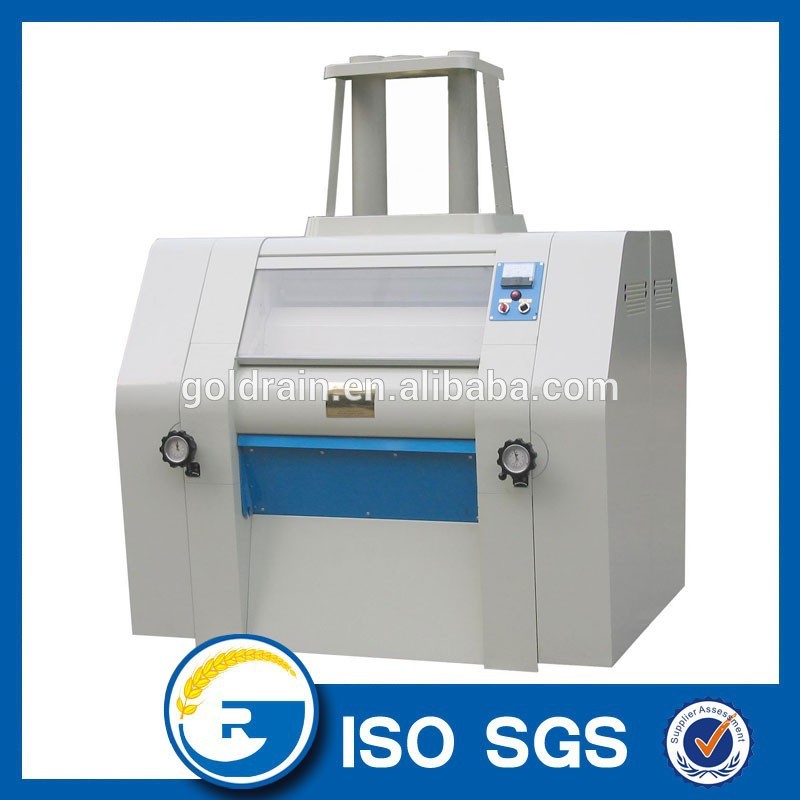

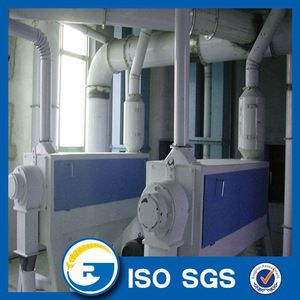

	Mill: A mill is a device that breaks solid materials into smaller pieces by grinding, crushing, or cutting. Such comminution is an important unit operation in many processes.

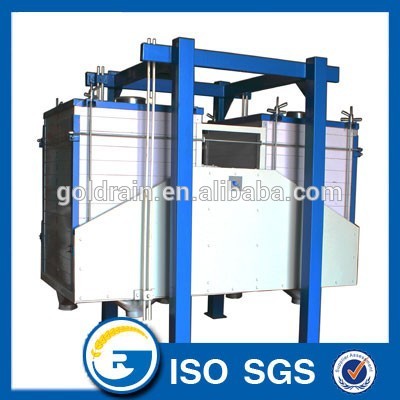

	Double Bin Sifter is a milling machine that offers many advantages for sifting processes at high capacities. It provides large sifting area in very limited space. The maximum sifting area can be obtained by using different types of boxes. It is used to sift the broken and floury products and classify different kinds of grains.

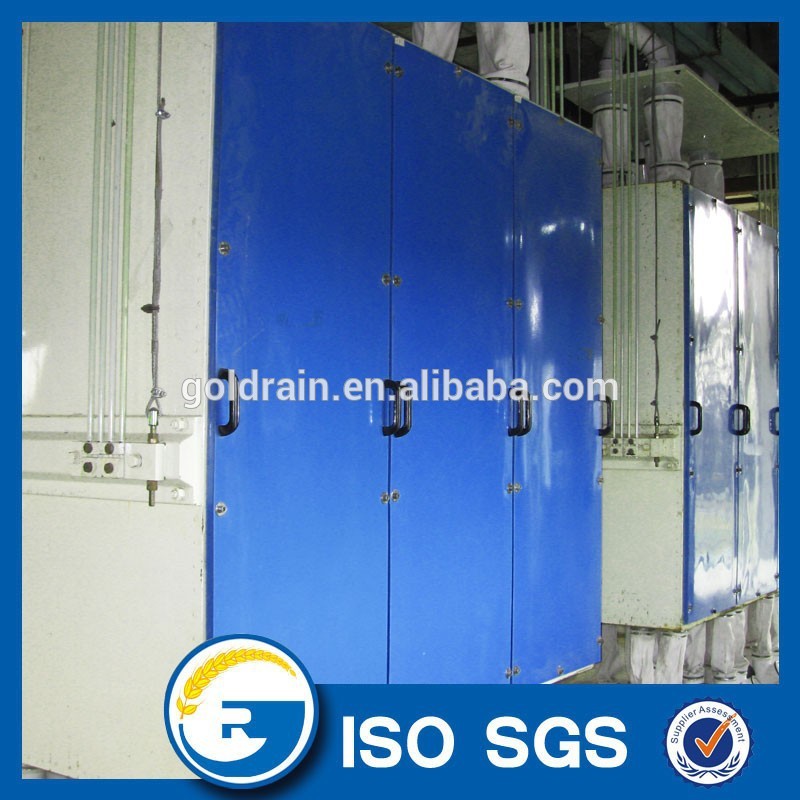

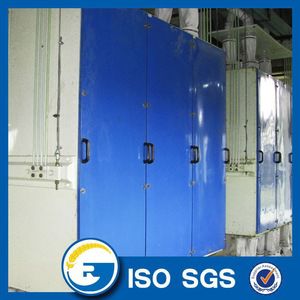

	High plansifter: Corn and grains are processed into grits or flour and the mixing material with big and small granules can be screened by the high square plansifter. The multilayer sieve surface constitutes certain sieve road, so the square plansifter can screen big, medium and small grits and separate grain flour. It can also screen other grain material.

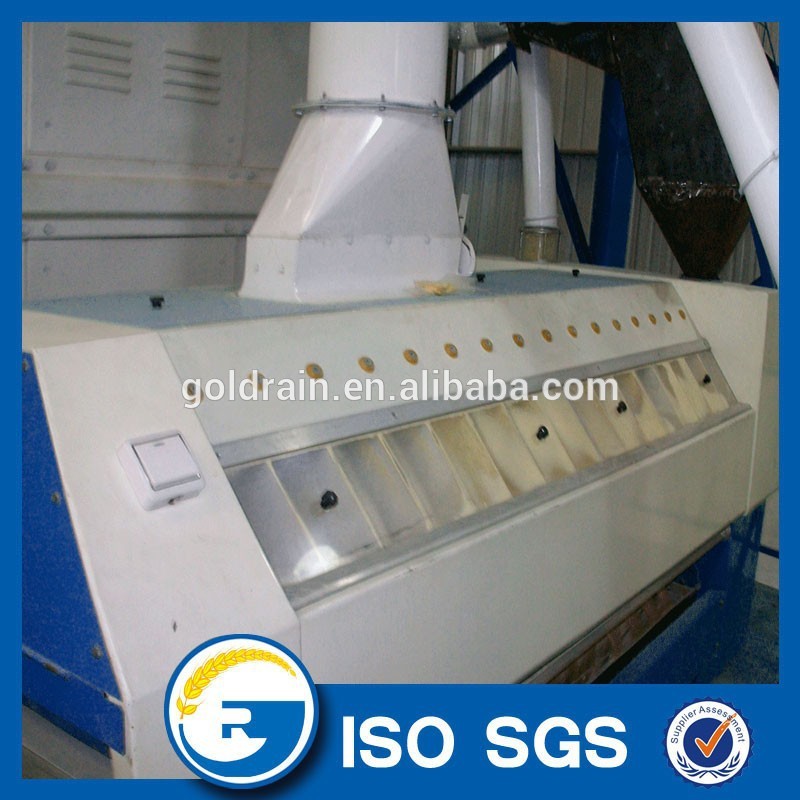

	Purifier: the machine is applied in the purification and grading of semolina and fine semolina in common wheat, durum wheat and corn (maize) mills.
	Bran brusher: the machine classifies different sizes of material and removes adhering flour particles from the bran, thus increasing flour yield at the mill.

Packing section

Pack the wheat flour into bags by manual or automatic packing machine.

Main machine in packing section:

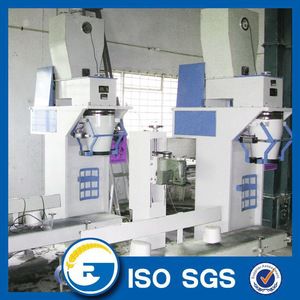

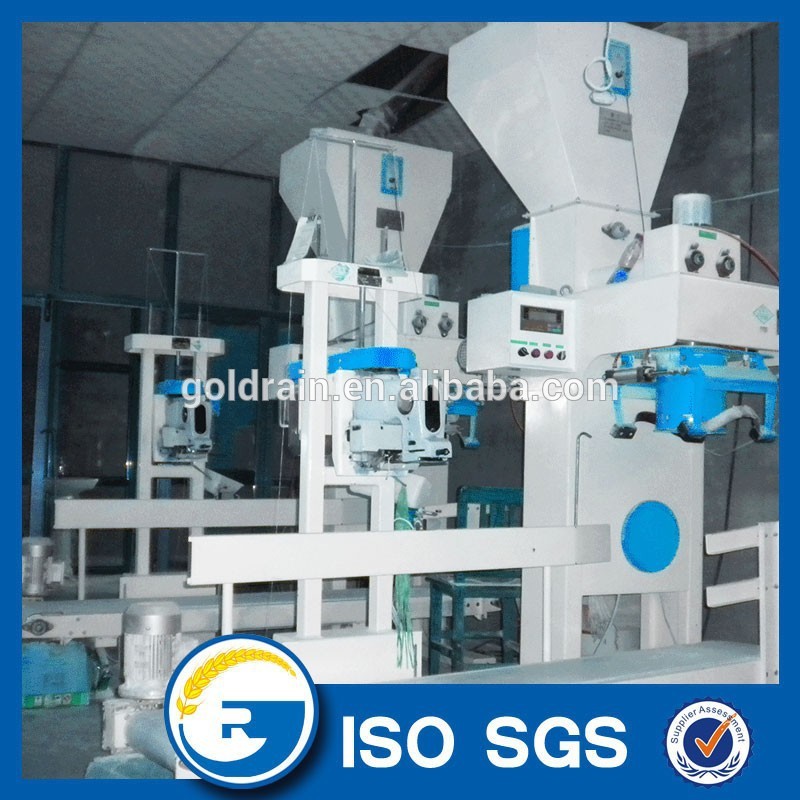

Auto-packing machine: pack the flour or other products into bags of different size. After packing well, the bags will be stacked in order and ready for selling or using. Manual packing and auto-packing method will be available according to customers requirements.
