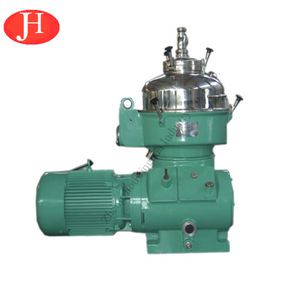

Good performance disc stack centrifuge separates for corn starch line

The machine can also be applicable to the pharmaceutical, chemical and food industries for producing of material sources which are adapted to the functions of this machine.

Technical Feature

  • Jinghua
  • DPF530
  • Customized
  • disc stack centrifuge separates
  • 1550kg
  • 1430*1174*1544mm
Send Project Inquiry Add Inquiry List

0 Add Favorite

DESIGN SERVICE OVERVIEW

Project Design Scope

Project Service Scope

PRIMARY PARAMETERS

Brand Name
Jinghua
Model Number
DPF530
Voltage
Customized
Power(W)
disc stack centrifuge separates
Weight
1550kg
Dimension(L*W*H)
1430*1174*1544mm
Certification
ISO9001
Warranty
12 Months
After-sales Service Provided
Engineers available to service machinery overseas
Installation
6-8 months
Process
corn wet milling
Raw material
corn/maize/soybean
Material
Stainless Steel
Throughput Capacity
45000 L/h
Nozzle
10
Maintenance
Simple and easy to maintain
Project
Turn key project
Spare parts supply
For whole using life
Name
Good performance disc stack centrifuge separates for corn starch line

DETAIL DESCRIPTION

Good performance disc stack centrifuge separates for corn starch line

Product Description

Applications:
1.Gluten concentration in corn starch line
2.Starch and gluten separation in corn starch line
3.A and B-starch separation in wheat starch line
4.B-starch concentration in wheat starch line
5.Starch concentration in wheat, potato and cassava starch line
6.The machine can also be applicable to the pharmaceutical, chemical and food industries for producing of material sources which are adapted to the functions of this machine.

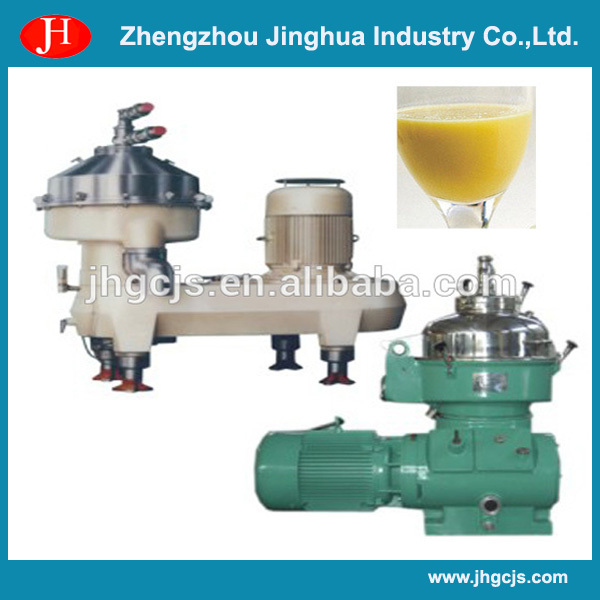

Product show

Main parameters

Main parameter

DPF445

DPF530

DPF550

Bowl Inner Diameter

445 mm

530 mm

550 mm

Disc Number

73

80

110

Bowl Rotating Speed

5100 rpm

4650 rpm

4500 rpm

Separating Factor

6480

6400

6230

Disc: Diameter

310 mm



429 mm

Throughput Capacity

35000~40000 L/h

45000 L/h

75000 L/h

Starting Time

≈2 min

≈ min

≈4 min

Motor Power
Nominal Speed

37 Kw
1470 rpm

37 Kw
 rpm

55 Kw
2920 rpm

Nozzle

10

10

12

Overall Dimension (L×W×H) mm

1503×1129×1516

1430×1174×1544

2044×1320×1954

Weight (kg)

1100

1550

2100

Main parameter

DPF500

DPF800

DPF1000

Bowl Inner Diameter

470 mm

810 mm

1000 mm

Bowl Rotating Speed

5100 rpm

3000 rpm

2700 rpm

Nozzle

10

20

30

Separating Factor

6900

4950

4150

Throughput Capacity

50000 L/h

130000 L/h

240000 L/h

Motor Power

37 Kw

110 Kw

250 Kw

Overall Dimension (L×W×H) mm

2013×786×1714

2808×1575×2319

3950×2050×3050

Weight

1900kg

6550kg

1000kg

Company Information

Zhengzhou Jinghua Industry Co.,Ltd. is a specialized starch engineering technology company that is engaged in a variety of starch engineering design , equipment manufacture ,engineering installation and commissioning  , technical staff  training and so on .

 Depending on the unique advantage and strong strength of Henan University of Technology, ZZJH produces machine making all kinds of starch . Such as potato starch making machine , sweet potato starch machine , cassava starch machine , garri machine , corn starch machine .

Certifications

Our services

Pre-sale service

1. Introducing detail features and application of the products to customer.

2. Selecting economical and practical machines for customer.

3. Providing operation data of the related machine.

4. Providing means of trial performance for customer.

5. Flow chart and factory designing layout .

Sale service

1. Recommending engineering conditions required for installation of the machine.

2. Communicating the manufacturing progress of machines with customer in time.

3. Project planning and design services;

After-sale service

1. Training of equipment maintenance and operating personally.

2.Installation and commissioning of equipment until everything is functional.

3. One year warranty and Providing long-term maintenance service and spare parts.

4. Giving technical support to customer for developing new product.

5. Engineers available to service machinery overseas.

6. Provide English Version of Installation/Operation/Service/Maintenance Manual.

Our customers


Packaging & Shipping

Packing : wooden cases/ customized
Delivery :25days after receiving pre-payment (on time according to contract strictly  )

FAQ

Q1: Is your company a factory or trading company?

A: Our company is a factory in Henan Province ,with export license

and we have done export business over 20 years professionally.

Q2.What is your main business?

A: ZZJH is devoted to starch processing machine. The machine of starch processing line , such as : cassava starch line , cassava flour line , potato starch line , sweet potato line , wheat starch ,sago line and garri line

Q3:Where is your factory located? How can I visit there?

A: Our add: Zhengyun Road and Guanggu Road intersection , Guangwu Town , Zhengzhou City , Henan Province , China.

Warmly welcome to visit us!

Q4: Are your products can be assured ?

A: Our machines are all passed ISO9001:2001 and have CE certificate by SGS, TUV.

Q5: If we show you our layout of factory, can you help us to design the whole process line?

A : Yes, our experienced engineers and technical employees can help you to arrange the layout and installation of whole process line based on your real situation;

Q6: If we have samples of new products, can you help us to analysis and design the machine?

A: Yes, Our technical department can help you to analysis, design and test the new products you offered.
