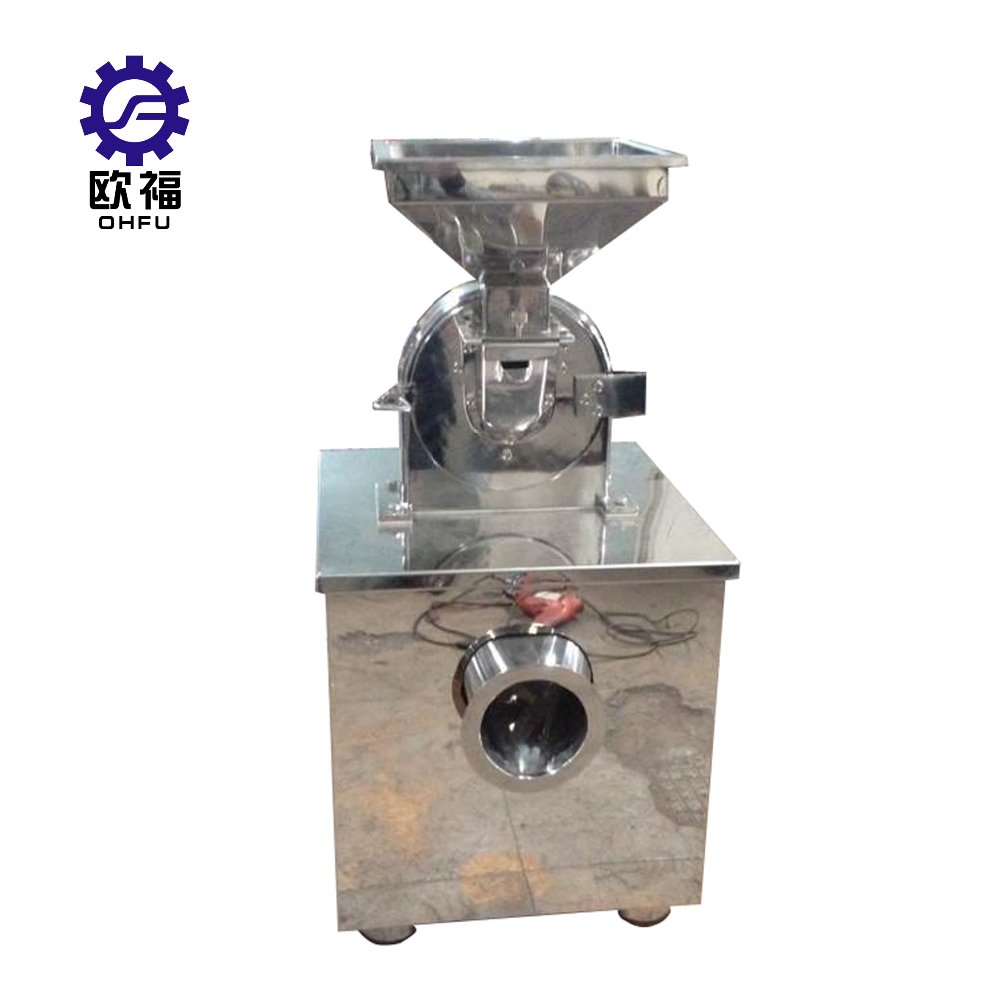

Automatic maize flour milling wheat flour milling machines with price wet grinder for sale
Main application:

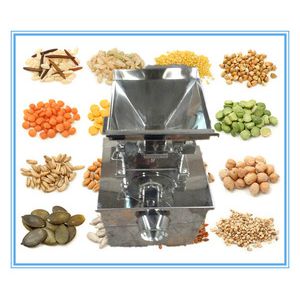

The machine is suitable for material crushing in pharmaceutical, chemical and food
industries
Working principle:

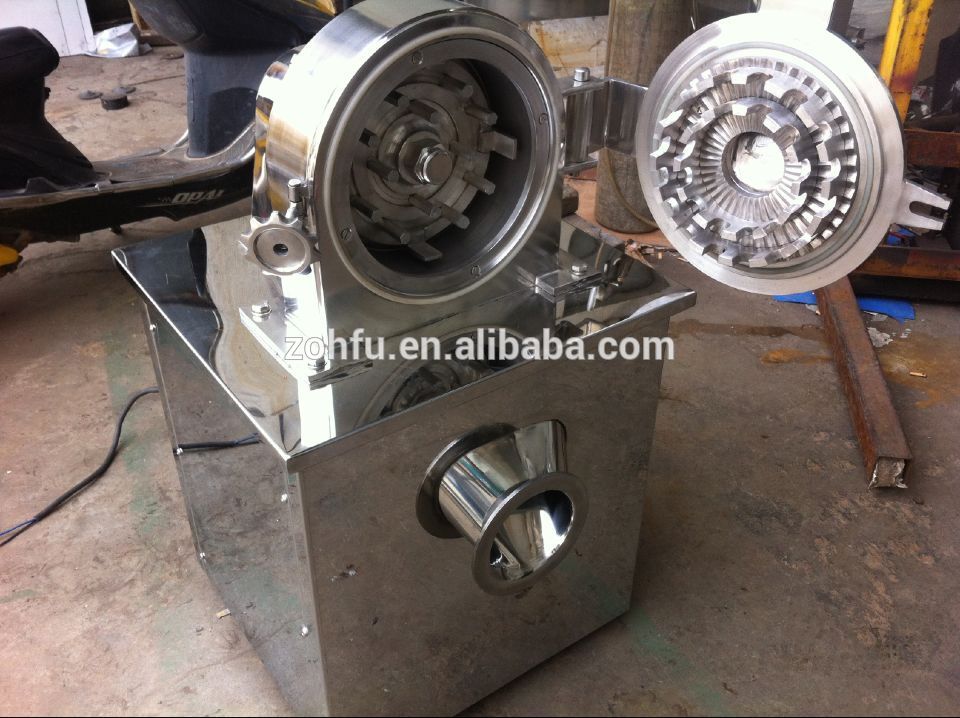

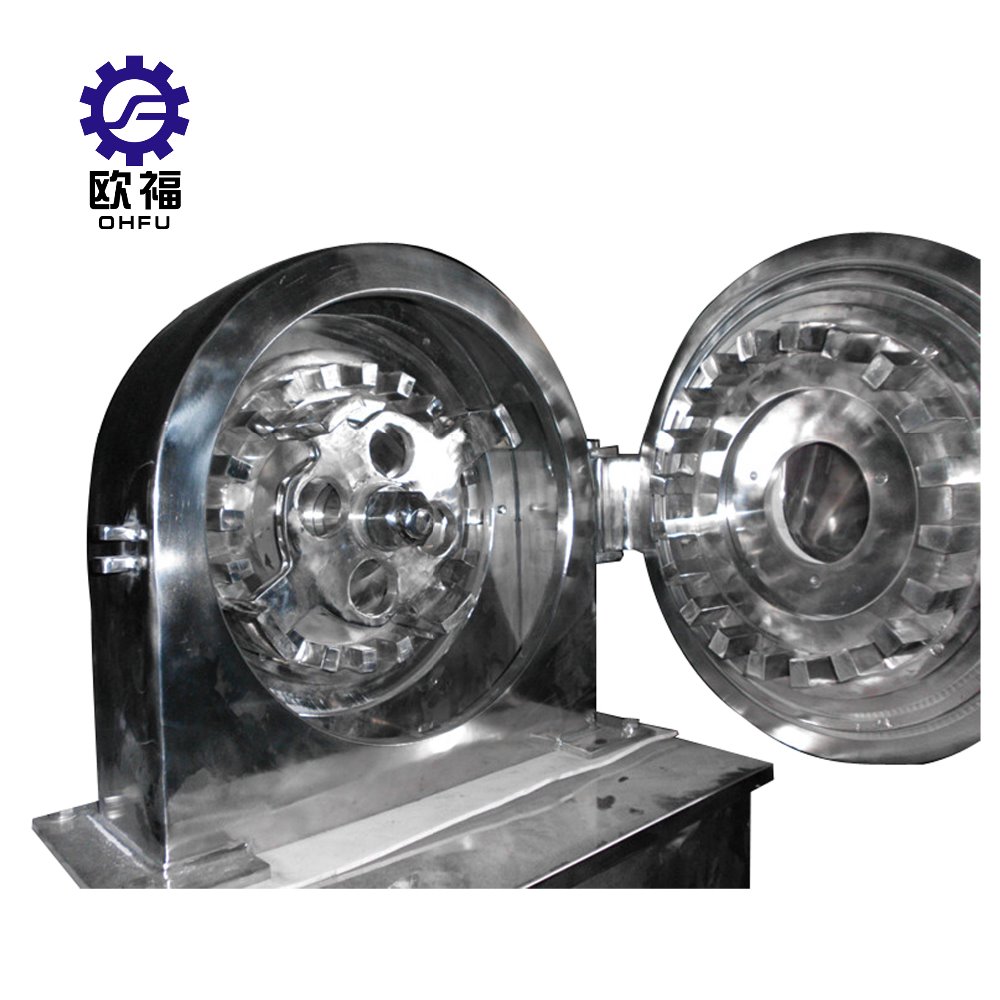

This machine use the tooth plate and fixed means of relative motion, make shattered by the impact, friction and comprehensive function such as the impact among the materials themselves are crushed. This machine of simple structure, strong, stable operation, crushing effect is good, crushed material can directly by the host grinding cavity vent, the particle size can be obtained by changing sieve different aperture. Casing wall all the machined surface smooth, changed the former type wall roughness, the phenomenon of accumulated powder, medicines, food, chemical and other production full of "GMP" standard requires all machine made of stainless steel material, 30 and 40 type of crushing chamber can match water cooling jacket, and has reached the international advanced level.
Technical parameters:
Model | 20type | 30type | 40type |
capacity(kg/h) | 20-150 | 30-300 | 40-800 |
Revolving Speed (r/min) | 5800 | 4500 | 3800 |
Maximum Grain Size(mm) | <6 | <10 | <12 |
Grinding Fineness | 12-120 mesh | 12-120mesh | 12-120mesh |
power(kw) | 3 | 5.5 | 11 |
weight(kg) | 200 | 320 | 550 |
size(mm) | 550*600*1250 | 500*700*1450 | 800*900*1550 |
